- Page 1 EFOY Pro Hybrid Solution User Manual – EFOY ProEnergyBox 4060P sfc-energy.ca...
- Page 2 EFOY Pro Hybrid Solution User Manual ! Warning ! Protect Your EFOY Fuel Cell from Freezing To avoid complications or potential damage, while doing preliminary work and setting up please ensure any EFOY fuel cells are kept in a your EFOY system in cold temperatures, please ensure any EFOY fuel cells are kept in a warm environment such as a vehicle or building until they are ready to be installed.
-
Page 3: Table Of Contents
EFOY Pro Hybrid Solution User Manual Table of Contents Installation & Commissioning Checklist ________________ 1 Visual Step by Step Set-Up Guide______________________ 5 Solar Array Set-Up _______________________________ 11 Assigning an IP Address ___________________________ 13 Transport Mode __________________________________ 15 Recommended System Settings _____________________ 16 Fuel Cartridge Replacement ________________________ 17 Do’s and Don’ts _________________________________ 18 Resources ____________________________________________18... -
Page 4: Installation & Commissioning Checklist
EFOY Pro Hybrid Solution User Manual Installation & Commissioning Checklist Customer/End User Site Location Site ID Installed By: Company Name Installed By: Technician Name Installation Date EFOY Panel Serial # EFOY Fuel Cell Serial # Fuel Manager Serial # Fuel Manager Type (FM2, FM4 or FM8) Fuel Cartridge Type (M10, or M28) Fuel Cartridge Quantity EFOY Enclosure Check... - Page 5 User Manual Installation & Commissioning Checklist Value EFOY System: Found using the Operating Panel (display) *Do not adjust these settings without first consulting the SFC Energy Service Team* EFOY Firmware Version Switch-On Voltage Setting Switch-Off Voltage Setting Absorption Time Setting...
- Page 6 EFOY Pro Hybrid Solution User Manual Installation & Commissioning Checklist Solar Charge Controller Complete / Value Yes □ No □ Solar Controller Programmed with proper settings DIP Switch Settings High Voltage Disconnect Setting Low Voltage Disconnect Setting Absorption Time Setting System Documentation Complete Yes □...
- Page 7 Signature Date Signature Submission Upon successful completion of system commissioning please submit this signed and completed form to the SFC Energy Service department at service-support@sfc.com for record keeping. If you require assistance, please contact the SFC Energy Canada Service Department at...
-
Page 8: Visual Step By Step Set-Up Guide
EFOY Pro Hybrid Solution User Manual System Start-up Instructions Verify PV array wiring configuration is correct according to Check PV array for proper voltage and Polarity. the specific site design. (An example diagram is included in the drawing package). Examine the Fuel Manager in the middle of the enclosure Verify all field wiring according to drawing package and turn and ensure it is secured on the mounting bracket. - Page 9 EFOY Pro Hybrid Solution User Manual System Start-up Instructions Place the M28 methanol fuel cartridges into the ProEnergyBox. 5. In the front left open space, lower the batteries into place. Connect the batteries as per the designated system voltage using the cables provided. Connect the EFOY fuel cartridge connector to the top of the 7.
- Page 10 EFOY Pro Hybrid Solution User Manual System Start-up Instructions Connect the Power and Communication cables to the EFOY Connect the fuel manager hoses to the cartridges (or M28 Fuel Cell. They can be found hanging loose near the EFOY adapters, if required) hand tight (avoid overtightening as this mounting platform.
- Page 11 EFOY Pro Hybrid Solution User Manual System Start-up Instructions Switch ON the breakers for the EFOY, and the Batteries Attach the Off-Heat Elbow Vent to the EFOY warm air exhaust which are both clearly labelled. There are two breakers for port at a 45 degree angle, pointed down, towards the exhaust the EFOY, one for the charging line and the other for the hose and batteries.
- Page 12 EFOY Pro Hybrid Solution User Manual System Start-up Instructions Visual Step by Step Guide 15b. The unit will be in Transportation Mode when you first unbox it. This will need to be deactivated before use by following the steps below. Select Transport Lock Stand Confirm Deactivation...
- Page 13 EFOY Pro Hybrid Solution User Manual System Start-up Instructions Inside the EFOY is a mixing tank containing a methanol and water mixture which is used in the chemical reaction to create power. Over long periods of time if the EFOY isn’t operating, the water can evaporate.
-
Page 14: Solar Array Setup
Accounting for Solar Components If your order included a solar package from SFC Energy, there are several items to account for. Solar Panels, pairs of PV cables, a Panel Mounting System, a Solar Combiner box with Disconnect, Breakers, a GFCI breaker, and a Lightening Arrestor are all items we often provide. - Page 15 EFOY Pro Hybrid Solution User Manual Solar Array Setup Guidelines and Example Typical 24VDC Combiner Box Wiring Note: 4 Panel Example Shown Above Scenarios of 1 and 3 solar panels are connected in parallel only (equal number of panels and breakers) Scenarios of sets of 2 panels are always connected in series-parallel (pairs of panels connected together, terminated on 1 breaker).
-
Page 16: Assigning An Ip Address
EFOY Pro Hybrid Solution User Manual EFOY IP Address Assignment Assigning an IP Address to an EFOY Pro Fuel Cell In some communication scenarios, you may wish to manually assign an EFOY a specific IP Address. Please see the following steps for doing so. On the EFOY Operating Panel (LED touchscreen) select the icon with 3 lines in the top left corner to access the Menu, and then click on ‘Settings’. - Page 17 EFOY Pro Hybrid Solution User Manual EFOY IP Address Assignment From here, you can see the DHCP client setting. To be able to manually input an IP Address, this switch needs to be set to the off position, as seen here. Then, you can select ‘IP address’...
-
Page 18: Transport Mode

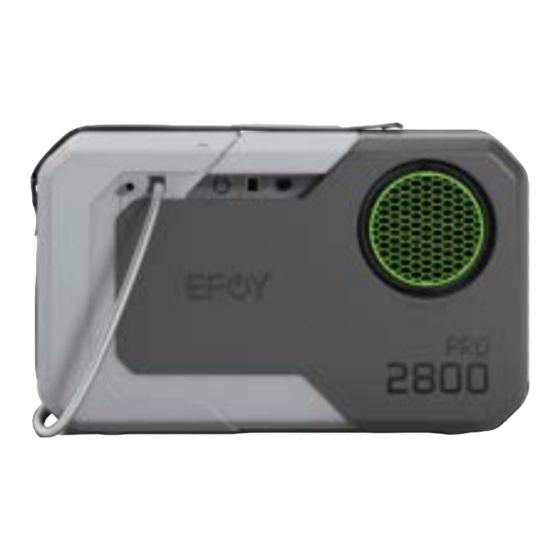

EFOY Pro Hybrid Solution User Manual EFOY Transport Mode The EFOY Pro 2800 has a protective mode we can enable if its to either be transported or stored for long periods of time. Activate Transport Mode by following the below steps. This may take a few minutes, depending on the state of your EFOY. Find more information on efoy-pro.com sfc-energy.ca... -
Page 19: Recommended System Settings
Recommended System Settings It’s important to remember that set points will be pre-set with our recommended system settings by the team at SFC Energy. While these settings are adjustable, before modifying any on your own we advise having a discussion with an SFC Energy Service Team member about what you’d like to change and why. -
Page 20: Fuel Cartridge Replacement
EFOY Pro Hybrid Solution User Manual Fuel Cartridge Replacement EFOY Fuel Cartridge Replacement Process Please review the following basic steps to ensure your fuel cartridges are replaced and reconnected correctly. Disconnect the empty cartridge and remove it. Place the new cartridge in position and reconnect the fuel hose connector hand tight – avoid overtightening as this can cause connection issues. -
Page 21: Do's And Don'ts
EFOY Pro Hybrid Solution User Manual Do’s and Don’ts Do’s Set a partially full fuel cartridge as the active cartridge when refuelling. Ensure fuel cartridges are connected hand tight only. Avoid overtightening as this can lead to issues. Install the Off Heat Elbow to the EFOY warm air exhaust to direct warm air away from the thermostats. Maintain proper spacing around the EFOY for airflow.
