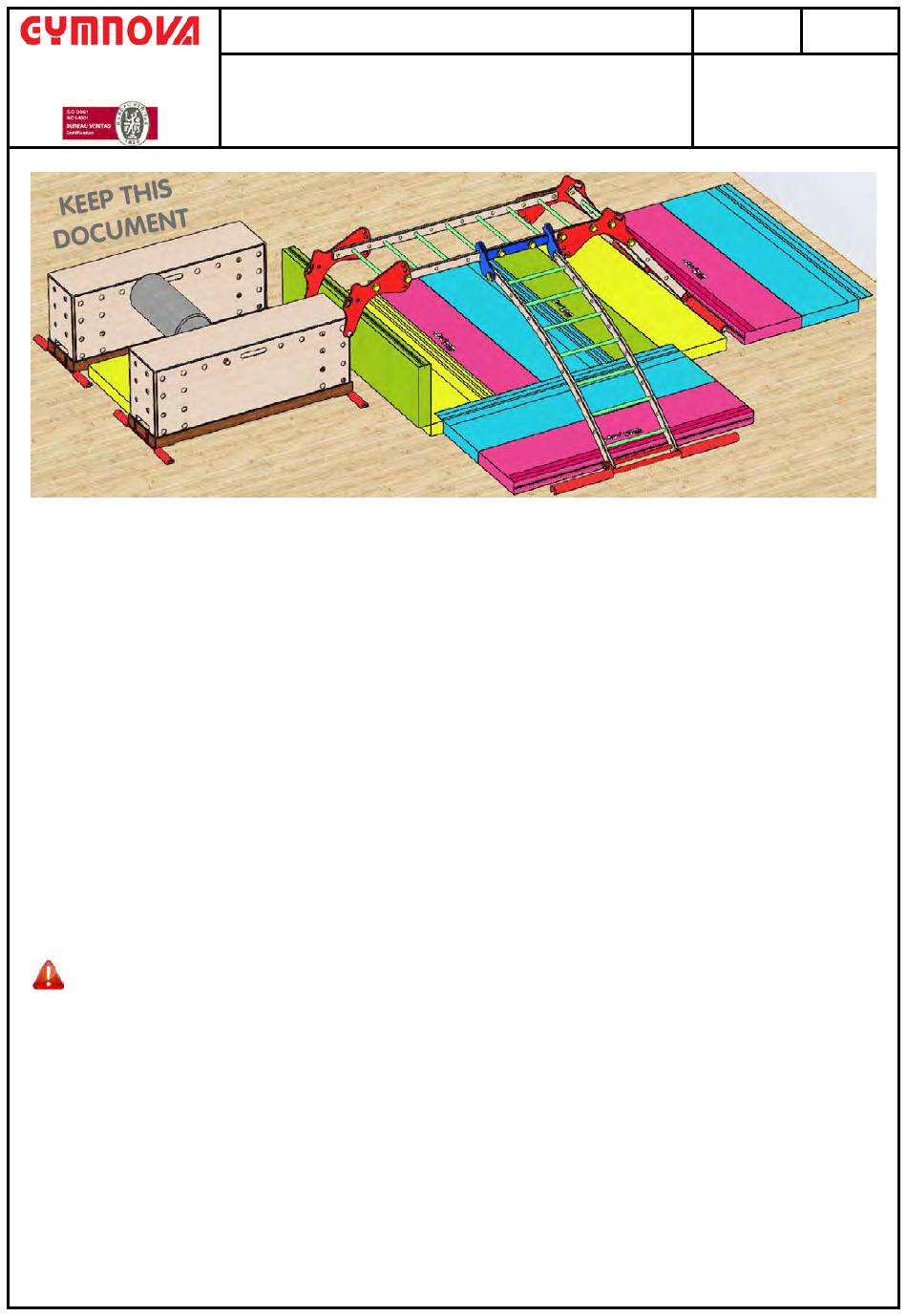

Gymnova Educ'Gym 0115B Assembly Instructions Manual

CS 30056 - 45 RUE G. DE FLOTTE
13375 MARSEILLE CEDEX 12 (F )
RAnCE
TEL : 33.(0).4.91.87.51.20 FAX : 33.(0).4.91.93.86.89
. .
www GyMnOvA COM
Warning:
This equipment should be installed by a qualified person. This equipment must be used by a limited number of people at a time, to maintain
stability necessary for safety, and under the supervision of a qualified person.
The use of this equipment for purposes other than those originally intended is excluded.
Compliance:
The elements of the wood range meet the safety requirements of NF S 54-300.
To ensure that their assembly and use also meet these requirements, it is imperative to respect the general rules (see § III) established for
each type of assembly:
- Installation of linear ladder structures made thanks to the mounting pieces Ref.: 0118A.
Addition of lateral structures of ladders realized thanks to the side connecting part Ref.: 0115B.
-
- Addition of links between bases using the learning roller Ref.: 0250B.
- Realization of mixed structures between educ'gym ladders and bases thanks to the joining Kit Ref.: 0116.
And to systematically use ladder stabiliser (14) and bases one (48), with their protective sleeves (51) and (52).
Recommendations:
- Keep these instructions for subsequent reference (inspection, maintenance, etc.).
- Periodically carry out predictive maintenance.
- Depending on how much it is used have the equipment serviced yearly or every few years.
I. General maintenance:
i :
MPortaNt
Regular cleaning of the wooden structures makes it easier to spot any problems (distortion, breakage or moisture absorption).
Before each use, make a through check on good condition and correct operation of wear parts and safety elements:
- Check the presence of the ladder stabilisers (14) and the base stabilisers (48), of the elements installed on the ground.
As well as their protective sleeves (51) and (52), and constituent mats the reception areas.
Check for the presence and condition of pads (16) and end tips (18) of ladder stabilisers (14); pads and end tips of base stabilisers
-
(48); and pins (24) and end tips (18) of learning rollers (20).
- Check the locking of the linch pins (24).
Check the condition and complete tightening of the plastic knobs (9), and plastic nuts (10), soft metal thumbscrew (5), and all
-
components of educ'gym structures.
- Check the complete tightening of all connections: linear (7), lateral (11), between bases and ladders (1).
- If a problem is detected or suspected, do not use the equipment as long as it has not been checked by a technician.
- Any damaged or distorted component should be replaced as quickly as possible.
II. Storage:
Store equipment in a clean, dry place, away from moisture and heat. Do not store anything heavy, salient or otherwise on the base tops (49)
and (50), nor on the educ'gym mats. Disassemble the protective sleeves (51) and (52) from the stabilisers before storage.
Constantly aiming to improve our products, we reserve the right to make changes to the equipment and dimensions without further discussion.
a i
sseMbly NstructioNs for
a
sseMbly Parts of the
e 'g W
duc yM
M
aiNteNaNce
s
tructures
r
oodeN aNge
15/02/22
NM303-gb
0115B - 0116 -
0118A - 0250B
