Wazer Pro User Manual

Water jet cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Original Instructions - V1.3

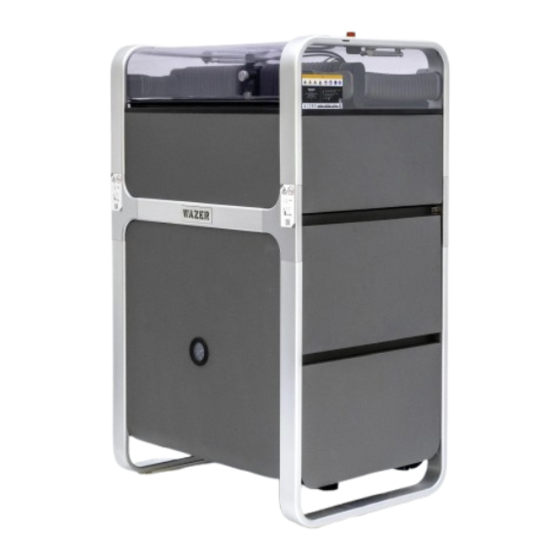

WAZER Pro Water Jet Cutter
(WAZER G2 Pro 50Hz)
&
(WAZER G2 Pro 60Hz)
© WAZER, Inc.
4 Executive Plaza, Suite 175,
Yonkers, NY 10701
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wazer Pro

Summary of Contents for Wazer Pro

  • Page 1 User Manual Original Instructions - V1.3 WAZER Pro Water Jet Cutter (WAZER G2 Pro 50Hz) & (WAZER G2 Pro 60Hz) © WAZER, Inc. 4 Executive Plaza, Suite 175, Yonkers, NY 10701...

  • Page 4: Table Of Contents

    WAZER Pro Components How it works WAZER Pro Systems Dissection WAZER Pro Specif ications Machine System Schematics Setting Up WAZER Pro Choosing a Location for WAZER Pro Unpacking Verify Your Shipments Contents Install WAZER Pro Check Pump Section Water Connections...

  • Page 7: Introduction

    WAZER Pro. The warnings and instructions contained in this manual are for your safety. Failure to follow safety warnings and instructions could result in serious injury or death. This User Manual must always be kept with WAZER Pro and should remain with WAZER Pro if it is transferred or sold.

  • Page 9: Important Safety Information

    Some of these signal words alert you to safety hazards. These are important to the safety of WAZER Pro users. Others are there to make sure your machine or environment does not suffer any damage. Be sure to familiarize yourself and all other users of the machine with these signal words.

  • Page 10: Safety Symbols

    Safety Symbols In addition to the signal words listed above, WAZER Pro has various product safety signs and safety labels placed in visible locations. These labels are critical to your safety. You and other users must must familiarize yourself with their meaning. Ignoring these labels may result in equipment or property damage as well as physical injury or death.

  • Page 11: Product Safety Label Locations

    Product Safety Label Locations Upon unboxing, you will be greeted with WAZER Pro in a state like this. Keep in mind all the warning label locations, as they will display important safety-related messages for anyone who is operating, maintaining and repairing this machine.
  • Page 12 This label warns you of the electrical residual hazards inside the WAZER Pro AC Boxes and warnings against opening them. This label warns you of the existence of the high This label warns you the Danger of disconnecting High temperature hazard near its proximity.
  • Page 13 This label warns you of the heavy This label instructs you to the This label warns you that the WAZER weight of the WAZER packages and correct orientation that the WAZER contents inside may contain carcinogenic...

  • Page 14: Peelable Labels

    Peel-able Labels You may peel them off after the installation process of your WAZER Pro is completed. This label instructs you to not plug the power into the machine This label warns you of the heavy weight of the WAZER Pro and prior to the completion of all previous steps.

  • Page 15: General Power Tool Safety Warning

    GFCI/PRCD/RCBO protection. Do not attempt to use any cables that are not GFCI/PRCD/ RCBO protected. • DO NOT attempt to use any other Power Supply other than the one included by WAZER • The replacement of the Power Cables and Power Supply shall only be carried out by the manufacturer or approved service organization.
  • Page 16 • Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. • Be careful removing cut materials from the water jet cutter. Cutting with a water jet cutter creates sharp edges.

  • Page 17: Wazer Safety Precautions

    – please read it carefully and ensure that anyone that uses WAZER Pro has read this User Manual as well. Before setting up and using WAZER Pro, read and follow all instructions and safety messages. ALWAYS be aware of and comply with all federal, state, and local safety regulations, industry standards, and internal company safety guidelines.
  • Page 18 Before and after a Cut, always inspect the surrounding area of WAZER Pro for leaks. • In the event that a leak is observed, turn off the power going to WAZER Pro, wipe it down, and LET IT DRY OVERNIGHT before seeing if anything was damaged and is still working. Water doesn’t damage electronics, it’s the combination of water with running electricity that does;...
  • Page 19 Disassembly and Decommission: • Never discard WAZER Pro in the trash. WAZER Pro is a tool that contains electric and electronic components, proper disposal is required. • Never skip steps when decommissioning WAZER Pro. Follow every step to safely decommission WAZER Pro. Decomissioning steps can be found in online user manual.

  • Page 20: Wazer Pro

    A basic understanding of WAZER Pro's work flow and design will make it easier to follow the rest of this User Manual. WAZER Pro is an entirely new waterjet cutting system; please review this section even if you are familiar with other waterjet systems.

  • Page 21: Wazer Pro Components

    Jet to create a slurry of water and abrasive. This high-pressure stream of abrasive slurry performs the cutting in a waterjet system. By controlling where this stream is ejected, WAZER Pro allows you to cut your design with digital precision.

  • Page 22: Wazer Pro Systems Dissection

    WAZER Pro Systems Dissection WAZER Pro can be broken into seven systems based on the primary functions they serve: High-Pressure – This system pressurizes water for cutting, mixes the water and abrasive, and ejects the mixture toward the material. Stay clear of all high-pressure components during operation.
  • Page 23 Reference Note 3 Reference Note 4...
  • Page 24 Reference Note 5...
  • Page 25 Reference Note 6 Reference Note 7...

  • Page 26: Wazer Pro Specif Ications

    Reference Note 8 WAZER Pro Specif ications Size and Weight WAZER Pro Size 34” x 25.5”” x 55” (856mm x 648mm x 1400mm) WAZER Pro Empty Weight 380 lbs. (170 kg) WAZER Pro Loaded Weight 780 lbs. (350 kg) Cutting Cutting Area 12”...

  • Page 27: Machine System Schematics

    Machine System Schematics Your WAZER Pro system contains hundreds of components that interface with one another. Even though it is not necessary for you to be familiar with all of them, it is a good idea to familiarize yourself with a system level view of your machine. We have created a few system level schematics and diagrams.
  • Page 28 Reference Note 10 Low Pressure System and Tank Overview Diagram The above illustration shows the components of the Low-Pressure System and direction of water flow and used abrasive.
  • Page 29 Safety Function Diagram The above illustration shows a system level diagram of the safety functions that are incorporated in your WAZER. These include electrical shock protection, protection from contact with the high pressure water stream, and correct water management to protect your...
  • Page 30 Reference Note 12 Main Unit Section Control System Diagram The above illustration shows the high level system schematic of the WAZER Pro Main Unit Section control system and electro-mechanical components...
  • Page 31 Reference Note 13 Pump Section Electronics Layout Diagram The above illustration shows the high level system schematic of the Pump Section wiring and electro-mechanical components.

  • Page 32: Setting Up Wazer Pro

    Setting Up WAZER Pro Install WAZER Pro In this section, we will discuss the process of choosing locations for the WAZER Pro, unboxing and dismounting it safely, completing the physical installation, and connecting WAZER Pro to electricity and water. After that, you will be ready to make your first Cut.

  • Page 33: Choosing A Location For Wazer Pro

    Make sure to leave at least 12” (0.4m) of free space on the right Water Supply: and left sides of WAZER Pro. On the left side • of WAZER Pro, you will need room to refill the Flow Rate: Greater than 2 gpm (7.6L/min).
  • Page 34 Gloves. WAZER PRO will be arriving in a tall crate. One of the side crate panel will be used as a ramp to dismount the WAZER Pro. The first step of unpacking is to make sure you have at least 15 feet (4.5m) of free space, and align the pallet with the tamp piece facing the open space.
  • Page 35 Remove the side panels one by one Remove the ramp piece last. It is the heaviest piece Remove and keep account of the Clean the space in front of the WAZER accessories Pro for next step There are 4 screws holding one clamp, Use a T20 Torx screw driver to remove and 4 clamps holding WAZER Pro.
  • Page 36 It is vital to have one person operating the pallet jack and at least one other person stablizing the WAZER Pro during the dismounting process. Conducting dismount with only one person, or using incorrect lifting/dismounting methods may result in machine falling, toppling and can...

  • Page 37: Verify Your Shipments Contents

    Verify Your Shipment’s contents Your Accessory kit may be updated by the time your WAZER Pro arrives; refer to WAZER Support page for the most updated Accessory Part List...

  • Page 38: Install Wazer Pro

    Running the unit with the red Oil Cap or with little oil will damage the Pump, and this damage WILL NOT be covered under warranty. NEVER remove the panels and work on the machine while the WAZER Pro is connected to power, during operation or possesses residual pressure. Ensure the power plug is not connected during this step.

  • Page 39: Water Connections

    Drain Hose disposes water. There are also several connections that cover other essential functions. Keep the WAZER Pro away from the wall for 2 feet (0.5m) during this step If you are uncomfortable with this part of the setup, have a professional plumber complete this part of the installation for you.
  • Page 40 Quick Connect System Make sure to fully seat the hose into the John-Guest Style fittings. You will feel a level of resistance (the seal) that you need to push past until the hose is fully seated in the connection. A total of about 1” (25mm) of hose should be inserted into the fitting. Mark a line 1"...
  • Page 41 Inlet Hose (3/8” diameter White Hose) and the Tee Connector with three ports Connect the Input Check valve, Pressure Reducer and Sprayer hose to the Tee connector, then push the whole assembly into the water input at the back of the WAZER Pro.
  • Page 42 Route Water Inlet Hose: Here are some routing examples that may be helpful: Connect Water Inlet Hose to water supply: You will either use: - the Garden Hose Water Inlet Adapter, or - the Sink Adapter. GARDEN HOSE ADAPTER SINK ADAPTER Option 1: Sink Adapter (Recommended) In the Plumbing Kit you will find the two Sink Adapters, one is 1/4”...
  • Page 43 If this location has separate hot and cold water supply lines, install using the cold supply line. NEVER use hot water. Hot water will damage WAZER. If you do not have a faucet that equip with Garden Hose Thread, there is one attachment you may use in junction with the Garden Hose Adapter.
  • Page 44 Tip: Draw a line 1" (25mm) away from the hose end will help you seat the hose more easily Make sure you are draining waste water appropriately. The water drained from WAZER Pro is partially filtered. There will likely be some Used Abrasive and Material in the drained water.
  • Page 45 Once you have completed the three hose connections, install of the Water Filter and On/Off Valve needs to be done. It is important to shut the Water Inlet Hose off whenever WAZER Pro is left idle; doing this could lead to a massive water leak or damage to the unit.

  • Page 46: Power Cables 4

    The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinates. If power cable is damaged or worn, stop installation or operation IMMEDIATELY. Contact WAZER support to have it replaced.
  • Page 47 AC power setting. Some Electical work may be necessary before your WAZER Pro can be installed. Make sure Single Phase 230VAC, 50Hz is supplied to WAZER Pro (50Hz); Split-Phase 230-240VAC 60Hz is supplied to WAZER Pro (60Hz).

  • Page 48: Anchor Wazer To The Wall

    When WAZER Pro is filled with water it will weigh approximately 730 lbs (330kg). To ensure the safety of the WAZER Pro and its users, WAZER requires you to anchor the machine to a wall or solid structure with the provided bracket and hardware.

  • Page 49: Cutting With Wazer Pro

    Learn the process of cutting with WAZER Pro by completing the Welcome Cut. Cutting with WAZER Pro requires a specific procedure that must be followed. You will find a checklist at the end of this chapter that you can post prominently as a reminder.
  • Page 50 Preparation Note 4 Pg.18 Refer to System Dissection in Section 3 to familiarize yourself with all the components of WAZER Pro. We will be referencing these parts by name throughout the remainder of this section. Checklist: Before You Cut Level the Cut Bed...

  • Page 51: Startup

    We strongly recommend everyone to follow every single step listed in this section. Additionally, at the end of this section you will find two copies of the “Cutting with WAZER Pro Checklist”. We highly suggest prominently displaying one of those pages in a highly visible location near your WAZER Pro, for all users to reference with every cut.
  • Page 52 WAZER Pro will not be making any noise at this point. If your WAZER Pro fails to turn on, check the high and low float switch on the right side of the tank; the low switch should be submerged and the high switch should not be. Adjust the water level as needed.
  • Page 53 Establish Water Level "Water Level Setup" is a useful feature in WAZER Pro. It can be used to check the status of High Pressure System; it can also be used to check the Low Pressure and Drain System; its primary purpose is to set the water in the tank to the optimum level.
  • Page 54 We are finally ready to setup our first cut. To do so the next step is to transfer a Cut File to WAZER Pro. A Cut File is a type of .gcode file with some WAZER-specific commands. This file includes all the parameters required to cut your Design.
  • Page 55 Failed Cut. WAZER Pro does not have a sensor to read the Abrasive Level, so it assumes that it is filled prior to the start of every Cut. If this is done correctly, WAZER Pro will pause the Cut before the Abrasive runs low, then prompt you to refill the Abrasive Hopper and continue cutting.
  • Page 56 Therefore we encourage running a Tank Cleaning Cycle in the following situations:- After cuts and before turning off your WAZER Pro for a few days in order to collect the excess Used Abrasive. For your first cut you do not need to worry about this step, but going forward we highly suggest doing the Tank Cleaning Maintenance regularly.
  • Page 57 In this case, DO NOT panic. Pause WAZER Pro, turn the water supply on and start your Cut. More on how to pause WAZER Pro later. Fasten the Material Securely fastening the Material to the Cut Bed is critical to the accuracy of your desired Cut. If your Material moves during cutting, the results the cutting results will be poor, or fail completely.
  • Page 58 Setting the height of the Nozzle relative to the Material is critical. If the Nozzle Height is set improperly, WAZER Pro may not cut through the Material or the WAZER cutting head will come in contact with the material resulting in a jam, clog, and lost cut.
  • Page 59 Perform a Final Check A Cut can be costly. Take advantage of the Control Panel’s preview features to ensure that you positioned the Material correctly. We highly recommend that you use one of these features before starting a Cut: • Check Cut Extents: Select this feature and the Nozzle will trace a rectangle that will designate your Cut Extents (essentially the smallest rectangle that fully encompasses your Cut).

  • Page 60: Start Cutting With Wazer Pro

    A pressure gauge for the high pressure system is located on the front panel of the WAZER Pro. It is recommended that you check this gauge periodically throughout the cut. As a reference to the colors: •...
  • Page 61 If instantaneous stop function is necessary, push down the Emergency Stop Button located near the UI Screen. This will cut power to the WAZER Pro as a whole. At this moment, there will still be pressure trapped in the hose line. Shut off water supply, turn on WAZER Pro, go to "HP valve" in "Output Check"...

  • Page 62: Common Things To Be Mindful Of During Cutting

    Abrasive Clogs can sometimes occur, preventing Abrasive from flowing into the Nozzle. WAZER Pro will stop cutting through the Material. There will be a significant change in the sound of WAZER Pro’s operation. If there is an Abrasive Clog, press Start/Stop immediately. Refer to the website support section for more information.
  • Page 63 Popup Abrasive Clog Abrasive Clog Identification Abrasive Clog Identification Partial Cutting Partial Cutting Identification Leak Leak...
  • Page 64 Piercing sound: WAZER Pro always starts every segment of a cut with a pierce. When the high-speed slurry coming out of the nozzle hits the work piece you will hear a very loud noise coming from the cutting area. However, as the water/slurry stream progresses through the material you will hear the pitch change.

  • Page 65: Finishing

    Cut Quality Cut quality on WAZER Pro is a function of the Cut Rate. A Fine Cut (slower Cut Rate) will result in a smoother surface along the edge, whereas a Coarse Cut (faster Cut Rate) will result in a rougher surface along the edges.

  • Page 66: Shutdown Wazer Pro

    Turn WAZER Pro Off Flip the power switch to turn WAZER Pro off. Do not use the Emergency stop at the top of your machine. Bacteria can build up in the standing water of the Tank. Any injuries or cuts, even minor ones, should be treated with caution.
  • Page 67 Perform the following maintenance actions after every long cut. We provide the maintenance steps in the checklist in the following 2 pages. WAZER encourages you to post one copy of the checklist near the location of your WAZER Pro and ensure it is followed with every cut! It is essential to perform these tasks routinely;...

  • Page 68: Added Features On Wazer Pro

    If you have some prior experiences with WAZER Base, WAZER V1.5 or WAZER V1.0, you will find WAZER Pro operation fairly similar. A lot of the key learning points from WAZER Base Workflow can be directly applied to WAZER Pro operation.

  • Page 70: Cutting With Wazer Checklist

    NEVER skip any Startup or Shutdown steps. Failure to complete these steps could lead to injury, damage to WAZER Pro and your property. We suggest you take this page out of the User Manual and leave it near your WAZER Pro. Preparation Check Cut Extents &...
  • Page 71 Cutting with WAZER Pro Checklist NEVER skip any Startup or Shutdown steps. Failure to complete these steps could lead to injury, damage to WAZER Pro and your property. Preparation Check Cut Extents & Dry Run □ Wear proper Personal Protective...

  • Page 72: Setup And Maintenance Menu

    This function turns on the Low Pressure system of WAZER Pro to collect Used Abrasive. Nozzle Purge: This function turns on the High pressure system of WAZER Pro several times. It can be used to observe the water stream and pressure for troubleshooting. Follow the instruction shown on UI screen.
  • Page 73 Cut Rate Testing The WAZER will cut a series of arcs at increasing speeds to help you determine the cutting parameters for a new material. General Cut: Run this cut when you have no idea how fast the WAZER should cut your material.

  • Page 74: Warranty

    AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. INSOFAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, WAZER LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS WARRANTY AND, AT WAZER’S OPTION, THE REPAIR OR REPLACEMENT SERVICES DESCRIBED BELOW. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.
  • Page 75 The Warranty is granted under the following justified. conditions: • If your claim is accepted, WAZER, at its sole The Product was assembled, sold and discretion will either: delivered by WAZER. a. Send new or refurbished parts for you to •...
  • Page 76 Disclaimers a. If your original shipping address is located in the WAZER does not warrant your use of the Product will be Continental United States, WAZER will cover the uninterrupted or error free. cost of the above shipping.
