Summary of Contents for Tevion AP-500HPV

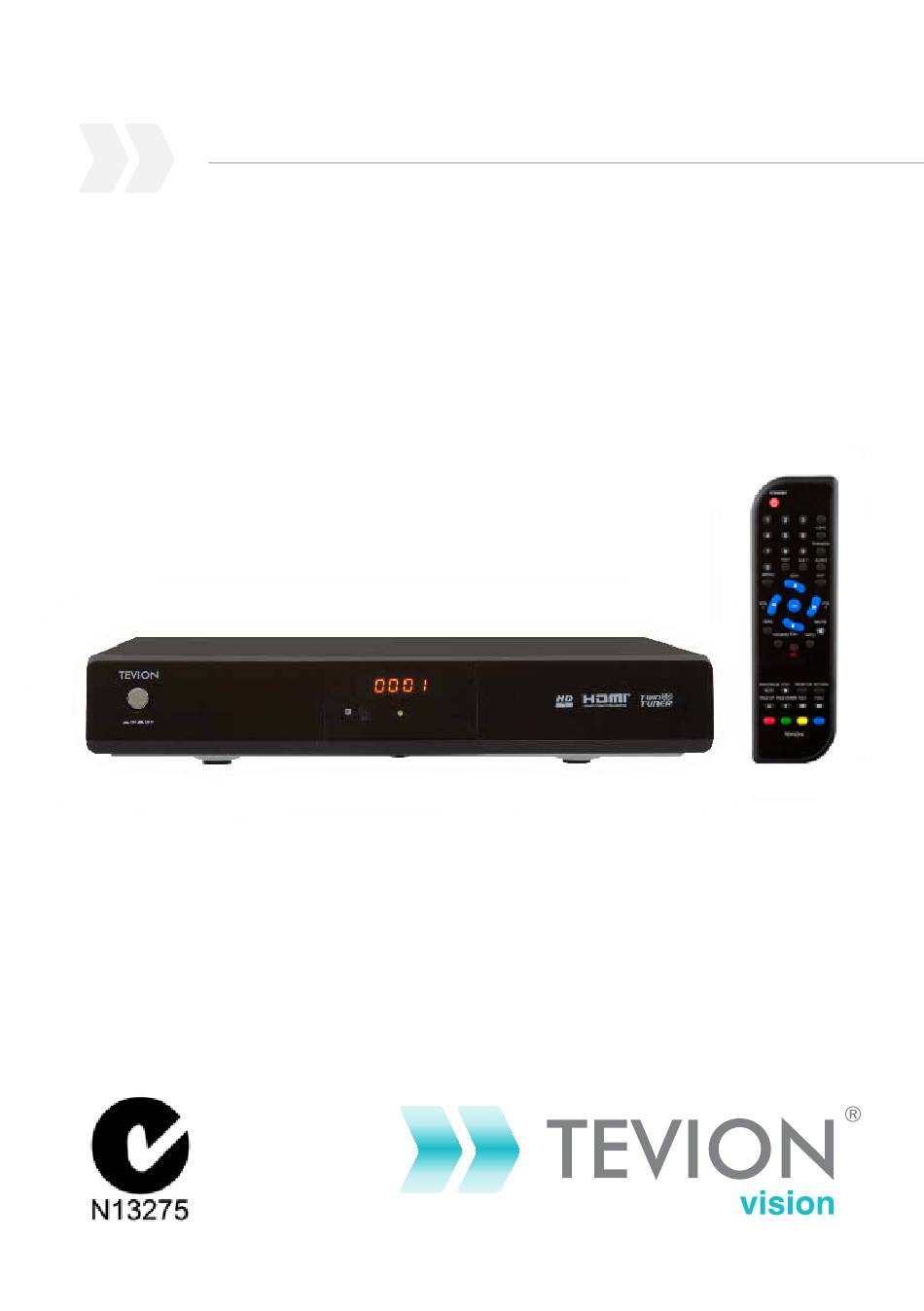

- Page 1 Twin Tuner 500GB HDD PVR Instruction Manual • Model Number AP-500HPV After Sales Support TEL: 1300 886 649...
- Page 2 Twin Tuner 500GB HDD PVR What your year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
-
Page 3: Table Of Contents
Content 3 Quick installation guide for first use 5 Welcome section 6 Important safety instructions 8 Front Panel and Rear Panel 9 Remote Controller 11 System Setup 16 Installation 23 FAQ'S 24 Specifications After Sales Support TEL: 1300 886 649... - Page 4 Quick installation guide for first time • Connect the unit to your roof antenna (the antenna cable is not supplied). • Connect the unit to yourTV. Depending on your TV, you may do it in several ways: 1. Connect the receiver with an HDMI cable (cable not included) 2.
- Page 5 if the automatic installation message does not appear: • Press the MENU button on the remote control. • Select the option CHANNEL INSTALLATION. • Select the option AUTOMATIC SEARCH. NOTE: Using you remote control to access main functions. • Press the MENU button to change the unit's configuration. You can also define your list of favourite channels, which will be directly accessible by using the FAV button on the remote control.
- Page 6 Welcome Congratulations on choosing to buy a TEVION product. ® All products brought to you by TEVION are manufactured to the highest ® standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive Year Warranty.
-
Page 7: Important Safety Instructions
Important Safety Instructions Important safety instructions to be kept with the product, please read attentively. To prevent fire and electric shock, do not expose this receiver to rain or moisture. In order to avoid any possible risk of electric shock, never attempt to open the unit. - Page 8 Sufficient Ventilation • Place the receiver in a well-ventilated location to prevent accumulation of internal heat. Allow a gap of at least 10cm to the rear and the top of the unit, as well as a space of 5cm to both sides to avoid overheating. •...
-
Page 9: Front Panel And Rear Panel
Front Panel and Rear Panel 1. Power switch 3. Standby indicator 2. Remote control sensor 4. LED display LOOP IN : In order to use the Two tuners function, connect the supplied antenna cable to connect the LOOP IN to the LOOP OUT socket. TV/VCR : Antenna output, this connector allows you to connect your VCR or DVD recorder. -
Page 10: Remote Controller
Remote Controller STANDBY : Press to place the unit in standby mode. NUMBER KEYS : Used to select channel numbers or input numbers in menus. TEXT : Used to open teletext OSD display if teletext available in the broadcast stream. MENU : Display main menu on TV screen, press again to exit the menu. - Page 11 After Sales Support TEL: 1300 886 649...
-
Page 12: System Setup
System Setup Press [Menu] key on the RCU, the main menu will be displayed on the screen. Select an option by pressing the UP and DOWN keys of the remote control, the press OK to change the setting's value. 2) Press the EXIT button to go back to the previous menu. •... - Page 13 • Time Zone In this menu adjust the time zone to NSW/ACT+10:00, QLD+10:00, SA+9:30, WA+8:00, TAS+10:00, NT+9:30. • Parental Control Select Parental Control to set a block based on program ratings. Highlight Parental Control and press OK. A PIN CODE Dialogue box will be displayed, enter your PIN (default code is "1234") and press OK.
- Page 14 • Factory Reset Use this option if you encounter a problem after having changed some parameters. This option will reset the unit's data to restore it to the out of factory value, thus deleting all channels. You will need to scan all Channels Afterwards. •...
- Page 15 • HD Output The High-Definition Multimedia Interface (HDMI) is a digital audio/video connector interface for transmitting uncompressed digital signals. HDMI supports, on a single cable (HDMI cable not supplied), all video formats including standard, digital, and high-definition, as well as multi- channel digital audio. To enjoy the enhanced audio and video quality that HDMI offers, you need an HD Ready television with HDMI connection.
- Page 16 • Audio setting Press [Menu] key on the RCU, the main menu will be displayed on the screen. Select an option by pressing the UP and DOWN keys of the remote control, then press OK to change the setting's value. 2) Press the EXIT button to go back to the previous menu.
-
Page 17: Installation
Installation Press [Menu] key on the RCU, the main menu will be displayed on the screen. 1) Select an option by pressing the UP and DOWN keys of the remote control, press OK to change the setting's value. 2)Press EXIT to go back to the previous menu. •... - Page 18 • Upgrade STB This product can be upgraded by USB. If or when an upgrade is required copy the upgrade file onto a thumb drive and insert into the USB port at the front of the unit. Use the arrow keys to highlight Upgrade STB in the Installation menu. Press OK. The system will search for an upgrade file from the USB Port and commence the upgrade process.
- Page 19 Press the red button to select a favorite list 1, press the red key a second time for favorite list 2, and a third time favorite list 3. NOTE: many programs can be stored into each folder. Press the UP and DOWN keys to select a channel and press OK to add this channel to the selected favourite list.
- Page 20 NOTE: The cable between two tuners must be connected correctly when recording. - Select the DVB-T channel you want to record and view it using CH+/- keys or the numeric keys. The A tuner broadcast information on your TV. - Can watch another channel using CH +/- keys or the numeric keys. A tuner will broadcast the new selected channel on your TV, the B tuner will continue to broadcast the selected program for recording.
- Page 21 - Press[HDD] key to enter playback, use the arrow key to select Video, then select PVR. Use the arrow keys to select the file you want to play and press OK. It is recommended to use a high speed device for recording. •...
- Page 22 • Audio menu Some channels may be broadcast in multiple languages. To change the audio language, press the AUDIO key of the remote control. Press the DOWN button to change the AUDIO TRACK and then press the RIGHT button to change the current audio language. Alternatively, you can also change the AUDIO MODE from this menu.
- Page 23 • Subtitles Press the SUB-T button of the remote control to activate the subtitles function. Subtitles may be available in different languages, depending on the channel. • EPG The electronic program guide (EPG) gives you immediate access to the channel TV program for future TV programs.
-
Page 24: Faq's
FAQ's into the wall. Remote control locking or you cannot If you press 2 buttons at the To turn the unit OFF and then access any function same time or incorrect selection turn it back ON. This will reset any function. After Sales Support TEL: 1300 886 649... - Page 25 Technical Specification After Sales Support TEL: 1300 886 649...
- Page 26 NOTE: After Sales Support TEL: 1300 886 649...
- Page 27 NOTE: After Sales Support TEL: 1300 886 649...
- Page 28 After Sales Support TEL: 1300 886 649...
