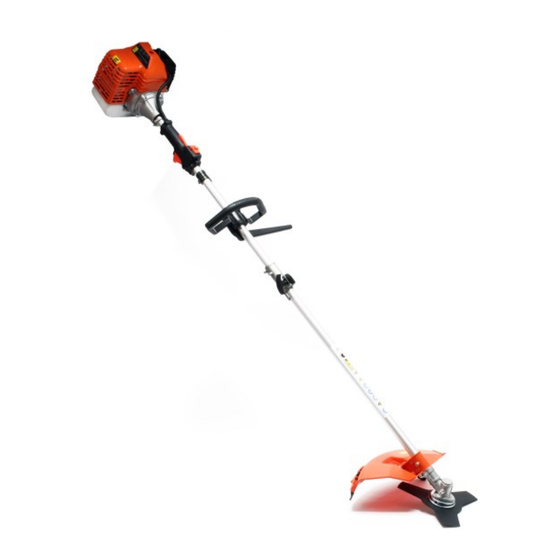

XPOtool 61494 Operation Manual

5 in 1 multifunction petrol tool grass trimmer/hedge trimmer/pole-mounted pruner/brush cutter
Hide thumbs

Advertisement

Quick Links

Download this manual

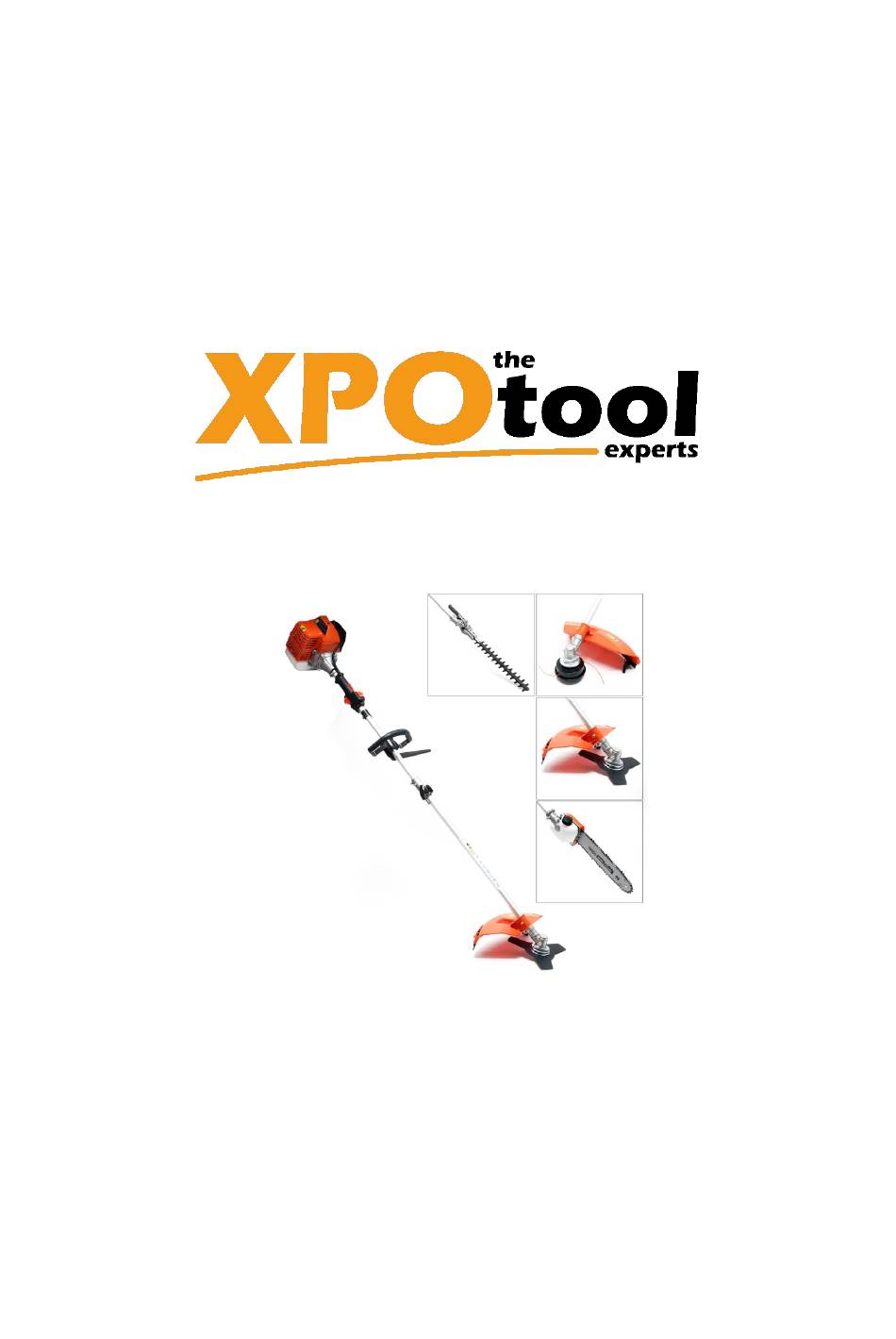

Operation Manual
5 in 1 Multifunction Petrol Tool
Grass Trimmer/Hedge Trimmer/Pole-mounted
Pruner/Brush Cutter
61494
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 61494 and is the answer not in the manual?

Questions and answers

Summary of Contents for XPOtool 61494

  • Page 1 Operation Manual 5 in 1 Multifunction Petrol Tool Grass Trimmer/Hedge Trimmer/Pole-mounted Pruner/Brush Cutter 61494 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
  • Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61494 Page 2 The Tool Experts 11 2022-1...
  • Page 3 Starting the engine will cause sparks. Sparks can ignite flammable substances nearby. Motors emit carbon monoxide, an odourless, colourless poison gas. Inhaling carbon monoxide can cause nausea, fainting, or even death. https://www.XPOtool.com Item 61494 Page 3 The Tool Experts 11 2022-1...
  • Page 4 Improper use or modification of the product can result in damage to the device and its surroundings as well as very serious injuries for which the manufacturer cannot be held liable. https://www.XPOtool.com Item 61494 Page 4 The Tool Experts...
  • Page 5 Check the fuel system of the device regularly for leaks and signs of wear, e.g., porous areas on hoses, damage to the tank or missing clamps. Also, make sure that all parts are in good condi- tion before using the device. https://www.XPOtool.com Item 61494 Page 5 The Tool Experts 11 2022-1...
  • Page 6 Kickback: Strong kickbacks may occur on the blade working thick shrubbery. If the blade gets stuck, backlashes may occur in the extension tube. Do not work on thick shrubbery with the machine. Cut at sufficient speed or avoid jamming of the blade. https://www.XPOtool.com Item 61494 Page 6 The Tool Experts 11 2022-1...
  • Page 7 Wear suitable protective clothing. • Slips, trips or falls: Falls can lead to very serious injuries. Wear non-slip shoes, make sure you stand securely and always stay alert and focused. https://www.XPOtool.com Item 61494 Page 7 The Tool Experts 11 2022-1...
  • Page 8 Throttle trigger lock S5 Allen key (5 mm) Air filter 14 S4 Allen key (4 mm) Start handle Open-end wrench Fuel tank Screwdriver Throttle trigger Measuring beaker for fuel mixture Shoulder harness https://www.XPOtool.com Item 61494 Page 8 The Tool Experts 11 2022-1...
  • Page 9 Guide bar Oil tank Cutting cover Chain Hedge trimmer Figures 4 and 5 № Name № Name Lock hole Cutting unit 180° cutting unit adjusting lever Cutting cover Lever lock https://www.XPOtool.com Item 61494 Page 9 The Tool Experts 11 2022-1...
  • Page 10 Max. rotation speed ( ⁄ 6500 Fuel tank capacity (ℓ) Ignition Capacitor discharging ignition (CDI) Mixing ratio 1:25 (oil:petrol) 12.5 Weight (㎏) Brush cutter 255×1.4×25.4 Size (㎜) Trimmer Cutting width (㎜) https://www.XPOtool.com Item 61494 Page 10 The Tool Experts 11 2022-1...
  • Page 11 1. First loosen the blade nut (1) Fig. 2-point 4 using the open-end wrench in- cluded in the scope of delivery and remove the cover. 2. Dispose the chain and guide bar. https://www.XPOtool.com Item 61494 Page 11 The Tool Experts 11 2022-1...
  • Page 12 Fig. 6-point 4 (pole, guard, metal blade, 4 screws and nuts). 2. Fasten the guard using the 4 screws and nuts. Use the included S5 hexagon wrench (5) and the open-end wrench. https://www.XPOtool.com Item 61494 Page 12 The Tool Experts 11 2022-1...
  • Page 13 4 screws and nuts). 2. Fasten the guard using the 4 screws and nuts. Use the S5 hexa- gon wrench (5) and the open-end wrench included in the scope of delivery. https://www.XPOtool.com Item 61494 Page 13 The Tool Experts 11 2022-1...
  • Page 14 3. Replace the metal cover (3) and tighten the locking screw (1). Removing the extension: 1. Loosen the locking screw (1). 2. Press the metal clip (2) down and pull out the extension. https://www.XPOtool.com Item 61494 Page 14 The Tool Experts 11 2022-1...
  • Page 15 First pour fuel into the container until it reaches the “578.92” mark. 2. Now fill up with oil until the liquid is at “600.” 3. Shake the mixture well so that it mixes optimally, and then pour it into the device. https://www.XPOtool.com Item 61494 Page 15 The Tool Experts 11 2022-1...
  • Page 16 1. Now operate the throttle lock and then the throt- tle. 2. Activate the start lever lock and hold the throttle in the active position. https://www.XPOtool.com Item 61494 Page 16 The Tool Experts 11 2022-1...
  • Page 17 3. The chain should turn freely. If this is not the case, loosen the adjusting screw (2) by turning it counter-clockwise. https://www.XPOtool.com Item 61494 Page 17 The Tool Experts 11 2022-1...
  • Page 18 Hold the mower head removed from the machine with one hand and loosen the cap with the other hand by pressing the button (1) on the side of the mower head and turning the cap clockwise. Remove the coil. https://www.XPOtool.com Item 61494 Page 18 The Tool Experts 11 2022-1...
  • Page 19 Before starting the engine, cut off any parts that protrude beyond the blade in the protective cover and make sure that the protective cap is properly and securely in place. https://www.XPOtool.com Item 61494 Page 19 The Tool Experts 11 2022-1...
  • Page 20 × an authorized specialist Replacing the spark plug; make sure it has a cap × Removing dirt, oil residue, and other debris from the engine × and exhaust https://www.XPOtool.com Item 61494 Page 20 The Tool Experts 11 2022-1...
  • Page 21 6. Look for any discolouration on the spark plug head; it should be brownish in colour. 7. Check the electrode gap; the permissible distance is between 0.6 and 0.7 mm. 8. Carefully reinsert the spark plug by hand. https://www.XPOtool.com Item 61494 Page 21 The Tool Experts 11 2022-1...

  • Page 22: Troubleshooting

    Wrong fuel mixing ratio Open throttle valve; haust clean or replace air filter; re-adjust carburettor; consult distributor. No spark Switch in off position Set switch to “on.” Electric problem Consult distributor. Locked switch https://www.XPOtool.com Item 61494 Page 22 The Tool Experts 11 2022-1...
  • Page 23 Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61494 Page 23 The Tool Experts 11 2022-1...
