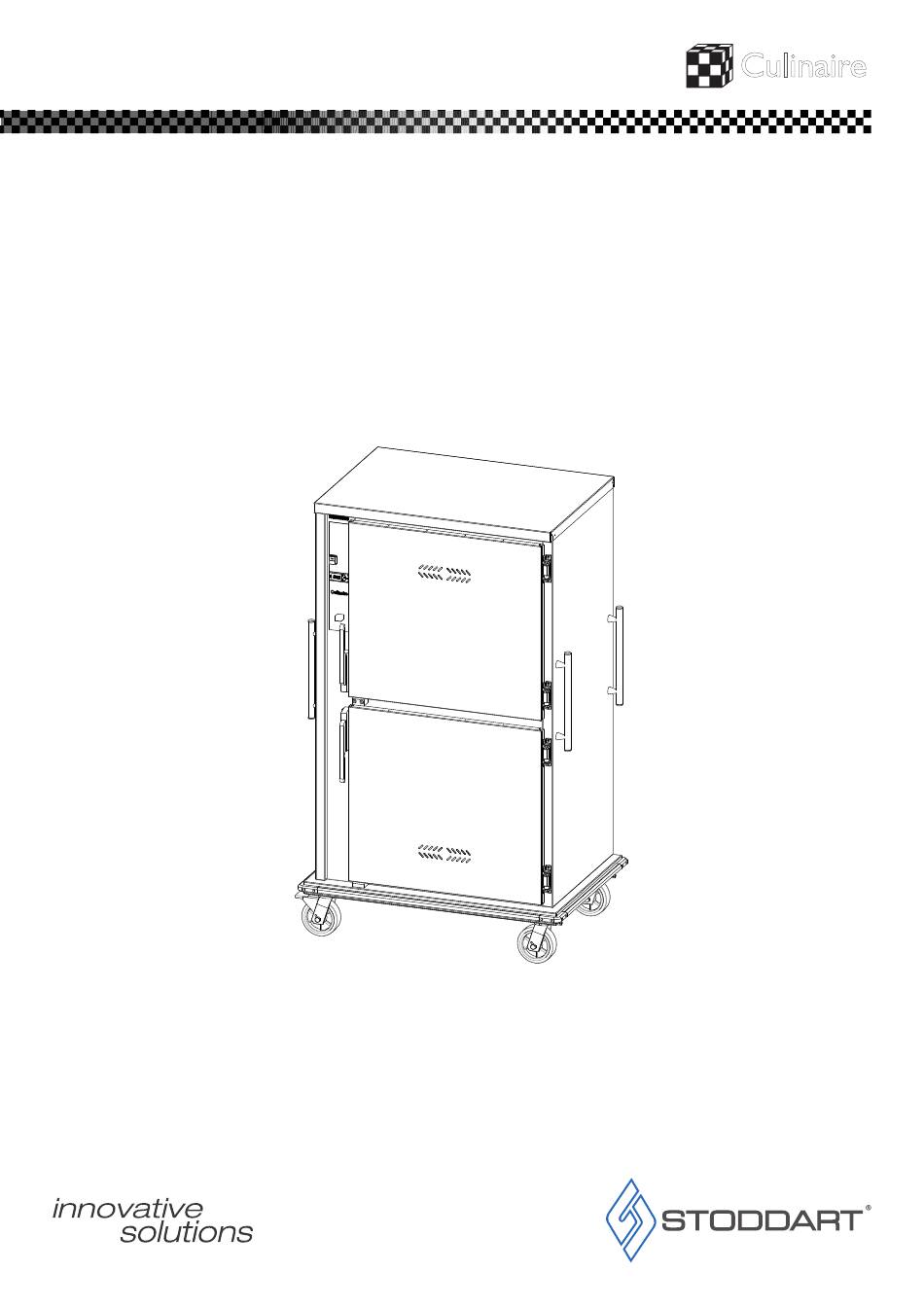

- Page 1 Culinaire Culinaire Specification, Installation and Operation Manual BANQUET CARTS Models: CH.BC.0611, CH.BC.1211, CH.BC.2011, CH.BC.2611, CH.BC.96P, CH.BC.128P A guide on the use, care and maintenance of your quality Culinaire product Rev: A - 29/11/2017...
-
Page 2: Table Of Contents
1� Commercial Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20 www.stoddart.com.au... - Page 3 Warranty Request Form � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22 www.stoddart.com.au...
-
Page 4: Introduction
By using, caring and maintaining your Culinaire product according to these instructions, your Culinaire product should give you many years of reliable service� Stoddart is a wholly Australian owned company, which manufactures Culinaire commercial catering equipment� All Culinaire products are engineered and manufactured in Australia to provide excellent results whilst offering-value-for-money, ease-of-use and reliability�... -
Page 5: Attention
The manufacturer declines any liability for damages to persons and/or things due and to an improper/wrong and/or unreasonable use of the machine Service • Only specifi cally trained/qualifi ed Technicians (Stoddart, one of our service agents, or a similarly qualifi ed persons) should carry out any and all repairs, maintenance and services www.stoddart.com.au Page 4 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 6: Installation
This unit must be operated on potable water. If the water has a high mineral content, pretreatment may be necessary or your warranty could be voided. www.stoddart.com.au Page 5 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 7: Electrical Connection
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard •... -
Page 8: Specification
Gastronorm Rack 2/1 Gastronorm Size 650mm x 530mm CMGE.0422 Suits: CH.BC.96P 610mm x 690mm CMGE.0013 Suits: CH.BC.128P 906mm x 612mm www.stoddart.com.au Page 7 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 9: Technical Specifications
6 x 1/1 Gastronorm Pans Voltage 220-240V, 50Hz Power (kW) 0.84kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 8 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 10: Bc.1211
12 x 1/1 Gastronorm Pans Voltage 220-240V, 50Hz Power (kW) 0.84kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 9 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 11: Bc.2011
20 x 1/1 Gastronorm Pans Voltage 220-240V, 50Hz Power (kW) 1.68kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 10 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 12: Bc.2611
26 x 1/1 Gastronorm Pans Voltage 220-240V, 50Hz Power (kW) 1.68kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 11 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 13: Bc.96P
96 x 254mm (10”) plates Voltage 220-240V, 50Hz Power (kW) 1.68kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 12 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 14: Bc.128P
128 x 254mm (10”) plates Voltage 220-240V, 50Hz Power (kW) 2.02kW 10 A plug & lead fitted Temperature Range 65-90°C www.stoddart.com.au Page 13 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 15: Operation
WARNING! Take extreme care when removing the pans, skin burns to you or other persons can occur from the hot water or the hot tray. PROTECTIVE GEAR must be worn www.stoddart.com.au Page 14 Due to continuous product research and development,... -
Page 16: Temperature Adjustment
Not Enabled. KEY COMBINATIONS: To lock and unlock the keyboard. To enter in programming mode. (Contact the Stoddart Service Department on 1300 307 289) To return to the room temperature display. HOW TO SEE THE SET POINT: 1. Push and immediately release the key, the display will show the Set point value;... -
Page 17: Gn Pans, Loading Banquet Carts
This unit is NOT designed to store product after hours� The unit MUST be switched OFF • If the unit is moved for night storage, ensure the castors are locked www.stoddart.com.au Page 16 Due to continuous product research and development,... -
Page 18: Cleaning
Wait until the unit has cooled to a safe temperature before undertaking any cleaning or maintenance. Contact with hot surfaces can cause burns and serious injury. www.stoddart.com.au Page 17 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 19: Cleaning Schedule
Note: In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining” This can be removed with an appropriate cleaning agent which contains 10% sodium citrate� Ask your supplier of cleaning chemicals for a suitable brand� www.stoddart.com.au Page 18 Due to continuous product research and development,... -
Page 20: Troubleshooting
Unit is not reaching required temperature See above Test and replace the element or thermostat if Unable to adjust temperature Element / thermostat failure necessary www.stoddart.com.au Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 21: Warranty
Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment’s effective operation; vii� On site warranty services are limited to sites within 50km from the nearest Stoddart authorised service agent and service agent’s reasonable travel costs must be paid by Customer prior to the commencement of the repairs;... -
Page 22: 4� Warranty Claim Procedure
Transportation costs associated with transporting the equipment to a Stoddart authorized service agent where Stoddart considers (acting reasonably) that repairs cannot be undertaken on-site; and Unless agreed to by Stoddart in writing to the contrary, warranty is not included in the sale price for goods sold to or installed in an overseas location� 4. Warranty Claim Procedure 4�1... -
Page 23: Warranty Request Form
To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information. To secure a call, you must also have an account with Stoddart or complete the credit card details below. - Page 24 Culinaire Culinaire Stoddart Sales Servicing and Replacement Sales Department Tel: 1300 791 954 Fax: (07) 3344 1000 Email: fseorders@stoddart�com�au Service & Spares Department Tel: 1300 307 289 Email: service@stoddart�com�au Email: spares@stoddart�com�au...
