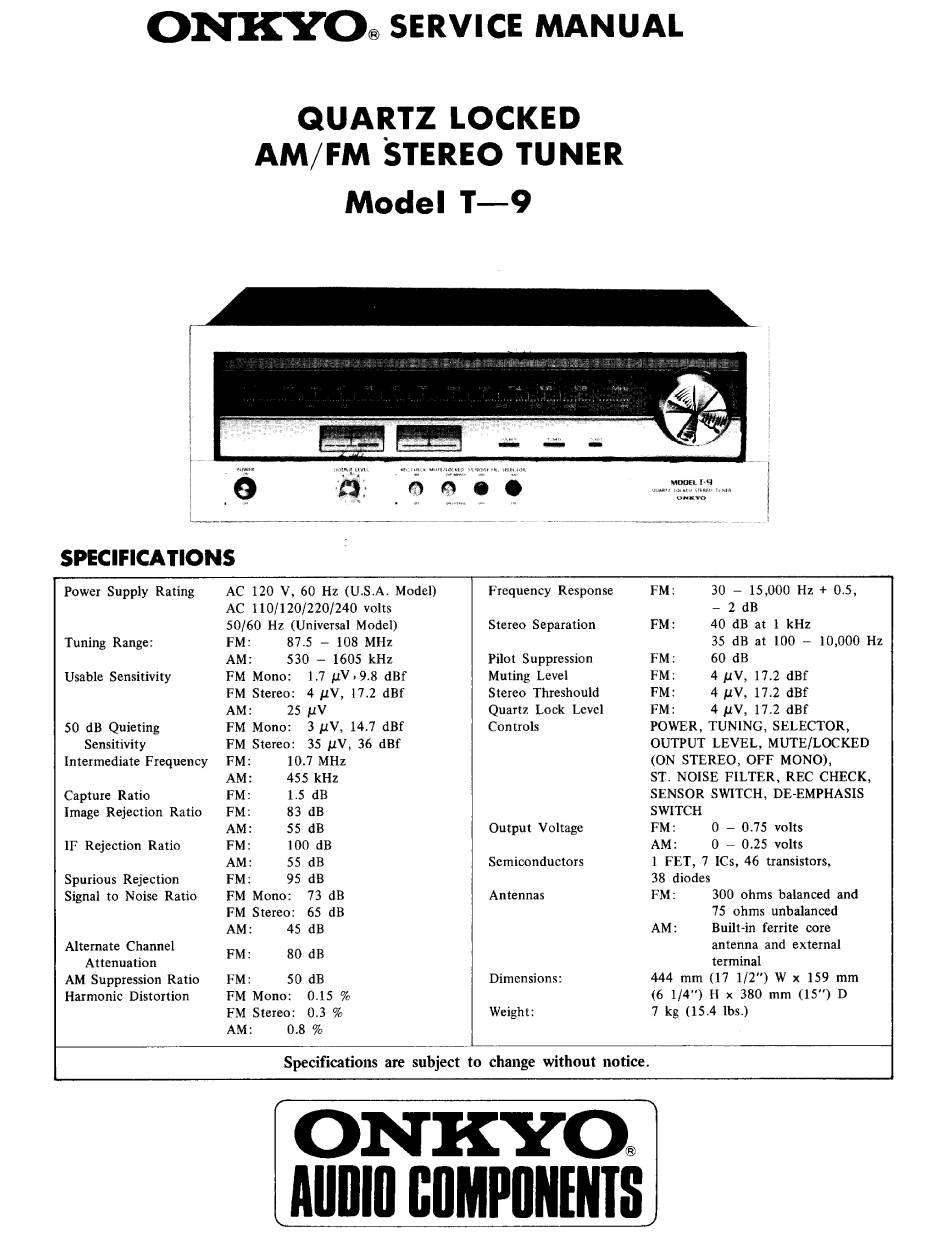

Onkyo T-9 Service Manual

QUARTZ LOCKED
AM/FM STEREO TUNER
Model T—9
PAPER
- ok
MODEL Fo
CHIAHES LOwakiy SPRREGS Peo NES
CERO
SPECIFICATIONS
Sensitivity FM
Stereo: 35 pV, 36 dBf
Power Supply Rating AC 120 V, 60 Hz (U.S.A. Model) Frequency Response FM: 30 — 15,000 Hz + 0.5,
AC 110/120/220/240 volts — 2 dB
50/60 Hz (Universal Model) Stereo Separation FM: 40 dB at 1 kHz
Tuning Range: FM: 87.5 — 108 MHz 35 dB at 100 — 10,000 Hz
AM: 530 — 1605 kHz Pilot Suppression FM: 60 dB
Usable Sensitivity FM Mono: 1.7 pV->9.8 dBf Muting Level FM: 4 uv, 17.2 dBf
FM Stereo: 4 pV, 17.2 dbf Stereo Threshould FM: 4 wv, 17.2 dBf
AM: 25 UV Quartz Lock Level FM: 4 wv, 17.2 dBf
50 dB Quieting FM Mono: 3 ywV, 14.7 dBf Controls POWER, TUNING, SELECTOR,
OUTPUT LEVEL, MUTE/LOCKED
Intermediate Frequency FM: 10.7 MHz (ON STEREO, OFF MONO),
AM: 455 kHz ST. NOISE FILTER, REC CHECK,
Capture Ratio FM: 1.5 dB SENSOR SWITCH, DE-EMPHASIS
Image Rejection Ratio FM: 83 dB SWITCH
AM: 55 dB Output Voltage FM: 0 — 0.75 volts
IF Rejection Ratio FM: 100 dB AM: 0 — 0.25 volts
AM: 55 dB Semiconductors 1 FET, 7 ICs, 46 transistors,
Spurious Rejection FM: 95 dB 38 diodes
Signal to Noise Ratio FM Mono: 73 dB Antennas FM: 300 ohms balanced and
FM Stereo: 65 dB 75 ohms unbalanced
AM: 45 dB AM: Built-in ferrite core
Alternate Channel FM: 80 dB antenna and external
Attenuation terminal
AM Suppression Ratio FM: 50 dB Dimensions: 444 mm (17 1/2") W x 159 mm
Harmonic Distortion FM Mono: 0.15 % (6 1/4") H x 380 mm (15) D
FM Stereo: 0.3 % Weight: 7 kg (15.4 Ibs.)
AM: 0.8 % |
Specifications are subject to change without notice.
ONKYO.
AUDIO COMPONENTS
