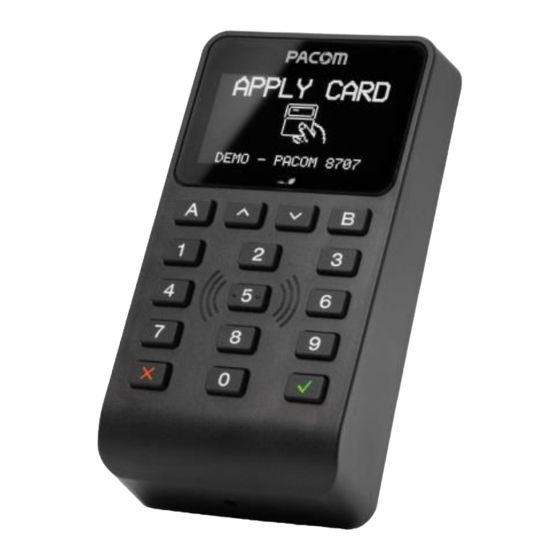

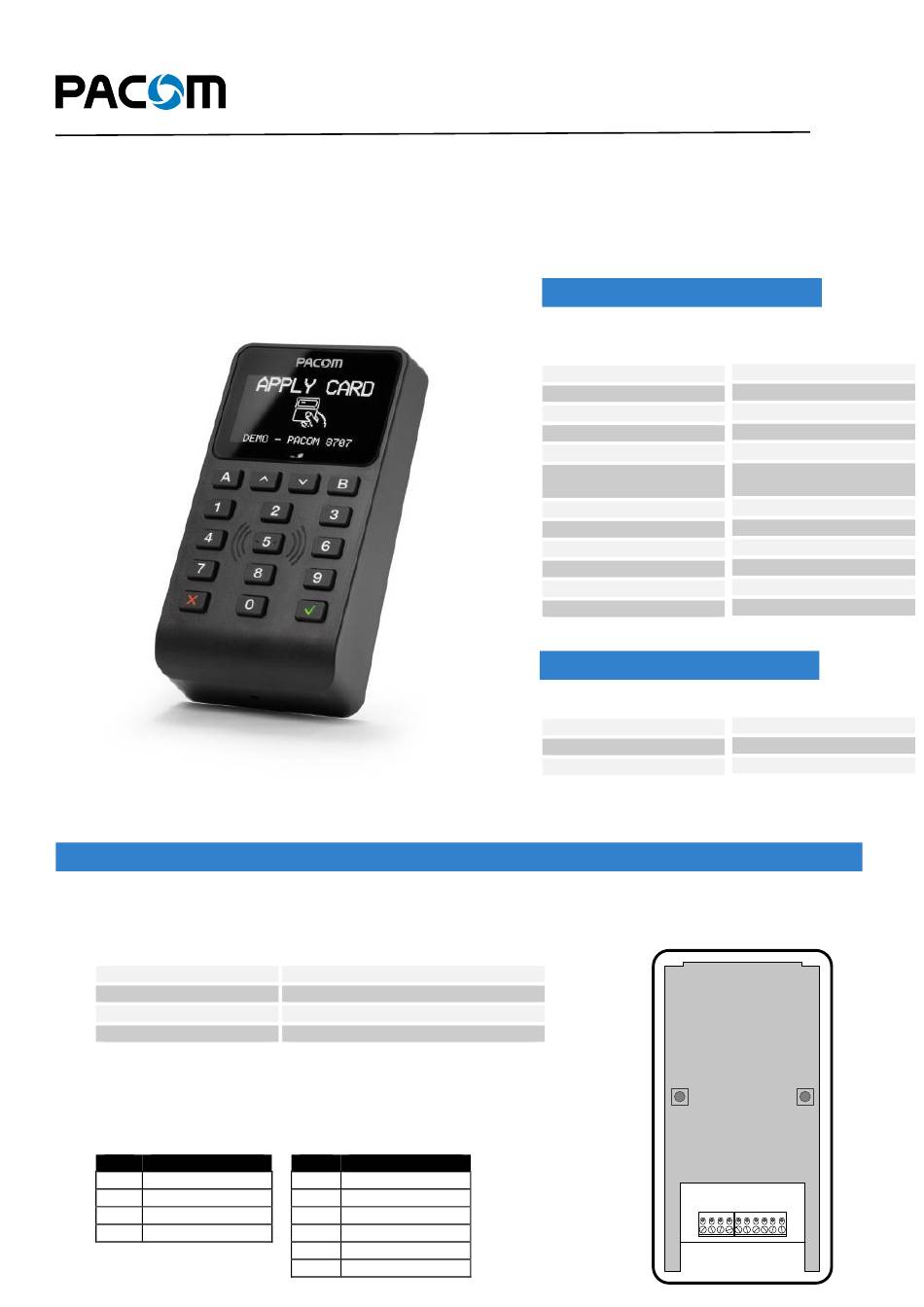

PACOM 8707 Display Reader
Installation Guide
OVERVIEW
13,56Mhz Mifare Classic, Mifare Plus, DESFire EV1 + EV2
Supported Card Formats
Interface
Signalling
Communication
Card Formats
Tamper
RS485: Data cable shielded twisted pair 2x2x0.5 mm
Cable Recommendation
Wiegand: Data cable shielded 8x1x0.25 mm2 (e.g. Belden 9538)
Wiring
1
RS485 +
PL1
Description
2
RS485 –
3
10-30VDC
4
0V
–
RS485, Wiegand
OSDP 2
26, 32, 34, 56 bits
Yes
(e.g. Belden 3107A)
2
1
Wiegand D0
PL2
Description
2
Wiegand D1
3
Green LED
4
Red LED
5
Buzzer
6
Signal Ground
TECHNICAL DATA
Type Code
Supply Voltage
Power Consumption (Typ.)
Power Consumption (Max.)
Reading distance (Typ.)
Keyboard Type
Ingress Protection Rating
Dimensions
Weight
Operating Environment
Colour
Connection
INDICATIONS
Display
Optical Indication
Acoustical Indicator
Service
PL1
8707R-001
10-30VDC
55mA@24VDC
100mA@24VDC
30mm
16 keys, backlit.
Tactile indication on key 5.
IP54 (with mounting plate)
(W x H x D) 74 x 134 x 31 mm
240 g
-40 to +60°C
Black
4+6 way screw terminal block
OLED B/W 128x64 px
1 LED, multi-color
Built-in buzzer
Tamper
PL2
Advertisement
Summary of Contents for PACOM 8707
- Page 1 PACOM 8707 Display Reader – Installation Guide TECHNICAL DATA Type Code 8707R-001 Supply Voltage 10-30VDC Power Consumption (Typ.) 55mA@24VDC Power Consumption (Max.) 100mA@24VDC Reading distance (Typ.) 30mm Keyboard Type 16 keys, backlit. Tactile indication on key 5. Ingress Protection Rating...
- Page 2 If a Pacom 8707 Reader is to be moved to a different Door Controller once OSDP Secure Channel is enabled, it needs to be reset to factory default and the Secure Channel Base Key (SCBK) cleared. It can then be paired again to a different Door Controller (refer to system specific procedure on how to perform pairing operation).
