Summary of Contents for Bluewave FlowXtremeAG75F

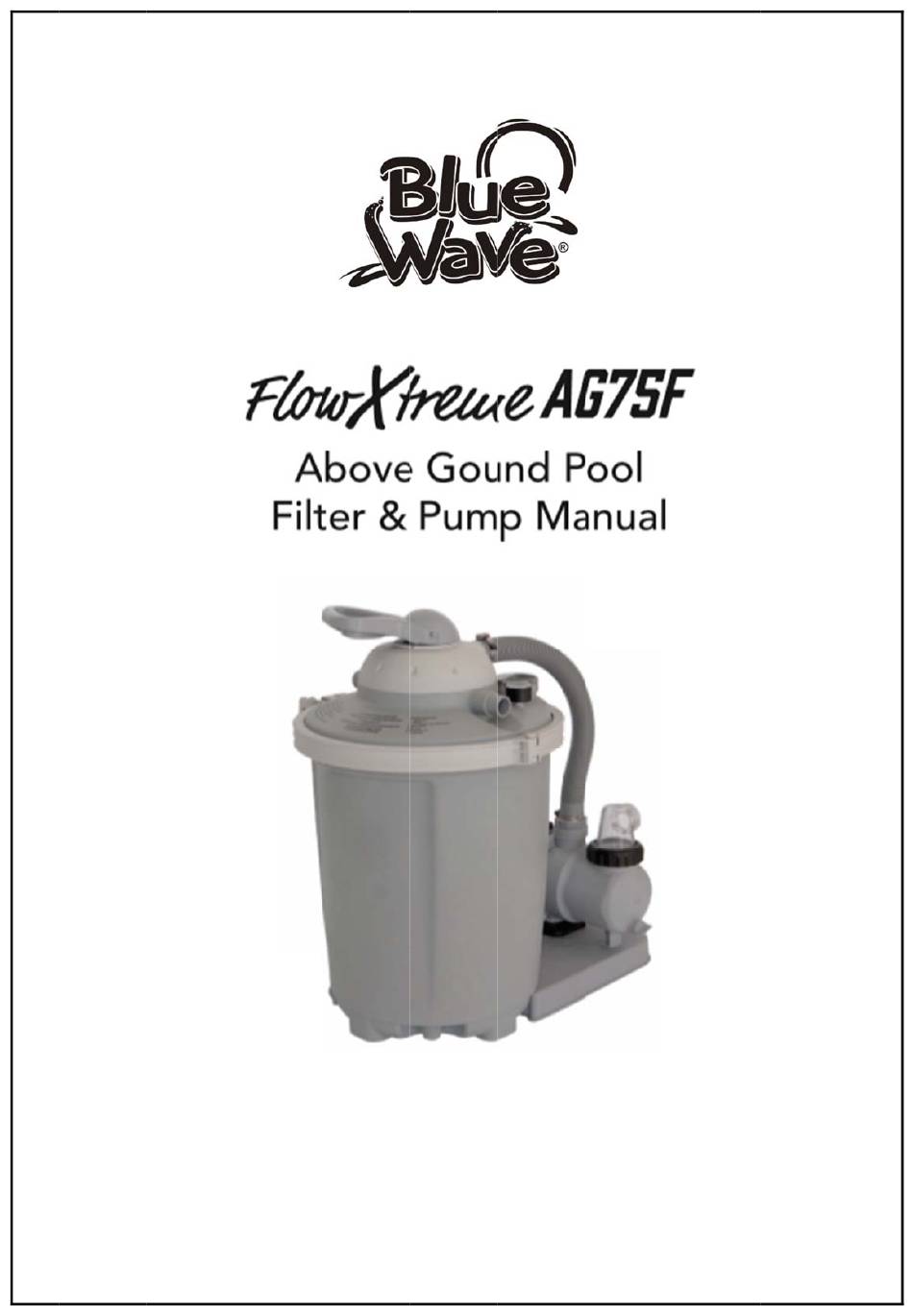

- Page 1 VER.0120 N N E6161...
-
Page 2: Safety Warnings
CONGRATULATIONS! YOU HAVE PURCHASED A HIGH QUALITY FlowXtreme FILTRATIONS SYSTEM FOR YOUR ABOVE GROUND POOL. YOUR NEW FILTER SYSTEM HAS BEEN MANUFACTURED AND TESTED TO OFFER MANY YEARS OF TROUBLE FREE SERVICE. IMPORTANT – READ THIS MANUAL CAREFULLY A. Safety Warnings Read all Warnings and Cautions noted below. -
Page 3: General Information
B. General Information This manual provides information relating to the installation, utilization and maintenance of our filtration system. We recommend that you read this manual in its entirety and keep it for future reference, The pump included with the filtration system is a horizontal, self-priming centrifugal pump. For the pump to function correctly, the water temperature must not exceed 35℃/95℉. -
Page 4: Unpacking Your Filter System
Only original replacement parts are used for repairs or replacements (consumable & expendable parts do no fall under the warranty). Expendable parts that do not fall under the warranty include: All O-rings Pressure gauge Mechanical seal, complete ... - Page 5 For the operation of this filter system with Above Ground pools, you need a skimmer installed in your pool. Either an integrated skimmer (built into the pool wall) or a suspended floating skimmer (attachment to the pool wall). The installation area must allow an adequate safety margin to the pool wall. Refer to local and national codes for required distance between the filter system and the pool wall.
- Page 6 designation “RETURN” to the return fitting or connection for the pool location. Secure all connections with hose clamps. (Figures 13 & 18) If using flexible hose: Lightly lubricate the pool return port on the tank cover with petroleum jelly. Secure with a hose clamp. NOTE: Be careful not to secure return hose to the waste/backwash port.
- Page 7 8. When you first fill your filter tank with sand it is necessary to clean the small particles and dust from the new sand. If you do not do this you will blow this dust and small particles into your pool. To properly clean the new sand follow the backwash process described below: ...
-
Page 8: Important Do's & Don'ts
Closed Function: Cleaning the hair and lint strainer. This position stops the flow of water Position 5 into the pump and filter. Picture 23 CAUTION: Do not run pump with valve in this position. Purge/Drain Function: Bypass the filter. This position is ideal for vacuuming pools with large Position 6 amounts of debris or after an algae treatment. -
Page 9: Troubleshooting
DON’TS: Observe these cautions carefully or you may cause non-warranty damage to your filter system. Move valve handle while the pump is running. It will damage the valve and possibly other equipment as well. Backwash excessively. Sand filters operate more efficiently during mid-cycle. Some level of debris in the sand bed actually helps filtration and makes the filter more effective. - Page 10 S. Install l ation and d Operati i on Illustr ration Fig g ures...
- Page 11 T. FlowXtreme 16" AG FILTER SYSTEM NE6161 (PUMP # NEP2312) PARTS BREAKDOWN AND DIAGRAMS Part Name Mnfg. No. B.W. No. For Model# Tank Lid Assembly K00145 NEP2301 NE6161 NEP2302 NE6161 Pressure Gauge G00114 NEP2303 NE6161 View Port Kit K00146 NEP2304 NE6161 Upper Distributor T00116...
-
Page 13: Technical Data
U. TECHNICAL DATA for FlowXtreme Prime Single Speed Pump Model # NEP2312 Technical Data Model Voltage Hertz Amps Flow Rate GPM NEP2312 0.75 38GPM FlowXtreme PRIME, SPS1 Pumps Parts Breakdown & Diagram Part Name Mnfg. No. B.W. No. For Model# Water Pump/ Motor 550 W K00144 NEP2312... - Page 14 V. Troub bleshootin ng for and d FlowXtr reme Prim me Pump Motor Wi ill NOT Sta art – Check k For: Make sure th he terminal b board connect tions agree w with the wiring g diagram on motor data p plate label.
- Page 15 Motor Shuts OFF – Check For: 1. Low voltage at motor or power drop (frequently caused by undersized wiring or extension cord use). Solution: Contact qualified professional to check that the wiring gauge is heavy enough. 2. Motor may be overheating due to direct sunlight or low water level in the pump basket. Solution: Check water flow to insure uniform amount of water coming to the pump.
- Page 16 Solution: Re-tighten suction and discharge connections using Teflon tape. Inspect other plumbing connections and tighten as required. 5. Plugged, restricted, or damaged impeller. Solution: Contact a qualified repair professional to install a new impeller & seal assembly. Noisy Pump – Check For: 1.
-
Page 17: Warranty Information
W. Warranty Information This product is warranted to the original purchaser to be free from defects in material or workmanship for a period of one (1) year from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer. - Page 18 La garantie du produit est valide pour l'acheteur original en ce qui a trait aux pièces défectueuses ou à la main-d’œuvre pour une période de 1 année de la date d’achat. Cette garantie n’est couvre pas les dommages causés par accident, par modification, par une installation défectueuse ou tout autre événement hors du contrôle du fabricant.
