Summary of Contents for Rand McNally ClearDryve 50

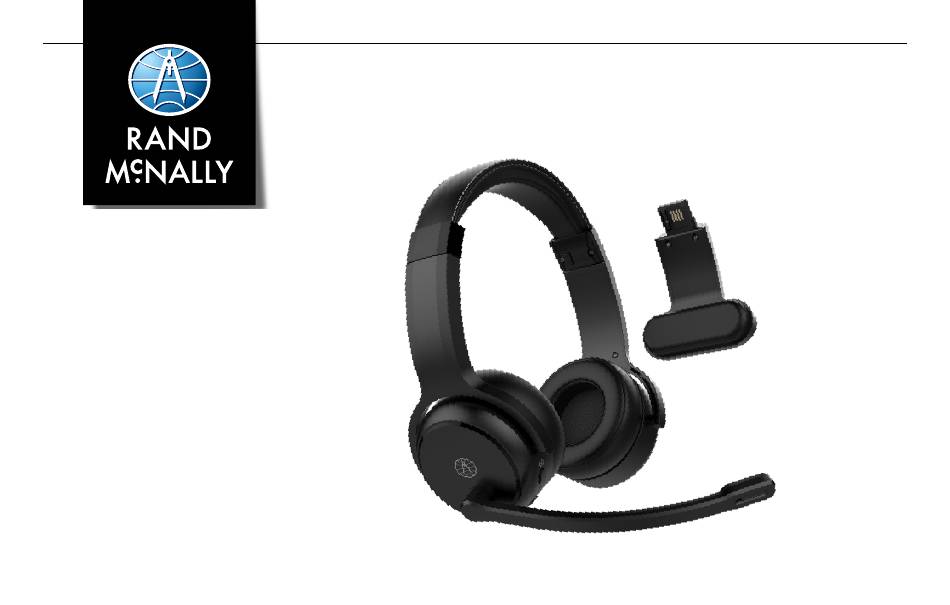

- Page 1 ClearDryve Quick Start Guide ClearDryve...
-
Page 2: Table Of Contents
Contents ................................... What’s in the box ClearDryve ™ Parts ............................3 Function Button Layout ..........................4 Getting Started with ClearDryve ........................6 ™ Charge the Battery ............................6 Power ClearDryve On and Off ........................7 ™ Pair With a Device over Bluetooth ........................7 ® Call Mode ................................9 Quick Access ..............................9 Answer an Incoming Call ..........................10 End a Call ..............................10... - Page 3 Streaming Music ...............................13 Quick Access ...............................13 Play and Pause .............................13 Turn the Volume Up and Down ........................14 Go to the Next/Previous Song ........................14 Connect to a Wired Device ..........................15 More Functions ..............................16 Add/Remove the Stereo Earpiece .........................17 Reset to Factory Settings ..........................18 Troubleshooting &...
-
Page 4: What's In The Box

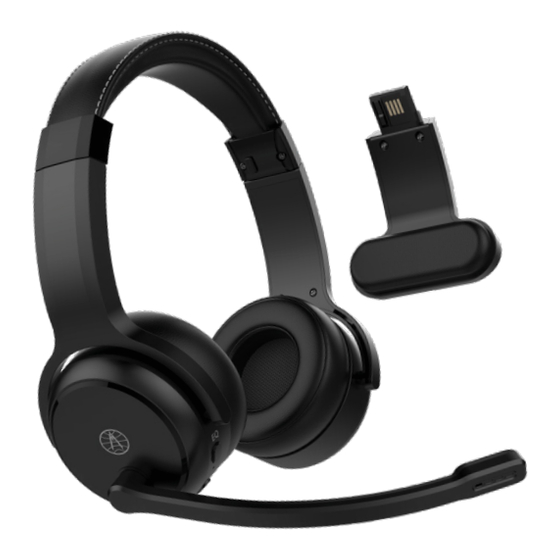

What’s in the Box In-box contents includes: ClearDryve ™ • ClearDryve headphones ™ • Audio cable • Charging cable • Drawstring pouch • Detachable earpiece (comes pre-assembled to the headphones) • Detachable headpad... -
Page 5: Cleardryve ™ Parts
ClearDryve Parts ™ Microphone Head Band Earpiece Release Mic Boom Arm Note: The earpiece release button is located on the inside of the headband. The detachable headpad (shown separately), is pre-assembled on the ClearDryve Fixed Earpiece Detachable Headpad Function Buttons Detachable Earpiece Dimensions: approx. -
Page 6: Function Button Layout
Function Button Layout... - Page 7 The mic boom arm, ports, LEDs, and function buttons on the ClearDryve headphones are on the same ™ earpiece. You can use this earpiece on either ear. ClearDryve automatically adjusts for either side when ™ you extend the mic arm. To switch the earpiece with controls from one ear to the other, swivel the mic boom up and over to the other side.
-
Page 8: Getting Started With Cleardryve
Getting Started with ClearDryve ™ To get started using ClearDryve , first you need to charge the battery. After you power it on, then you ™ can pair ClearDryve to your Bluetooth - enabled phone, tablet or laptop. Once ClearDryve is paired, ™... -
Page 9: Power Cleardryve ™ On And Off
Power ClearDryve On and Off ™ To turn ClearDryve on and off: ™ 1. To power ClearDryve on, press the MFB. ™ 2. You will hear “Power on.” 3. To power ClearDryve off, press and hold the MFB. ™ 4. You will hear “Power off.” When you power ClearDryve on for the first time, it automatically enters pairing mode. - Page 10 Once a device is paired, the LED stays solid blue. ClearDryve will reconnect automatically when Bluetooth ™ ® is enabled and the device is within range. To pair ClearDryve with a BT device: ™ Power on ClearDryve ™ 2. Enable Bluetooth on your device.
-
Page 11: Call Mode
Call Mode In Call Mode, you can answer incoming calls, and use your smartphone’s voice assistant to make hands-free calls. Quick Access Answer a call Press the MFB. Press the MFB. End a call Press and hold the MFB. Ignore a call Note: Holding down the MFB for too long (i.e., over 5 seconds) will cause ClearDryve to power down. -
Page 12: Answer An Incoming Call
Answer an Incoming Call End a Call To answer an incoming call: To end a call: 1. Press the MFB. 1. Press the MFB to hang up. 2. ClearDryve will 2. ClearDryve will beep once ™ ™ beep once to confirm. to confirm. -
Page 13: Redial The Last Number
Redial the Last Number To unmute the call: 1. Move the mic arm arm back To redial the last connected number: down in front of your mouth. 1. Quickly press the MFB twice. 2. ClearDryve will beep once ™ 2. ClearDryve will beep once ™... -
Page 14: Turn The Volume Up And Down
Turn the Volume Up and Down At any time, you can press the volume buttons to turn the volume of the call up or down. There are 16 different volume levels available. To change the volume: 1. Press Vol + to increase the volume. 2. -
Page 15: Streaming Music
Streaming Music Play and Pause Quick Access To play or pause music: Play/Pause Press the MFB 1. Press the MFB while in Music Mode. Press Vol + or Vol - Adjust volume 2. ClearDryve will beep once ™ Next/Previous Long-press Vol + or Vol - to confirm. -
Page 16: Turn The Volume Up And Down
Turn the Volume Up and Down Go to the Next/Previous Song To switch to a different song: At any time, you can press the volume buttons to turn the volume of ClearDryve up or down. ™ 1. Long-press Vol + to advance to There are 16 different volume settings the next song. -
Page 17: Connect To A Wired Device
Connect to a Wired Device You can connect ClearDryve to any ™ standard 3.5mm audio aux jack. 1. Connect the included 3.5mm audio cable to the audio in jack on ClearDryve ™ 2. Connect the cable to the aux out on your music device. -
Page 18: More Functions
More Functions EQ preset Your ClearDryve allows you to pick from 5 preset equalizer (EQ) settings. This allows you to pick the ideal settings for the specific type of music you are listening to. When you first turn on power to your ClearDryve, the first equalizer setting (EQ1) is active by default. -
Page 19: Add/Remove The Stereo Earpiece
Add/Remove the Detachable Stereo Earpiece ClearDryve can convert from mono ™ (one earpiece plus headpad) to stereo (two earpieces). The detachable earpiece can be replaced with the headpad for mono configuration. To remove the earpiece or the headpad: 1. Hold the black earpiece release tab. -
Page 20: Reset To Factory Settings
Reset to Factory Settings You may need to restore ClearDryve back to its factory state, typically when switching over to newer ™ model smartphones / laptops for daily use. Clearing the “pairing history” on your headphones can help improve connection times between your headphones and new devices. To reset ClearDryve ™... -
Page 21: Troubleshooting & Faq
Troubleshooting & FAQ Issue: Possible Causes: Can I connect more than one Yes, your headphones can be simultaneously connected to more device to my headphones. than one device. To add new connections after connecting to the first device, turn off the headphones, then press and hold the MFB. The headphones will enter pairing mode. -
Page 22: Help And Support
Help and Support Contact Rand McNally customer support for assistance: • By phone: 1-877-446-4863 • tndsupport@randmcnally.com By email: • On the web: http://www.randmcnally.com/support/category/cleardryve... -
Page 23: Warnings, End-User License Agreement, And Warranty
The Software Materials are furnished under license and may be used only in accordance with this license. Except as permitted by such license, the Software Materials may not be disclosed to any third party, copied or duplicated in any form, in whole or in part, without the prior written permission of Rand McNally. The Software Materials contain proprietary and confidential information of Rand McNally and its licensors. - Page 24 Warranty Rand McNally warrants that the product and the component parts thereof, will be free of defects in workmanship and materials for a period of one (1) year from the date of purchase. This warranty may be enforced by the first consumer purchaser (“Customer”) only, provided that the product is utilized within the U.S.A. or Canada. During the warranty period, Rand McNally will, without charge, repair or replace (with a new or newly reconditioned unit), at its option, a defective product or component part.
- Page 25 Support www.randmcnally.com/support 800-333-0136 ClearDryve cleardryve50_011619_v001...
