Summary of Contents for MATEWORK HTW25M

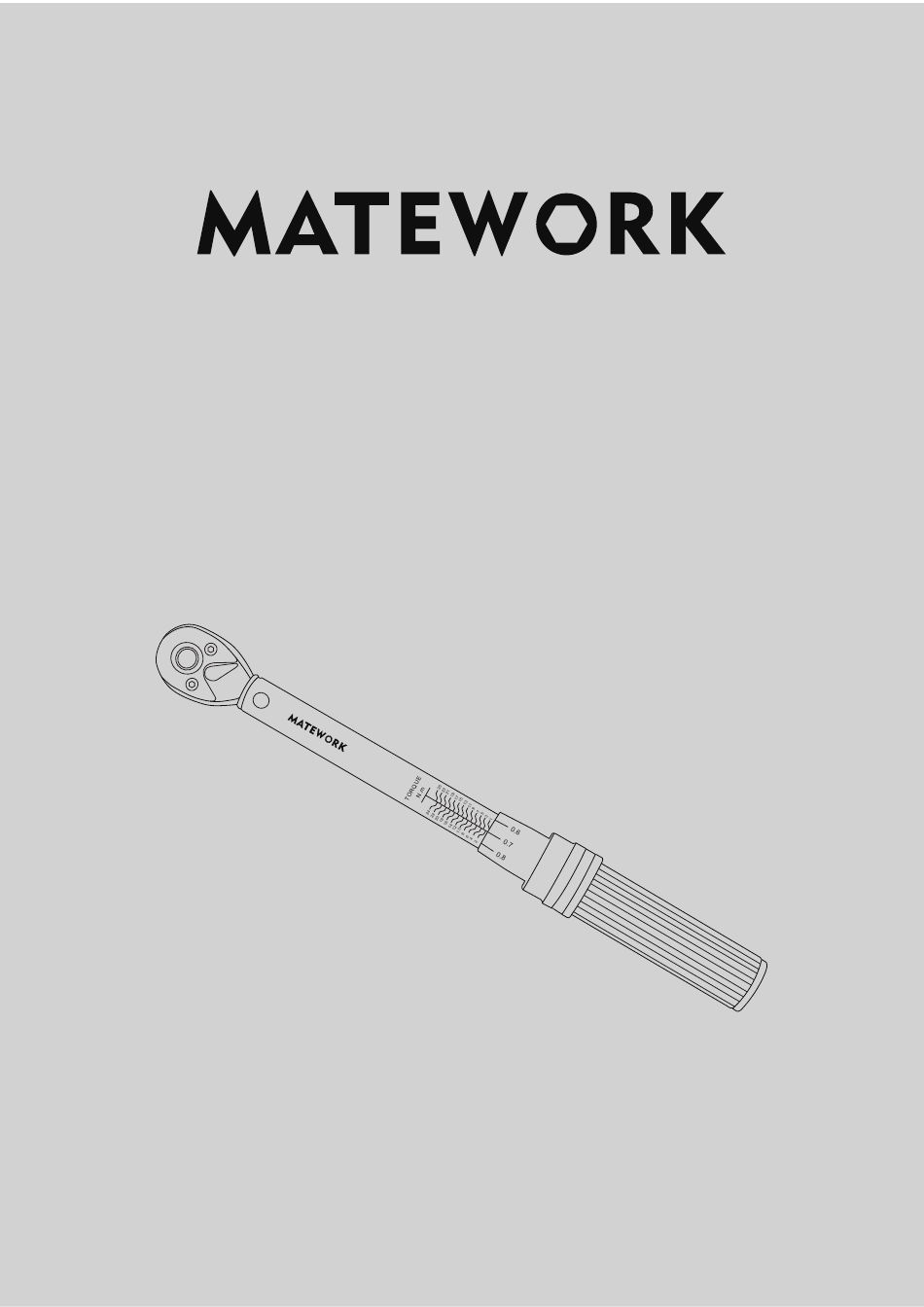

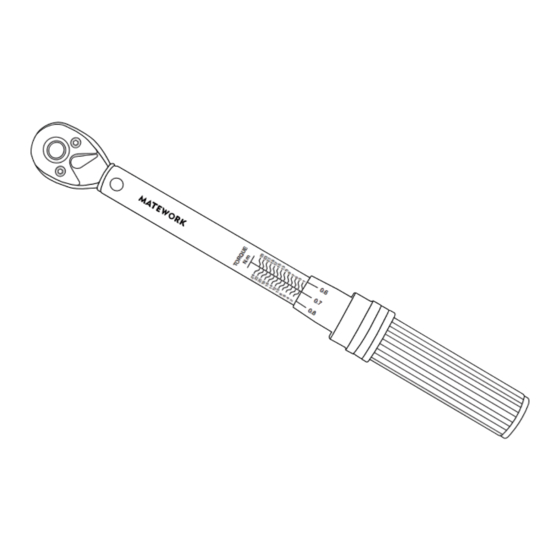

- Page 1 User Manual ¼" Drive Bike Torque Wrench Set Model:HTW25M...
-
Page 2: Customer Service
Our Store & Our Guarantees one-year-warranty 24-HOURS We provide for all customers and online service Any questions, you can contact us via scanning the code MATEWORK STORE CUSTOMER SERVICE... - Page 6 ① Tightening Torque (N.m) ● The data refer to the German DIN standard. The tightening torque in the table is set when the bolt reaches 70% of the yield limit. ● In actual use, the recommended tightening torque is 70% to 80% in the table; for example: M8, grade 8.8 bolts, the recommended tightening torque is: 22.5 N.m×80%=18 N.m ●...
-
Page 7: General Description
General Description Thank you for purchasing a Matework Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Your matework torque wrap has been designed to repair and maintain bicycles. - Page 8 Bit Sockets: used to connect various screws. (1) Phillips Bit Socket: PH2 (2) Hex Bit Socket: H2, H2.5, H3, H4, H5, H6, H8, H10 (3) Slotted Bit Socket: SL4 (4) Torx Bit Socket: T10, T15, T20, T25, T30 ¼" Dr. Metric Socket: used to connect 6 point nuts and bolts. (5) 6-Point: 7mm, 8mm, 10mm, 11mm, 13mm, 14mm, 15mm Adapters (6) Bit Holder Adapter (¼F×¼F): used to connect various ¼"...
- Page 9 4> When using the torque wrench, please hold the embedded handle tightly with your right hand and rotate the handle slowly until the wrench makes a "CLICK" sound. At this time, the set torque has been reached, please stop rotating immediately. 5>...
-
Page 10: Maintenance And Storage
1 Nm (Fig-7) Contact US Should you have any questions about the item,or any matework tool ever fails to give complete satisfaction,save time and contact us for replacement,and our email is: support@thinkworktools.com We are open Monday through Friday from 8:00 a.m. to 5:30 p.m. Eastern Standard-Time. -
Page 11: Descripción General
Descripción general Gracias por comprar un producto Matework. Fabricado con un alto estándar, este producto, si se usa de acuerdo con estas instrucciones y se mantiene adecuadamente, le brindará años de funcionamiento sin problemas. Su envoltura de torsión matework ha sido diseñada para reparar y mantener bicicletas. - Page 12 Zócalos de punta: se utilizan para conectar varios tornillos. (1) Zócalo con punta Phillips: PH2 (2) Dado con punta hexagonal: H2, H2.5, H3, H4, H5, H6, H8, H10 (3) Zócalo de punta ranurada: SL4 (4) Zócalo con punta Torx: T10, T15, T20, T25, T30 Dado métrico Dr.
- Page 13 4> Cuando utilice la llave dinamométrica, sostenga firmemente el mango incrustado con la mano derecha y gírelo lentamente hasta que la llave haga un sonido de "CLIC". En este momento, se ha alcanzado el par establecido, deje de girar inmediatamente. 5>...
-
Page 14: Mantenimiento Y Almacenamiento
Operación de llave La figura 6 ilustra el funcionamiento básico de la llave dinamométrica. Para una operación precisa, sujete solo el mango con relieve y aplique fuerza de tracción. Cuando se alcance el ajuste de torsión deseado, el cojinete de rodillos y el pasador de rodillos rodarán uno sobre el otro, provocando un clic que puede escuchar y sentir. - Page 15 Torque Conversion Table lbf.in lbf.ft kg.cm kg.m 1 lbf.in 0.083 0.113 1.152 0.012 1 lbf.ft 1.356 13.824 0.138 1 Nm 8.853 0.738 10.200 0.102 1 kg.cm 0.868 0.072 0.098 0.010 1 kg.m 86.810 7.234 9.804 Common Torque Unit Conversion Table INCH FOOT NEWTON...
- Page 16 New ton Inch- Com ponent Brand m eters pounds Shimano® Bearing cups 34.5~49.1 Nm 305~435 in lbs Hollowtech II Campagnolo® (3- 70 Nm 612 in lbs piece) Campagnolo® 35 Nm 310 in lbs Ultra-Torque cups Bottom FSA® 39.2~49 Nm 347~434 in lbs Brackets Cartridge bottom Race Face®...
