Summary of Contents for Apevia X-Telstar Jr
-
Page 2: Table Of Contents
CONTENTS: Install Power Supply........1 Install Motherboard........3 Install 3½” and 5¼” drives......3 4. Install PCI components........5 Connect case leads to motherboard....6 Case fan setup...........6 Temperature probe setup ......7 LED display features..........8 Complete the installation.........9 10. USB/1394/Audio cable pin assignments.......10... -
Page 3: Install Power Supply

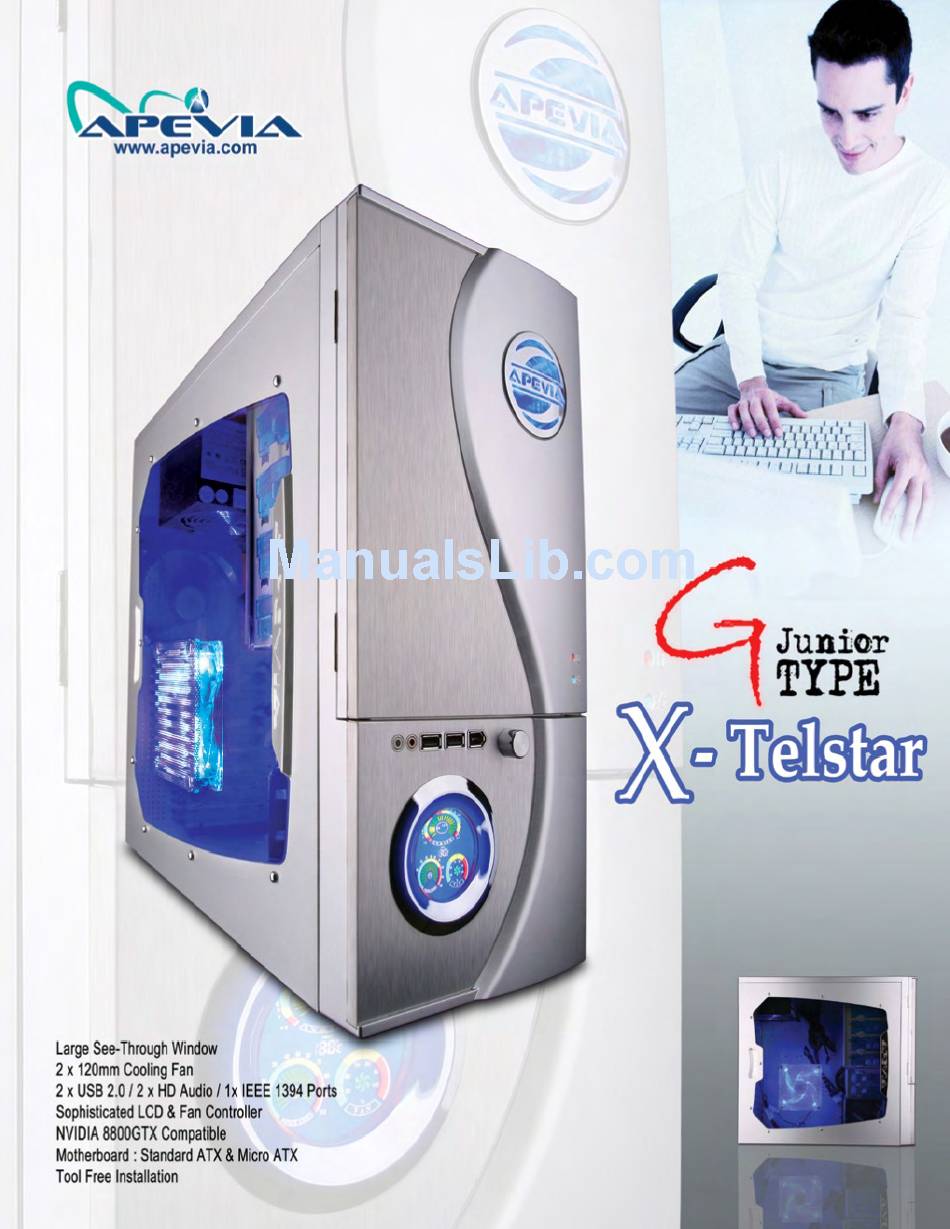

X-Telstar Jr. Finished Appearance. G-Type S-Type NOTE: CPU and memory installation is not covered in this manual. Please refer to each components’ documentation for instructions. 1. Install Power Supply: 1.1 Remove thumbscrews from the 1.2 Grab the notch on the left panel. - Page 4 NOTE: Touch an unpainted metal section of the chassis to discharge static electricity before handling PC components. An anti-static wrist strap should also be worn to further minimize the possibility of damage. 1.5 Make sure that the power supply is 1.6 Fasten screws.
-
Page 5: Install Motherboard
3. Install 3½” and 5¼” drives: 3.1 To install an optical or floppy drive, 2.3 Put standoff screws in place. Align first remove the metal shield that motherboard with standoffs and sits behind each drive bay cover. - Page 6 3.3 Slide the blue drive-rail forward 3.2 For 5 1/4” drives, align the device with the drive bay and insert. Do and push the clamp downwards the same for 3 1/2” drives using to engage locking mechanism. the two lower drive bays (one bay...
-
Page 7: Install Pci Components
4. Install PCI components: 4.2 From the outside rear of the case, 4.1 First, remove the PCI slot covers. push PCI slot cover(s) toward the Firmly press point A with thumb, inside of the chassis. while pulling point B with index finger to open the latch. -
Page 8: Connect Case Leads To Motherboard
‘OUTPUT’. The male end of the connector with 7 wires(2 yellow, 2 red, 3 black) is then routed to the power supply. -
Page 9: Temperature Probe Setup
Thermal tape should be used for best results. Note: You may also leave a sensor loose in the chassis in order to monitor the ambient system temperature. DO NOT place the sensor directly on the CPU as it will damage the sensor. -
Page 10: Led Display Features
8. LED display features: 8.2 The 5V/12V monitor displays the current 8.3 TMPE1 displays the current temperatures voltage values of the 5 and 12 volt rails of the device being monitored. respectively. Red areas indicate very low/high voltages. 8.1 The fan monitor displays the percentage 8.4 The “Voice Unit”... -
Page 11: Complete The Installation
9. Complete the installation: 9.1 Locate the Apevia logo LED power 9.2 Enjoy the illumination! connector. Route the connector to an available peripheral cable of your power supply. 9.3 With all components properly installed, gently return side panels to their original positions and replace all screws. -
Page 12: Usb/1394/Audio Cable Pin Assignments
10. USB/1394/Audio cable pin assignments:...
