Panduit PANZONE PZNWE12 Assembly Instructions

Nema 4x/ip66 rated wireless access point enclosure

Download this manual

Contents:

1 – Enclosure

1 – Aluminum Mounting Plate

1 – Mounting Template

1 – Hardware Kit

(2) Adhesive Mounting Clips

(1) RTV Silicone Sealant Pack

(6) # 10-32 x 3/8" Screws

(2) # 6-32 x 1/4" Screws

(1) UTP MINI-COM TX6 Plus Jack

Module

(1) 2 Position Surface Mount Box

(2) UTP 2' CAT 6 Patch Cord

(4) Cable Ties

Note: Installer should use the following assembly instructions as a guideline to mount desired Wireless Access Point (WAP), External Antennas,

and Powering Device.

Assembly Instructions

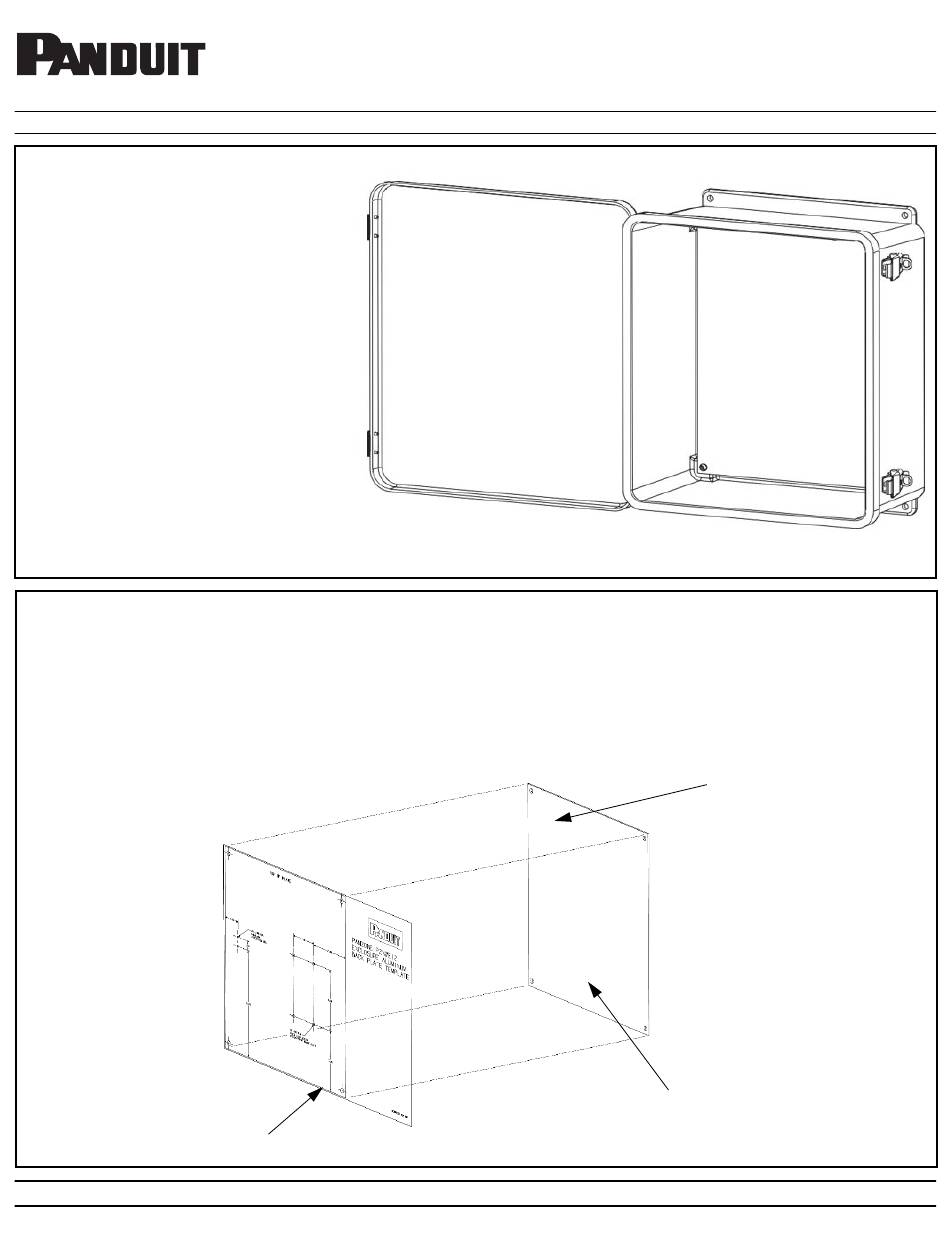

Use the supplied Mount Template as a guide to locate the hole locations required on the Aluminum Mounting Plate.

Supplied Mounting Template

PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure

ASSEMBLY INSTRUCTIONS

For Technical Support:

Page 1 of 4

Part Number: PZNWE12

PZNWE12 (Shown Open)

https://www.panduit.com

CM333 R02

Aluminum Mounting Plate

Drill the mounting plate per

the supplied template

Need help?

Do you have a question about the PANZONE PZNWE12 and is the answer not in the manual?

Page 1 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE12 ASSEMBLY INSTRUCTIONS CM333 R02 © Panduit Corp. 2024 Contents: 1 – Enclosure 1 – Aluminum Mounting Plate 1 – Mounting Template 1 – Hardware Kit (2) Adhesive Mounting Clips (1) RTV Silicone Sealant Pack (6) # 10-32 x 3/8”...
Page 2 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE12 ASSEMBLY INSTRUCTIONS CM333 R02 © Panduit Corp. 2024 Attach the Mounting Plate to the enclosure with the supplied # 10-32 x 3/8” screws and washers. Supplied # 10-32 x 3/8” screws and flat washers...
Page 3 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE12 ASSEMBLY INSTRUCTIONS CM333 R02 © Panduit Corp. 2024 Fasten the 2 position surface mount box base and the WAP mount plate to the aluminum back plate with the supplied thread forming screws. Installed Aluminum Mounting Plate...
Page 4 Part Number: PZNWE12 ASSEMBLY INSTRUCTIONS CM333 R02 © Panduit Corp. 2024 7. Attach the required external antennas to the bulkhead fittings installed on the bottom surface of the enclosure. Wrap the excess bulkhead cable slack around the mounted wireless access point.
