CaryMart S1X2-DC User Manual

RF Wireless Remote Control Radio Controller
Package Include:
1 x Receiver: S1X2-DC (1 Channel / Four control Modes)
1 x User manual
Feature:
Wireless control, easy to install
Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the recei v er with transmitter (remote control) from any place w ithin a reliable distance; the w i r eless RF signal can pass
through walls, floors and doors.
With characteristics of reverse pow er protection and over current protection
Audible / visual indication
Use an 8-bit microcontroller w i t h low -power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in the same place, you can set them w ith different codes.
It is recommended to use the load w ithin 3A or 50W

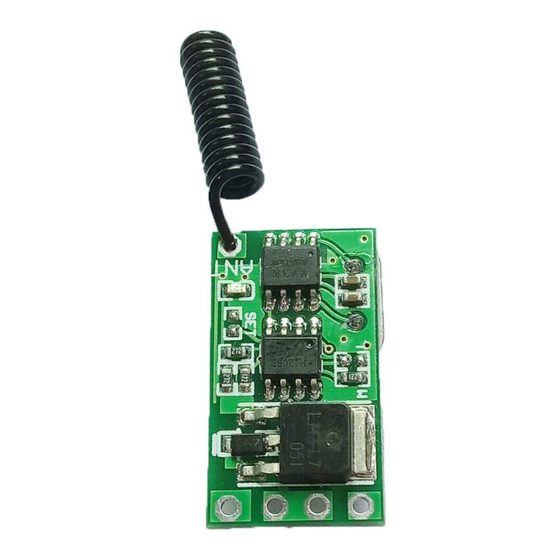

Receiver:
Model No.: S1X2-DC
Channel: 1 CH
Pow er Supply (Operating Voltage): DC 6~36V
Output: DC 6~36V
Working Frequency: 315MHz / 433MHz
Control Modes: Momentary, Latched, Toggle, 10 seconds delay
Coding Type: Fixed code or learning code
Coding Setting: By learning
PCB Size: 27mm x 16mm x 7mm
Static Current: ≤6mA
Maximum Working Current: 3A or 50W
Work w ith Fixed code transmitters or Learning code transmitters.
Matching Transm itters:
The receiver can work w ith di f ferent transmitters, such as model C-1 / C-2 (100M), CWB-1 / CWB-2 (50M, w aterproof), CP-1 / CP-2 (500M), or
CB-1 / CB-2 (1000M) etc.
When you set the receiver in toggle or momentary mode, it should w ork w ith single button transmitter, such as model C-1 (100M), CWB-1 (50M,
waterproof), CP-1 (500M), or CB-1 (1000M) etc. When you set the recei v er in latched mode, it should work with two buttons transmitter, such as
model C-2 (100M), CWB-2 (50M, w aterproof), CP-2 (500M), CV-2 (500M), or CB-2 (1000M) etc.
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum w orking distance can reach100M in an open ground.
The maximum w orking distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and w ill be interfered by other wireless signals. Therefore, the actual distance may not
reach thi s maximum w orking distance.
If you want to have a further working range, you can install an external antenna to the recei v er, and you al s o can use a powerful transmitter, such
as CB series transmitters.
Usage (with the transmitter C-2):
The receiver can be used to control DC 6V~36V equipments.
Wiring:
If you want to control a DC lamp, do as follow i n g:
1) Connect the positive pole of DC pow er suppl y to terminal "VCC" of INPUT, and connect the negative pole of DC power supply to terminal
"GND" of INPUT.
2) Connect the positive pole of lamp to terminal "OUT +" of OUTPUT, and connect the negative pole of lamp to terminal "OUT -" of OUTPUT.
Setting different control modes :
We have set the recei v er as Latched mode before delivery. If you want to use other modes, do as following.
1) Setting control mode Momentary: connect terminal 3 and 4.
Press and hold button A: output DC pow er.
Release button A: stop to output.
2) Setting control mode Latched: connect terminal 1 and 2.
Press button A: output DC pow er.
Press button B: stop to output.
