Summary of Contents for SYNCRO SV10
- Page 1 SV10 Single Side Earphone Walkie Talkie User's Manual...
-
Page 2: Item Description

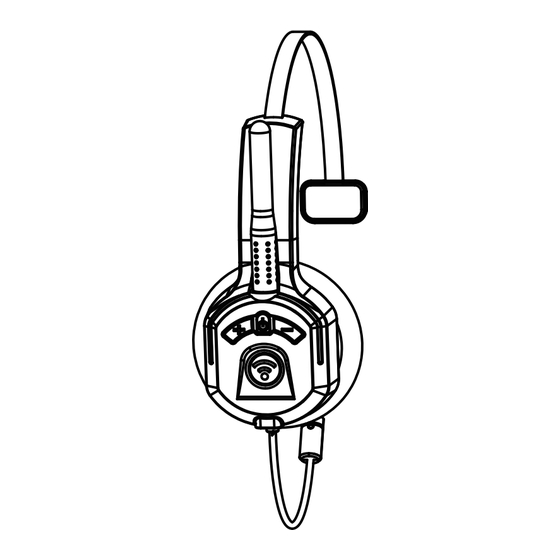

ITEM DESCRIPTION Antenna Speaker Power / Menu VOL-/CH- VOL+/CH+ Programming /Charge Jack... - Page 3 Operating Instructions 1.Power On/Off Keep pressing power key（ ）for more than 2 seconds until the green indicator light is on, then comes the voice prompt “Power on” and prompt the current channel. That means the radio now is on and goes to standby mode. Keep pressing power key for more than 3 seconds, while the red and green indicator lights are on and flashing 3 times, then lights are off, radio now is power off.
- Page 4 4.Push to Talk （1）Transmit:Keep pressing( ) key，red light is on, speak to the mic，receiver will receive your voice if it is in your transmitting range. Release key ( ) to stop transmitting and standby. （If this channel is not set to transmit frequency point, then comes "toot"...
- Page 5 Interphone receives the valid carrier \QT\DQT signal, it is forbidden to transmit. If closed, then if received signals, radio can also transmit. 4. Voice Prompt There are 3 modes of voice prompt. （1）Off：turn off voice prompt function. （2）Chinese：voice prompt in Chinese. （3）English：voice prompt in English.
-
Page 6: Charging Instruction
indicator flashing 1 times in (5 s, 10 s, 15 s, 20 s, 30 s, 45 s, 60 s) . Charging Instruction 1 Low power prompt function This radio has the function of low power prompt, when the battery voltage is low, it will prompt "please replace the battery", please charge it. -
Page 7: Specifications
Specifications General Specifications Frequency 400-480MHz Rated voltage 3.7V Channels Same frequency simplex / Operating mode different frequency simplex Transmitter Specifications Power output 0.5W Modulation Max frequency deviation ≤5KHz/＜2.5K Spurious power ≤7.5μW Transmitter specifications 65dB Emission current 600mA Receiver Specifications ensitivity(12 dB SINAD)EIA ＜0.14（12Db SINAD) Rated audio 200mW... -
Page 8: Guarantee Card
GUARANTEE CARD Model No.: Purchasing Date: Serial No.: Dealer: Telephone No.: User 's Name: Telephone No.: Address & Post Code: Remarks: 1. This guarantee card is to be kept by the users, no replenishment if lost. 2. This guarantee card is to be flled & chopped by the dealer, or it is invalid.
