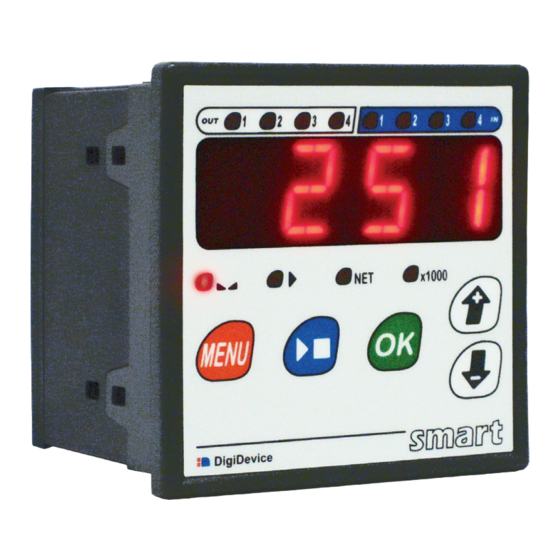

DigiDevice SMART Series Use And Installation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

USE AND INSTALLATION MANUAL

Table of Contents

Need help?

Do you have a question about the SMART Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DigiDevice SMART Series

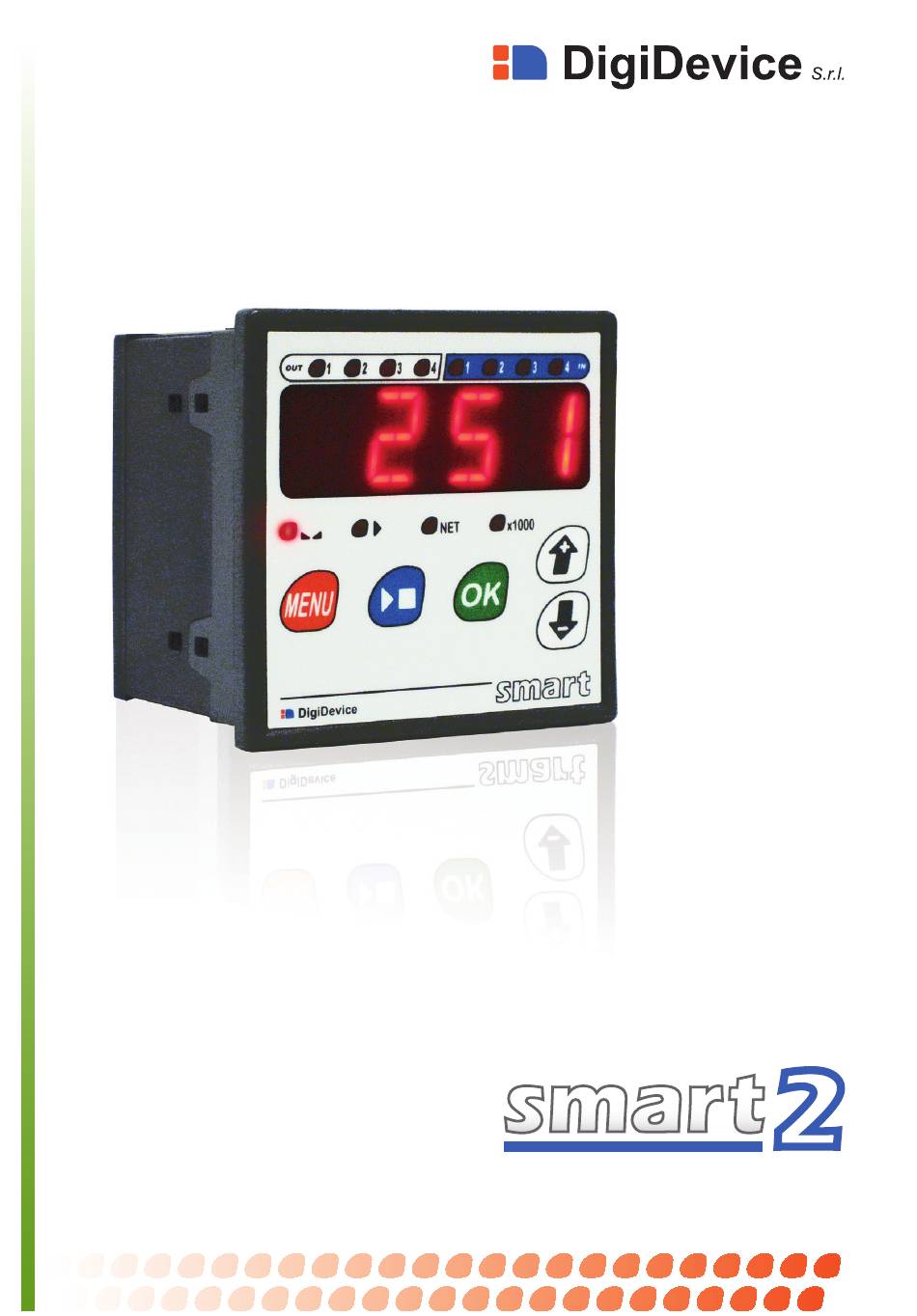

Page 1 USE AND INSTALLATION MANUAL...
Page 3: Table Of Contents
SMART 2 - Use and Installation Manual SUMMARY GENERAL WARNINGS ..................2 INDICATOR’S ELECTRICAL CONNECTIONS ............2 4 WIRES LOAD CELL CONNECTION ..............3 6 WIRES LOAD CELL CONNECTION ..............4 CONVENTIONS ..................... 5 INDICATIONS ......................5 INDICATOR STARTING AND TEST ............... 7 Choice of Type ....................
Page 4: General Warnings
DigiDevice GENERAL WARNINGS Read carefully this manual before using the weight indicator • Be sure that the electrical power supply is as per system requirements • Do not push on the display • Do not use scratching tools to push buttons •...
Page 5: Wires Load Cell Connection
SMART 2 - Use and Installation Manual 4 WIRES LOAD CELL CONNECTION...
Page 6: Wires Load Cell Connection
DigiDevice 6 WIRES LOAD CELL CONNECTION...
Page 7: Conventions
SMART 2 - Use and Installation Manual CONVENTIONS The information notes contain important information, highlighted outside the text which they refer The caution messages contain important information to avoid behavior of the equipment different from the desired INDICATIONS Following the main diagnostic and working indications of the SMART system. Flashing indications on the display mean that the operator action is needed (typically values insertion) INDICATOR...
Page 8 DigiDevice DISPLAY ERROR DESCRIPTION MESSAGE WEIGHT SCALE Weight value is out of scale (too high); resettable by doing the tare -HI- POSITIVE ERROR LOW Converter out of scale (low) ER L ERROR HIGH Converter out of scale (high) ER H...
Page 9: Indicator Starting And Test
SMART 2 - Use and Installation Manual INDICATOR STARTING AND TEST Once installed the weight sensors and completed the electrical connection, the indicator configuration shall be done, following the phases descr bed below. Choice of Type Switching on the system, the following messages will appear in sequence on the display: (SMART 2 model) and NOPR.
Page 10: Checking Inputs And Outputs
DigiDevice Checking Inputs and Outputs When the indicator is displaying the weight value, press the key and scroll the list with the keys, up to the message SYST (System settings), then confirm with . A blinking value followed by will now appear, indicating a password request. Insert each digit of the password with...
Page 11: Master Weight Calibration
SMART 2 - Use and Installation Manual used to create a disposable password. In case the password is not available, contact the seller, giving this number; the seller will provide a password which can be used only one time. Once the password is inserted, scroll the list with the keys, up to the message WOPT, then confirm with The parameters descr bed above will appear in the weight options configuration sequence: the name...
Page 12: Tare Zeroing
DigiDevice Once the password is inserted, scroll the list with the keys, up to the message MSTR, then confirm with . As this is a delicate operation, the scrolling message P S OK TO GO requires a confirmation before entering in this procedure. Press to confirm.
Page 13: Set Type
SMART 2 - Use and Installation Manual 1 SET TYPE Weight display with partialization functions and 1 alarm threshold If the key is pressed, a partialization is done, that is: the displayed weight will be zeroed, to allow the operator to successively load quantities of product, always seeing the added weight. Each time the key is pressed, a scrolling message is displayed.
Page 14 DigiDevice seconds, then its value is displayed again. To set the hysteresis values associated to each set and the filtering to be applied to the weight display, when the indicator is displaying the weight value, press the key and scroll the list with the...
Page 15: Sets Type
SMART 2 - Use and Installation Manual 2 SETS TYPE Weight display with partialization functions and 2 alarm thresholds If the key is pressed, a partialization is done, that is: the displayed weight will be zeroed, to allow the operator to successively load quantities of product, always seeing the added weight. Each time the key is pressed, a scrolling message is displayed.
Page 16 DigiDevice When the parameter value is displayed (blinking), it’s possible to check which parameter the value refers, by pressing the key. The name of the parameter will appear for a few seconds, then its value is displayed again. To set the hysteresis values associated to each set and the filtering to be applied to the weight display,...
Page 17: Ld Type
SMART 2 - Use and Installation Manual 1 LD TYPE Batching of one product (load), with output for slow phase When the key is pressed or the input 1, START, is activated, the scrolling message and the (besides the LED , if already on) show the batching start.
Page 18: Programming
DigiDevice P S P AY TO R N is displayed. Press to recover batching from where it was paused, or definitely stop batching, deactivating the output and switching off the LED . The exit from the batching phase is confirmed by the scrolling message end.
Page 19 SMART 2 - Use and Installation Manual the last parameter has been inserted, the scrolling message confirms the exit from the procedure. Press to go back to weight display. • FAL1 : fall weight value for component 1; • SLW1 : weight value related to the slow load phase for component 1; • AUFL : parameter to activate / deactivate the automatic calculation of fall weight values;...
Page 20: Ld Type
DigiDevice 2 LD TYPE Batching of two products (load) When the key is pressed or the input 1, START, is activated, the scrolling message and the (besides the LED , if already on) show the batching start. The instrument checks now the following: •...
Page 21: Programming
SMART 2 - Use and Installation Manual paused until input 3 is deactivated. During the pause due to the key, the LED blinks and the scrolling message P S OK TO EXIT P S P AY TO R N is displayed. Press to recover batching from where it was paused, or definitely stop batching, deactivating the output and switching off the LED .
Page 22 DigiDevice Once the password is inserted, select with the first item of the menu, PARA. The below described parameter will appear in sequence. The name of the parameter is displayed for a few seconds, followed by its blinking value. Select the...
Page 23: Uld Type
SMART 2 - Use and Installation Manual 1 ULD TYPE Batching of one product (unload), with slow phase output When the key is pressed or the input 1, START, is activated, the scrolling message the LED (besides the LED , if already on) show the batching start. The instrument checks now that the weight on the weighed system less the quantity to be batched (SET1) is above the value of the parameter MIN.
Page 24: Programming
DigiDevice Inputs and outputs OUT 1 OUT 2 IN 1 IN 2 IN 3 IN 4 SET 1 SLOW START STOP PAUSE Table 8: I/Os list for type 1 ULD Programming Press the key to access the parameters to be settled.
Page 25 SMART 2 - Use and Installation Manual means a long update time and vice versa; • VRES : parameter to activate / deactivate the remaining weight to be loaded visualization; • MISS : alarm time for component missing: during unload, if the component weight to be unloaded does not decrease, the missing component error, ER06, is displayed.
Page 26: Uld Type
DigiDevice 2 ULD TYPE Batching (unload), repeated two times When the key is pressed or the input 1, START, is activated, the scrolling message and the (besides the LED , if already on) show the batching start. The instrument checks now that...
Page 27: Programming
SMART 2 - Use and Installation Manual CAUTION: The batching procedure will definitely stop in case of black out When the indicator is not batching, weight zeroing can be achieved keeping the key pressed for 3 seconds. Inputs and outputs OUT 1 OUT 2 IN 1...
Page 28 DigiDevice • FAL1 : fall weight value for component 1; • FAL2 : fall weight value for component 2; • AUFL : parameter to activate / deactivate the automatic calculation of fall weight values; • MIN : minimum scale weight value; • WAIT : wait time between components;...
Page 29: Other Functions
SMART 2 - Use and Installation Manual OTHER FUNCTIONS Tare recovery Activates the wizard to cancel the last gross weight zeroing. CAUTION: This operation cannot be canceled and shall be done only if really needed When the indicator is displaying the weight value, press the key and scroll the list with the keys, up to the message SYST...
Page 30: Manual Tare
DigiDevice Manual tare The zeroing value can be manually settled as follows. When the indicator is displaying the weight value, press the key and scroll the list with the keys, up to the message SYST (System settings), then confirm with .
Page 31: Technical Data
SMART 2 - Use and Installation Manual TECHNICAL DATA Voltage Power Supply 10 ÷ 28 V dc; 9 ÷ 18 V ac Maximum Consumption 2 W (Typ. 0.16A @ 12V) Load Cells Excitation Voltage 5 V DC Divisions 60 000 Resolution x1 x2 x5 x10 Number of Connectable Load Cells...
Page 32: Warranty
(non mandatory) statutory, con- tractual in tort or otherwise. DigiDevice is no This warranty shall further not apply if: even liable for any incidental, consequential a.
Page 33: Declaration Of Conformity
Indicatore Serie SMART modello SMART 2 SMART Series Indicator SMART 2 model al quale si riferisce la presente dichiarazione, è conforme alla/e seguente/i norma/e o documento/i normativo/i:...
Page 34 DigiDevice NOTES...
Page 36 Authorized Seller +39 030 99 88 818   +39 030 20 53 423 Via dell’Industria, 6 25012 - Calvisano (BS)  info@digidevice.com Italy  www.digidevice.com...
