Summary of Contents for RHINO 19PD

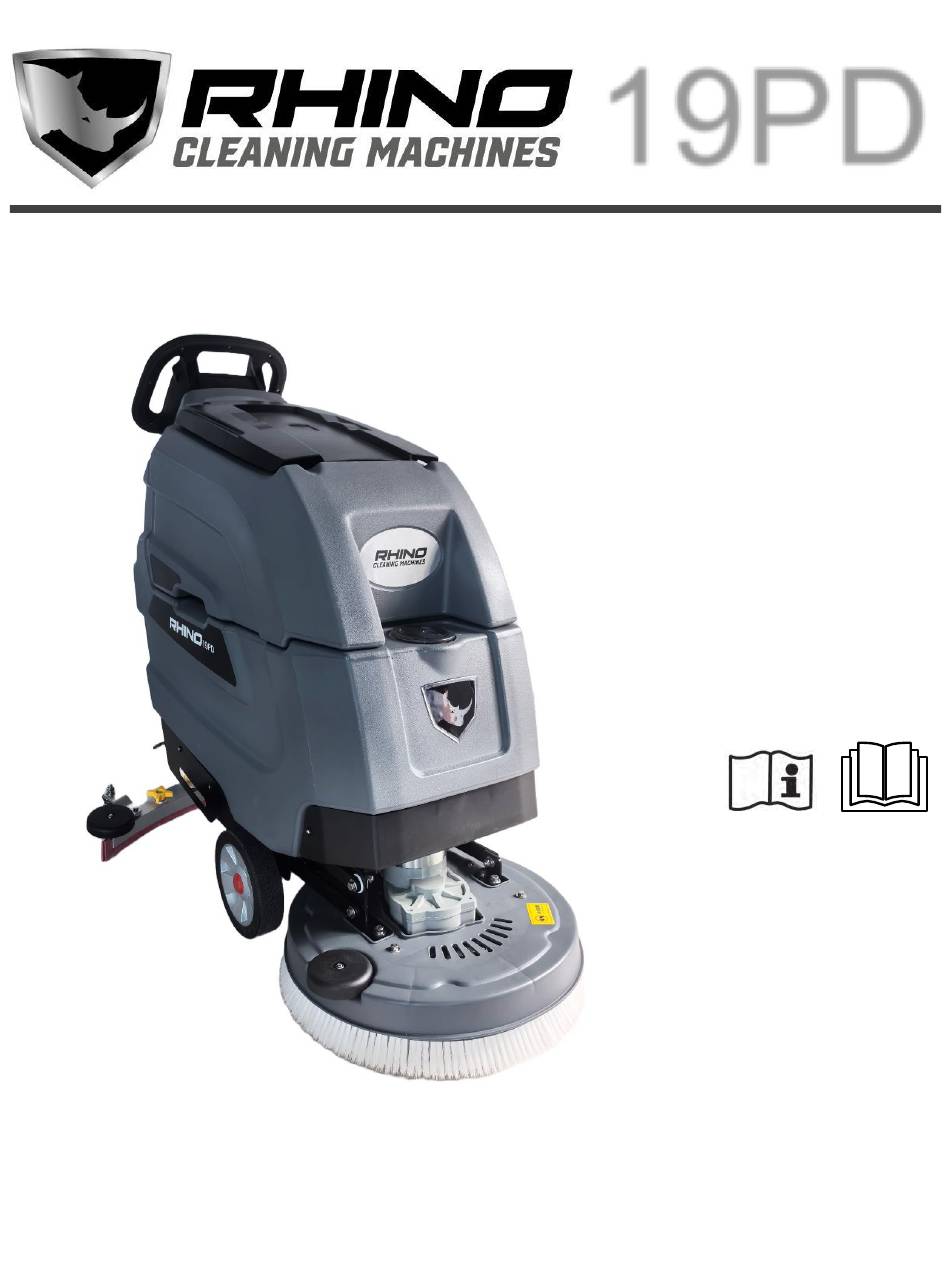

- Page 1 19PD RHINO 19" PAD DRIVE BATTERY FLOOR SCRUBBER Operator’s Manual (EN) To view, print or download the parts manual, visit: www.rhinofloorcare.com Rev. 01 (05-2024)
- Page 2 Rhino 19PD Operator’s Manual This manual provides necessary Machine Operation and maintenance instructions. Before operating or using this machine, please read and understand this manual. Each new model also comes with a complete illustration manual of spare parts, which is used to replace parts.
-
Page 3: Table Of Contents
Rhino 19PD Operator’s Manual Contents Safety Precautions.........4 Battery Meter .........18 Security Label..........6 Overload Reset Switch ......18 Machine Components........7 Timer ............19 Operating Panel / Controls......8 Water Tank Drainage ......19 Machine Installation ........9 Discharge Recovery Tank ......19 Unpacking the Machine........9 Drain Solution Tank ........20 Install the Battery ...........9... -
Page 4: Safety Precautions
Rhino 19PD Operator’s Manual Safety Precautions The following symbols are used throughout this manual as indicated in the descriptions: Warning: To warn of hazards or unsafe practices that could result in severe personal injury or death. FOR SAFETY: To identify actions that must be followed for safe operation of equipment. - Page 5 Rhino 19PD Operator’s Manual 3. When using machine: a. Operate only following this manual. b. Go slow on inclines and slippery surfaces. c. Slow down when turning. d. Make sure the operator’s whole body is in the operating console while the machine is running.
-
Page 6: Security Label
Rhino 19PD Operator’s Manual Intended Use The Rhino 19PD walk-behind floor scrubber is intended for commercial use, for example, in hotels, schools, hospitals, factories, shops, offices and rental businesses. It is designed to scrub hard floor surfaces (concrete, tile, stone, synthetic, etc.) in an indoor environment. -
Page 7: Machine Components
Rhino 19PD Operator’s Manual 19PD Machine Components 1. Recovery Tank Cover 2. Solution Tank Fill Port 3. Brush Motor 4. Brush Shroud 5. Main Wheels 6. Squeegee Assembly 7. Charging Port 8. Squeegee Lift Handle 9. Brush Lift Handle 10. Recovery Tank Drain Hose 11. -
Page 8: Operating Panel / Controls
Rhino 19PD Operator’s Manual Operation panel / controls... -
Page 9: Machine Installation
Rhino 19PD Operator’s Manual Machine Installation Unpack the Machine 1. Check carefully whether there is any damage on the machine packing box. If there is any damage, please report it to the carrier immediately. 2. Check the shipping content list, if there are any missing items, please contact the dealer. - Page 10 Rhino 19PD Operator’s Manual Install the Battery (Cont.) 1. Park the machine on a level ground, turn off all power switches and take out the key. 2. Raise the recovery tank so that the battery compartment can be reached. (As shown below) 3.
-
Page 11: How The Machine Works
Rhino 19PD Operator’s Manual How the Machine Works Cleaning Method: • Water and detergent flow to the brush plate and the ground through the water valve and solenoid valve. Use detergent and water to clean the floor by rotating the brush plate. -
Page 12: Machine Installation
Rhino 19PD Operator’s Manual Machine Installation and Setup: Connect the Squeegee Assembly 1. Park the machine on a level ground and turn off all power. 2. Raise the squeegee bracket (as shown in the figure below). 3. Install the squeegee assembly on the squeegee mounting bracket (as shown in the figure below). -
Page 13: Installing The Brush Plate
Rhino 19PD Operator’s Manual Installing the Brush Plate For safety: Before installing the brush plate or pad holder, please park the machine on a level ground, turn off all power switches and remove the key. 1. Park the machine on a level ground and turn off the power. -
Page 14: Pour The Solution Into The Solution Tank
Rhino 19PD Operator’s Manual Pour the Solution into the Solution Tank • The front of the machine is equipped with a bucket water injection hole, and the solution is injected into the solution tank (as shown in the picture below). -
Page 15: Machine Operation
Rhino 19PD Operator’s Manual Machine Operation For safety: do not operate the machine before reading and understanding the operation manual. Warning: watch out for fire or explosion hazards. Do not operate the machine near or in a place with flammable liquid, gas or flammable dust. - Page 16 Rhino 19PD Operator’s Manual • and turn on the brush plate switch (as shown in the picture below). • Put down the lifting handle of the squeegee to make the squeegee assembly to the ground (as shown in the picture below), and the water suction motor works.
-
Page 17: During The Operation Of The Machine
Rhino 19PD Operator’s Manual • To stop the cleaning, please turn off the brush plate, raise the brush plate. After the scrubber walks for a certain distance, raise the squeegee lifting handle to make the squeegee in the raised state, and then turn off the main power switch. -
Page 18: Battery Meter
Rhino 19PD Operator’s Manual Battery Meter: • The battery meter shows the power of the battery. When the battery is fully charged, all indicator lights are on. As the power is consumed, the indicator lights will turn off from right to left (as shown in the figure below) Note: To extend the life of the battery, please be sure to charge the battery in time after the machine is used. -
Page 19: Timer
Rhino 19PD Operator’s Manual Timer: • The timer will record the total number of hours that the brush plate motor is turned on. Please use the timer to determine when the recommended maintenance procedures should be performed and record the maintenance history (as shown in the figure below). -
Page 20: Drain Solution Tank
Rhino 19PD Operator’s Manual Drain Solution Tank To drain the remaining water in the solution tank, open the drain cover of the solution tank (as shown below). Charging the Battery: The following charging instructions apply to the charger that comes with this machine. -
Page 21: Installation And Use Of Battery
Rhino 19PD Operator’s Manual Battery Charger Use (Cont.) Note: Once the battery charger is connected, the machine will no longer work. Note: During the charging of the charger, please do not unplug the DC cable of the charger from the socket on the machine. In order to avoid arc discharge. If charging must be suspended during charging, please unplug the AC power cord first. - Page 22 Rhino 19PD Operator’s Manual 4. When installing the battery in the whole vehicle, adjust the plug between the batteries to make the battery in an upright position and tighten the battery to prevent the battery from shaking and collision. 5. Electric door locks, fuse holders, etc. must be isolated from the battery during periods that are prone to sparks.
-
Page 23: Machine Maintenance
Rhino 19PD Operator’s Manual Machine Maintenance To keep the machine in the best working condition, it is necessary to strictly follow the daily and weekly maintenance procedures. Warning: pay attention to the risk of electric shock. Turn off the machine power switch. - Page 24 Rhino 19PD Operator’s Manual 4. Clean the squeegee blade (as shown below). Place the squeegee in a raised position to prevent damage to the blade. 5. Check the wear condition of the edge of the squeegee blade. If it is worn out, please switch the two ends of the blade.
- Page 25 Rhino 19PD Operator’s Manual 7. In order to prolong the life of the battery, please charge the battery in time after the machine is used to prevent damage to the battery due to power loss (as shown below). Weekly Maintenance: 1.
- Page 26 Rhino 19PD Operator’s Manual Maintenance every month: check distilled water levels in battery cells. • Make sure the machine is turned off. • Add distilled or de-ionized water to the top of battery plates. • Put batteries on a complete charge.
-
Page 27: Squeegee Blade Replacement
Rhino 19PD Operator’s Manual Squeegee Blade Replacement Note: Each squeegee blade has four sides. When the blade is worn, you only need to exchange the two ends of the blade and use the other intact surface. If all four edges are worn, replace the blade. -
Page 28: Move The Machine
Rhino 19PD Operator’s Manual Moving the Machine When using a truck or trailer to move the machine, be sure to follow the following strapping procedures: 1. Raise the squeegee and brush head. 2. Use the recommended loading dock to load the machine. -
Page 29: Troubleshooting
Rhino 19PD Operator’s Manual Troubleshooting Troubleshooting (Cont.) Problem Reason Solution The switch is not open or damaged Turn on the switch or replace the switch The brush plate motor button is not Turn on the switch or replace the switch... -
Page 30: Power Charger Fault Code
Rhino 19PD Operator’s Manual Troubleshooting (Cont.) Problem Reason Solution The recovery tank is full or the suction Drain the recovery tank or replace the suction pipe is broken pipe Drainage pipe cover is not sealed Replace the drain pipe cover... -
Page 31: Specifications
Rhino 19PD Operator’s Manual Specifications General Machine Size/Capacity Project Size/Capacity Length 1300mm Height 1100mm Width/Frame 545mm Scrubbing Width 500mm Suction Width 772mm Brush Diameter 19.5” Solution Tank Capacity Recovery Tank Capacity Without Standard Battery Components 71.5 Kg Type Quantity Voltage... - Page 32 Rhino 19PD Operator’s Manual...
-
Page 33: Warranty
Rhino will require credit card information for all warranty service dispatch requests unless there is an open account in good standing on file with Rhino or an authorized distributor. In the event that a warranty claim is denied due to the aforementioned reason, Rhino reserves the right to charge your credit card or account for the full amount of any labor, travel and parts costs incurred due to the equipment repair.
