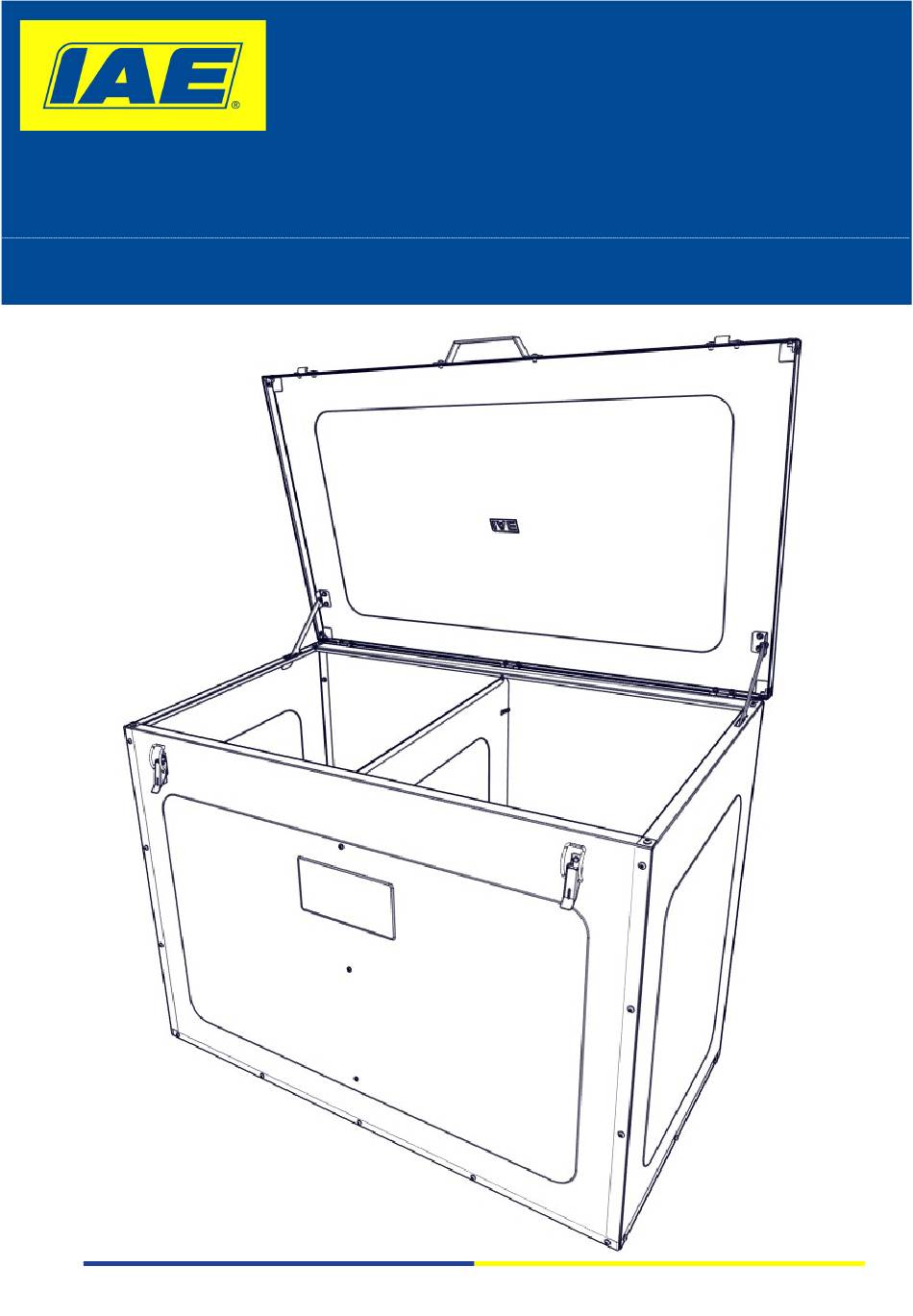

- Page 1 USER MANUAL 1001739-01 Corn Bins Call:+44 (0)1782 339320 | Email: sales@iae.co.uk | Weblink: https://iae.co.uk/...
- Page 2 INJURY WHICH OCCURS FROM THE LACK OF COMPLIANCE WITH THESE HEALTH AND SAFETY INTENDED USE MEASURES WILL BE THE RESPONSIBILITY OF THE The IAE plain corn bin is manufactured from pre- OPERATOR. galvanised sheet, ideal for indoor storage of corn or ¨...
-
Page 3: Parts Inventory
Parts Inventory Corn bin parts supplied in flat pack. CORN BIN LID ASSEMBLY (x1) ❶ LEFT SIDE (x1) ❷ PARTITION (x1-2 if required) ❸ RIGHT SIDE (x1) ❹ BASE (x1) ❺ FRONT (x1) ❻ BACK (x1) ❼ Fitting kits 1 & 2 enclosed securely beneath the lid (bagged). - Page 4 Prep For Partitions ✋ Preparation for partitions MUST be completed before assembly. Partitions are supplied to divide the internal body into 2 or 3 sections, dependent on the length of the bin and user preference. The FRONT, BASE and BACK parts feature ‘knockout punches’ along the width of the sheet metal which MAY NEED TO BE punched out to allow for fastening the partitions with self tapping screws.
-
Page 5: How To Assemble
How To Assemble Tooling required: Pre-punched threaded holes detail Socket set �� �� Hex key set · · Used in the manufacturing process on sheet metal parts ensures that bolts are secured at Hammer Work gloves · · insertion - eliminating the need for nuts. Centre punch Spanner ·... - Page 6 How To Assemble ❺ Fit the handle and x3 hinges to connect the lid . ❶ ❾ ❿ ❻ ❼ ❼ Fit stay plates to the L-shaped Connect the stays (both sides) Fit the spring claw latches brackets. Ensure the pair are to secure the lid.
- Page 7 How To Assemble ❽ Punch out ‘knockout’ for fittings partition (if required) - see page 4 for details Knockout punch detail ✋ Partitions are supplied as an optional component to allow user to divide the body into 2 sections (or up to 3 sections in the 1600L corn bin) as required.
-
Page 8: Troubleshooting
Troubleshooting ❶ Front, back and base featuring ’knockout punch’ for fittings partition (optional) - in certain batches of production the ’knockout punch’ failed, either unsuccessfully piercing a hole or, in some cases, piercing right through - in which case, the user may need to drilling out the holes if using the partition or plug the holes when partitions are not used. Knockout punch detail...
