Summary of Contents for TOKIT AkuaPure T1

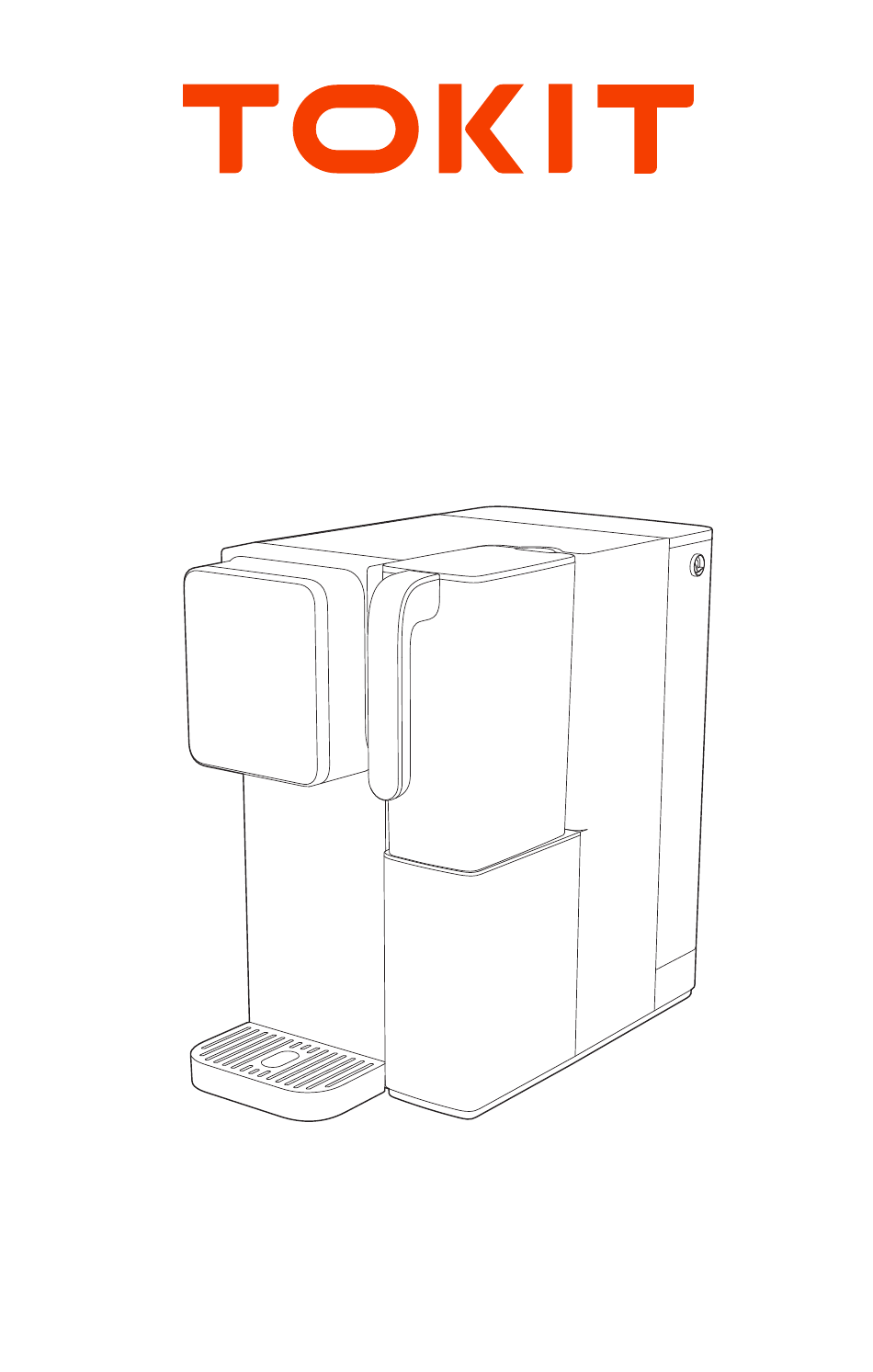

- Page 1 TOKIT AkuaPure T1 Operation Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS ・ Children and people with physical, perceptual, intellectual deficiencies or lack of experience and common sense should use this product under supervision or guidance. ・ This product is used to filter municipal tap water for daily drinking. Please do not use it for other purposes. ・... - Page 3 ・ Areas near high-temperature or strong magnetic appliances, as it may cause fire or circuit failure. ・ Damp or dusty areas, as it may cause damage to the circuit. ・ Do not place heavy objects or liquids on the product. Usage: ・...
- Page 4 ・ When the filter icon flashes, it means that the filter has expired and needs to be replaced. Please purchase the corresponding filter and replace it regularly as prompted. ・ This product should not be immersed in water. Additional Notes: ・...
-
Page 5: Product Overview
PRODUCT OVERVIEW Parts Filter Cartridge Cover Raw Water Tank Lid Raw Water Tank Purified Water Bucket Air Outlet Display/Control Panel Water Outlet Water Pan Description of Operating Area Clean Water Volume Purified Water Bucket Purified Water Change Water Raw Water Purifying Water RO Filter Element... -
Page 6: Description Of Indicators
Description of Indicators Name Status Description Normal ON Cleaning Clean Not start cleaning Normal ON The Purified Water Bucket is not detected. Purified Default Water Bucket Flash The Purified Water Bucket is not detected. Normal ON Purifying water Purifying Water Stop purifying water Normal ON Open the Raw Water Tank Lid... -
Page 7: First Start
QUICK START GUIDE First start Note: The water purifier will enter the Cleaning state after it is started up for the first time. Place the water purifier on a stable plane; put the Water Pan directly under the Water Outlet. Open the Raw Water Tank Lid and lift up the Raw Water Tank;... - Page 8 Sleep If no operation is performed within 5min when the water purifier is powered on, it enters the Sleep state. When the water purifier is in the Sleep state, the Take Water key turns into a breathing light (alternatively gradually dimming and gradually lighting up), and other indicators all go off. Click the Take Water key to waken up the water purifier.
-
Page 9: Operating Keys
4. Lift up the corresponding 5. Remove the plastic film and 6. Insert the new filter element old filter element. dust-proof cover of the new filter into the corresponding filter element, and make sure that the element chamber, and turn it rotating head of the filter element clockwise to push it downwards is basically aligned with the arrow... -
Page 10: Reset To Defaults
Reset to Defaults When the Water Tank Lid is opened and the Raw Water Tank is moved out, simultaneously press "4oz" and "17oz" keys for 8sec, then the system starts initialization and restores to its factory defaults. When the water purifier is powered on again, it returns to the initial state, re-checks the initial TDS, sets all the normal settings to their default values, and indicates the full lifetime of filter elements. - Page 11 SPECS Name Reverse Osmosis Water Dispenser Inlet Pressure Ordinary pressure Model TJSQ12US Operating Pressure 0.4~0.8MPa Purified Water Rate 0.26L/min Rated Voltage 120V～ Rated Frequency 60Hz Rated Total Volume of Purified Water 4000L Product Dimensions Rated Power 233 × 414 × 426mm...
- Page 12 Manufacturer: Chunmi Technology (Shanghai) Co., Ltd. Address: Building 11, 1333 Jiangnan Avenue, Changxing Science and Technology Park, Lingang, Shanghai Website: http://www.tokit.com Email: service@tokitglobal.com User Manual Version: V1.0...
