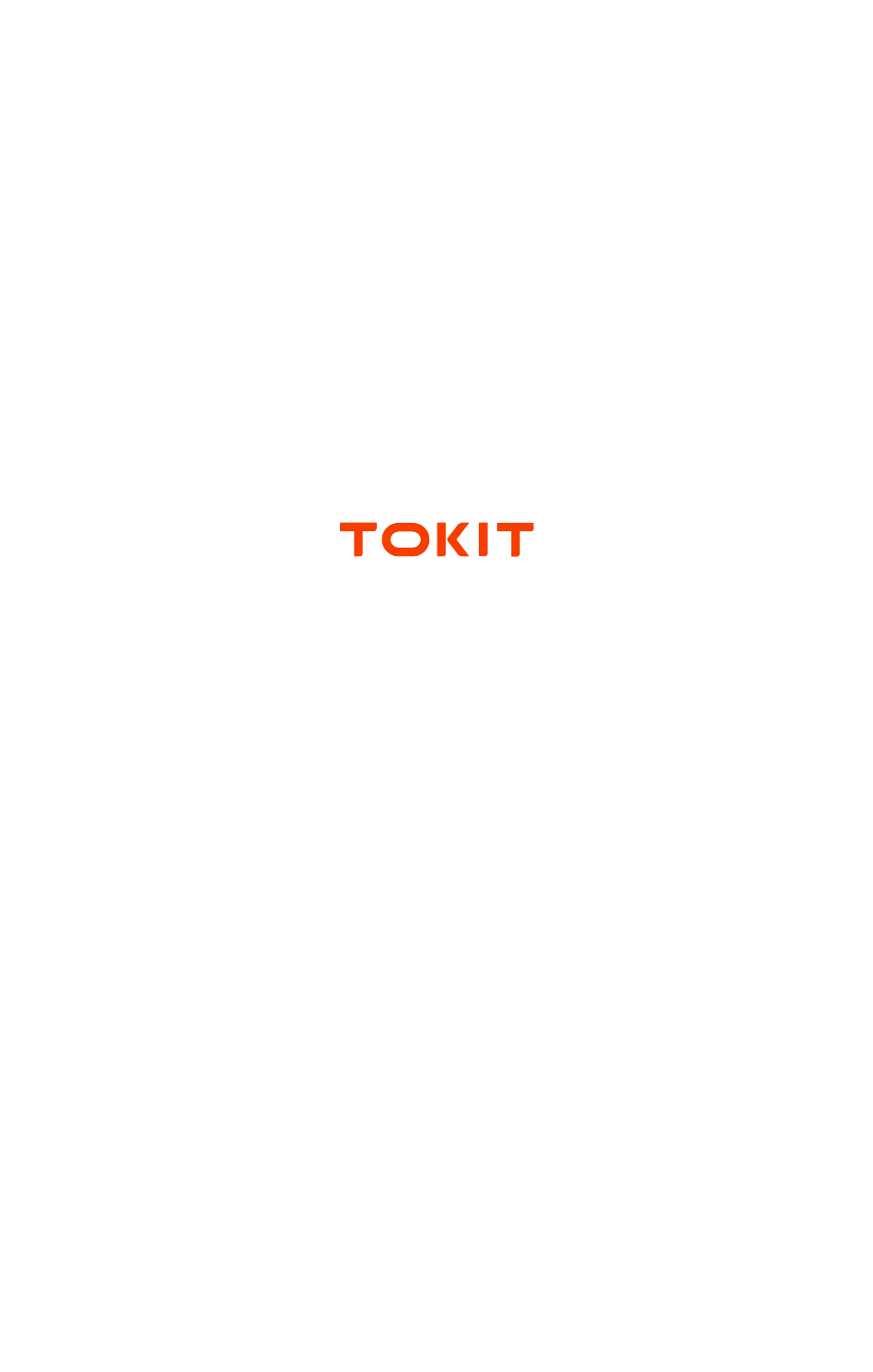

- Page 1 Operation Manual of Omni Cook Please read this manual carefully before using the product and keep it for future use.
-
Page 2: Table Of Contents
Table of Contents Please read this manual carefully to ensure correct and safe use of the product. This product is for home use only. Note: Illustrations of product, accessories, and user interface in the user manual are for reference only. Actual products and functions may vary due to product enhancements and technical improve- ments. - Page 3 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1、Read all Instructions. 2、Portable ‒ To protect against risk of electrical shock do not put (state specific parts in question ) in water or other liquid. 3、Close supervision is necessary when any appliance is used by or near children.
-
Page 4: Product Overview 03- 1
Product Overview Component description (ordered separately) Main engine frame 5 Mixing blade 9 Scraper 13 Septum 2 Lock ring 6 Mixing bowl lid 10 Simmering basket 14 Steaming rack 3 Mixing bowl body 7 Measuring cup 11 Steaming pot 15 Steamer lid 4 Sealing ring 8 Whisk 12 Main body of steamer... - Page 5 Touch screen description 1.2.1 Menu bar Menu bar Mode Select a desired cooking mode from the mode menu; Display page select your favorite recipe from the recipe menu; carry out basic configurations of the device through the se ing menu. Mode 1.2.2 Parameter configuration 00:00...
- Page 6 List of part functions Part name Function Mixing bowl Use the Mixing bowl in combination with the mixing blade set for cooking and processing food materials. Mixing bowl lid Use the Mixing bowl lid to seal the Mixing bowl so that no juice/liquid will splash during its operation.
- Page 7 Instructions for the use of parts 1.4.1 Mixing bowl Use the Mixing bowl to process or cook food materials. It consists of a stainless-steel container, a Mixing bowl lid, and a mixing blade set. The multi-purpose cooker can only be started for cooking a er the mixing bowl has been properly placed in the main engine frame.
- Page 8 1.4.2 Mixing blade set Please disassemble the mixing blade set separately for cleaning and drying before cleaning the mixing blade set and mixing bowl,and then assemble it properly for next use. The mixing blade set is used for stirring/shredding/mixing/grinding food. It must be properly assembled and locked securely with the lock ring;...
- Page 9 Do not put your hand into the mixing bowl before it has been removed from the main engine frame. Make sure the mixing bowl and the mixing blade set have been fully cooled down before dismounting the mixing blade set from the mixing bowl. Residual heat a er cooking could cause scalding.
- Page 10 For your safet y and be er cooking experience, please read the following contents: Never force to open the mixing bowl lid, as this may Lock up clockwise damage the lock on the mixing bowl. To guard against scalding caused by splashing of hot food materials, do not open the mixing bowl lid during cooking.
- Page 11 For your safet y and be er cooking experience, please read the following contents: Arrange the food materials evenly in one layer inside the steamer, with the total weight of the food mate- rials, plates, and dishes not exceeding 2 kg. Be careful not to get scalded when removing the s teamer set or the simmering ba sket f rom the Handle...
- Page 12 The mixing bowl may contain residual high-tempera- ture steam a er cooking. Please be careful not to be scalded by the steam when opening the mixing bowl lid. Never remove the measuring cup during the cooking process under normal circumstances. However, some recipes require the removal of the measuring cup to ensure the release of surplus steam.
- Page 13 1.4.7 Whisk The whisk is used for whipping cream or beating egg liquid; it can also be used to ensure even mixing of the ingredients at a low stirring speed, thus preventing food materials from adhering to and scorching on the bo om of the mixing bowl. Please follow the procedures below to mount/dismount the stirring rod: 1.Mount the whisk on the mixing blade set by inserting it into the gap between the crossed blades, and gently...
-
Page 14: Quick Start Guide 1
Quick Start Guide First startup Insert the power plug into a 120V AC socket; switch the multi-purpose cooker on, and the display panel will display the splash screen. Startup and shutdown 1. Start up: Connect the multi-purpose cooker to power source, the display panel will automatically display the splash screen;... -
Page 15: Operating Instructions
Operating Instructions Configuration for use Cooking parameters, including time, temperature, and mixing speed, can be configured before and during cooking. Parameter configuration can be set by tapping the icons for Time, Temperature, or Speed at the bo om section of the screen. Then, se ings can be adjusted by rotating the control knob. Once the parameter configuration has been completed, cooking can be started by pressing the control knob. - Page 16 Notes for temperature configuration: The cooking temperature can be preset or modified at any time during the cooking process (with the exception of a few specific modes). If you do not require any heating functions, please leave the temperature value se ing at ---. 3.1.3 Set mixing speed Mode 1.Press the mixing speed configuration icon to access...
- Page 17 Cooking mode A variety of cooking modes have been preset with the multi-purpose cooker to meet your specific needs. These cooking modes are available in the homepage, include weighing mode, turbo mode, kneading mode, ice shaving mode, juicer mode, grinding mode, mincing mode, shredding mode, pre-cleaning mode, steam cooking mode, stewing mode, etc.
- Page 18 The weighing mode can be chosen from the Mode list in the homepage to weigh food materials and other ingredients. Please follow the procedures below: 1.Mount the mixing bowl into the main engine frame, click to select the Weighing mode from the Modes list.
- Page 19 3.2.1 List of modes: Mode name Function description Important notes Manual control In Manual control, you can When you are unfamiliar with the operation of this configure the cooking time, device, it is recommended that you follow the temperature, and mixing speed procedures and se ings in the recipes from your on your demand.
- Page 20 Mode name Function description Important notes Grinding mode Grinding cereal and pulver- The cooking temperature is locked and not izing food materials adjustable in this mode. It is recommended that you cut the food materials into small pieces for be er and more thoroughly uniformly grinding of the food materials.
- Page 21 Recipe function For your be er cooking experience with the multi-purpose cooker, please ensure the recipe card is inserted and readable before use.You can access your smart guided recipes by clicking the Recipe menu in the upper le corner of the screen or by performing the recipe search by clicking the Search bar in the upper right corner of the screen and entering key words.
-
Page 22: Troubleshooting
The main engine frame is designed to have a draining mechanism at the bo om of the mixing bowl dock. If a large amount of soup or liquid is splashed onto the mixing bowl dock, do not inverse the main engine frame because the liquid will automatically drain out from the draining holes at the bo om. - Page 23 Fault type Fault diagnosis and solutions Take the mixing bowl out of the main engine frame. Reduce the amount of food materials or add a li le bit of water. Reload the mixing bowl. Check whether the air vent is unclogged or unblocked at the rear of the main Interruption causes the device to stop engine frame.
-
Page 24: Diagnostic Trouble Code
Diagnostic Trouble Code Trouble Code Analysis of Trouble Cause Solution No pot detected The mixing bowl and the pot lid is Mount the mixing bowl properly, close not mounted properly, or the pot and fasten the bowl lid. Then, try again. lid not securely locked E-05 High temperature alarm of the... -
Page 25: Important Safeguards
Important Safeguards The normal working altitude of the product ranges from 0 m to 2000 m. The product shall not be placed in an unbalanced or humid environment or close to fire or other heat sources (such as a stove). The distance to such heat sources should preferably exceed 30 cm. - Page 26 Do not fill the mixing bowl with food materials with a volume larger than the mixing bowl's maximum allowable filling amount (the 2.2L maximum level mark). To avoid the splashing of oil, grease, or liquid, do not remove the measuring cup when the device is running at high speed.
-
Page 27: Specification
Do not use fi ings or accessories other than those specifically provided with this product to avoid fire and personal injury. The mixing bowl main pot can only be used with the main engine frame provided. Specification Name：OMNI COOK Model：TLLJE01ACM-2A Rated Voltage：120 V~ Heating mode：Electric heating Motor Rated Power：500W... - Page 28 Manufacturer： Chunmi Technology (Shanghai) Co.,Ltd. Address： Room 01-04, 1/F, No.2 Building,No. 60, Naxian Road,Pilot Free Trade Zone,Shanghai, P.R.China For further information, please visit the official website on h ps://en.tokit.com/...
