Summary of Contents for EXCELSENSE ToughCam-1000

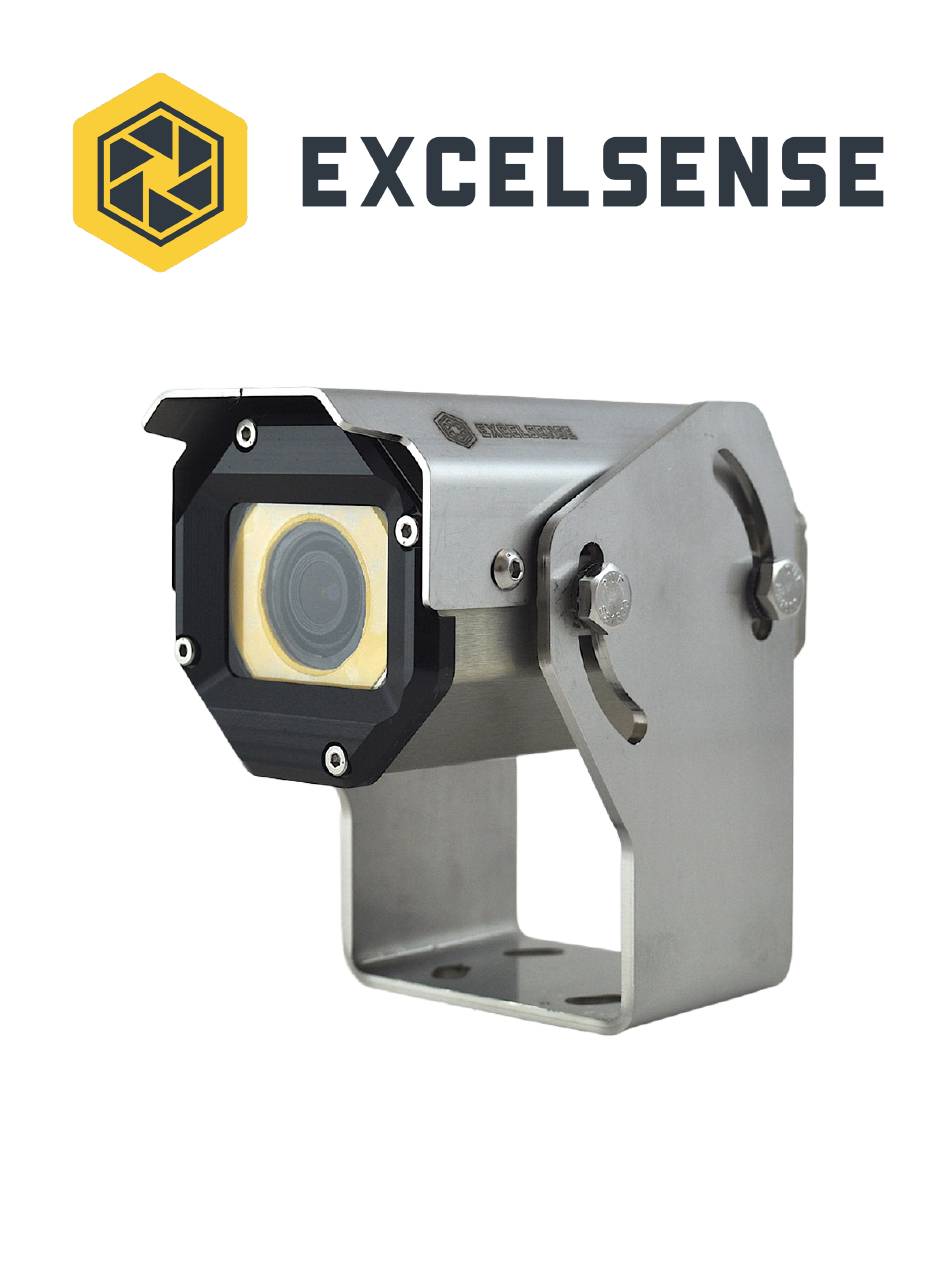

- Page 1 ToughCam-1000™ User Manual, V2.0...
-
Page 2: Table Of Contents
Interfacing the ToughCam-1000™ Powering the ToughCam-1000™ PoE Power Source Triggering the ToughCam-1000™ Remote Manual Trigger using Web Interface Automatic Trigger Cleaning the ToughCam-1000™ Lens Technical Information Network Camera Factory-Setting Parameters Interfacing with the ToughCam-1000™ For more information, please contact info@excelsensetechnologies.com or 1-800-914-3193... - Page 3 Finding the Camera on the Network Web Interface ExcelSense Camera Configuration Tool (EST Camera App) ONVIF Device Manager Tool API Interface 3rd-Party Software Integration Live View Page Optical Module Settings Configuration ToughCam-1000™ Thermal Regulation Accessories ToughCam-1000™ Standard Bracket Sealed Inline RJ45 Coupler ToughCam-1000™...
-
Page 4: Overview
In such a circumstance, do not attempt to handle conductors before removing power. 6. The ToughCam-1000™ lens is made with hardened glass. The user should take necessary precautions when handling the system. If excessive, direct force is induced, the glass may break, causing system failure and potential injury to the user. -
Page 5: Caution
5. Do not attempt to disassemble ToughCam-1000™ in order to access internal components. Consult ExcelSense for technical support as required. 6. Never face the ToughCam-1000™ directly towards the sun or any bright or reflective light, which may cause smear on the picture and possible damage to the CCD. -
Page 6: Compliance
Compliance Electromagnetic Compliance Information The ToughCam-1000™ and its custom peripheral hardware, produced and sold by ExcelSense Technologies, have been tested and found to comply with the applicable regulatory requirements and limits for electromagnetic compatibility (EMC) for a Class A device, pursuant to part 15 of the FCC Rules. -
Page 7: Specifications
Specifications CAMERA Image Sensor 2.1 MP Effective Pixels 1920 (H) x 1080 (V) Horizontal FoV Approx. 20°, 60°, 80°, 100°, 125° Min Illumination Color: 0.001 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) Wide Dynamic Range True WDR (>120dB) H.265 (1920x1080) | H.264 (1920x1080) | MJPEG (1280x720) IP Video... -
Page 8: Ordering Options
Ordering Options TC10 - ToughCam-1000™ Environmental Resistance camera S - Standard Corrosion Resistant C - Highly Corrosion Resistant Temperature Rating Illumination X - Extreme: -40 C to 60 N - No Illumination Camera Type Hazardous Locations Certification P - IP: IP Camera... -
Page 9: Accessories List
The following table lists standard cables available. Detailed drawings for each cable harness shown below are available here. Note that if a variant is required that cannot be found in this table, please contact an ExcelSense representative. For more information, please contact info@excelsensetechnologies.com or 1-800-914-3193... - Page 10 The following harnesses are also compatible with ToughCam-1000™, however they have additional wires and cables within the harness which, although not used in ToughCam-1000™, allow for compatibility with other products such as the ToughEye-1700™ products. For more information, please contact info@excelsensetechnologies.com or 1-800-914-3193...
-
Page 11: Power Supply Options
Power Supply Options Part Number Description Preview Datasheet Commercial-grade PoE+ INJ-POE-S TPE-115GI injector, ideal for areas (v2.1) protected from the environment, and benchtop testing and demonstration, Input:100-240V AC INJ-POE-N Industrial-grade PoE+ injector, POE-24 with integrated DIN-rail mount. Suitable for field deployment with a wide temperature range: -40C to 65C. -
Page 12: System Installation
This configuration allows any shielded Cat-5e cable to be used to power and communicate with the ToughCam-1000™ camera. No custom cabling is required to be routed, as the Cat-5e cable plugs into the custom short adapter cable for plug and play functionality. -
Page 13: Network Configuration
IP camera terminations within the ToughEye-1700™ cabling. However, it is important to note that the ToughCam-1000™ does not accept a DC input supply, as it solely relies on PoE power (see Powering The ToughCam™). The recommended installation is shown below. -
Page 14: Interfacing The Toughcam-1000
● Connect the main cable’s RJ45 connector into the PSE’s PoE output port, and route the main cable to the ToughCam-1000™ camera. If an extension cable is used, it should be connected in-line between the main cable and the camera. -
Page 15: Poe Power Source
PoE Power Source When powering the device using the PoE protocol, an appropriate shielded Cat-5e or better cabling solution is required (see Network Configurations A-1 and A-2). Aside from selecting the correct cabling, it is critical to ensure the Power Sourcing Equipment (PSE) is IEEE 802.3af compliant. -
Page 16: Triggering The Toughcam-1000
ToughCam-1000™ Main Cables section). Remote Manual Trigger using Web Interface As seen below, the ToughCam-1000™ web interface shows the Self-Clean button on the live view page, although it has no effect since ToughCam-1000™ does not support Self-Cleaning. Camera Module Web Interface Live View Page... -
Page 17: Automatic Trigger
Automatic Trigger The ToughCam-1000™ camera web interface also displays several automatic self-clean trigger options which have no effect when applied to ToughCam-1000™. Both the Timed Self-Clean and Scheduled Self-Clean trigger methods may be enabled simultaneously on supported ToughEye™ series cameras. -
Page 18: Technical Information
2nd Gen Manual ExcelSense Camera Configuration Tool (EST Camera App) ExcelSense has released a dedicated camera configuration desktop application, compatible with Windows-based operating systems. This tool can be used to retrieve and configure various camera settings including video stream settings, image sensor settings, network settings (IP... -
Page 19: Onvif Device Manager Tool
API Interface The ToughCam-1000™ is equipped with an accessible API that can be used to query and set a variety of camera settings, including stream, image, and shutter settings. Please refer to the IP Camera API Documentation, found here, for detailed information. -
Page 20: Optical Module Settings Configuration
Optical Module Settings Configuration For detailed information accessing and modifying all available optical module features and settings on the ToughCam-1000™ product, please refer to either the relevant web interface manual, found here, or the ExcelSense configuration application documentation, found here. - Page 21 Mounting pattern and bolt details With the bracket mounted the camera can be installed. Start by placing the camera within the bracket and loosely attaching it at all 4 mounting points. Be sure to use the included wedge lock washers: For more information, please contact info@excelsensetechnologies.com or 1-800-914-3193...
- Page 22 Camera bolt installation ordering Rotate the camera to the desired orientation. Note that the standard bracket accommodates mounting angles from 0° (horizontal) to down by 80°. With the camera at the desired orientation, tighten the bolts using a 7/16” wrench or socket. Bolts should be torqued to 8.8 ft-lb (11.9Nm) to ensure they do not slip under vibration.
-
Page 23: Sealed Inline Rj45 Coupler
Sealed Inline RJ45 Coupler The sealed in-line RJ45 female-to-female coupler is included in the PoE adapter cable kit [AC17-RJ45] to achieve an IP67 network cable connection. With reference to the diagram below, to install the coupler perform the following steps on either side: 1. -
Page 24: Toughcam-1000™ Dimensions
ToughCam-1000™ Dimensions ToughCam-1000™ Mechanical Dimensions For more information, please contact info@excelsensetechnologies.com or 1-800-914-3193...
