Summary of Contents for Palmgren 9685001

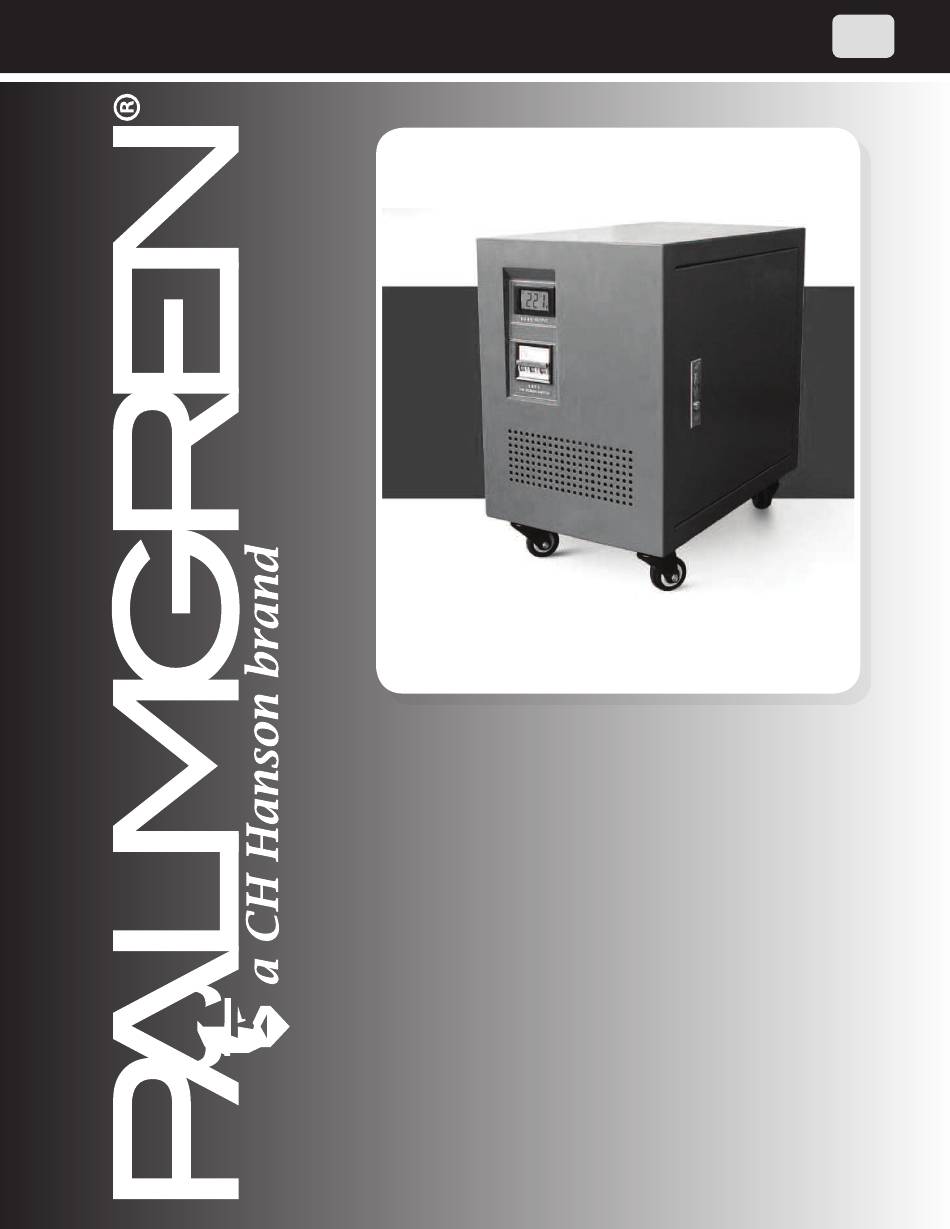

- Page 1 Operating Instructions & Parts Manual Step Up/Step Down Transformer Models 9685001, 9685002, 9685004 and 9685005 9644168.01...
- Page 2 PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. © 2019 Palmgren / a C.H. Hanson Brand Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2019 Palmgren / a C.H. Hanson Brand All Rights Reserved...
- Page 3 If in doubt, consult a qualified structural engineer. Do not use in a damp environment with water, rain or snow. 9685001 Electrical Requirements Do not use in an environment where dust • Requires 230V at 60 Hz, with a standard deviation of 10% or metal dust can affect the transformer.
-
Page 4: Specifications
Read and understand warnings posted on the unit and in this manual. Replace the warning labels if they become obscured or removed. Failure to comply with all of these warnings can result in serious injury. SPECIFICATIONS 9685001 9685002 9685004 9685005 Dimension (inch) - Page 5 18” Match the mains supply wires to their corresponding places on the input terminals. 9685001 Terminal Block 18” 9685002 Terminal Block When wiring, consider the unit’s positioning such that enough cable is provided for the required movement with adequate service loop.
-
Page 6: Operation
OPERATION When properly positioned and ready to use, flip the POWER switch to the ON position to activate the transformer to Wheels allow for mobility in any direction and positioning. provide power to the connected machine. Place transformer where it will not be in the way. Also Flip the POWER switch to the OFF position to remove power position so that the input and output wires are not strained. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE Symptom Possible Cause(s) Corrective Actions Output voltage not in range • Connections are incorrect • Remove power from unit and connect as shown in “Maintenance/Repair” • Input power not within specification • Correct input power problem... -
Page 8: Maintenance/Repair
General visual inspection-check for any visible damage or missing parts • Check that all labels are clearly visible- must be legible as well Weekly: • General cleaning Parts List 9685001 9685002 9685004 9685005 Ref. Num. Description Part number Part number... - Page 9 MAINTENANCE/REPAIR 9685001 Schematic 9685004 Schematic 230V 230V 230V 460V 460V 460V Input Input n 115V 115V 115V n 230V 230V 230V Output Output 9685002 Schematic 9685005 Schematic 460V 460V 460V 460V 460V 460V Input Input n 230V 230V 230V n 230V...
- Page 10 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
