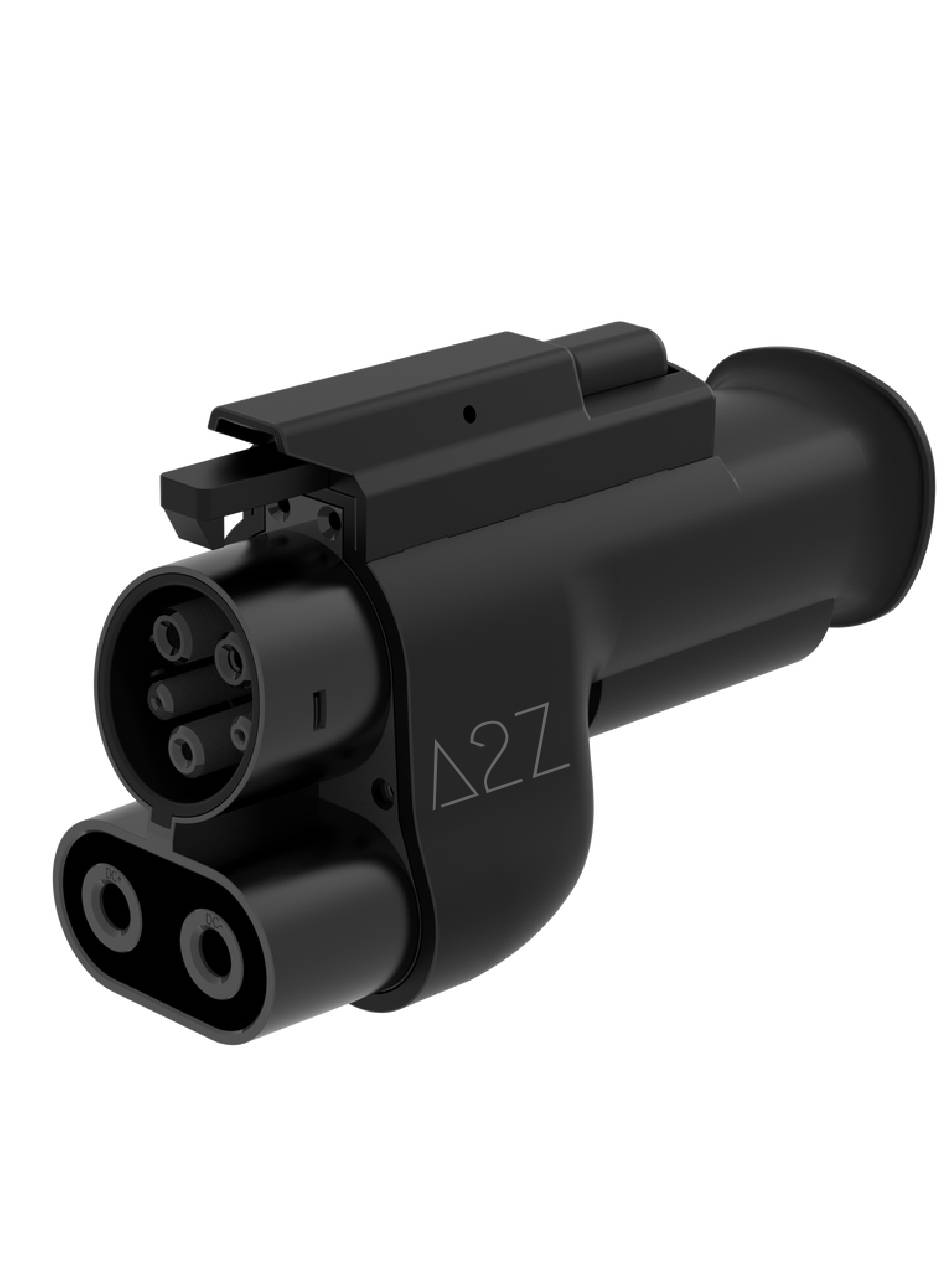

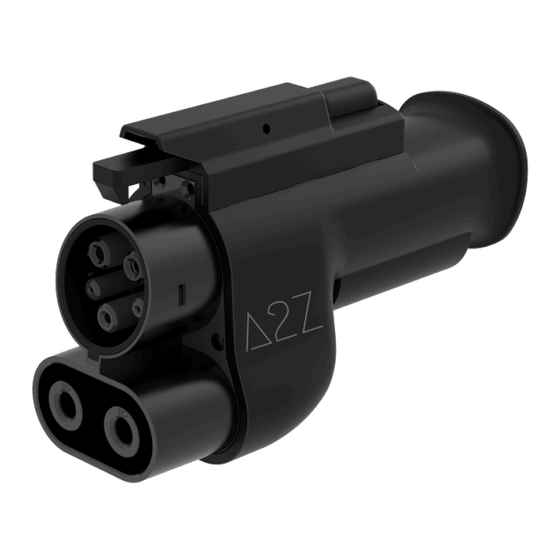

- Page 1 A2Z EV NACS TO CCS1 TYPHOON PRO PLUG USER MANUAL...
- Page 2 CAUTION Risk of Electric Shock and Fire. Do not use this product if there is any damage to the EV cable, the vehicle connector, or the vehicle inlet. This adapter is not intended for charging equipment operating in dynamic current control mode. DISCLAIMER: READ BEFORE USING THE NACS TO CCS1 ADAPTER Before using this product, please carefully read and understand the...
- Page 3 IMPORTANT : DISCLAIMER: COMPATIBILITY WITH ELECTRIC VEHICLE BRANDS AND NACS DC CHARGERS Important Notice: Thank you for choosing our NACS to CCS1 adapter. Please be aware that this adapter may not be compatible with all electric vehicle (EV) brands simultaneously. Various car manufacturers have entered into agreements to access DC NACS chargers at different times, depending on their respective brand agreements and ongoing negotiations.
- Page 4 COMPATIBILITY : This adapter is only suitable for CCS1 port equipped vehicles. This adapter only supports Level 3 DC charging. This adapter is not compatible with Level 1 and level 2 AC charging. This adapter is intended for NACS DC chargers. This adapter will only work on V3 and V4 Tesla Superchargers (min.
- Page 5 ADAPTER LOCKING : This adapter features a dual level locking mechanism within the top latch. The first locking level raises the CCS1 side latch. Page 4...
- Page 6 ADAPTER LOCKING : This adapter features a dual level locking mechanism within the top latch. The second locking level lowers the NACS side locking pin. Page 5...
- Page 7 ADAPTER LOCKING : The top latch features a stop switch that will interrupt the charging process once pressed. ALWAYS USE THE VEHICLE INFOTAINMENT, VEHICLE’S APP OR CHARGING STATION’S APP TO INTERUPT A CHARGING SESSION. Page 6...
-
Page 8: How To Use
HOW TO USE : To start the charging process : Fully insert your adapter into the vehicle. Fully insert the NACS charging handle into the adapter. If your vehicle is compatible with Plug & Charge, the charging process should start by itself within a few seconds If not : Initiate the charging process through the charging station’s app or the vehicle’s infotainment. -
Page 9: Specifications
SPECIFICATIONS : Specifications : Rated amperage : 500A Rated Voltage : 100~1000VDC Conductor Material : Silver plated copper Contact resistance : 5 mΩ Shell Material : UL-94-V0 PA66 Storage Temperature : -30°C to 85°C Operating Temperature : -40°C to 50°C Security : Dual temperature sensor switch Sealing gasket : Silicon rubber Locking : Dual locking mechanism is one. - Page 10 CAUTION: Avoid any attempt to open, disassemble, repair, tamper with, or alter the NACS to CCS1 Adapter, as it is not designed for user servicing. For any necessary repairs, please get in touch with A2Z EV/EVSE. CAUTION: While charging the vehicle, do not disconnect or try to disconnect the NACS to CCS1 Adapter.
- Page 11 NACS to CCS1 Adapter. CAUTION: Do not utilize cleaning solvents, lubricants or greases with the NACS to CCS1 Adapter. If you have any inquiries or concerns regarding your NACS to CCS1 Adapter, please reach out to A2Z EV/EVSE for assistance. Page 10...
-
Page 12: Troubleshooting
Troubleshooting : My adapter does not work: Make sure your vehicle has access to the DC NACS charging network. Make sure the adapter and NACS connector are fully inserted. Make sure the NACS DC charger accepts CCS1 vehicles (V3 and V4). - Page 13 Troubleshooting : I am unable to unplug the adapter from the vehicle : Ensure the vehicle’s charge port locking system is not engaged Some vehicles feature an unlock button on the charge port, you may use the vehicle’s infotainment or app to ensure proper unlocking of the adapter through the charge port.
- Page 14 TRAVEL STORAGE CASE : The protective case provides full protection. The Typhoon Pro Plug storage case is made of premium EVA, which is shockproof and dust resistance, Skid-proof and against impact. CONTACT US : A2Z EV | EVSE 1-844-229-3873 1690 Place de Lierre, Laval, H7G 4X7, Quebec, Canada info@a2zevshop.com...
