LXI 18 GHz 12x12 Matrix With Loop-back
y 12x12 RF Matrix With Loop-back
y 18 GHz Bandwidth
y Compact 6U Form Factor
y Construction Permits Ease of
Assembly/ Maintenance
y Compatible With Switch Path
Manager for End to End Path Setting
y Relay Counting Available
y LXI Standard 1.5 Compliant
y IVI & Direct I/O Drivers
y 3 Year Warranty

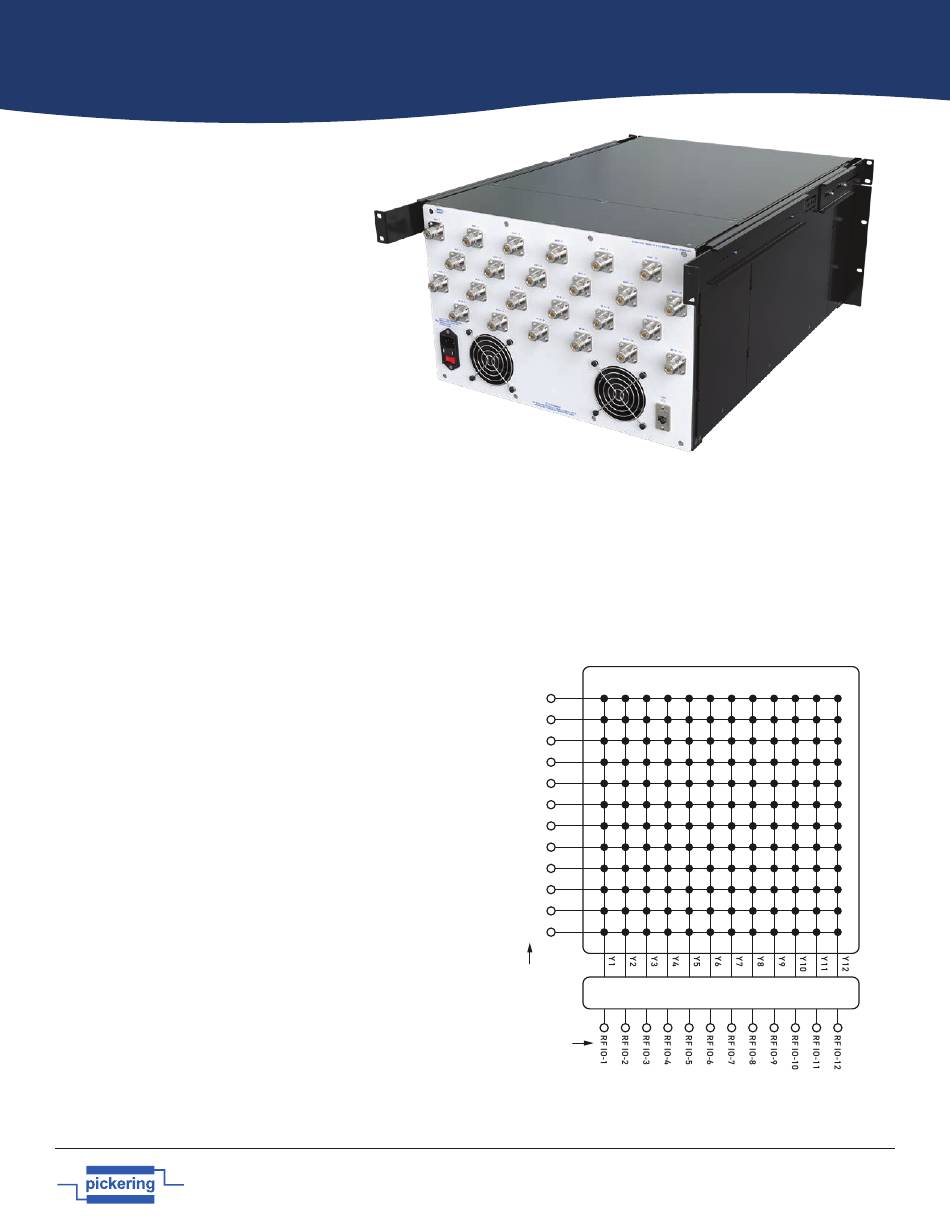

Pickering Interfaces' 60-891-006 is a compact 50 Ω microwave
switching matrix with added loop-back functionallity and a
maximum bandwidth of 18 GHz.
It is ideal for constructing complex microwave switching
systems for many applications. Connection is by high
performance rear panel mounted N-type connectors.
The 60-891-006 matrix is constructed from interconnected
microwave tree multiplexers which allows the routing of any
single input port to any single output port.
Controlling the Matrix
The 60-891-006 matrix is controlled through an LXI interface
based on Ethernet 1000Base-T. This provides a quick and easy
method of installing the unit and a simple way of controlling
it from a remote location through its API or built in soft front
panel. The ability to control the unit at a distance allows the
testing of systems without the need for a physical presence.
Easy Repair
The construction of the 60-891-006 permits ease of assembly
and maintenance. All the cabling required to create the
switching configuration is contained within the unit for a neat
solution in a small form-factor.
Other Microwave Switching Configurations
Pickering Interfaces is able to offer other microwave
switching solutions, if you have a custom requirement for
switching please contact your local Pickering Interfaces sales
representative.
Switch Path Manager
Our signal routing software, Switch Path Manager, automatically
selects and energizes switch paths through Pickering switching
systems. Signal routing is performed by simply defining test
system endpoints to be connected together, greatly accelerating
Test System software development.
To learn more, please go to:
X1
INST-1
X2
INST-2
X3
INST-3
X4
INST-4
X5
INST-5
X6
INST-6
X7
INST-7
X8
INST-8
X9
INST-9
X10
INST-10
X11
INST-11
X12
INST-12
Connections
to Test
Equipment
Connections
to DUT
Simplified Diagram for the 60-891-006
12x12 Microwave Matrix With Loop-back
60-891-006
pickeringtest.com/spm
12x12 Matrix
Loop-Back
Issue 1.4 March 2024
pickeringtest.com
