STRUCTURE ARE NOT SPECIFIED AS LONG AS THEY ARE SUFFICIENT SO THAT THE AMBIENT TEMPERATURE AROUND THE CONTROLLER DOES NOT EXCEED 60°C Aeware , Gecko , and their respective logos are Registered Trademarks of Gecko Alliance Group� ® ® in�yj™, in�keys™, in�touch™, in�k200™, in�k400™, in�k450™, in�k600™, K-19™, K-35™, K-8™, in�k1000™, in�k800™, in�k500™, in�k300™, in�flo™, in�put™, in�seal™, in�link™, in�t�cip™, in�stik™, heat�wav™, Y Series™, and their respective logos are Trademarks...
Introduction in�yj-V3 small package, zero compromise A lot more in the same small box It’s well known that the best-selling in�yj-V3 is the nicest control system for small footprint spas� But the temptation to muscle it up and make it the best there is proved irresistible�...
Features The Y Series systems boast a long list of technical features� Each of them contributes to bringing the most advanced solutions available to Y Series equipped spa owners: in.seal in.flo watertight protection dry-fire protection In�seal provides an extra level of protection against in�flo is an all-electronic dry-fire protection that is water infiltration�...
Overview Higher grade relays Adjustable mounting bracket heat�wav Bonding lugs Boosted CPU Communication link (CO- accessories) Main power entry Main keypad connector connection Diagnostic LEDs (x13) Watertight strain Memory 12VDC light in�lu�me relief system in.yj dimensions Side view Front view Rear view 5 possible positions for the bracket 4�79"...
Installation in.yj positioning To prevent water from getting inside 2 positions are allowed. Warning! Beware of the application of some products commonly used against corrosion (such as WD-40 family products) as they could damage the pack, due to a negative chemical reaction between some industrial oils and its plastic enclosure�...
Installation in.yj installation procedure with wall mounting Z-bracket(s) Access door The aluminum Z-bracket is designed for flush-mounting Depending on your specific needs, you can fasten with the pack directly on the edge of the access door frame two #10-24 screws of your choice� of your spa�...
Connections Preparation Foam gasket Strain relief bracket Molded strain relief channels Remove the cover screws from the front of the pack with a Phillips screw driver� Remove and put aside the strain relief bracket and the foam gasket located in the molded strain relief channels� Connecting the main keypad and the light output Note: always shut power down before connecting an accessory to the pack�...

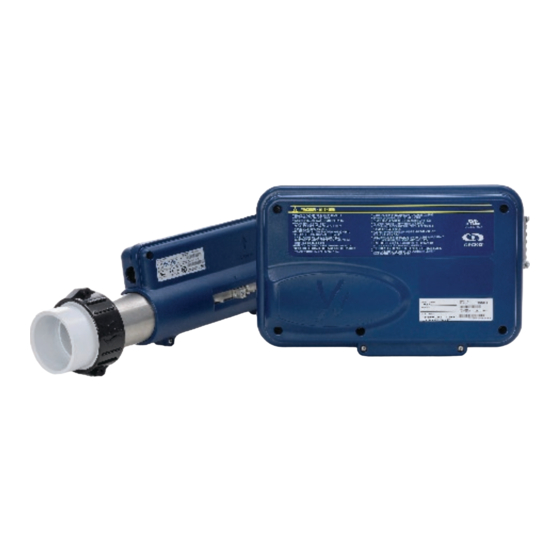

Connexions Connecting the heat.wav (not applicable on in.yj-re models) The in�yj should be paired with a high performance heat�wav specification summary: heat�wav heater� • in�flo integrated dry-fire protection Part numbers: • Supports 120 V or 240 V 1,3 kW heat�wav - 0613-421004 •...
Connections Connecting high voltage accessories: North American model in.yj Wires to connect high voltage accessories must have 0�25” quick-connect terminals� These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all connections, including ground� Depending on where the connections are made on the in�yj pack PCB, 120 V and 240 V accessories are supported�...
Connections Connecting high voltage accessories: European, Australian, New Zealand model in.yj-ce (single phase and dual phase system) These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all connections, including ground� Refer to the following tables for correct connections� Note that all female terminals must be correctly and completely seated on the PCB tab for proper current ratings�...
Connections Connecting high voltage accessories: North American heat recovery model in.yj-re These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all connections, including ground� Refer to the following tables for correct connections� Note that all female terminals must be correctly and completely seated on the PCB tab for proper current ratings�...
Connections Connecting the probe (regulation and overheat captor) on the heat recovery model in.yj-re Regulation probe and overheat captor The probe assembly must be installed in the spa water in an area where water is not stagnant in order to optimize the temperature regulation�...
Connections Completing the installation Foam gasket Strain relief bracket Molded strain relief channels Once all low voltage cables are routed through the Once all high voltage accessories cables are routed molded strain relief on the bottom of the spa pack, though one of the openings provided for this purpose at fill the remaining space with the foam gasket supplied�...
Electrical wiring Electrical wiring: all models Bonding lugs Main power entry Main power entry Warning! To complete the electrical connections of the in�yj control system you will need a Phillips screwdriver and a flat-head Disconnect power before starting electrical work� screwdriver�...
Electrical wiring Electrical wiring: North American model Refer to wiring diagram in the enclosure box lid for more information� 120 V (3 wires) 240 V (4 wires) DO NOT REMOVE THE BROWN WIRE� Insert each wire Remove the brown wire and insert each wire into the into the appropriate socket of the main entry terminal block appropriate socket of the main entry terminal block accor- according to the color code indicated on the sticker�...
Electrical wiring Electrical wiring: CE/AS/NZS models Refer to wiring diagram in the enclosure box lid for more information� Warning! in�yj�ce models must always be connected to a circuit protected by a Residual-Current Device (RCD) having a rated operating residual-current not exceeding 30 mA� Correct wiring of the electrical service box, RCD, and pack terminal block is essential! Check your electrical code for local regulations�...
Controler power up Start up of your control system To perform the control system start up, refer to the manual: Start up guide and basic configuration...
Compatible keypads List of compatible keypads for the in.yj control system For more information on the compatible keypads for your control system refer to the corresponding Techbook� in�k300 main keypad in�k330 main keypad in�k450 main keypad in�k500 main keypad LCD display, 4 keys Color LCD display, 5 keys ACL display, 7 keys Color LCD display, 7 keys...
Troubleshooting Troubleshooting information for your control system You come across a problem with your control system, for the troubleshooting of your control system, refer to the manual: Troubleshooting guide...
The ozonator is connected in parallel with the Pump 1 low speed, therefore they cannot be controlled independently. The maximum current on both light and RGB LEDs output may not exceed 1A. Compatible with the in.lu.me Gecko LED Module. Please talk to your customer service representative for more information.
Page 23
The ozonator is connected in parallel with the Pump 1 low speed, therefore they cannot be controlled independently. The maximum current on both Light and RGB LEDs output may not exceed 1A. Only compatible with the in.lu.me Gecko LED Module. Please talk to your customer service representative for more information.
