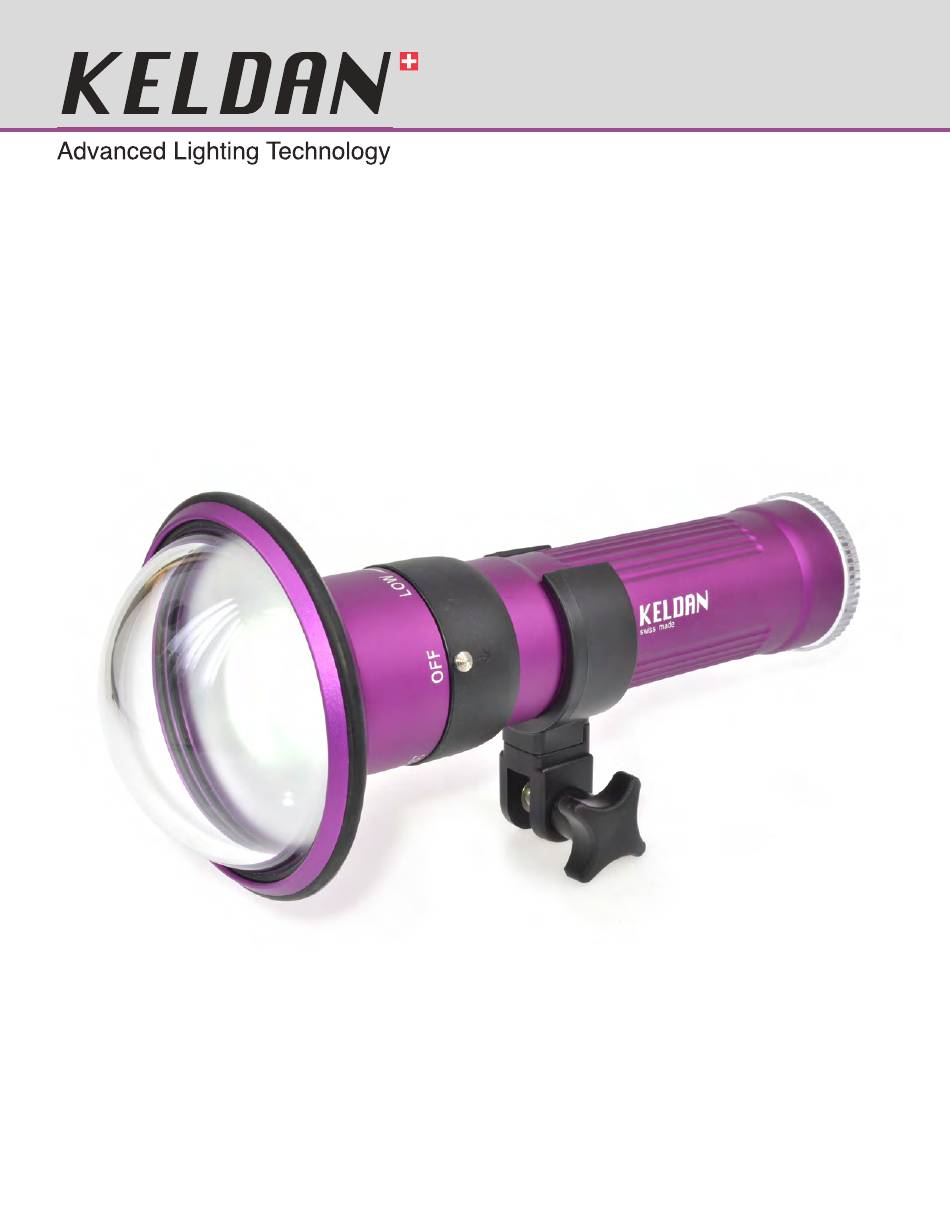

- Page 1 Underwater Video Light Keldan Video 8M Operating Instructions For Professionals Who Know The Difference.
-
Page 2: Table Of Contents
Use in Air ........4 How to Open the Casing ....4 Maintenance ........4 Storage and Transportation ...4 Warranty ........4 Liability ...........4 How to Change an leD Module ..5 Safety instructions ......6 leD Modules ........7 Reflectors ........12 technical Data ......13 Keldan Video 8M Operating Instructions... -
Page 3: Instructions
100% after a full charge. Note that the charge level indicator may be slightly out of synchronization with the effective available charge after a long period of time. A full discharge will synchronize the display. Keldan Video 8M Operating Instructions... -
Page 4: Use In Air
® 12. liaBility KELDAN declines all responsibility for damages arising from any improper use of the Keldan Video 8M ® light or as incurred by a third person. Keldan Video 8M Operating Instructions... -
Page 5: How To Change An Led Module
• Do not touch the LED when pushing the LED module. Push only at the edge of the aluminum housing! • ALWAYS screw reflector on the housing before inserting the battery.Inserting the battery without mounted reflector may push out the LED module! Keldan Video 8M Operating Instructions... -
Page 6: Safety Instructions
Safety inStruCtionS the Keldan Video 8M light produces an extremely powerful riSK group 2 and intense light. CAUTION. Possibly hazardous optical radiaton emitted from • Never point directly at a person at close distance. this product. Do not stare at operating lamp. May be •... -
Page 7: Led Modules
Electrical power, 5 power levels 4 - 105 watts Luminous flux w/90° reflector* 200 - 11000 lumen Color temperature (CCT) 5600 kelvin Color rendering index 82 CRI (Ra) * Taking into account 80% transmission of 90° reflector. Keldan Video 8M Operating Instructions... - Page 8 Electrical power, 5 power levels 11 - 45 watts Wavelength 400 nm 2 - 6 watts Radiated Power Available radiated power w/90° reflector* 1,5 - 5 watts * Taking into account 80% transmission of 90° reflector. Keldan Video 8M Operating Instructions...
- Page 9 Electrical power, 5 power levels 11 - 45 watts Wavelength 400 nm 2 - 6 watts Radiated Power Available radiated power w/90° reflector* 1,5 - 5 watts * Taking into account 80% transmission of 90° reflector. Keldan Video 8M Operating Instructions...
- Page 10 Electrical power, 5 power levels 25 - 95 watts Wavelength 655 nm 7 - 30 watts Radiated Power Available radiated power w/90° reflector* 5 - 25 watts * Taking into account 80% transmission of 90° reflector. Keldan Video 8M Operating Instructions...
- Page 11 Electrical power, 5 power levels 25 - 95 watts Wavelength 655 nm 7 - 30 watts Radiated Power Available radiated power w/90° reflector* 5 - 25 watts * Taking into account 80% transmission of 90° reflector. Keldan Video 8M Operating Instructions...
-
Page 12: Reflectors
This reflector is designed to deliver a maximum brightness at the object if a beam angle of 50° is acceptable. The 50° beam is also very well suited to enhance objects and to keep the background dark. Efficiency 75% 50° Beam Angle water -40 -30 30 40 degrees Keldan Video 8M Operating Instructions... -
Page 13: Technical Data
3500 lumen 2300 candela 150 min 35 watts 2700 lumen 1800 candela 190 min 28 watts Cri 96 Keldan Video 8M 11000lm Cri82 luminous flux Candlepower Burn time electrical power 11000 lumen 7600 candela 50 min 105 watts 4000 lumen... - Page 14 18 watts 100 min 52 watts 170 min 33 watts 12 watts 9 watts 220 min 25 watts Keldan Video 8M Deep reD 655nm radiated power Burn time electrical power 55 min 95 watts 25 watts 65 min 22 watts...
- Page 15 KELDAN GmbH Tel: ++41 32 333 16 28 www.keldanlights.com Industriestrasse 37a Fax: ++41 32 333 16 26 contactus@keldanlights.com 2555 Brügg Switzerland Visit us on Facebook KELDAN is a registered trademark of KELDAN GmbH. ® Subject to change without notice, November 2020.
