Summary of Contents for DAS MATRIX-22

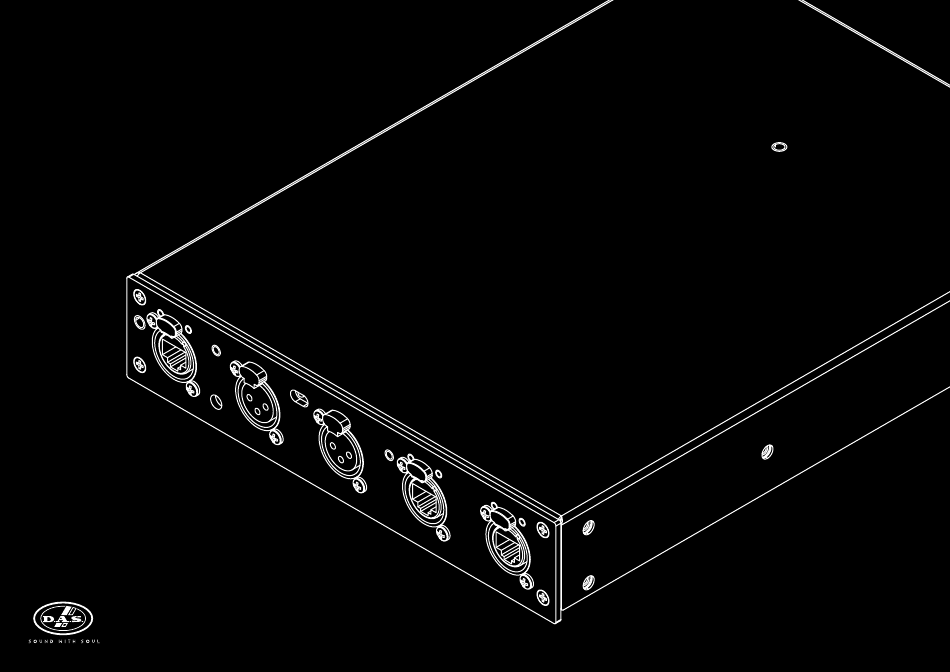

Page 1 MATRIX-22 Users manual www.dasaudio.com...
Page 2: Table Of Contents
INDEX SAFETY PRECAUTIONS WARRANTY DECLARATION OF CONFORMITY DESCRIPTION PACKAGE CONTENT FRONT PANEL REAR PANEL RACK MOUNTING TECHNICAL SPECIFICATIONS CONNECTIONS TROUBLESHOOTING MATRIX-22 Users Manual...
Page 3: Safety Precautions
MATRIX-22 Users Manual...
Page 4: Warranty
To claim a warranty repair, do not open or intend to repair the product. Return the damaged unit, at shippers risk and freight prepaid, to the nearest service center with a copy of the purchase invoice. MATRIX-22 Users Manual...
Page 5: Declaration Of Conformity
MATRIX-22 Declaration of conformity DAS Audio Group, S.L. C/ Islas Baleares, 24 - 46988 Pol. Fuente del Jarro - Valencia. España (España) Declares that MATRIX-22 Abide by essential objectives relating Directives: • Low Voltage Directive 2014/35/UE • Electromagnetic Compatibility (EMC) 2014/30/UE •...
Page 6: Description
MATRIX-22 Description The Matrix-22 is a 1U 19” half rack-mount, dual input, dual output channel breakout box intended to distribute analog audio signals and monitoring & control (ALMA) data to the ARA-P sound systems. It incorporates an integrated 1 Gbit 4-port Ethernet switch.
Page 7: Package Content
MATRIX-22 Package content Description Code Audio and Network Data Distributor 11106140 Rack Mount Angle Brackets (2 units) 30007675 Linking Plates (2 units) 30007676 PowerCord (not shown below) MATRIX-22 Users Manual...
Page 8: Front Panel
Balanced Analog Audio Inputs 1 & 2. 2x Female XLR. Audio Link Switch. To copy Analog Audio from Input 1 to the two etherCON outputs. MATRIX-22 LINK 1&2 ETH / CTRL DAS Audio Group, S.L. ANALOG INPUT ANALOG ALMA OUTPUT MATRIX-22 Users Manual...
Page 9: Rear Panel
MATRIX-22 Rear panel Rear etherCON Ethernet Switch port intended for ALMA network connection. To be used to link extra Matrix-22 units. Balanced Analog Audio Outputs 1 & 2. Audio copies of the f ront Analog Audio Inputs. Male XLR. PowerCON TRUE1 Mains connector socket.
Page 10: Rack Mounting
With the two Angle Brackets Provided it is possible to assembly the unit in a 19” rack: Single half rack mount With the two Angle Brackets Provided it is possible to assembly the unit in a half width rack: MATRIX-22 Users Manual...
Page 11 Tandem 19” rack mount The ideal combination in a lot of cases would be as- sembling one Matrix-22 unit together with one PP-4 power distributor, side by side. To do so, use the Angle Brackets supplied with the product and the linking...
Page 12: Technical Specifications
7,5 x 14,4 x 14,4 in Power ON - Green Shipping Weight 3,7Kg (8,2 lb) Network Connectors Left LED only – Green, 100Mbit Right LED – Green, 1Gbit ALMA Connectors Left LED – Link indicator, Green Right LED – Activity indicator, Orange MATRIX-22 Users Manual...
Page 13: Connections
MATRIX-22 Connections POWER MIXER SOUND SYSTEMS MATRIX-22 Users Manual...
Page 14 (pink) named ETH / CTRL. Right Channels. At the rear panel of the Matrix-22 there are two audio output connec- Two independent audio inputs (blue) are available at the front panel. tors copies of the audio inputs to be used when having several Ma- If only one audio is used, this signal can be sent to the two etherCON trix-22 units.
Page 15 ALMA network: MIX L MIX R ECPK-3 TRD-7 ECPK-3 Matrix-22 PP-4 MATRIX 22 LINK & ETH / CTRL ANALOG INPUT ANALOG / ALMA OUTPUT DAS Audio Group, S.L. ECPK-20 ECPK-20 MATRIX-22 Users Manual...
Page 16 DHCP Server: Wifi Router / DHCP Server AX-TRM8 + TRD-7 MIX L MIX R Matrix-22 ECPK-3 ECPK-3 LINK & PP-4 MATRIX 22 ETH / CTRL DAS Audio Group, S.L. ANALOG INPUT ANALOG / ALMA OUTPUT ECPK-20 ECPK-20 MATRIX-22 Users Manual...
Page 17: Troubleshooting
2. Check the signal path. The units are not connecting to 1. Check computer is connected on the same 1. Verify that the computer and the Matrix-22 are connected or directly, or through ALMA network than the Matrix-22. the same switch or router.
