SCAN QR Code
for more product
information
JAC-245
JAC-540
A
30.0" (762mm)
36.2" (920mm)
B
42.0" (1067mm)
42.0" (1067mm)
C
24.7" (628mm)
28.9" (627mm)
D
25.1" (638mm)
30.2" (767mm)
Air Outlet
Moisture
Separator
D
A

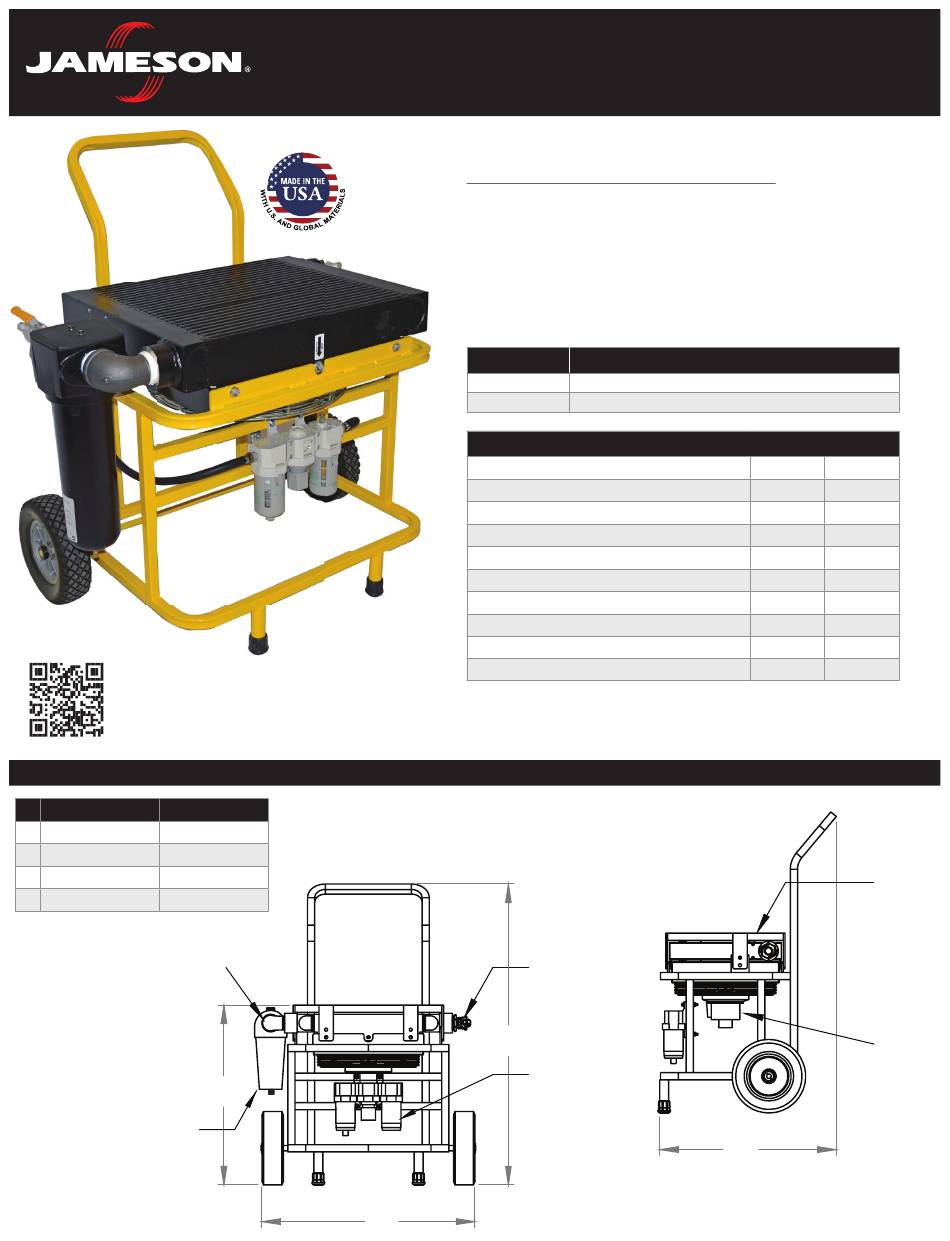

FIBER BLOWING COMPRESSOR
AFTERCOOLERS
MINIFLOW AND POWERFLOW/MULTIFLOW

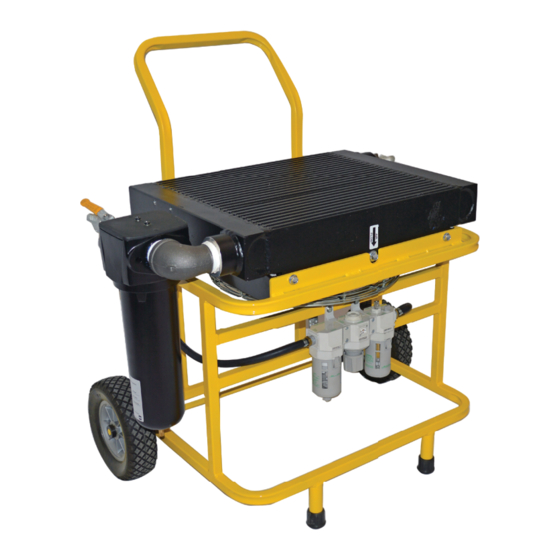

Jameson Aftercoolers are portable air cooling and drying units designed
to improve overall performance and equipment life of fi ber blowing systems.
Warm compressed air enters the heat-exchanger where it's cooled to
near-ambient temperatures by the air-motor fan. The cooled air then
passes through a water separator and fi lter removing harmful moisture
and oil before reaching the fi ber blowing equipment.
Part Number
JAC-245
Aftercooler for MiniFlow (245CFM)
JAC-540
Aftercooler for PowerFlow/MultiFlow (540CFM)
Max. System Working Pressure (PSI)
Max. Aftercooler Working Temp. (°F)
Max. Moisture Separator Working Temp. (°F)
Min. System Working Temp. (°F)
Max. Internal Airfl ow - Rotary Compressor (CFM)
Max. Internal Airfl ow - Piston Compressor (CFM)
Max. Air-Motor Supply Pressure (PSI)
Air-Motor Airfl ow Consumption (CFM)
Max. Fan Speed (RPM)
Dimensions
Air Inlet
B
FRL - Filter,
Regulator,
Lubricator
800.346.1956
OPERATION
MANUAL
Description
Specifi cations
JAC-245
250
250°
150°
35°
245
181
60
17
3450
C
|
JAMESONTOOLS.COM
JAC-540
250
250°
150°
35°
540
432
40
25
1725
Heat
Exchange
Air-Motor
Fan
1
Advertisement
Related Manuals for Jameson JAC-245
Summary of Contents for Jameson JAC-245
- Page 1 FIBER BLOWING COMPRESSOR AFTERCOOLERS MINIFLOW AND POWERFLOW/MULTIFLOW Jameson Aftercoolers are portable air cooling and drying units designed to improve overall performance and equipment life of fi ber blowing systems. Warm compressed air enters the heat-exchanger where it’s cooled to near-ambient temperatures by the air-motor fan. The cooled air then passes through a water separator and fi lter removing harmful moisture and oil before reaching the fi ber blowing equipment.
- Page 2 1. Shutdown fiber blower according to manufacturer operating instructions. 2. Turn off compressor and completely vent all air lines prior to removing safety clips and disconnecting air hoses. 3. Open aftercooler drain valves to purge any collected liquids, then close drain valves. Inlet Configuration JAC-245 JAC-540 2-Prong 2-Prong...
- Page 3 Equipment Inspection Routine Inspection • Check operating conditions and ambient temperature. • Visually inspect equipment and connections for any damage and air leaks. • Open/close drain valves to ensure proper functioning of Moisture Separator and Filter. • Inspect operation of air-motor and check Regulator pressure setting. •...
- Page 4 If these conditions cannot be met, it’s recommended the aftercooler be stored in a sealed plastic bag with desiccant material added to absorb unwanted moisture. Replacement Parts List JAC-245 Aftercooler for MiniFlow JAC-540 Aftercooler for PowerFlow/MultiFlow Part Number...
