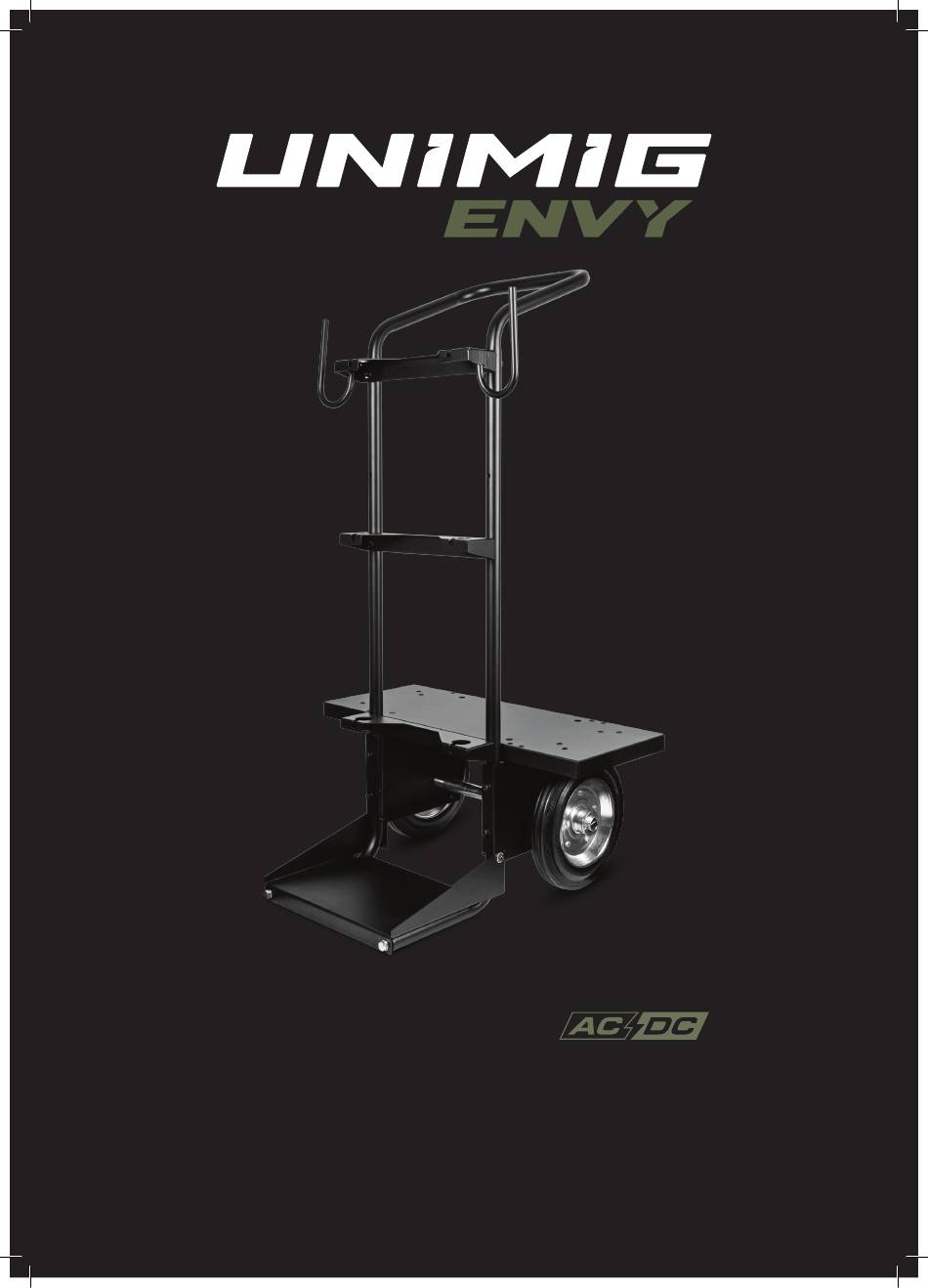

- Page 1 TIG230 TROLLEY U11025 | Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 1 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 1 20/05/2024 12:43:37 PM 20/05/2024 12:43:37 PM...
-
Page 2: Table Of Contents
Contents 1. Safety 2. Package Contents 2.1 Screws & Washers 2.2 Screw Assembly Groups 3. Assembly 4. Installation 4.1 Installing the Machine Only 4.2 Installing the Water Cooler & Machine 4.3 Installing the Gas Bottle on the Trolley ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 2 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 2 20/05/2024 12:43:37 PM 20/05/2024 12:43:37 PM... -
Page 3: Safety
Due to the many variables in the welding field and the evolving nature of both the field and the UNIMIG product line, Welding Guns of Australia Pty Ltd. - Page 4 Safety Gas Cylinders Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Because gas cylinders are usually part of the welding process, be sure to treat them carefully. • Protect gas cylinders from excessive heat, mechanical shocks, physical damage, slag, open flames, sparks, and arcs.
-
Page 5: Package Contents
Package Contents 2. Package Contents 2.1 Screws & Washers M6x40 Screw M6 Spring Washer M6 Large Flat Washer M6 Nut M8x20 Screw M8 Spring Washer M8 Flat Washer M6x16 Screw M6 Flat Washer Axle Sleeve Cotter Pin M25 Flat Washer M5x16 Screw ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 5... -
Page 6: Screw Assembly Groups
Package Contents 2.2 Screw Assembly Groups Group 1 Group 2 Group 3 Group 4 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 6 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 6 20/05/2024 12:43:38 PM 20/05/2024 12:43:38 PM... -
Page 7: Assembly
Assembly 3. Assembly Tools needed: • Phillips Head screwdriver • Allen key set Step 1 Group 1 Group 3 Group 1 Group 3 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 7 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 7 20/05/2024 12:43:38 PM 20/05/2024 12:43:38 PM... - Page 8 Assembly Step 2 Group 1 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 8 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 8 20/05/2024 12:43:38 PM 20/05/2024 12:43:38 PM...
- Page 9 Assembly Step 3 Step 4 Step 3 Step 4 Step 1 Step 2 Step 1 Step 3 Step 2 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 9 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 9 20/05/2024 12:43:39 PM 20/05/2024 12:43:39 PM...
- Page 10 Assembly Step 4 Group 4 Group 2 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 10 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 10 20/05/2024 12:43:39 PM 20/05/2024 12:43:39 PM...
- Page 11 Assembly Step 5 Group 3 ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 11 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 11 20/05/2024 12:43:39 PM 20/05/2024 12:43:39 PM...
-
Page 12: Installation
Installation 4. Installation 4.1 Installing the Machine Only 1. Attach the two L shaped mounting brackets onto the trolley. Group 4 2. Place the machine on the trolley, so that the feet sit over the mounting brackets, and screw it in via the mounting points. -
Page 13: Installing The Water Cooler & Machine
Installation 4.2 Installing the Water Cooler & Machine 1. Attach the two feet mounts to the bottom of the water cooler. It is recommended to do this before connecting the machine. 2. Place the water cooler on the trolley and screw it in via the mounting points. Group 4 3. -
Page 14: Installing The Gas Bottle On The Trolley
Installation 4.3 Installing the Gas Bottle on the Trolley 1. Move the gas bottle onto the trolley’s gas bottle rack. 2. Secure the gas bottle in place with the chains. Use the dedicated fixing points on the trolley. There is a risk of accident if the gas cylinder is improperly or inadequately secured which could result in severe injury. - Page 15 Notes ENVY TIG 230 AC/DC Trolley Operating Manual ENVY TIG 230 ACDC Trolley Manual MAY24.indd 15 ENVY TIG 230 ACDC Trolley Manual MAY24.indd 15 20/05/2024 12:43:42 PM 20/05/2024 12:43:42 PM...
