Summary of Contents for nox HUMMER PLASMA

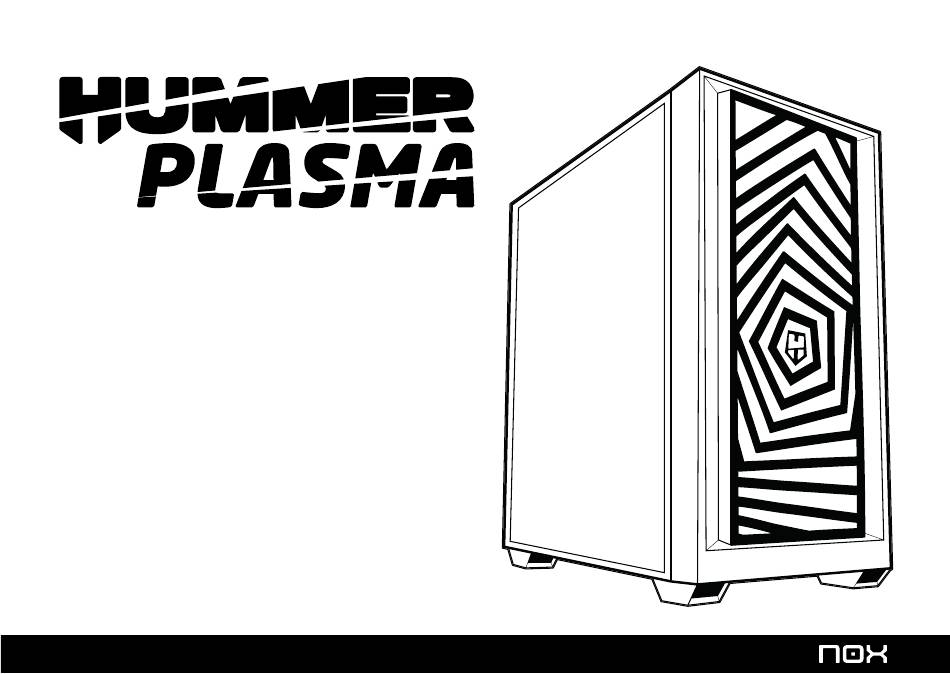

- Page 1 H I G H P E R F O R M A N C E M I D T O W E R I N S TA L L AT I O N G U I D E...
-
Page 2: Disassembly Instruction
Disassembly instruction · Side panel: remove the side panels through the slit at the rear. · Front panel: remove the front panel from the bottom. - Page 3 Installation of fans Align the fans with the screw holes, lock with screws to secure the fans. · Top panel support: 3*120mm/2*140mm cooling fan · Top panel support: 120/240/280/360mm radiator · Rear panel support: · Front panel support: 1*120mm/1*140mm cooling fan 3*120mm/2*140mm cooling fan ·...
-
Page 4: Power Supply Installation
Power supply installation Put the power supply to the PSU location and fix it with psu screws from the back as shown. - Page 5 2.5’’SSD and 3.5’’HDD installation SSD installation (share the bit with HDD) Unscrew the screws to take out the hard-drive bay from bottom, put the 2.5’’ hard-drive on to the bay. Align with holes, secure screws from the internal chassis. HDD installation(share the bit with SSD) Put the 3.5’’...
-
Page 6: Motherboard Installation
Motherboard installation Fit I/O seal into slot,Put motherboard to the location, and then fix it with screws. VGA Card Installation Remove the PCI card slot,Put in VGA Card to the slot ,and then fix it with screws. -
Page 7: Usb3.0 Installation
USB3.0 installation HD Audio Installation Plug in USB 3.0 connector to Plug in HD Audio connector the motherboard. to the motherboard. - Page 8 Hard-drive Copper Name MB screw PSU screws Cable Tie Snap buckle screws step stand pillar sleeve Quantity Accessory Picture Pack Secure MB Secure Seizing front /SSD /GPU Secure Tied and cable Apply to Secure MB panel and both extension PSU/GPU management hard-drive side panel...
