- Page 1 NLDC-40...
-
Page 2: Table Of Contents
Index Introduction Safety information External features Preparing for installation Fitting the NLDC-40 Universal mounting fixture DC Input Solar Input Typical installation diagram Installation steps Selecting battery type Ignition over-ride Temperature compensation Remote monitor Remote monitor operation Remote monitor warning messages Application examples Specifications... -
Page 3: Introduction
Solar panel voltages up to 42V can be connected. In addition to the alternator and solar inputs, the NLDC-40 features a dynamic DC power input that accepts DC voltages from 11V to 32V. An advanced load-response algorithm is used to support DC sources with variable power levels. This allows alternative energy sources such as AC-DC power supplies, wind generators or DC generators to be used. -
Page 4: External Features

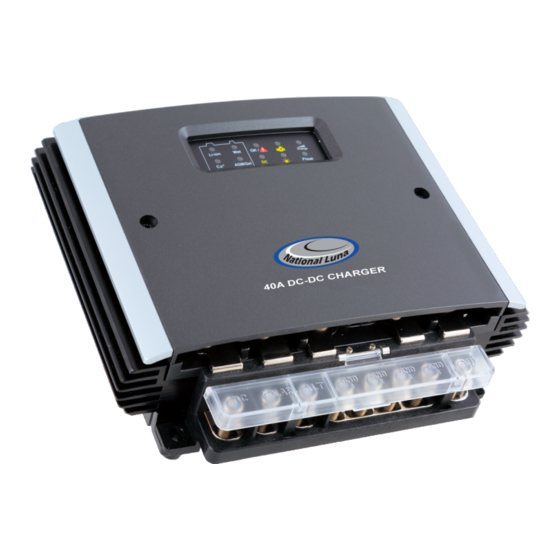

NLDC-40 Features NLDC-40 External features - NL-DC40 Metal Base - Remote monitor connecting port - Status display - Removable top cover - Temperature compensation input - Ignition over-ride input - Removable terminal block - Terminal block - Auxiliary battery output... -
Page 5: Preparing For Installation
The NLDC-40 should be located close to the auxiliary battery for best voltage regulation. Ÿ The NLDC-40 can operate in harsh environments but it is best installed in a location that is cooler with adequate ventilation. Ÿ Avoid areas exposed to harsh or corrosive chemicals, excessive dust, extreme heat or mechanical movement. -
Page 6: Fitting The Nldc-40
Fitting the NLDC-40 The NLDC-40 has 4 mounting feet, use these to attach the NLDC-40 to a secure, flat surface. Use appropriate screws or bolts to attach the NLDC-40 securely, M4 machine bolts are recommended. DO NOT drill into or modify the NLDC-40 housing. - Page 7 Use appropriate fasteners to secure the assembled plate to the application. The NLDC-40 can be rotated on the plate by 180° to suit the application. Two sets of threaded holes are provided on the plate to...
-
Page 8: Dc Input
It is recommended to install a fuse in-line with the DC power source. The current rating of this fuse should be higher than the DC source maximum current but no more than 50A. With a suitable power supply, the NLDC-40 will act as a battery charger. Do not use the output from a stand-alone battery charger as the input to the NLDC-40. -
Page 9: Solar Input
Solar Input The NLDC-40 features a built-in 600W MPPT (maximum power-point tracking) solar regulator with 40A output current and support for panels up to 42V. The MPPT algorithm ensures that the maximum power available from the connected solar panels is fully utilised under varying conditions and converted into maximum output charge current. -
Page 10: Typical Installation Diagram
Typical Installation SOLAR PANELS Ferrite Ring FUSE FUSE MAIN BATTERY BATTERY... -
Page 11: Installation Steps
Connect the temperature compensation probe and IGN over-ride cable if used. (See page 10). Ÿ Install the remote monitor (if used) and run its cable to the remote monitor port on the NLDC-40. (See page 11). Ÿ Double check all cables and connections for correct installation. -
Page 12: Ignition Over-Ride
Connect the smaller ring on the sensor cable to the “sensor” terminal Connect the IGN terminal using a small gauge wire to a 12V on the NLDC-40. Connect the larger ring to one of the GND terminals. ignition lead or source in the vehicle. -
Page 13: Remote Monitor
Remote monitor - (Optional accessory) The Remote Monitor for the NLDC-40 provides status information about the system and batteries on a high-contrast LCD screen. Information such as Main and Auxiliary battery voltages, charge mode, charge current, battery type, battery temperature and error conditions are displayed on a choice of 3 user-selectable display modes. -
Page 14: Remote Monitor Operation
Remote Monitor operation The remote monitor can be turned ON or OFF by pressing the POWER button. The display will turn off automatically after a short delay if there is no active charge cycle. The display brightness can be increased or decreased by pressing the UP or DOWN buttons. The remote monitor has 3 display modes that represent the status of the charging system in different ways. -
Page 15: Remote Monitor Warning Messages
It is possible that the battery is damaged or is located in an area that is too hot. This error will also be displayed if the NLDC-40 temperature is above 115°C. Charge will stop until the system temperature drops to a safe level. -
Page 16: Application Examples
Application examples Installation in a Trailer or Caravan The NLDC-40 can be installed in a Trailer or Caravan that is equipped with batteries. In this application, the NLDC-40 supports a stand-alone application with solar input as well as a removable connection to the charging system of the towing vehicle. - Page 17 The NLDC-40 will regulate the output current based on the limitations of the DC supply. This prevents over-loading of the supply. FUSE In order to benefit from the full 40A capability of the NLDC-40, a 600W FUSE DC source is recommended with a voltage in the range of 11V - 32V.
- Page 18 Any loads connected to the battery will be powered by the NLDC-40 when a charge cycle is active. If the Auxiliary Battery Box is disconnected, the NLDC-40 will automatically revert to a safe mode. An error will appear on the...
-
Page 19: Specifications
Technical Specifications Input Voltage Range Ba ery Types Bulk Voltage Float Voltage Alternator / DC 11V - 32V AGM / Gel 14.4V 13.6V Solar 9V - 42V Standard Wet 14.6V 13.6V Input priority ALT - SOLAR - DC Calcium 14.8V 13.6V Solar Regulator Lithium Ion... - Page 20 Technical Specifications - continued 123mm 73mm 73mm 38mm 128mm 178mm 170mm 38mm 39mm 38mm...
-
Page 22: Warranty Information
10. National Luna shall not be held responsible for any injuries to persons caused by the incorrect or negligent usage of this appliance. 11. Repair work to be done in terms of this warranty must be referred to National Luna for written authorisation before any work is carried out. - Page 23 The standard National Luna Warranty in South Africa cannot be applied outside the South African borders for practical reasons. 1. National Luna has a world wide distributor network. These distributors import products and carry the warranty (at their cost) in line with the various countries’...
- Page 24 National Luna sales and support : www.nationalluna.com...
