AMF ELECTRONICS CPA540 evo Instruction Manual

Digital signal processor
Hide thumbs

Advertisement

Table of Contents

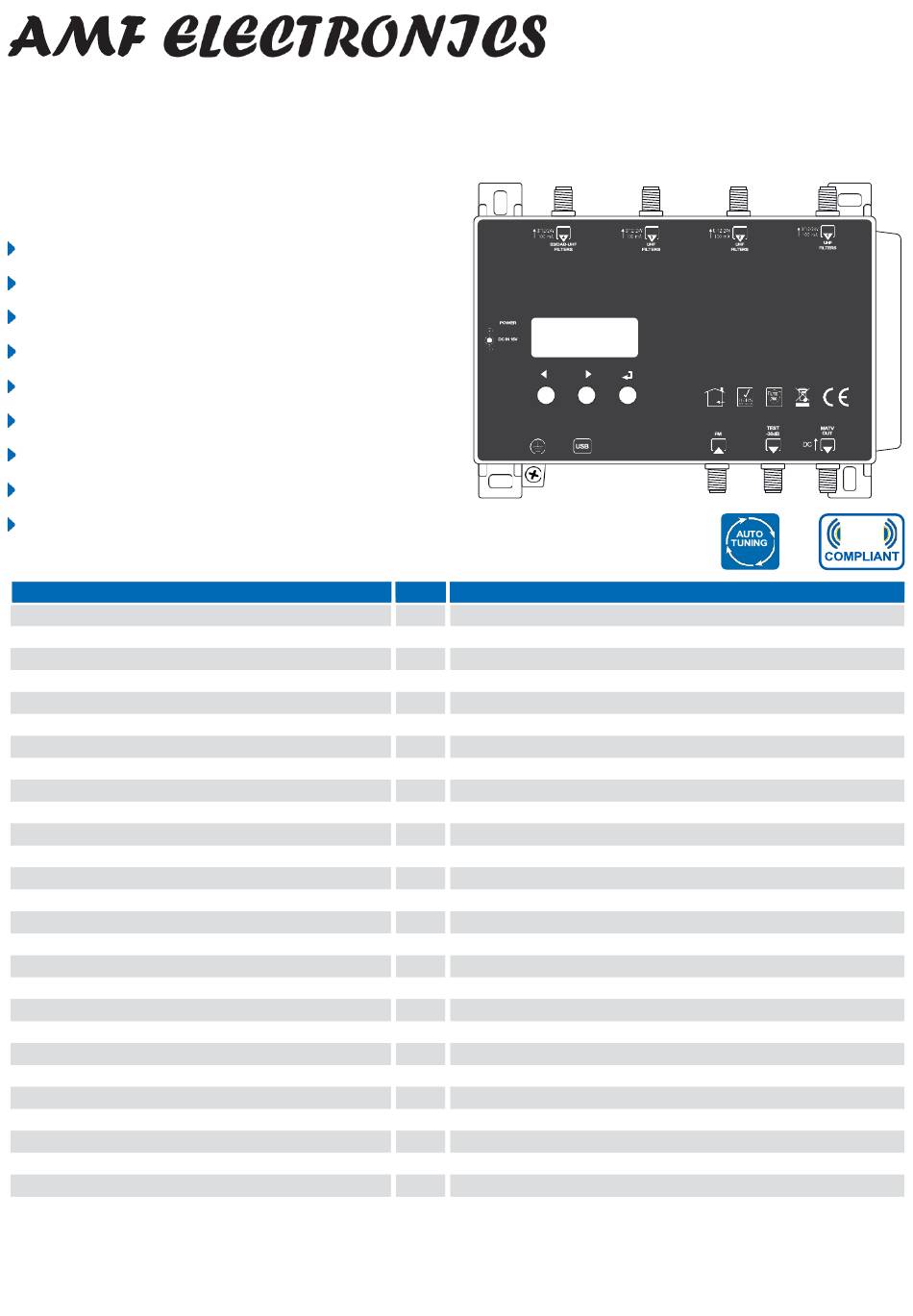

CPA 540 evo
Digital Signal Processor
TV Terrestrial programmable amplifier
Total output level max 123dBµV
50dB digital filters on adjacent channels
Single filter selectable bandwidth
Channel to channel conversion
UHF inputs with high rejection Lte 700 filters
Dual-stage input amplifiers
DAB filter 174... 230MHz
Autotuning for automatic channel scanning
Display and Android / Windows APP programming
TECHNICAL SPECIFICATIONS
NUMBER OF INPUTS
FM INPUT FREQUENCY RANGE
UHF1
UHF2
UHF3
DAB/B3-UHF4
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTERS
INPUT LEVEL RANGES
FILTERS SELECTIVITY
AUTOMATIC CONTROL GAIN RANGE
VHF/UHF INPUTS AMPLIFIER GAIN
FM GAIN
VHF GAIN
UHF GAIN
SELECTABLE FILTERS BANDWIDTH
OUTPUT LEVEL RANGE
UHF ADJUSTABLE SLOPE
VHF ADJUSTABLE OUTPUT
MAX TOTAL VHF-UHF OUTPUT LEVEL
INPUTS REMOTE POWER
RETURN LOSS IN/OUT
TEST OUTPUT
AMPLIFIER POWERING
MAX AMPLIFIER CONSUMPTION
MAX AMPLIFIER CONSUMPTION + REMOTE POWER
OPERATING TEMPERATURE
DIMENSIONS
AMF
CPA540evo
5
MHz
MHz
MHz
MHz
MHz
dBµV
FM 35... 90 - B3/DAB 40... 110 - UHF 45... 110
dB
dB
dB
dB
dB
dBµV
dB
dB
dBμV
dB
100...240VAC 50/60Hz (External power supply 15VDC / 1,25A)
W
W
°C
mm
CPA540evo
Digital Signal Processor
1 FM; 3 UHF; 1 DAB/B3-UHF
FM (87,5... 108);
470... 694
470... 694
470... 694
170... 240; 470... 694/862
32
1
>50 (Adjacent channels)
40 dB
OFF / +15 / +30
30 (Adjustable 0... -30dB)
60
68
N/S/W
96... 116
0... -10 (1 dB step)
0... -10 (1 dB step)
123 DIN 45004B
12V / 24V 100 mA
>12
1 (-30 dB)
8,50
11,00
-5... 50
217 x 145 x 45
RED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPA540 evo and is the answer not in the manual?

Questions and answers

Summary of Contents for AMF ELECTRONICS CPA540 evo

  • Page 1 CPA 540 evo Digital Signal Processor TV Terrestrial programmable amplifier Total output level max 123dBµV 50dB digital filters on adjacent channels Single filter selectable bandwidth CPA540evo CPA540evo Digital Signal Processor Channel to channel conversion UHF inputs with high rejection Lte 700 filters Dual-stage input amplifiers DAB filter 174...

  • Page 3: Package Contents

    Pictograms / symbols description The programmable amplifier complies with the RED 2014/53/EU directive. COMPLIANT The AUTO-TUNING scanning function serves to speed up the programming procedure by automatically storing DVB-T/T2 Channels. The UHF inputs are protected by filters against Lte 5G and 4G interference. Heed the warning and safety instructions.

  • Page 4: Installation Warnings

    Installation warnings - Use only the supplied power supply unit. - To ensure adequate cooling and ventilation, the CPA 540 evo amplifier and power adapter must be securely fixed to a vertical wall. - To avoid the risk of fire or electrocution, do not expose the products to rain or moisture. - Products must not come into contact with water or be wetted by liquids.

  • Page 5: Application Examples

    Application examples CPA540evo CPA540evo USB Port Test MATV CPA540evo CPA540evo USB Port Test The amplifier CPA 540 evo can also be Coaxial DC Power Adapter YS25-1501250 powered over coaxial cable through the use Injector of a coaxial voltage injector*. * sold separately MATV...

  • Page 6: Device Programming

    Device Programming The CPA 540 evo programmable amplifier can be configured in two different ways: 1) using the display and navigation keys integrated into the control unit. 2) using the application AMF USB available for Android OS and Windows OS. Description of display use - To activate the display, briefly press the ⏎...
  • Page 7 Automatic Channel Programming To speed up the programming process, you can use the AUTO-TUNING function. When this function is activated, the CPA 540 evo amplifier will automatically scan the inputs (1; 2; 3; 4) and store only DVB-T/T2 signals. To start the AUTO-TUNING procedure select AUTO and press TUNING ⏎.
  • Page 8 Manual Programming To start manual programming, select MAN using the ∇ key and press ⏎. TUNING AUTO INPUT (1) UHF To set input parameters (1) press ⏎. IN (1) INPUT REMOTE POWER To enable or disable the remote power feed from input (1) press ⏎...
  • Page 9 CHANNEL CONVERSION To convert a channel to a different channel from the one > 2 3 - > 3 4A 061 received as input, place the pointer ..under the output filter ADD 1 CH and select the channel number using the ∇ ∆ keys, press ⏎ to confirm.
  • Page 10 INPUT (2) UHF To set the input parameters (2) press ⏎ and access the menu. IN (2) For programming, follow the instructions described for INPUT (1) UHF. INPUT RANGE OUTPUT RANGE E21÷E48 E21÷E69 INPUT (3) UHF To set input (3) parameters, press ⏎ to access the menu. For IN (3) programming, follow the instructions described for INPUT (1) INPUT RANGE...
  • Page 11 OUTPUT Press ∇ to select the OUTPUT menu and confirm with ⏎ to LEVEL OUTPUT access the amplifier output level setup. OUTPUT To set the output level, press ⏎ and use the ∇ ∆ keys to change the numerical value. To confirm, press ⏎ again. >LEV: 110dBuV UHF SLOPE To correct the slope of the output, set the pointer >...
  • Page 12 ADVANCED SETTINGS AD VA NCED PROTECTION PASSWORD Select PASSW, press ⏎ and use the ∇ ∆ keys to choose the AD VA NCED numerical value of the first digit on the right and confirm with >PASSW:000 ⏎. For the next two digits, repeat the operation and press ⏎ to confirm.

  • Page 13: Monitor:off

    SERIAL NUMBER The number series to the right of SRNBR represents the serial MONITOR:OFF number of the product. >SRNBR:12345 To return to the main level menu from any submenu, press and hold the ∇ ∆ RESET If you wish to delete all settings and restore the control unit to RESET factory state, select YES and confirm ⏎.
  • Page 14 Android SmartPhone Programming Requirements The CPA 540 evo can also be programmed by the AMF USB App available for Android smartphones and tablets, which can be downloaded free. To check whether your device’s USB port supports OTG (On The Go) mode, please refer to the user manuals of your smartphone/tablet, failing which you can check OTG compatibility with a free APP called USB OTG Checker that can be downloaded from the Google Play portal.
  • Page 16 Label with serial and tracking data Manuf. Manuf. Model Serial # Week Year Rel. Rel.
