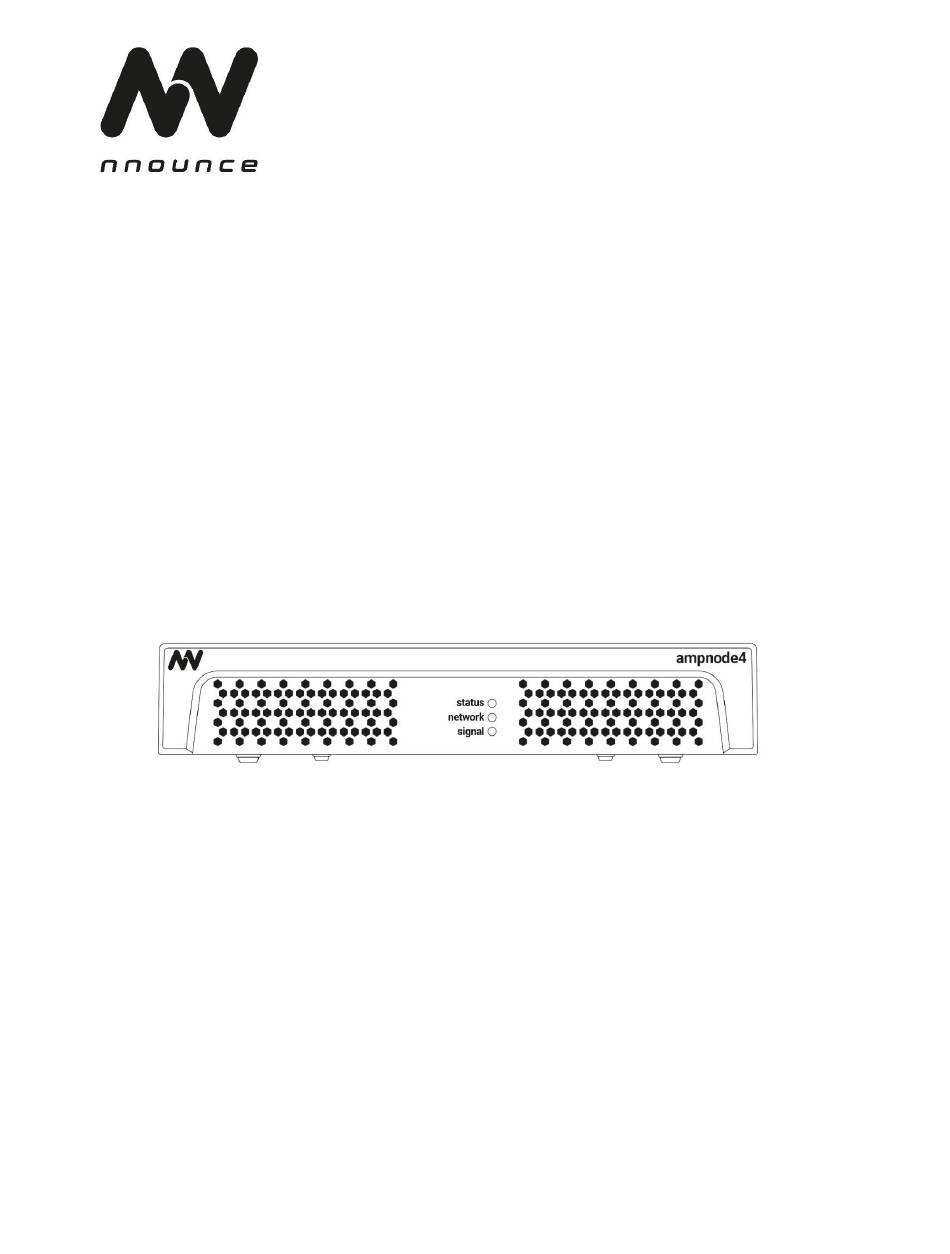

  • Page 1 ARDWARE SER GUIDE ampnode4 – Channel Amplifier ©Nnounce powered by Simpleway Keep this manual for future reference...
  • Page 2 9. Do not place flame sources such as lighted candles on the device. 10. DO NOT use the device at altitudes above 2000 m. 11. DO NOT use the device in tropical environment. 12. DO NOT use this amplifier if the electrical power cord is frayed or broken. nnounce by Simpleway...
  • Page 3: Important Safety Instructions

    IMPROPER OR MISSING GROUND CONNECTION. CONTACT THE AUTHORIZED SERVICE CENTER FOR ORDINARY AND EXTRAORDINARY MAINTENANCE. IT IS ABSOLUTELY NECESSARY TO VERIFY THESE FUNDAMENTAL REQUIREMENTS OF SAFETY AND, IN CASE OF DOUBT, REQUIRE AN ACCURATE CHECK BY QUALIFIED PERSONNEL. nnounce by Simpleway...
  • Page 4: Optional Accessories

    2x terminal block connectors with 4 positions • 2x terminal block connectors with 6 positions • 1x terminal block connectors with 8 positions Optional accessories • Optional: Connection plate with 4 screws for rack mounting in pair nnounce by Simpleway...
  • Page 5 9. GPIO - Control • switched inputs/output • inputs 10. LAN A with PoE • outputs 11. LAN B with PoE The product sticker on the bottom of the device contains the MAC address required for device pairing. nnounce by Simpleway...
  • Page 6: Device Configuration And Setup

    4. Your web-browser shows the login page of your ampnode4 device. 5. Enter credentials into the nnounce configuration user interface: IMPORTANT: Default credentials are admin/simpleway, default PIN code is 23646. You can now access the device configuration settings and continue with the interface configuration. nnounce by Simpleway...
  • Page 7 • View mode is available after the design is deployed using the Deploy design button. Audio meters and component controls are active in this mode. Return to edit mode with the Edit design button. Example of DSP design: nnounce by Simpleway...
  • Page 8 NOTE: Navigate backwards or cancel your steps with the Back function in your browser. A. Navigate to Interfaces sectio n in the left menu. Two LANs A and B can be pre-configured here, see rear panel ports. B. Configure the interface in the Manual mode or Auto mode (DHCP). nnounce by Simpleway...
  • Page 9 DHCP server. Click on the Save Changes button to confirm the configuration. D. Advanced slider allows you to insert an advanced configuration. • CIDR notation. Click on the Save Changes button to confirm the configuration. nnounce by Simpleway...
  • Page 10 RX stream – receives audio from other devices, input. One stream can have 1 – 8 channels. IMPORTANT: To fully configure network streams, network inputs and/or network outputs must be included in the DSP design, and the DSP design itself must be saved and deployed. nnounce by Simpleway...
  • Page 11 The ampnode4 audio integration device is connected to the network via a standard ethernet cable. This network consists • Q-SYS Core + Q-SYS peripherals, • Windows-based computer for Q-SYS designer network setup, not required for runtime operation, • Gigabit Ethernet Switch with PoE ports. nnounce by Simpleway...
  • Page 12 The ampnode4 device is compatible with the Q-SYS ecosystem. To integrate the device, use the ampnode4 plugin for Q- SYS Designer so that you can then set up the device’s properties. 1. Nnounce ampnode4 plugin for Q-SYS Designer can be obtained: a. Plugin Q-Sys marketplace, b.
  • Page 13 See the relevant chapter below. 5. Configure the properties of your ampnode4 audio integration device. NOTE: The Connection Mode will be selected depending on the Q-SYS version. Web-Socket with encryption is supported from Q-SYS version 9.8 onwards. nnounce by Simpleway...
  • Page 14 Create an AES67 stream in the Q-SYS Designer that matches the network stream set up in the nnounce configuration UI described in the “Network Streams” chapter. 1. Add the stream component: 2. Set up stream properties: 3. Wire the “Output 1” stream to the” Analog Input 1 RX” of the ampnode4 plugin. nnounce by Simpleway...
  • Page 15 2. Set up stream properties: 3. Wire the “Input 1” stream to the ”Analog output 1 TX” of the ampnode4 plugin. IMPORTANT: IP address and port must be configured the same way as in Network streams in the nnounce configuration nnounce by Simpleway...
  • Page 16: Firmware Update

    Firmware update of your ampnode4 device is available in the Maintenance section. The installation file is provided by the nnounce support team. A. Navigate to the Maintenance section in the left menu. Click on the Update new button in the Firmware update part. nnounce by Simpleway...
  • Page 17 B. Drag and drop or select the file provided by the nnounce support team. C. Start installing the firmware update. D. Wait for the installation process to complete. E. When the installation process is successfully completed, the login screen will appear. nnounce by Simpleway...
  • Page 18: Installation

    IMPORTANT: Please use the supplied connectors for audio and logic connections. Option: Stand-alone Stick the 4 anti-scratch rubber feet to your device. A. Turn your device upside down. B. Take the rubber feet and stick them to the corners of the device. nnounce by Simpleway...
  • Page 19 1. a single unit or 2. as a pair of units attached to each other. 1. Single Two brackets are used to mount a single ampnode4 unit: A. Remove the two front screws from the side of the device. nnounce by Simpleway...
  • Page 20 (use the smaller holes). Use the same screws to attach the bracket to the device. C. Repeat the above steps for the other side of the device. D. Your device is ready to be rack-mounted. nnounce by Simpleway...
  • Page 21 C. Place the bracket on the device side as shown in the picture. Use the same screws to attach the bracket to the device. Repeat this step for the second device. nnounce by Simpleway...
  • Page 22 4 – User Guide D. Turn the devices upside up and place them next to each other as shown in the picture. E. Attach the two devices together with the connection plate using 4 screws. nnounce by Simpleway...
  • Page 23 4 – User Guide F. Your devices are ready to be mounted in your rack. nnounce by Simpleway...
  • Page 24: Technical Specifications

    210 mm (W) x 275 mm (D) x 40 mm (H) 2 700 g without mounting kit Accessories Mounting kit CONTACT Simpleway North America Headquarters: Simpleway Europe a.s. Address: Address: 1621 Central Avenue Na Okraji 335/42 Cheyenne, Wyoming Prague 6...
