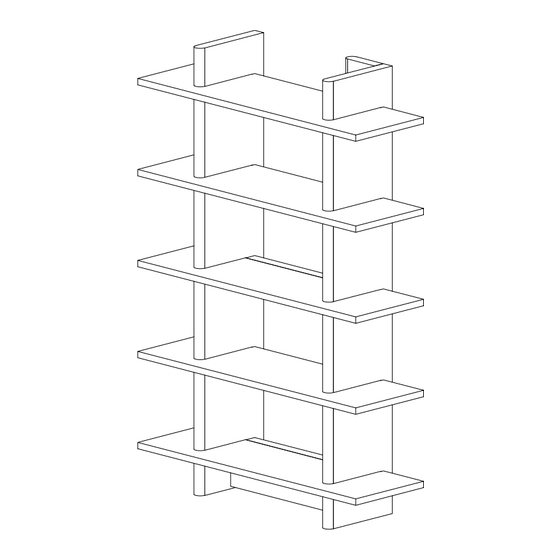

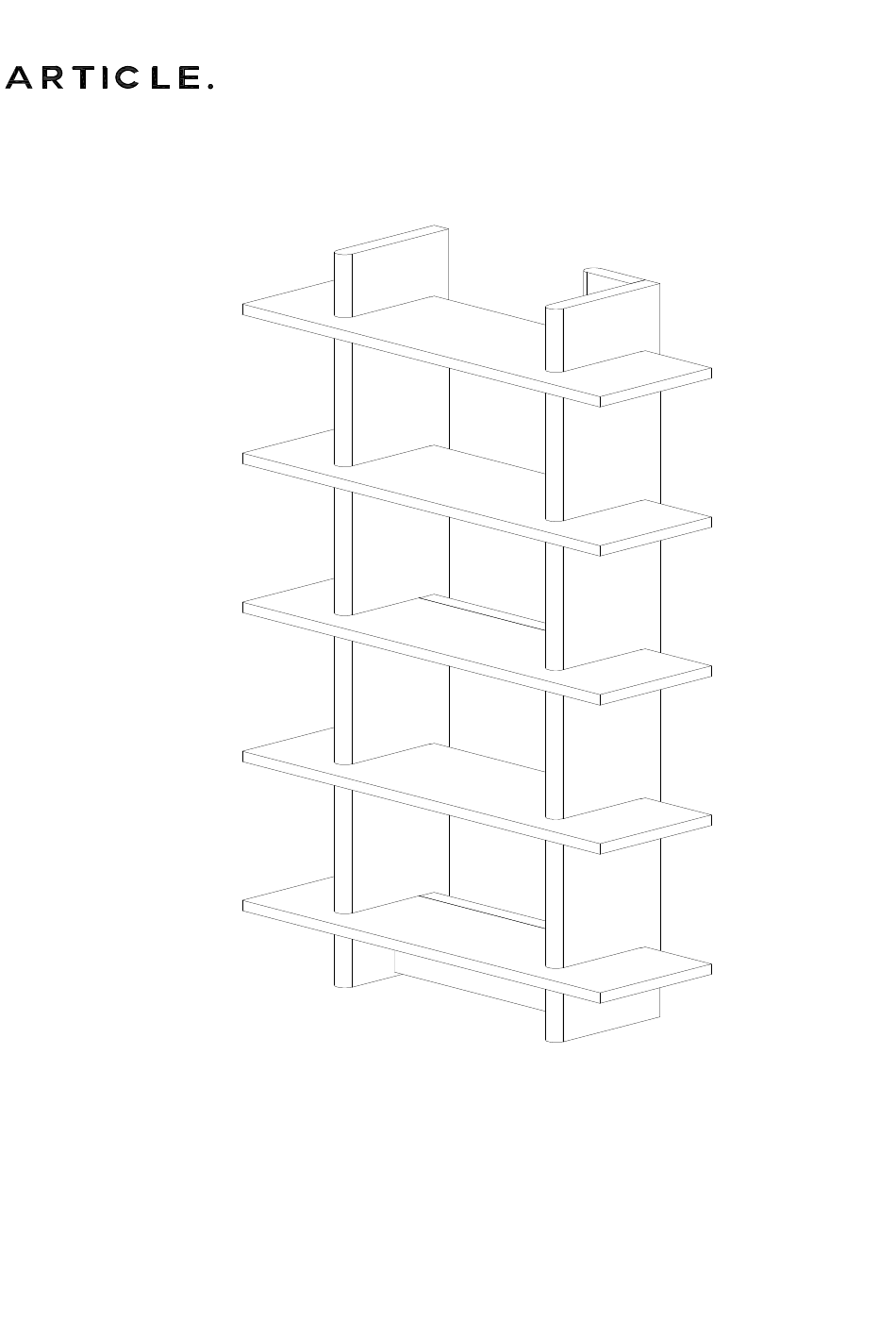

- Page 1 VERSION 1.0 Assembly Instructions TORME Open Bookcase...
- Page 2 If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. PARTS INVENTORY HARDWARE INVENTORY...
- Page 3 ARTICLE. TORME Open Bookcase Page 2 of 7 Place all parts on a soft, clean, and flat surface such as a carpet to prevent scratches...
- Page 4 ARTICLE. TORME Open Bookcase Page 3 of 7 Assembly tip : align (A) and (B) at its position properly by using part (F). Assembly tip : one person move each shelf horizontally. Do not fully tighten...
- Page 5 ARTICLE. TORME Open Bookcase Page 4 of 7 Do not fully tighten...
- Page 6 ARTICLE. TORME Open Bookcase Page 5 of 7 Assembly tip : one person moves each shelf horizontally. Tighten all the bolt 100% 100%...
- Page 7 ARTICLE. TORME Open Bookcase Page 6 of 7 100% Tighten the bolt 100%...
- Page 8 ARTICLE. TORME Open Bookcase Page 7 of 7 Adjust levelers as needed.
- Page 9 ANTI- TIP Installation Page 1 of 2 ARTICLE. 1010 Raymur Ave Vancouver, BC V6a 3T2 ANTI-TIP RESTRAINT INSTALLATION WARNING! Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: 20 min • Install tip-over restraint provided.
- Page 10 ANTI- TIP Installation Page 2 of 2 ARTICLE. Attach the bracket (A) into the top shelf as shown in the illustration. use screw (B) and washer (E) to attach the bracket into the pre-drilled hole underside of top shelf. Place unit in desired location and mark on wall where Drill holes into drywall, and attach unit to wall with holes should be drilled.
