Zumax Medical ROTA360 User Manual

ROTA360 DIGITAL
CAMERA ADAPTER
User's Guide
The CE mark indicates that the product complies
with the European medical device regulation (EU) 2017/745.
Thank you for purchasing the ROTA360 Dugital Camera
AdapterTo prevent damage to the ROTA360 Dugital Camera
Adapter or injury to you or others, read the following safety
precaution in their entirety before using this equipment. Keep these
safety instructions where all those who use the device will read
them.
Operating instructions
Cautions
1. Read and follow all caution notices and instructions marked on
the product or included in the documentation.
2. Do not use this instrument in damp rooms. Do not expose the
instrument to water splashes, dripping water or sprayed water.
3. Do not touch the surface of the lens with hands or hard objects..
4. Do not operate the knob because it is ROTA to damage the
product.
5. This product uses a mobile phone set only match the
corresponding smart phone.
1. General instructions
1.1 Purpose
For medical observation or teaching use, must be used with
Zumax surgical microscope, and the surgical microscope should
be equipped with the corresponding light splitting system.
1.2 Characteristic
•ROTA360 Dugital Camera Adapter can be directly equipped
with Dugital Camera to take pictures;
Standard flange distance adapter ring for a specific brand of
digital camera;
Adjust the image knob can adjust the direction of the image, so
as to facilitate the user to observe;
•ROTA360 Dugital Camera Adapter connector has 4 ways to
install;
•ROTA360 Dugital Camera Adapter connector can be equipped
with Wireless footswitch of ROTA360 Dugital Camera Adapter
2. Installation

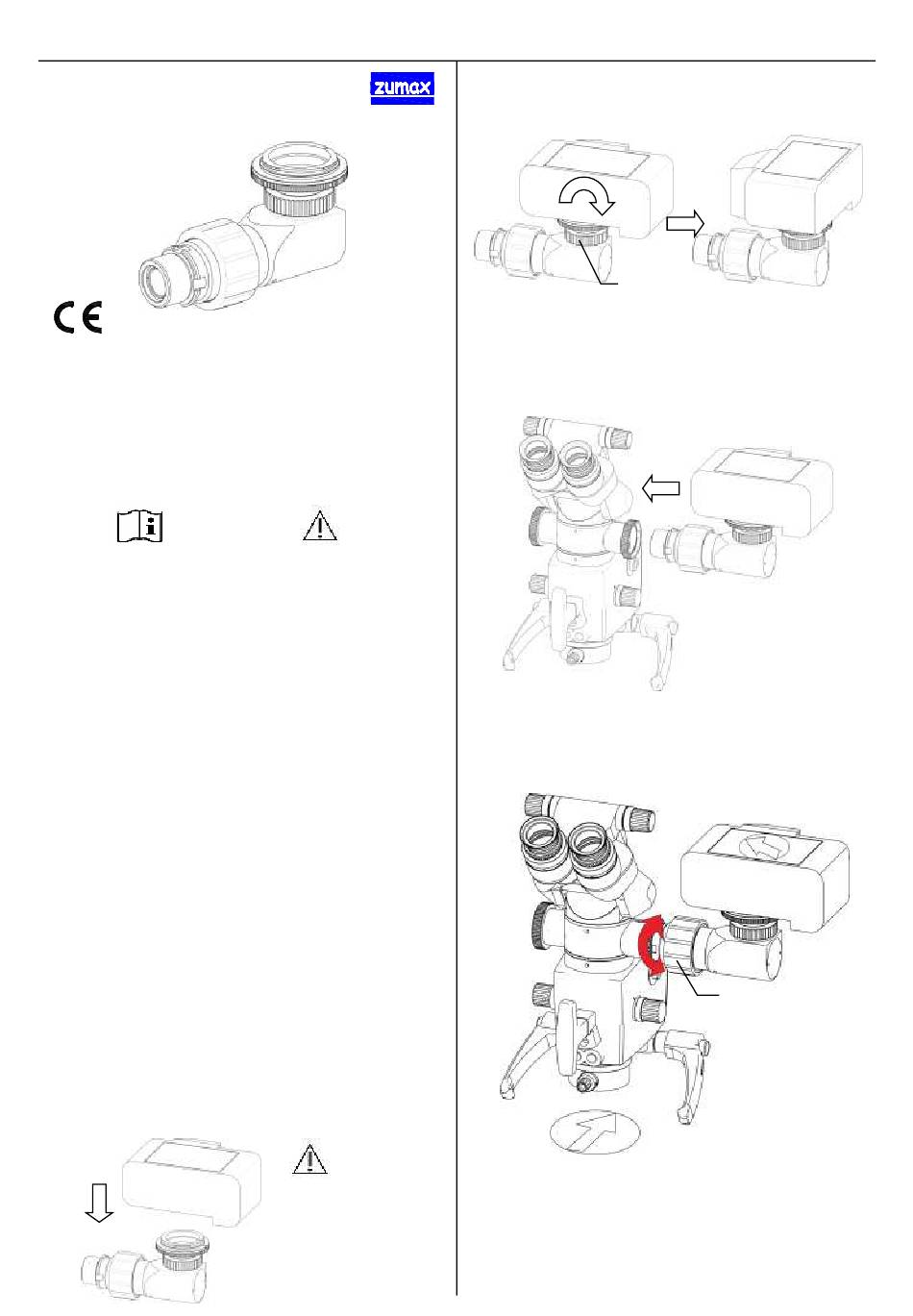

2.1 Transfer camera interface ROTA360 installation steps.
2.1.1 Install the digital camera into the camera interface to
ensure that the camera is securely installed.(Figure 2.1).
Warning
The camera body sign point
corresponds to the sign point
on the Camera adapter
Figure 2.1
2.1.2 Unscrew the adapter ring to adjust the direction of the
digital camera. After adjusting the angle of the
digital camera, you can tighten the adapter ring to
fix the digital camera.(Figure 2.2)
Adapter ring
Figure 2.2
2.1.3 Insert the camera adapter into the beam splitter, select
the appropriate mounting direction (4 mounting directions) as
needed,.(Figure 2.3)
Figure 2.3
2.2 Turn the knob as needed so that the image in the camera is
viewed around the microscope without changing the position
of the camera. Shaft center rotation.（Figure 2.4）
Figure 2.4
Compile date:18/03/2019
Knob
