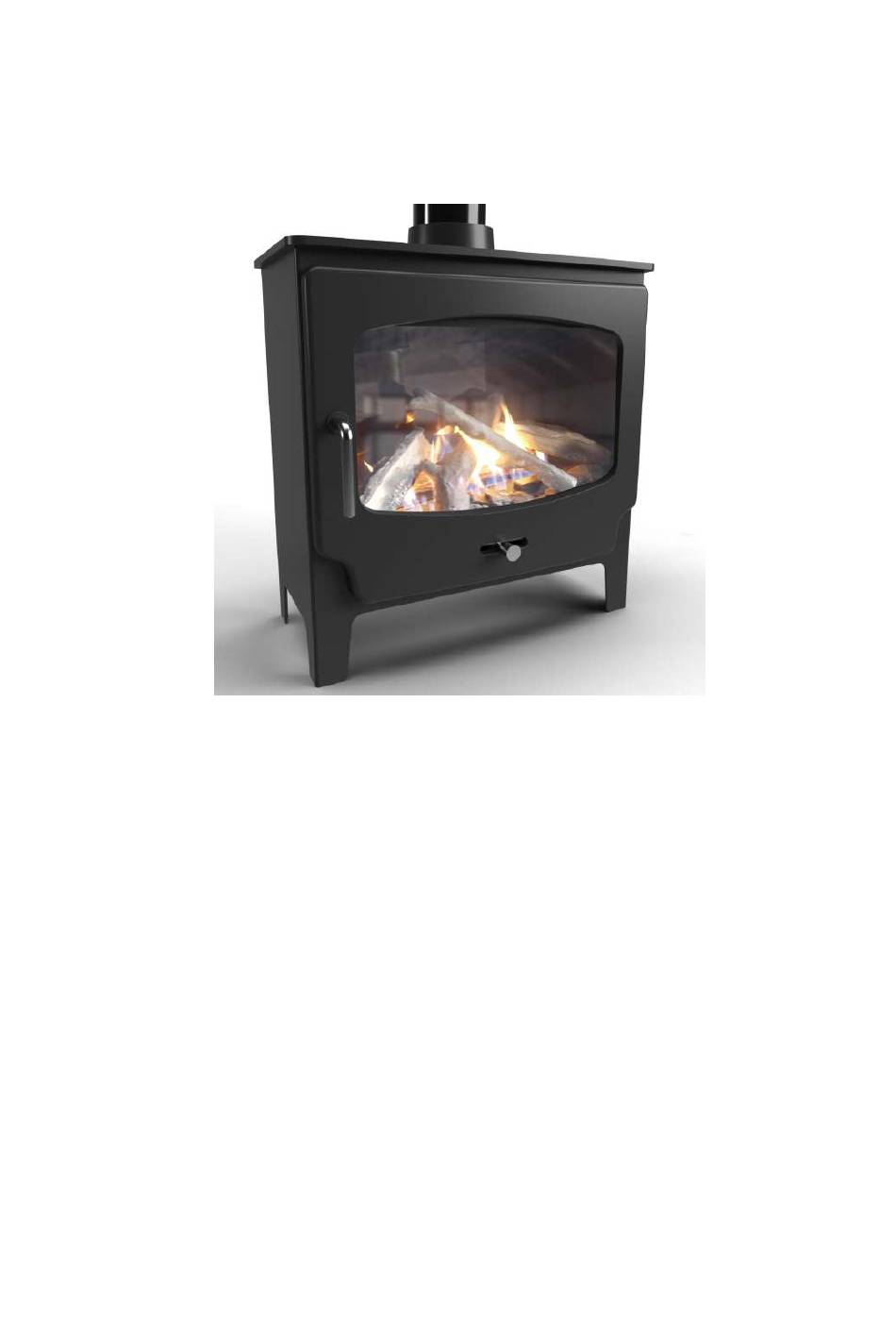

- Page 1 Ekol / Saltfire Gas Stoves GAS EFFECT STOVE Ekol Clarity Vision Gas Saltfire ST-X Wide Gas Installation and User Manual I2H (G20 at 20mbar) & I3P (37) (G31 at 37mbar)
- Page 2 If this code is not present on the appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the modification of the appliance to the conditions of use for the country.” Model Name: Ekol Clarity Vision Gas Saltfire ST-X Wide Gas INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 3: Table Of Contents
Page Installing Technical Data Construction Preparing the Appliance Testing 10-11 Service and Maintenance Check List Valve Fault Codes 14-15 User Instructions Ventilation/Cleaning 17-18 Control System 19-22 Commissioning Checks Service Sheets 24-25 Warranty Term Warranty Registration INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 4: Installing
NOx TABLE I2E+ - G20/G25 at 20/25mbar 5.3/5 I3B/P(30) - G30/G31 at 30mbar I3+ - G30/G31 at 30/37mbar 4.5/5 SIT 9228 I3P(50) - G31 at 50mbar I3P(37) - G31 at 37mbar I3P(30) - G31 at 30mbar INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 5 BURNER TRAY Gas Burner control unit: INSTRUCTION SALTFIRE CLARITY VISION 2023...
- Page 6 Pilot assembly Pilot assembly OXPG-82-330A14 (NG) OXPG-82-350A14(LPG) Hand set INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 7: Construction
The flue liner minimum length is 3m, the maximum height of the flue is determined by the draw of the flue as per flue testing. Conventional Class 1 chimney (Lined) B-S 5440-1 BS 5440-1 Flexi liner Minimum flue height from the top of the appliance 3.6m Register plate Dilution air INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 8: Gas
An isolation valve or valves must be fitted near to the appliance in an accessible area, meeting all local and national regulations this is to allow the complete removal of the appliance to allow removal if necessary. Appliance dimensions: Appliance Dimensions in mm INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 9: Preparing The Appliance
TTB before making any electrical connections and remove any power to the TESC (remove the batteries etc.) before fitting or removing the TTB switch. Make this clear in your servicing instructions. See images in Appendix A INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 10: Testing
10 minutes. Check the appliance for spillage using a smoke match and correct test equipment. Position a lit smoke match under the appliance and observe if the flue is pulling the smoke. If the smoke isn’t drawn the flue is underperforming or is blocked. INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 11 DO NOT USE THE APPLIANCE IF THERE IS A CRACK IN THE GLASS OR THE ➢ GLASS SEAL IS PERISHED, REPLACE THE PARTS. Ensure the installer details are filled in. Hand over the installation manual to the customer. INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 12: Service And Maintenance
Remove all debris, soot, masonry etc. If there are excessive amounts of debris the register plate must be accessed to clean the void area. On completion of the servicing/maintenance a spillage test must be carried out. INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 13: Check List
Check ventilation is not too strong and the flame is not blowing off the thermocouple and flame rectification probe. Burner lights but turns off within a Check gas pressure is correct. short period. Check pilot and burner flame stability. INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 14: Valve Fault Codes
On/Off switch contact issue in Operate switch to valve. clean contacts. E08, E09, E10,E51 TESC Extension socket/ device fault (Relevant to TTB) Issue with valve Buttons are sticking/Buttons are Release buttons. E14-E17 buttons. damaged. Replace valve. INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 15 To reset any error code the power button on the handset/valve needs to be pressed for 1-2 seconds. False/random error codes can be displayed if the batteries are faulty or lack enough power to operate the valve. INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 16: User Instructions
If the appliance repeatedly shuts off after being restarted a GAS SAFE registered engineer should be contacted to examine the appliance and installation. INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 17: Ventilation/Cleaning
Fuel Bed Components Wear suitable safety equipment when cleaning the inside of the appliance. It is advised to wear protective gloves and a dust mask conforming to EN 149:2001+A1:2009 FFP3 when cleaning the logs and embers. INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 18 State the model number (found on the gas fire data plate). Always ask for genuine parts. Where necessary replace damaged logs & ceramics, only with genuine Saltfire specified parts. It is dangerous to fit unspecified logs and ceramics This appliance is manufactured by: Gas Product Services Ltd exclusively for Saltfire Stoves.
-
Page 19: Control System
The green unlock light will illuminate to show when the handset is unlocked and ready to accept commands. This operation must be performed each time you want to operate the handset. Handset: INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 20 Additional control functions The remote control can also be used to set a number of additional functions: Time and date ➢ Temperature display in degrees Celsius or Fahrenheit ➢ Snooze mode ➢ Thermostat function ➢ INSTRUCTION SALTFIRE CLARITY VISION 2023...
- Page 21 “SET” button to store. As the important settings above have now been done, press and hold for a few seconds the “SET” button for a few seconds and this will exit the setup menu. INSTRUCTION SALTFIRE CLARITY VISION 2023...
- Page 22 If BURNER MIN is still increasing the temperature, or maintained temperature remains too high, a manual STOP command is required. NOTE: If at any time the power button is operated during Thermostat mode, the control will cancel any thermostat operation and return the control to manual mode. INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 23: Commissioning Checks
Dealer and Installer Information Dealer Installation Company Contact No. Gas Safe Registered Engineer Date of Purchase Contact No. Model No. Gas Safe Register No. Stove Serial No. Date of Installation Burner Serial No. Gas Type INSTRUCTION SALTFIRE CLARITY VISION 2023... -
Page 24: Service Sheets
Contact No.: Gas Safe Register No.: Date of Service: Door seal replaced: Comments: Annual Service Record Year 4 Gas Safe Registered Engineer: Contact No.: Gas Safe Register No.: Date of Service: Door seal replaced: Comments: INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 25 Contact No.: Gas Safe Register No.: Date of Service: Door seal replaced: Comments: Annual Service Record Year 8 Gas Safe Registered Engineer: Contact No.: Gas Safe Register No.: Date of Service: Door seal replaced: Comments: INSTRUCTION SALTFIRE CLARITY VISION 2023...
-
Page 26: Warranty Term
Your stove is guaranteed against defects arising from faulty manufacture for 2 years when supplied by a Saltfire Specialist. Upon registration of the warranty, Saltfire will extend the guarantee period to 5 years from purchase. You must replace the pilot assembly every year to satisfy your extended warranty. Your details must be registered with us by returning the completed warranty card. -
Page 27: Warranty Registration
Saltfire Warranty Registration YOUR DETAILS NAME ADDRESS POSTCODE Tel: EMAIL ADDRESS PURCHASE DETAILS PURCHASED FROM PURCHASE DATE PRODUCT DETAILS APPLIANCE NAME APPLIANCE COLOUR STOVE SERIAL NUMBER BURNER SERIAL NUMBER GASTYPE INSTRUCTION SALTFIRE CLARITY VISION 2023... - Page 28 Appendix A – TTB fitting INSTRUCTION SALTFIRE CLARITY VISION 2023...
- Page 29 INSTRUCTION SALTFIRE CLARITY VISION 2023...
