Summary of Contents for Feider Machines FCP2IN1

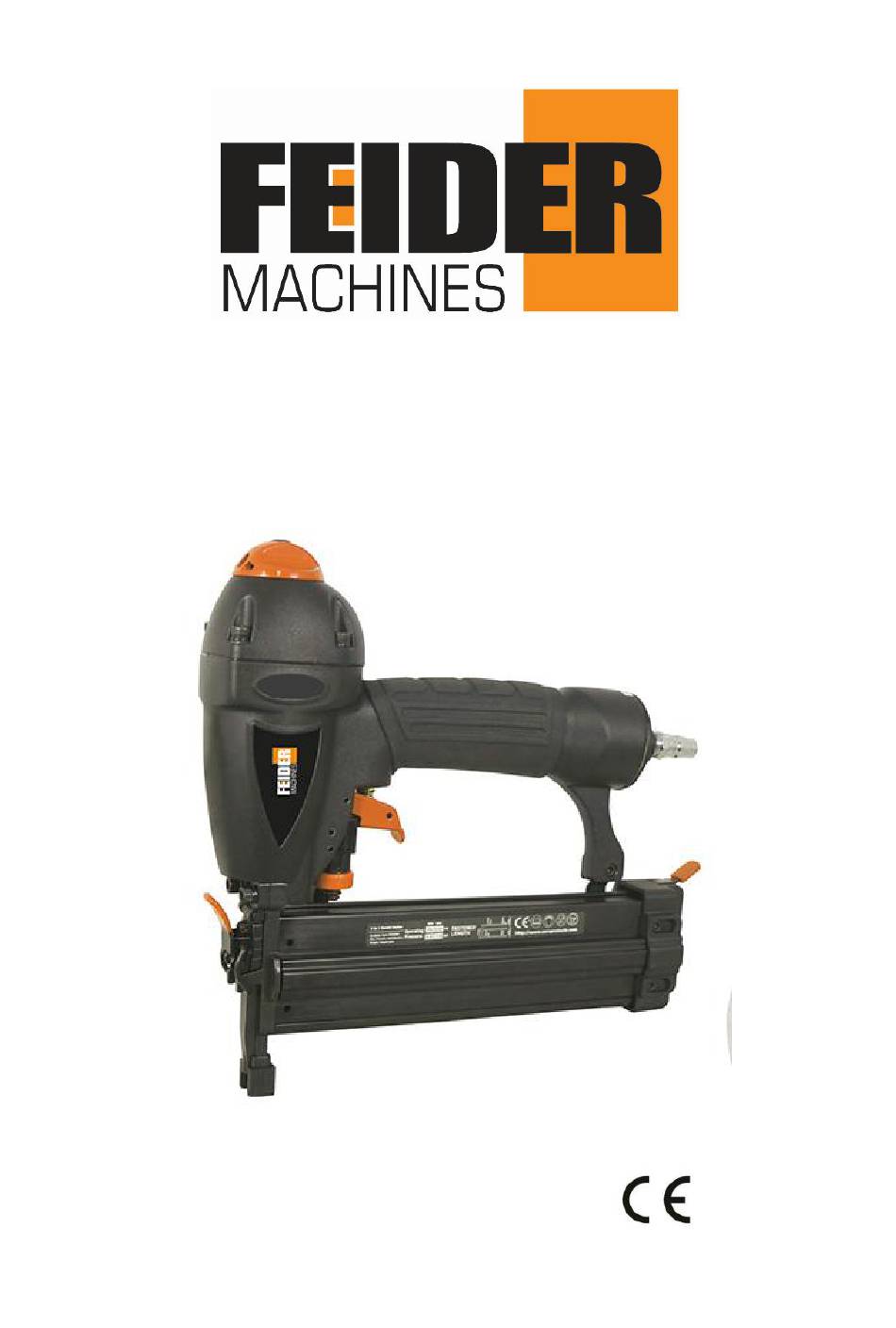

- Page 1 Instruction manual 2-IN-1 Industrial Nailer/Stapler FCP2IN1 WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS TOOL. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
- Page 2 1 Technical data Type of tool ……………………………………………………………….. FCP2IN1 Weight (without fasteners)………………………………………………..1.65kgs Activation mode ……………………………………………………………single sequential actuation Maximum allowable pressure…………………………………………….8.3 bar Recommended allowable pressure range………………………………4.8 to 7.5 bar Noise characteristic values in accordance with EN 12549. :……...87.7 Vibration characteristic values in accordance with…………………….
- Page 3 E-Exhaust Vent F-1/4”Air Quick Coupler 2 Special references 2.1 Instructions Only those fasteners listed in the operating instructions may be used in the fastener driving tools; Only the main energy and the lubricants listed in the operating instructions may be used; fastener driving tools marked with an inverted equilateral triangle standing on one point may only be used with an effective safety yoke;...
- Page 4 Fastener driving tools operated by compressed air should only be operated at the lowest pressure required for the work process at hand, in order to prevent unnecessarily high noise levels, increased wear and resulting failures; Hazards caused by fire and explosion when using oxygen or combustible gases for operating compressed Warning symbols explanation: Warning! ...
- Page 5 2.5 Safety at work Never point any operational fastener driving tool at yourself or at any other person. Hold the fastener driving tool during the work operation in such a way that no injuries can be caused to the head or to the body in the event of possible recoil consequent upon a disruption in the energy supply or hard areas within the workplace (See fig 2）.
- Page 6 NOTE: When compressed air is generated by compressors, the natural moisture in the air condenses and collects as condensed water in pressure vessels and pipelines. This condensate must be removed by water separators. These water separators must be checked on a daily basis and if necessary drained, since corrosion can otherwise develop in the compressed air system and in the fastener driving tool, which serves to accelerate wear.
- Page 7 Empty the magazine to prevent a fastener from being ejected at the next stage of work in the event that internal parts of the fastener driving tool are not in the starting position following maintenance and repair work or transportation. Connect the fastener driving tool to the compressed air supply using suitable pressure hose equipped with quick-action connectors.
- Page 8 5. Maintenance Disconnect the tool from the compressor before adjusting, clearing jams, servicing &maintenance, relocating and during non operation. Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool oil into the air inlet before each work day or after 2 hours of continuous use depending in the characteristic of work piece or type of fasteners.
- Page 9 Tool jams. 1. Incorrect or damaged fasteners. 1. Change and use correct 2. Damaged or worn driver guide. fastener. 3. Magazine or nose screw loose. 2. Check and replace the 4. Magazine is dirty. driver. 3. Tighten the magazine. 4. Clean the magazine. Table 1 7.
- Page 10 Parts list Description Description Description Description Steel Ball (Dw=2.5) Stand Compressed Bolt M4*6 Spring Compression Pin 3x26 Fixed cover Fixed seat Spring Bolt spacer Bolt M5x25 Compressed Spring Compression Compressed Spring Pin Bush Bolt 3*18 Spring Air deflector pusher pipe Lock Pin Fixed lever Bolt (M5x20)
- Page 11 Collar O-ring 1.9x1.1 Ribbon Spring Protective sleeve Cylinder Switch Lever Spring Roller pin 4*11 Bumper O-ring 11.2x1.6 Pin3x20 spring washer 4 Trigger Valve Seat Movable Guide Washer adj.bolt magazine Gun Body O-ring 11.7x2.4 Pusher 9. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
-
Page 12: Declaration Of Conformity
10. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: 2-IN-1 Industrial Nailer/Stapler FCP2IN1 Serial number: 20200618459-20200618508 Is in conformity with the European Directives: Machine Directive 2006/42/EC This product is also in conformity with the following standards:... -
Page 13: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
