SIXFIVE LSAMP250 Instruction Manual

Two-channel dsp amplifier
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

This amplifier is designed to be used with SixFive Audio's Fusion Soundscape pathway lights with integrated speakers. This
amplifier is capable of running up to 8 individual landscape speaker lights as well as a single LSSUB Direct Burial
LSSPKR4B
LSSPKR4
LSSUB
LSTFMR
LSAMP250
TWO-CHANNEL DSP AMPLIFIER
INSTRUCTION MANUAL
Subwoofer for the ultimate immersive outdoor audio system.
Pair With The Following:
4 Fusion Soundscape Landscape Speaker Lights - BLACK
4 Fusion Soundscape Landscape Speaker Lights - BRONZE
Direct Burial Landscape Subwoofer
Transformer for Fusion Soundscape Lighting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSAMP250 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIXFIVE LSAMP250

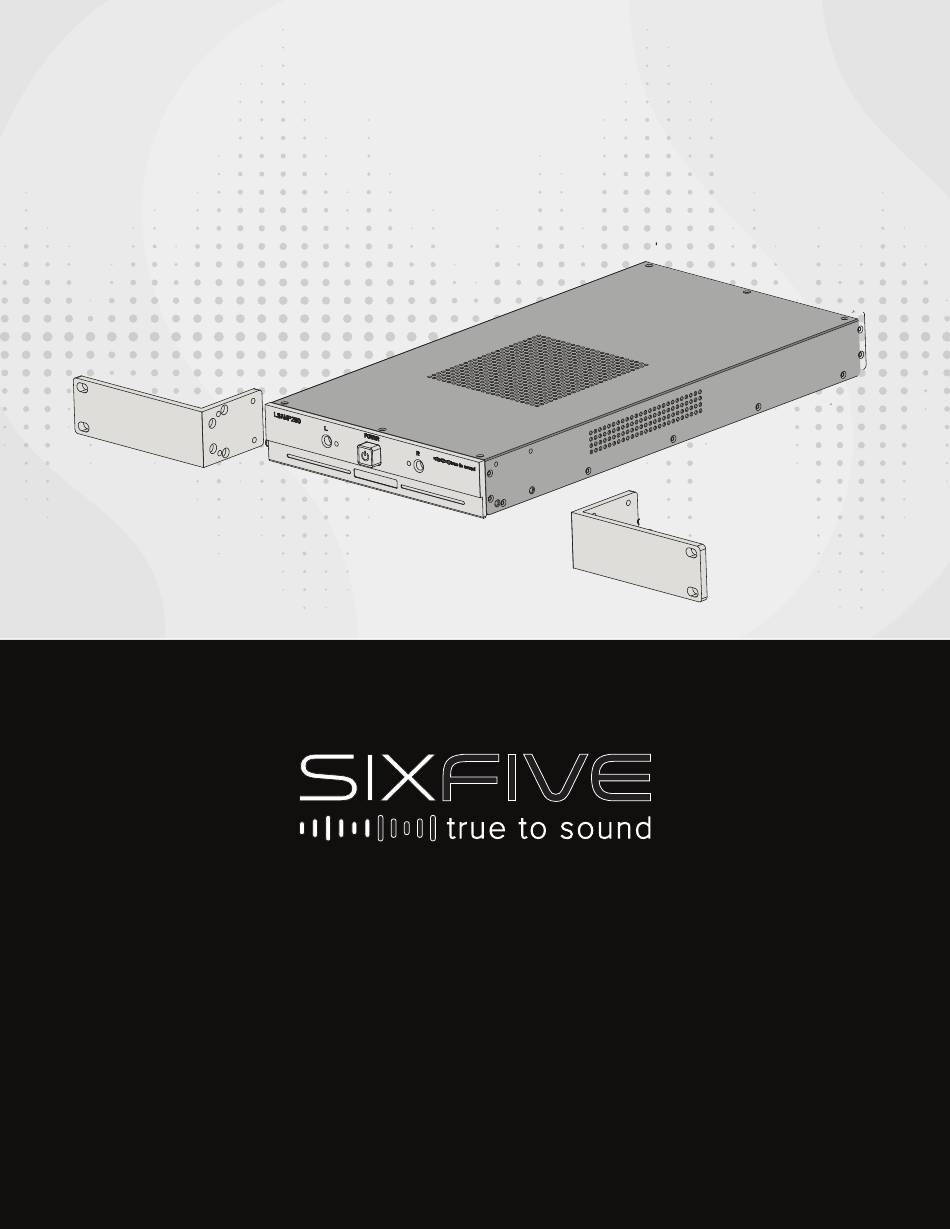

  • Page 1 INSTRUCTION MANUAL This amplifier is designed to be used with SixFive Audio’s Fusion Soundscape pathway lights with integrated speakers. This amplifier is capable of running up to 8 individual landscape speaker lights as well as a single LSSUB Direct Burial Subwoofer for the ultimate immersive outdoor audio system.
  • Page 2 CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTIQUE - NE PAS OUVRIR. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of...

  • Page 3: What's In The Box

    This product features a polarized cord. DO NOT use this environment. product with an extension cord, receptacle or other outlet With its versatility in mind, the LSAMP250 boasts a variety of input unless the blades can be fully inserted to prevent blade exposure.
  • Page 4 Illuminated Power Button EQ Preset Selection AC Fuse Holder Recessed Volume Level Control Power, Active, Protection Indicator led Power Cord Connection L/R Line-In/Coax/Toslink SERVICE For DSP Software Update Speaker Block Connector USB Power Charge Audio Auto On/O Switch VOLUME LEVEL CONTROL POWERING ON / BOOTUP: The volume level control is a recessed volume knob.

  • Page 5: Power Requirements

    POWERING ON The LSAMP250 includes an IEC power connector. This device is only intended to be used with a 14 gauge EIA standard 120 volt grounded power cable. Verify all system connections have been securely made prior to plugging in the amplifier and powering it on.

  • Page 6: Shelf Mounting

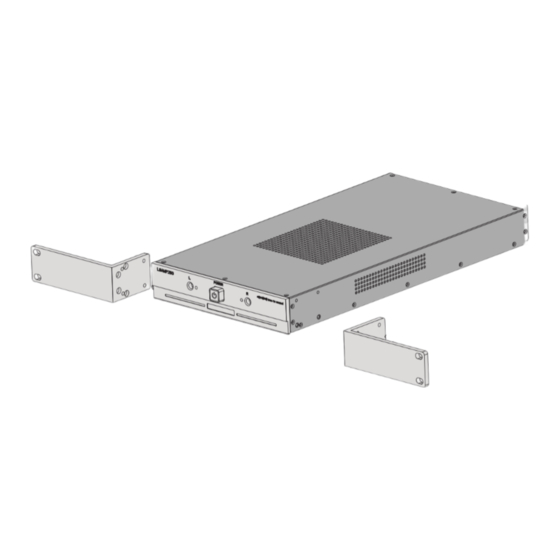

    SOURCE CONNECTIONS AND SELECTION MOUNTING AND STACKING The LSAMP250 features 3 options when connecting audio inputs: SHELF MOUNTING The amplifier includes (4) feet which can be attached into the threaded openings. RACK EAR INSTALLATION: (2) Long rack ears are included with the amplifier to be used in a 1U space.

  • Page 7: Technical Support

    Memphis Audio’s total liability will not exceed the purchase price of the product. If a defect is present, your authorized SixFive Audio dealer may be able to e ect repairs. Proof of purchase is required when requesting service, please retain your sales receipt.

  • Page 8: Specifications

    SPECIFICATIONS MODEL: LSAMP250 Number of Channels 2 (1 stereo pair) Power Output - 8 ohms 60 Watts RMS per channel (both channels driven) Power Output - 4 ohms 125 Watts RMS per channel (both channels driven) Frequency Response 10Hz - 20kHz, bandwidth limited Total Harmonic Distortion 0.08% (1kHz, 8 ohms) 0.08% (1kHz, 4 ohms)
