E16 Assembly Instructions
Please Note:
The E16 is designed for one-time installation.

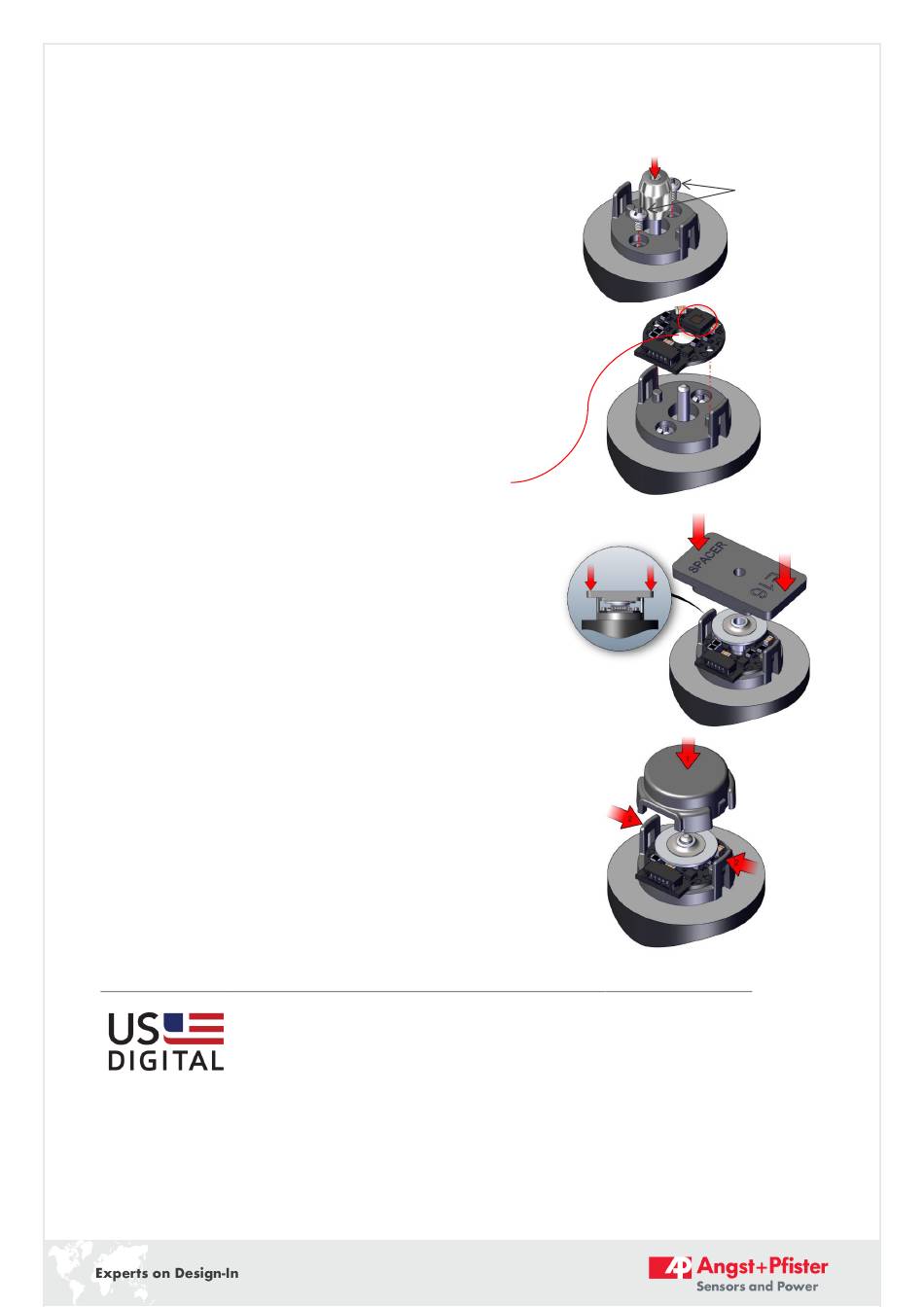

Step 1:
Place the base over the shaft and onto the mounting
surface. Slide the centering tool onto the shaft so that it
contacts and aligns the base. While applying light pressure
to the centering tool, secure the base to the mounting
surface using two screws.
Step 2:
Remove the centering tool. Place the PCB onto the base
surface, aligning the board with the two mounting posts.
Note that the base is symmetrical allowing the connector to
exit out either side. Check to make sure that the PCB is
fully seated against the base.
Caution:
To prevent damage, avoid directly touching the
optical sensor area when handling the PCB.
Step 3:
Place the hubdisk onto the shaft with the longer end of hub
toward the base. Position the spacer tool onto the hub
such that the notches are aligned with the latches of the
base. Press down firmly until the tool bottoms out on the
base latches.
Caution:
While installing the hubdisk ensure that the hub
bore is parallel to the shaft. Forcing the hub onto the shaft
at an angle may cause permanent damage to the hub.
Handle disk with care to prevent scratching the disk.
Step 4:
Remove the spacer tool and snap the cover down onto the
base, (1). With your thumb and finger, squeeze the base
latches together to ensure they are fully engaged with the
cover, (2).
E16-Assembly_1630-21448-0023-E-1120
Mounting
Screws:
1-2 in-lbs torque
USD-6973
v4.0
