AUTOMATIC BEST BATTERY SELECTOR
SENS Part Number:
Document Revision:
DCN Number:
Date:
Installation or service questions?
Call SENS between 8 a.m. and 5 p.m. (Mountain Time),
Monday through Friday, or visit our website.
Copyright © Stored Energy Systems LLC 2024
The SENS name / logo are trademarks of Stored Energy Systems LLC
Installation & Operation Manual
101344
A
108576
9/12/24
BBS-800S
1840 Industrial Circle
Longmont, CO 80501
Phone: 303.678.7500
800.742.2326
Fax:
303.678.7504
Email:
service@sens-usa.com
Web:
www.sens-usa.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Sens BBS-800S
- Page 1 Call SENS between 8 a.m. and 5 p.m. (Mountain Time), Email: service@sens-usa.com Monday through Friday, or visit our website. Web: www.sens-usa.com Copyright © Stored Energy Systems LLC 2024 The SENS name / logo are trademarks of Stored Energy Systems LLC...
-
Page 2: Table Of Contents
SENS BBS-800S Technical Manual TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLER AND OPERATOR ............... 3 SYSTEM DESCRIPTION ............................4 2.1. General ..............................4 2.2. Features ..............................4 INSTALLATION ..............................4 3.1. Wall Mounting ............................4 3.2. DC Cable Connections ..........................5 3.3. -
Page 3: Important Safety Instructions For Installer And Operator
1.1 SAVE THESE INSTRUCTIONS. 1.2 DO NOT EXPOSE THIS PRODUCT TO RAIN OR SNOW. 1.3 Use of an attachment not recommended or sold by SENS may result in a risk of fire, electric shock, or injury to persons. 1.4. ONLY TRAINED AND QUALIFIED PERSONNEL MAY INSTALL AND SERVICE THIS PRODUCT. -
Page 4: System Description

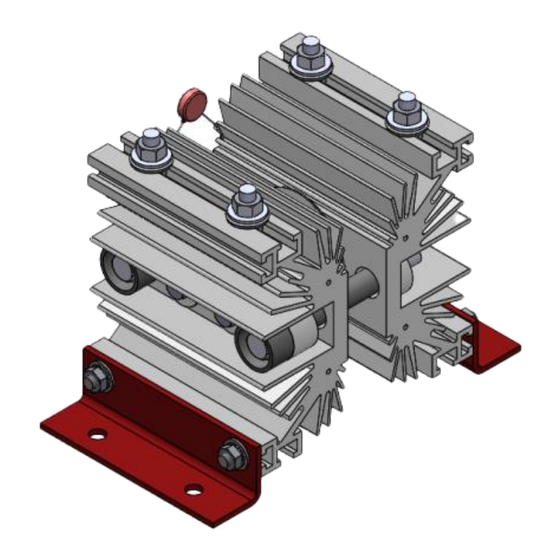

2.1.1. The BBS-800S automatic best battery selector is a diode isolator that connects an independent battery to a starting motor (the load). The isolation system allows current to flow from the battery to the load, but not the reverse. The BBS-800S is typically paired with a second BBS-800S for redundant battery applications. -
Page 5: Dc Cable Connections
SENS BBS-800S Technical Manual 3.2. DC Cable Connections 3.2.1. Make ring lug connections directly to the heatsinks using the 5/16-18 hardware provided. 3.2.2. An oxide inhibitor conductive grease should be applied to the metal surface contact areas of each heatsink and lug. -
Page 6: Operations And Specifications
SENS BBS-800S Technical Manual OPERATIONS AND SPECIFICATIONS 4.1. BBS-800S Operation The BBS-800S operates automatically and without attention from the user. For continued operation within specification, periodically check DC cable connections to ensure that fasteners are tight and all metal is free from corrosion. -
Page 7: Continuous Current Specifications
4.5. Operating Voltage 0 to 120VDC Nominal The BBS-800S is rated for operation in DC systems up to 120VDC nominal, including battery systems that have actual DC system voltages that may be as high as 160 volts under certain operating conditions. The BBS-800S is designed to operate reliably and safely in these types of systems. - Page 8 Copyright © Stored Energy Systems LLC 2024. Installation or service questions? Call SENS at 1-800-742-2326, 8am-5pm Mountain, M-F 101344 Rev A...
- Page 9 Return Material Authorization (RMA) number provided by SENS. If, in SENS’ opinion, the problem can be rectified in the field, SENS may elect to ship replacement parts for customer installation instead of having the product returned to the factory.
