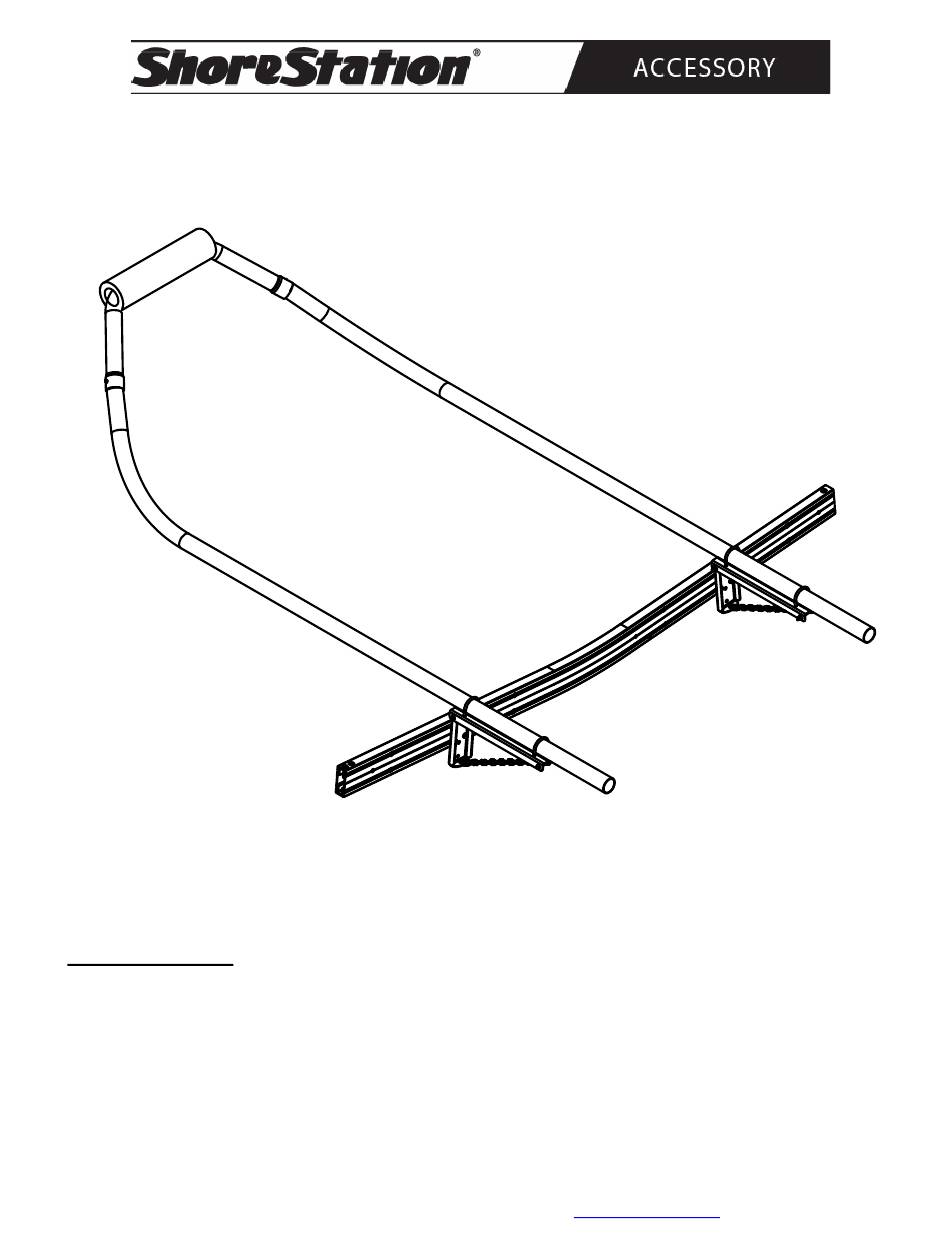

FRONT END BOAT STOP ALUMINUM V-FRAME 3000-6000
Bundles Required
68240
Boat Stop Front Tube Assy.
68241
Boat Stop Side Tube Bundle
70224
Boat Stop Front Hdwe Bundle
Midwest Industries, Inc.
Page 1 of 5
HA0098
Ida Grove, IA 51445
800-859-3028
www.shorestation.com
0004155
Rev A 03/03/2010
Advertisement
Summary of Contents for Midwest Industries ShoreStation HA0098
- Page 1 FRONT END BOAT STOP ALUMINUM V-FRAME 3000-6000 Bundles Required 68240 Boat Stop Front Tube Assy. 68241 Boat Stop Side Tube Bundle 70224 Boat Stop Front Hdwe Bundle Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004155 Page 1 of 5 Rev A 03/03/2010...
- Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004155 Rev A 03/03/2010 Page 2 of 5...
- Page 3 Secure the quick link to the mounting bracket and insert end chain link, secure the arm support channel to the mounting brackets, insert a bolt Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com...
- Page 4 Slide the mounting bracket assemblies approximately 64” apart and center on the platform. Mount the stop arm tube as shown using the hardware included with the kit. Repeat this process on the other side. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com...
- Page 5 Adjust the chain links to ensure that the front tube assembly is just above the bow eye. Make sure all mounting components are in place and center the assembly before tightening the hardware securely. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com...
