Moveis Primavera SM9611EA Assembly Instructions

MANUFACTURER'S TIPS
NECESSARY TOOLS:
ELECTRIC SCREWDRIVER MANUAL SCREWDRIVER
ASSEMBLY TIME:
ASSEMBLY TIPS:
A - SEPARATE AND IDENTIFY THE PARTS AS PER THE ASSEMBLY INSTRUCTIONS.
B - IF THE UNIT IS TO BE ASSEMBLED LYING DOWN, DO SO WITH IT FACING UPWARDS, RESTING ON
THE CARDBOARD. TURN THE UNIT AROUND TO INSTALL THE BACK BOARD.
C -
REMEMBER, IF THE BACK BOARD IS NOT INSTALLED CORRECTLY, THE UNIT WILL NOT ALIGN
PROPERLY.
D -
FOR A BETTER FINISH, DON'T FORGET TO PUT THE LIDS ON THE SCREWS
PRODUCT CARE:
A -
USE A SLIGHTLY DAMPENED CLOTH TO CLEAN THE UNIT.
B -
AVOID LEAVING THE UNIT IN THE SUN, AS THIS WILL WEAR OUT THE PAINTWORK.
C -
DON'T LET THE UNIT COME INTO CONTACT WITH WATER.
ATTENTION: FOLLOW THESE ASSEMBLY INSTRUCTIONS CAREFULLY
HAMMER
90 MINUTES
.
.
Assembly instructions
Manual de montagem

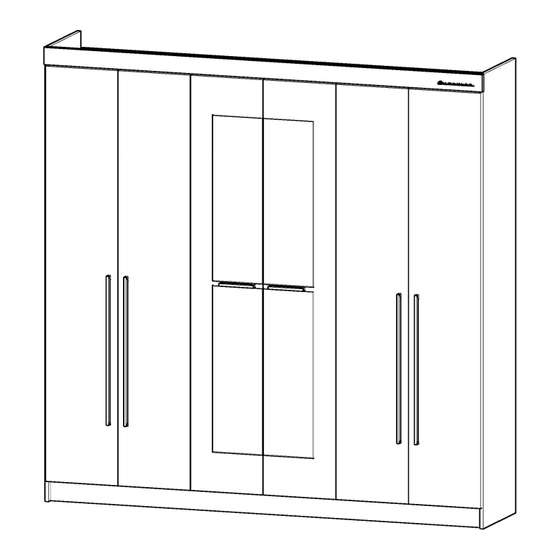

CLOSET SLIM 6PT - SM9611EA - ONIX/TERRACOTA
DIMENSIONS: HEIGHT: 2.20 - WIDTH: 2.20 - DEPTH: 0.47
Part Code Description
18259
01 Left sideboard onix
02 18262 Right sideboard onix
17497 Parting onix
03
Shelf onix
17498
04
Upper/lower support onix
05 17505
Central support onix
17506
06
Front baseboard onix
07 18264
Rear baseboard
08 10244
Front topboard onix
09 18264
Internal pillar onix
18261
10
Internal draw onix
11 17501
Draw side onix
17502
12
Draw back onix
13 17503
Draw bottom stylized white
14 11026
Backboard stylized white
15 18256
Large door terracota
16 38628
Mirror kit with 4 pieces
17 13503
Large door mirror onix
38627
18
Set of fittings
19 18260
ATTENTION: FOLLOW THESE ASSEMBLY INSTRUCTIONS CAREFULLY
Qty. Parts dimensions:
01
2190X450X15 mm
01 2190X450X15 mm
02 1470X450X15 mm
02 713X450X15 mm
2170X450X15 mm
02
01
2170X450X15 mm
01 2170X97X15 mm
01 2170X97X15 mm
02 2200X80X15 mm
02 503X97X15 mm
02
650X170X15 mm
04 365X145X15 mm
02
598X100X15 mm
02 627X370X03 mm
03 2015X730X03 mm
04 2005X360X15 mm
01 800X250X03 mm
02 2005X360X15 mm
