ONDOSENSE reach User Manual

Rs485 version
Hide thumbs Also See for reach:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
OndoSense reach
RS485 version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the reach and is the answer not in the manual?

Questions and answers

Related Manuals for ONDOSENSE reach

Summary of Contents for ONDOSENSE reach

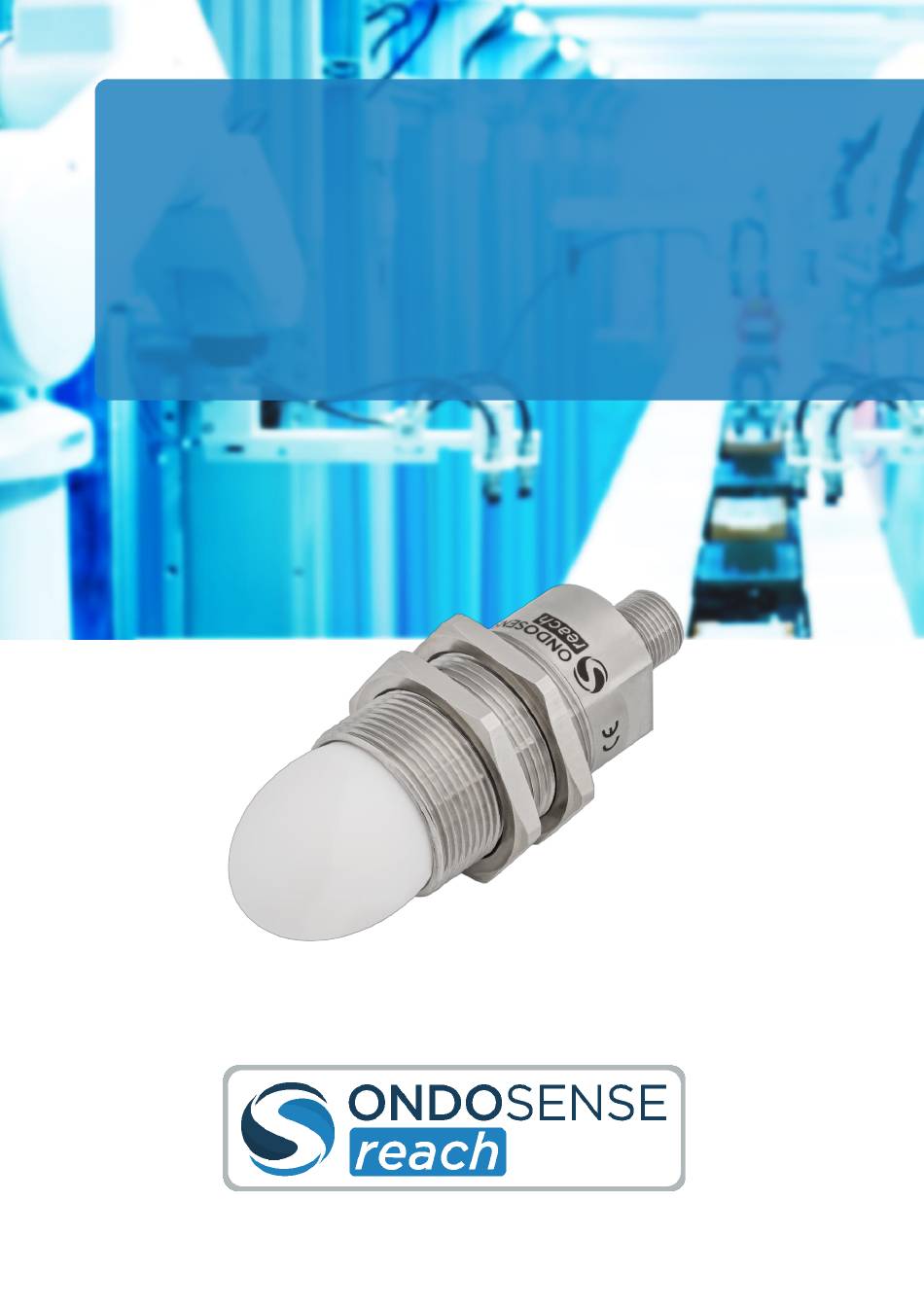

  • Page 1 User Manual OndoSense reach RS485 version...
  • Page 2 4. Improper use The OndoSense reach radar distance sensor is not intended as a safety component in accordance with the EC Machinery Directive (2006/42/EC). It must not be used in hazardous areas without proper explosion protection.

  • Page 3: Table Of Contents

    4.5.2 Threshold ..........4.5.3 Peak Selection - Identifying the measurement target ..... . ondosense.com Document version: 1.1...
  • Page 4 6.2.2 Sensor Firmware Update ........7 Open Source Licenses 8 Declaration of Conformity ondosense.com Document version: 1.1...

  • Page 5: Radar Tutorial

    To get a strong signal, align the radar sensor as far as possible at a right angle to the target object. 2. Smooth surfaces act as mirror: The smoother the surface, the more important the correct alignment of the radar sensor. ondosense.com Document version: 1.1...

  • Page 6: Aperture Angle: Defining The Focus Of The Radar Sensor

    Key messages: 1. Position the sensor closer to the target - if possible: ondosense.com Document version: 1.1...
  • Page 7 Figure 1.3: A smaller aperture angle leads to a smaller measuring spot size. The radar signal is focused on the measuring target (green cube) and not spread on the background (orange area). The measurement is therefore more focused and the signal strength received by the radar sensor and the measurement accuracy will be high. ondosense.com Document version: 1.1...

  • Page 8: Radar Reflectors: Increasing The Measurement Range

    OndoSense radar spot size sensor (depending on the distance from the target object) in just a few clicks. Select your OndoSense radar sensor from the list or enter the opening angle and lens diameter of your radar sensor for distance measurement.
  • Page 9 Figure 1.5: In the upper picture the signal strength is relatively low, without a radar reflector. In the lower image, the signal strengh is significanlty improved by installing a radar reflector on the measurement target - in this case a crane. ondosense.com Document version: 1.1...

  • Page 10: Radar Measurement Properties

    Only a limited amount of the radar signal is reflected, so that the radar sensor detects the distance to the object behind it with high accuracy. Table 1.1 gives an overview of the ability of radar to penetrate different materials. ondosense.com Document version: 1.1...
  • Page 11 Key messages: 1. Radar allows you to measure through non-conductive materials: While water drops and high humidity do not have a big impact the radar signal, continuous water films are more or less impossible to penetrate. ondosense.com Document version: 1.1...

  • Page 12: Radar Resolution

    Pay attention to how many objects your measuring spot covers and which objects are relevant for your distance measurement. If the radar distance sensor cannot detect two or more target objects separately and thus resolve them, then the distance to neither object can be reliably determined. ondosense.com Document version: 1.1...

  • Page 13: Averaging Across The Measuring Spot

    If the surface curve of the measuring object is known, the measured distance can be corrected to detect the exact distance value. This is the case with round objects or surfaces, for example. If necessary, OndoSense provides support in the development of a radar algorithm for correct distance calculation.

  • Page 14: Electrical Connection

    These 4 pins are needed for operating the sensor with RS485 communication. The sensor can be connected with an 8-pin a-coded M12 cable. Additional pins are the 3 switching outputs and the current loop. Figure 2.1: Pin-out of the sensor. ondosense.com Document version: 1.1...

  • Page 15: Setup

    Setup Setup In normal operation, the OndoSense sensor works fully automatically as stand-alone device. The Configuration Box and the configuration software OndoNet described in this chapter, are only required for the initial setup of the sensor settings for the specific application. Once the configuration is completed, the sensor can be discon- nected from the Configuration Box and used as stand-alone device.

  • Page 16: Fixed Ip Address: Adding The Configuration Box To An Existing Network

    For accessing the Configuration Box and starting OndoNet for the first time, connecting to LAN port 1 will be necessary. In case the Configuration Box does not need to be added to an existing network, setting up ondosense.com Document version: 1.1...

  • Page 17: Configuration Of A Fixed Ip Address

    IP address, connect the PC to LAN port 2 of the Configuration Box and enter the configured IP address into the address field of your browser. Please note: For being able to access the Configuration Box via LAN port 2, the Ethernet port of the PC must be config- ondosense.com Document version: 1.1...
  • Page 18 User Manual Setup Figure 3.5: Network configuration pop-up window. Figure 3.6: Confirmation window of the network configuration settings. ondosense.com Document version: 1.1...
  • Page 19 For example if the IP address of the Configuration Box was set to "192.168.10.143" with a subnet mask of "255.255.255.0", the IP address of the PC needs to be set to "192.168.10.xxx" with xxx being a number except for 143. ondosense.com Document version: 1.1...

  • Page 20: Sensor Configuration

    4.1.1 Create robust measurement results in 5 steps OndoSense sensors offer a wide range of settings to ensure robust measurements even in challenging environ- ments. The following 5 steps, will enable you to create robust measurements with only a few clicks (Figure 4.1).

  • Page 21: Tutorial Videos

    Figure 4.1: Overview of the Measurements Details page in OndoNet, highlighting the described 5 configuration steps. 4.1.2 Tutorial Videos On the you will find explanatory videos to help you OndoSense Website (https://ondosense.com/en/sensor-setup) get started with the sensor. ondosense.com Document version: 1.1...

  • Page 22: Navigation Overview

    In the following sections the functions connected to each of the diagrams and the settings panel will be explained in more detail. Figure 4.2: Measurement Details screen in OndoNet. ondosense.com Document version: 1.1...
  • Page 23 Sensor Configuration Figure 4.3: Spectrum diagram, enabling to set signal strength thresholds and the selection of the target of interest. Figure 4.4: Raw Data diagram, enabling to optimize the signal strength by adjusting the amplifier gains. ondosense.com Document version: 1.1...

  • Page 24: Settings Panel

    The background calibration takes a "snapshot" of the signals visible in the spectrum and subtracts these signals for all measurements done after the calibration. Therefore, this setting is only useful for applications in which ondosense.com Document version: 1.1...

  • Page 25: Restart Measurement

    There you can enter a name for the measurement, Record Data specify the recording interval in seconds, choose the data you need to record by clicking at least one of the check ondosense.com Document version: 1.1...

  • Page 26: Manage Recorded Data

    However, due to the nature of integration being dependent on several measurements, this feature is not recommended for fast moving objects. The number in the field defines how many measurements are averages. Set Number of Measurements to Integrate ondosense.com Document version: 1.1...

  • Page 27: Target View

    Details in more detail. The measurement can be paused by clicking on the button. Figure 4.8: Target View chart in OndoNet. ondosense.com Document version: 1.1...

  • Page 28: Spectrum View

    Add Hold button can be used to hide/show all the peaks that are detected in the spectrum. The red Detected Peak(s) one is the one used to calculate the distance, which is displayed in the target view. ondosense.com Document version: 1.1...

  • Page 29: Threshold

    The amplitude is automatically scaled to maximum. You can fix the scaling of the y-axis by clicking on the green button at the top right. The I or Q data can be hidden or unhidden by clicking on the Fix scale IData QData ondosense.com Document version: 1.1...
  • Page 30 User Manual Sensor Configuration Figure 4.10: Raw Data View chart in OndoNet. ondosense.com Document version: 1.1...

  • Page 31: Amplifier Gain Parameters: Automatic Adjustment

    Figure 4.12: Example for extreme signal clipping. Even with signals that are in clipping, the robust OndoSense algorithms can calculate the correct distance. How- ever, the measurement accuracy will be lower. In order to achieve the highest accuracy, it is suggested to try out different parameter values to find the best combination for your application.
  • Page 32 User Manual Sensor Configuration If the signal received by the sensor is too weak for a meaningful measurement, this is indicated by a “weak signal” label above this view. ondosense.com Document version: 1.1...

  • Page 33: Interfaces

    • Delay sets the time in ms for which the signal needs to be registered before switching to active. • Release sets the time in ms for which the signal needs to be registered before switching to inactive. ondosense.com Document version: 1.1...

  • Page 34: Analog Output: Current Interface (4 - 20 Ma)

    You can set the distances in mm at which the current should be 4 mA and 20 mA. The interface will output a current corresponding to the distance of the target. The current will be linear between the two defined distances. Figure 5.2: Configuration of the current interface in OndoNet by setting the distance range to be covered. ondosense.com Document version: 1.1...

  • Page 35: Opc Ua - Via Configuration Box

    "Data access view" in the middle of the screen. The "Distance_xxx" value is given in Meters with the xxx being the last three digits of the sensor serial number for easy identification. ondosense.com Document version: 1.1...
  • Page 36 User Manual Interfaces Figure 5.3: Add a server in UA Expert. Figure 5.4: Setting up the Endpoint URL of the OPC UA server to be read in UA Expert. ondosense.com Document version: 1.1...

  • Page 37: Rs485 - Interface

    Figure 5.6: Selecting the data of interest via drag&drop from the OPC UA node-tree. 5.3 RS485 - Interface With the RS485 Interface a Point-to-Point connection can be established. The API-commands are described in the "‘Application Note"’ document, which includes an example Python script. ondosense.com Document version: 1.1...

  • Page 38: Software & Firmware Update

    OndoNet Update the screen to reach the software update page (Figure 6.1). The current software version of OndoNet is displayed on the bottom left side of the window, with the OndoNet version being 4.4.1 in this example.

  • Page 39: Firmware Update

    file, delete the cache of your browser and try restart the update process. The reason for this error message is a change of the file format of the firmware file in OndoNet version 4.6.0. Figure 6.2: Sensor management screen in OndoNet before the firmware version update. ondosense.com Document version: 1.1...

  • Page 40: Sensor Firmware Update

    Note: During the update process the connection will be lost and the Configuration Box will restart. 3. Reload the page until the screen is displayed again. Sensor Management After the update, the upgraded firmware version of the sensor should be displayed in the "Sensor" section of screen. Sensor Management ondosense.com Document version: 1.1...

  • Page 41: Open Source Licenses

    User Manual Open Source Licenses Open Source Licenses OndoSense is using the following open source projects and licenses: • gRPC: https:/ /github.com/grpc/grpc/blob/master/LICENSE • protobuf: https:/ /github.com/protocolbuffers/protobuf/blob/master/LICENSE • AdminLTE: https:/ /github.com/ColorlibHQ/AdminLTE/blob/master/LICENSE • flot: https:/ /github.com/flot/flot/blob/master/LICENSE.txt • socket.io: https:/ /github.com/socketio/socket.io/blob/master/LICENSE • Winston.js: https:/ /github.com/winstonjs/winston/blob/master/LICENSE •...

  • Page 42: Declaration Of Conformity

    Phone: +49(0)761 4882 4693 Object of declaration: Radar sensor for the precise distance measurement in close range. Product: OndoSense reach RS485 Version Type number: OSREA The compliance with other guidelines and regulations that also apply to the product is declared: •...
  • Page 43 D-79111 Freiburg Phone: +49(0)761 4882 4693 Object of declaration: Configuration box for the radar sensor. Product: OndoSense ConfigBox Type number: OSCBA The compliance with other guidelines and regulations that also apply to the product is declared: • EU EMC directive 2014/35/EU; 26 February 2014 •...
