Summary of Contents for Omicron CPOL3

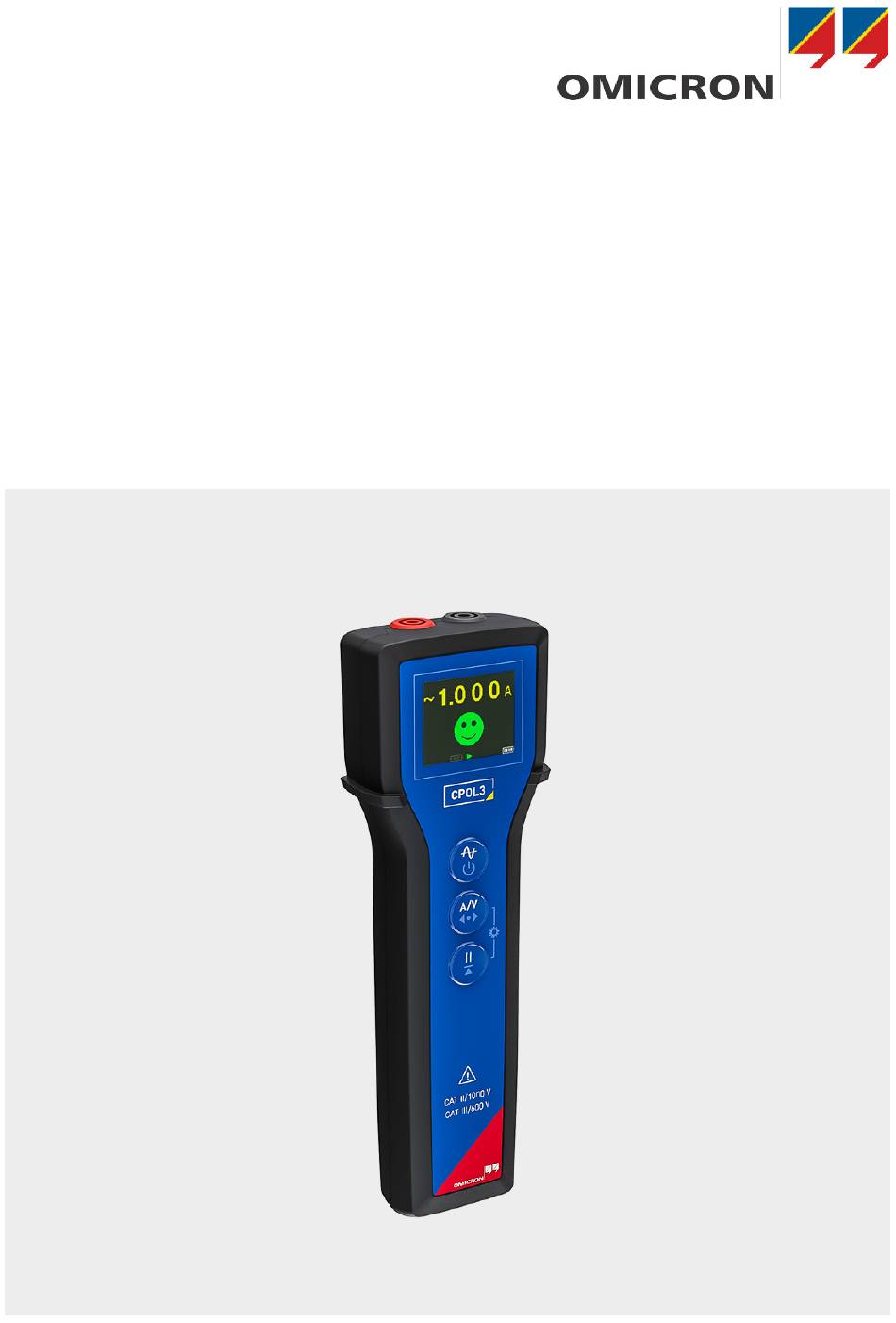

- Page 1 CPOL3 User Manual...
- Page 2 However, OMICRON does not assume responsibility for any inaccuracies which may be present. The user is responsible for every application that makes use of an OMICRON product. OMICRON translates this manual from the source language English into a number of other languages.
-
Page 3: Table Of Contents
Spectrum................26 4.4.4 PowerOff ................27 4.4.5 QRCode ................. 27 4.4.6 Info ..................29 Measuring with the CPOL3 ..............30 4.5.1 Working principle ..............30 4.5.2 Phase identification ..............31 4.5.3 Performing a measurement ........... 33 Maintenance and calibration ................35... - Page 4 Oscilloscope test mode ............39 6.3.4 Spectrum test mode ............... 40 Energy supply ..................41 6.4.1 General .................. 41 6.4.2 Batteries ................. 41 Mechanical data ..................42 Environmental conditions ................ 42 Standards....................43 Open-source license information ..............44 Support......................45 OMICRON...
-
Page 5: Introduction
The following symbols indicate safety instructions for avoiding hazards. WARNING Death or severe injury may occur if the appropriate safety instructions are not observed. CAUTION Minor or moderate injury may occur if the appropriate safety instructions are not observed. NOTICE Equipment damage or loss of data possible CPOL3... -
Page 6: Compliance Statements
Compliance statements In the following statement, the device is designated as "product", "equipment", or "apparatus". The OMICRON contact address can be found on the last page (back page) of this document. Declaration of conformity (EU) The equipment adheres to the guidelines of the council of the European... -
Page 7: Related Documents
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If this equipment does cause harmful interference to radio or television reception, contact OMICRON Support. Declaration of compliance (Canada) This Class A digital apparatus complies with Canadian ICES-003. -
Page 8: Recycling
User Manual Scan the QR code below for a digital version of the CPOL3 User Manual: Recycling This device (including all accessories) is not intended for household use. At the end of its service life, do not dispose of the device with household waste. -
Page 9: Separate Disposal Of Components
3. Remove the screws with a TX screwdriver to open the case of the device. 4. Remove the screws on the top and bottom circuit boards. 5. Dispose of the circuit boards and the display as electronic waste. 6. Dispose of the top and bottom parts of the plastic case as plastic waste. CPOL3... -
Page 10: Safety
Voltage detectors – Part 3: Two-pole low-voltage type". Therefore, the CPOL3 must not be used to check if voltage is present. The CPOL3 is designed to check a series of test points for correct polarity and for wiring errors. The checks can be performed on current and voltage transformers as well as on the connected cables and terminals. -
Page 11: Operator Qualifications
Safety instructions u Stay focused on your tasks to ensure safety. u If the device or any accessory is damaged or does not seem to function properly, do not use it. If in doubt, contact OMICRON Support (page 45). u Only use original cables provided by OMICRON. -
Page 12: Work Environment
(page 45) for maintenance and repair. 2.4.4 Product-specific instructions u Do not use the CPOL3 to check if voltage is present. The CPOL3 is no voltage detector as defined in "EN 61243-3 Live working – Voltage detectors – Part 3: Two-pole low-voltage type". - Page 13 CPOL3 only within the temperature range of the batteries in use. u Do not use the CPOL3 if it is damaged. Before use, inspect the case. Look for cracks or missing plastic. Pay particular attention to the insulation surrounding the connectors.
-
Page 14: Description
User Manual Description Device overview 1 Connectors for test probes 6 Hold button 2 Display 7 Lanyard slot 3 Finger guard 8 Removable magnet 4 Mode button 9 Battery compartment 5 Select button OMICRON... -
Page 15: Display
A: measured current in amperes Polarity indicator Polarity is OK. If the CPOL3 detects a polarity check signal with the same polarity as the source signal, it shows a happy green face. Polarity is not OK (inverted polarity). If the CPOL3 detects a polarity check signal that has an inverted polarity compared to the source signal, it shows a sad red face. - Page 16 If the test set in use supports generating a polarity check signal with embedded phase ID information, the CPOL3 will try to decode the phase ID and display a number of red or green dots, corresponding to the phase number.
-
Page 17: Back Panel Elements
The CPOL3 uses 2 AA batteries. We recommend to use rechargeable AA batteries to reduce the amount of electronic waste. u Remove the batteries if the CPOL3 is not going to be used for an extended period of time. See section Replacing the batteries (page 35). -
Page 18: Test Probes
User Manual Test probes To take measurements with the CPOL3, use the following test probes that are included in the delivery: 1 × red Direct connection (CAT II only) 1 × red, retractable Connection via test lead 1 × black, retractable... -
Page 19: Operation
Mode button When the CPOL3 is switched off: u Press to switch on the CPOL3 for a single measurement. u Press and hold for a few seconds to switch on the CPOL3 for an extended period. See section Settings menu (page 26) for the Power Off... -
Page 20: Measuring Settings
Press the Select button to cycle through the measuring settings. Example: Test set Basically, the CPOL3 always measures the voltage on the terminal (1). To measure currents, you need to use a current-clamp (2) together with the CPOL3. Then, a configurable conversion factor is applied so that the CPOL3 displays the result directly as current value in amperes. - Page 21 Input impedance The CPOL3 has 2 input impedance modes: HiZ (high input impedance) and LoZ (low input impedance). In the LoZ mode, the input impedance is ~3 kΩ instead of 1.8 MΩ in the regular HiZ mode.
-
Page 22: Test Modes
Polarity detection If the CPOL3 detects a CPOL polarity check signal, it shows a green happy or red sad face to indicate the correct or wrong polarity. If the phase ID information of the CPOL polarity check signal is detected, it is displayed next to the face as a number of dots. -
Page 23: Oscilloscope
Operation 4.3.2 Oscilloscope In the Oscilloscope test mode, the CPOL3 displays the waveform of the measured signal. You can use it to check the signal waveform if no polarity signal can be detected in the Meter test mode. RMS value Shows the RMS value of the measured signal (True RMS, including DC component). -
Page 24: Spectrum
User Manual 4.3.3 Spectrum In the Spectrum test mode, the CPOL3 displays the spectrum of the measured signal. This can be useful, for example, to check if the 52.6 Hz test signal is distorted by coupled 50 Hz or 60 Hz mains components. - Page 25 DC component is shown. u Press the Hold button to freeze the display. u Press and hold the Hold button for a few seconds to enable Peak hold. The peak values are shown in a darker yellow color behind the live measurement. CPOL3...
-
Page 26: Settings Menu
Press the Select button to change a setting. u Press the Mode button to leave the settings menu. If you change a setting, it is automatically saved and you do not need to reconfigure it after each activation of the CPOL3. 4.4.1 Ratio You can select the conversion factor that is applied when measuring currents. -
Page 27: Poweroff
5 minutes 4.4.5 QRCode The CPOL3 allows you to export measurement data via a QR code. You can use this function to create an interface to your own or third-party documentation systems. In the Settings menu, you can enable and configure the QR code. It is displayed in the Hold mode when you press the Hold button for a few seconds. - Page 28 Shows the detected CPOL polarity: –3 Correct polarity Wrong polarity – No CPOL signal found CPOL signal found CPOL signal + phase ID 1 CPOL signal + phase ID 2 CPOL signal + phase ID 3 CPOL signal + phase ID 4 OMICRON...
-
Page 29: Info
This format also includes an ASCII string. If required for documentation purposes, you can use it to reconstruct the displayed measurement results in the Oscilloscope or Spectrum test modes. 4.4.6 Info Shows information on the software version of the CPOL3. CPOL3... -
Page 30: Measuring With The Cpol3
(A, solid line) or the secondary side (B, dashed line) of the CT, depending on the test set in use. If the CPOL3 detects a steep rising slope followed by a slowly falling slope, it indicates a correct polarity with a happy green face (1). If the polarity is reversed, for example, due to a wiring error, the slope rises slowly and is followed by a fast falling slope. -
Page 31: Phase Identification
CPOL3 can decode the phase ID. It displays the phase number as a number of dots next to the green or red face showing the polarity (4). If the CPOL3 cannot decode the phase ID information, it only shows the green or red face for positive or negative polarity. - Page 32 In this case, we recommend using 0° between the phases for the injection. Then, the currents on the common return wire will sum up ,and you can measure them. The CPOL3 will display a polarity check signal with the correct polarity but without phase ID on the common return wire.
-
Page 33: Performing A Measurement
If there are 2 devices or a device and an accessory with different measurement categories or voltages, the lowest category applies. u Only use the CPOL3 to measure voltages up to 300 V for CAT IV, 600 V for CAT III, and 1000 V for CAT II. WARNING Death or severe injury due to electrical shock possible Dangerous voltages can occur due to a wiring error inside the cabinet. - Page 34 Measuring settings (page 20)). 6. WARNING! Electrical shock. Do not touch the test probe or the top part of the CPOL3 during measurement. Hold the CPOL3 below the finger guard. Start measuring with the CPOL3. Unexpected measurement result If the measurement result does not match the expected result or if it...
-
Page 35: Maintenance And Calibration
Make sure the battery compartment is closed and latched before operating the CPOL3. u Never operate the CPOL3 with an open battery compartment. u Before replacing the batteries, always disconnect the CPOL3 from the measurement setup. NOTICE Equipment damage possible u Do not mix old and new batteries. -
Page 36: Calibration
4. Insert the cover. 5. Use a cross-head screwdriver to lock the cover with the screw. Remove the batteries if the CPOL3 is not going to be used for an extended period of time. Calibration The CPOL3 is calibrated at the factory during production. -
Page 37: Technical Data
The listed data are guaranteed for an ambient temperature of 23 °C ± 5 °C (73 °F ± 9 °F). Measurement categories Depending on the accessories in use, the CPOL3 is designed to comply with the IEC 61010-031 standard for the measurement categories CAT II (1000 V), I II CAT III (600 V) and CAT IV (300 V). -
Page 38: Accuracy Specifications
Specifications of functions 6.3.1 Measuring settings Setting Input impedance Voltage, standard mode (HiZ) 1.8 MΩ Voltage, LoZ mode 2.7 kΩ Current, HiZ mode 1.8 MΩ Calculated from voltage by using a configurable conversion factor. Function is intended for use with a current clamp. OMICRON... -
Page 39: Meter Test Mode
±4 divisions Auto-scaling (1 mV/div … 500 V/div) Time per division Waveform display: 1 ms, 2 ms, 5 ms, 10 ms Rolling RMS: 100 ms, 1 s Trigger Automatic (rising edge) Coupling AC or DC (digital only, selectable in the Settings menu) The Hold mode is available. CPOL3... -
Page 40: Spectrum Test Mode
5 Hz per division (0 … 78.5 Hz range) Frequency accuracy Typically < ±0.01 % of reading Coupling AC or DC (digital only, selectable in the Settings menu) Peak frequency Peak-based frequency detection between 10 Hz and maximum range The Hold and Peak hold modes are available. OMICRON... -
Page 41: Energy Supply
2 × 1.5 V Mignon AA Battery types LR6 Alkaline-Manganese, 1.5 V FR6 LiFeS2, 1.5 V R6 Zinc-Carbon, 1.5 V HR6 NiMH rechargeable, 1.2 V We recommend using rechargeable HR6 (NiMH) batteries for environmental reasons or FR6 (LiFeS2) batteries if a long operation time is required. CPOL3... -
Page 42: Mechanical Data
Humidity 5 % ... 95 % relative humidity (no condensation) Depends on the specifications of the battery type in use. High storage temperatures reduce the battery lifetime. Depends on the measurement category. The values listed in this table apply to measurement category CAT II. OMICRON... -
Page 43: Standards
Technical data Standards Electromagnetic compatibility (EMC), Safety IEC/EN 61326-1 (industrial electromagnetic environment) 47 CFR Part 15 Subpart B (Class A) of FCC Safety IEC/EN/UL 61010-31 CAN/CSA-C22.2 No. 61010-031 Other standards Shock IEC/EN 60068-2-27 Vibration IEC/EN 60068-2-6 Humidity IEC/EN 60068-2-78 CPOL3... -
Page 44: Open-Source License Information
User Manual Open-source license information Parts of the CPOL3 software are under OMICRON license, other parts under open-source software licenses. The CPOL3 software contains the following open-source components: Open-source component License type Adafruit GFX ARM CMSIS Library Apache2 STM32 HAL... -
Page 45: Support
At our support hotline, you can reach well-educated technicians for all of your questions. Make use of our 24/7 hotlines: Americas: +1 713 830-4660 or +1 800-OMICRON Asia-Pacific: +852 3767 5500 Europe / Middle East / Africa: +43 59495 4444 Additionally, you can find the service center or sales partner closest to you at omicronenergy.com. - Page 46 UK importer: OMICRON electronics UK Limited Staples Close Redhill Business Park Stafford ST16 1WQ United Kingdom Manufacturer: OMICRON electronics GmbH Oberes Ried 1 6833 Klaus Austria ENU 1269 05 02...
