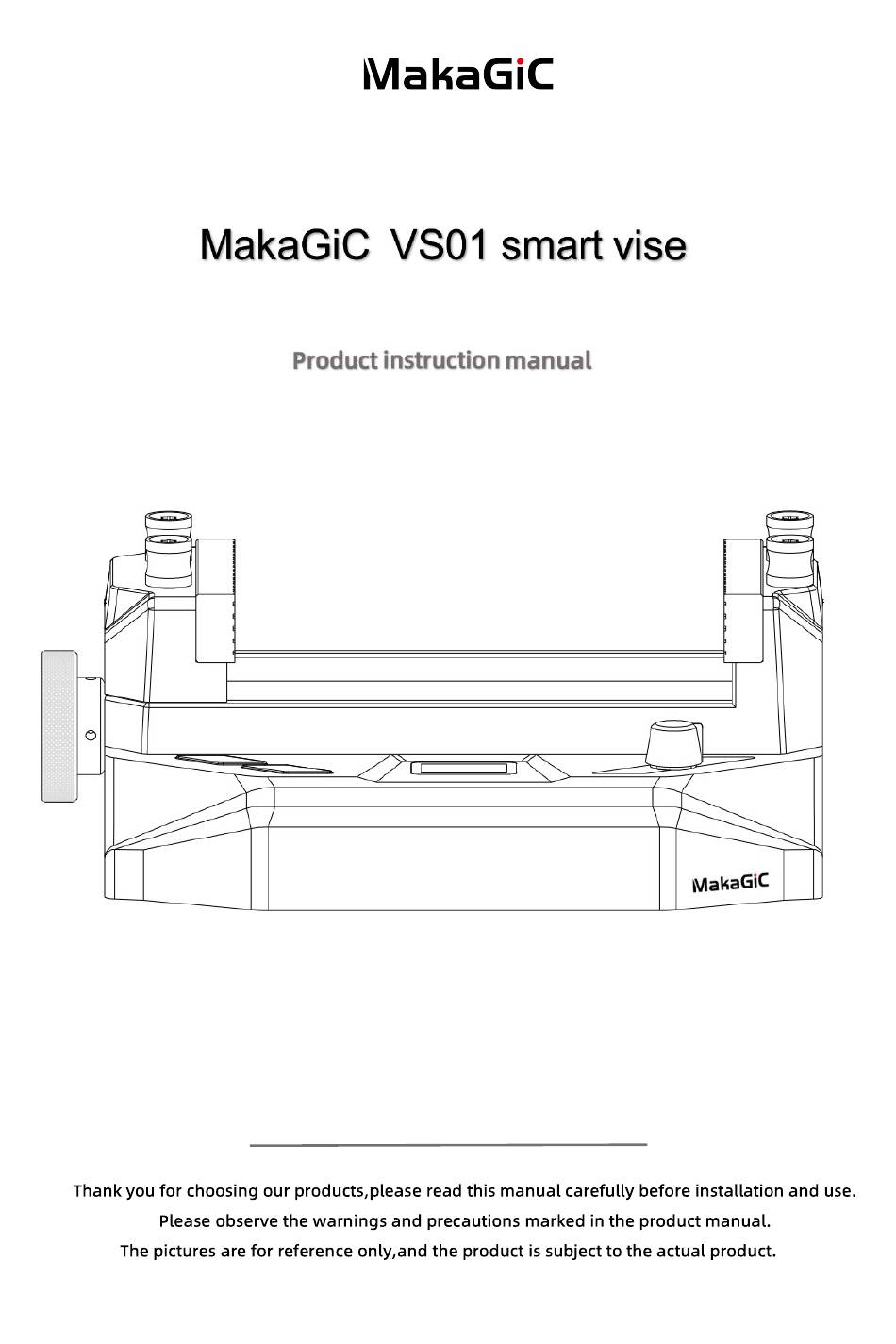

Summary of Contents for MakaGIC VS01
-
Page 3: Table Of Contents
Directory 1.Product introduction ......1 2.Safety instructions ....... 2 3.Packing checklist ......... 4 4.Basic parameters ........5 5.Name of main parts ........ 6 6.Instructions for use ......7 7.Repair and maintenance ......8 8.Scrap disposal ........10 9.Warranty description ......10... -
Page 4: Product Introduction
DIY.More other clamping scenarios can be expanded with DIY and accessories. MakaGiC VS01 wants to be with you every moment and looks forward to being an indispensable assistant in your creative work. -
Page 5: Safety Instructions
2.Safety instructions In order to ensure the safety of use and avoid injury and property damage to you or others, please be sure to observe the following safety precautions. Failure to observe the safety warnings and incorrect use may result in accidents and serious injury to eyes,hands and limbs. This product is not intended for the following users: unattended young children, disabled persons, etc. - Page 6 Do not place the product in a humid location or in a dusty, high-temperature environment, as this may affect the performance of the product. Otherwise,it will affect the performance of the product.The product should be operated under the environment of 10~45℃and humidity between 20%~60%,if it is out of this range,it may affect the product life.If it is out of this range,it may affect the life of the product.
-
Page 7: Packing Checklist
3.Packing checklist Smart electric vise ×1 Clamp column ×4 Clamping Jaw×2 Bolt ×4 Type-C data cable ×1 User Guide ×1... -
Page 8: Basic Parameters
4.Basic parameters Product name MakaGiC smart vise Product model VS-01 Charging voltage DC5V Battery info 4400mAh Clamping distance 0-125mm Clamping force 65kg·m/s Body frame material Aluminum alloy body Jaw size 3 inch Control mode Electric or manual Product size 202*137*77mm... -
Page 9: Name Of Main Parts
5.Name of main parts Bolt Clamp column Control button Button Display screen Hand wheel Charging port Switch Expansion interface decorative board... -
Page 10: Instructions For Use
We included a bunch of 3 inch steel clamps with the package,if you want to replace the customized clamps or your clamps are damaged, you can unscrew the four M6 bolts that hold the clamps in place and replace the customized clamps,you can visit our website www.makagic.com to get... -
Page 11: Repair And Maintenance
6.7 Installation of expandable accessories We have designed expandable accessories for the VS01,so you can purchase the accessory separately if you need it. Before installing the accessories, you need to lift up the orange decorative block on the rear of the unite to remove it and expose the contacts and mounting slots,then assemble the accessories onto the slots in the same direction.Then assemble the accessories to the slot... - Page 12 Do not let the battery run out of charge for more than a month, this will create a risk of total release and reduce the maximum efficiency of the battery. If you have any questions related to this product, please find customer service at www.makagic.com or contact the manufacturer.
-
Page 13: Scrap Disposal
8.Scrap disposal Do not throw power tools in the household garbage! End-of-life machinery, parts and packaging should be disposed of by recycling centres responsible for environmental protection. Please comply with your local national regulations in force. Please take your unused or malfunctioning battery pack to the local designated public waste management center to jointly build a green environment. - Page 14 9.2 Warranty contents type Warranty contents Warranty period mainframe Mainframe and Composition One year fittings Expandable Accessories Half a year 9.3 No warranty ordinance Failure and damage caused by failure to operate the machine in accordance with the requirements of the manual. Damage caused by improper use,storage and maintenance by ...
- Page 15 Product warranty Frequently used Serial number phones User name Mailing address Product model Product number Purchase shop Time of purchase Place of repair Invoice number Maintenance records Repair date Fault description Processing details Name of the repair unit Signature of the Maintenance personnel maintenance telephone...
- Page 16 Web：www.makagic.com E-mail：support@makagic.com Describtion version number：V1.0...
