- Page 1 CYC X6 CONTROLLER EXTENSION WIRE & MOUNT INSTALLATION GUIDE support@cycmotor.com +852 3690 8938 © 2022 CYCMOTOR LTD...

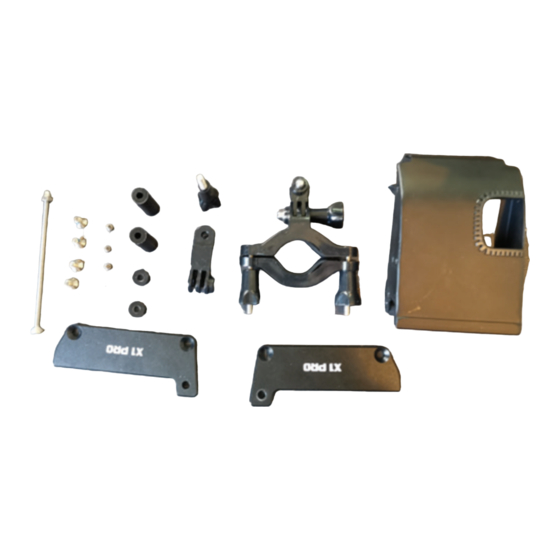

- Page 2 Requirements To install the extension wire & mount, you will need the following components: • 4x M5X10 Bolts • 4x M3X6 Bolts Please note that the sptes and images used in the below guide are for reference only. We strongly encourage you to email technical_support@cycmotor.com if you are uncertain about any of the steps described below.
- Page 3 Installation Guide STEP 1: INSTALL THE CONTROLLER MOUNT Place the controller into the mount & tighten the four bolts on the controller mount. STEP 2: ASSEMBLE THE EXTENSION PIECE Install the clamp onto the extension piece & tighten the bolt accordingly. Put the two spacers into the two gaps of the extension piece’s top respectively.
- Page 4 Installation Guide Insert the long screw to have it go through the right plate rst and one-piece cyclinder, then carefully when inserting through the extension piece. Afterwards, complete the insertion through the left plate and tighten the screw. STEP 2: INSTALL BOTH THE MOUNT & EXTENSION PIECE Lastly, combine the mount &...
