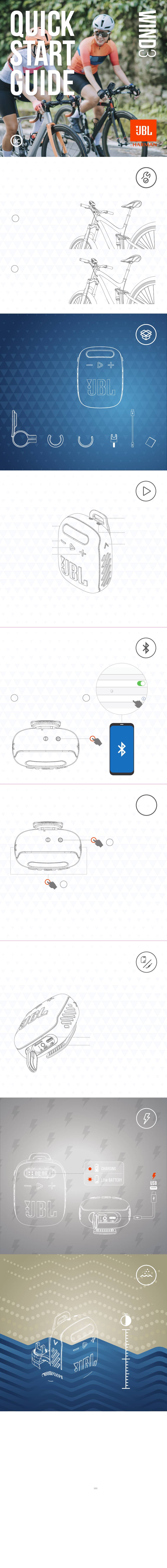

Harman JBLWIND3AM Quick Start Manual
Harman JBLWIND3AM Quick Start Manual

Harman JBLWIND3AM Quick Start Manual

Bicycle mount

Advertisement

Quick Links

Bicycle
Mount
1
Install the included
mounting bracket onto
bicycle handlebars.
2
Dock/undock the
speaker into the
mounting bracket
effortlessly
WHAT'S
IN THE
BOX
X1
bracket
BUTTONS
Tune Down (FM) /
Previous Track
(BT/TF)
Volume Down
Play/Pause*
Volume Up
*long press to switch EQ between 'Sport' and 'Bass' mode
Answer/ Ignore incoming call: Short press/ Long press
End on-going call: Short press
Bluetooth
pairing
1
FM RADIO
TF / AUX-IN
chargING
WATERPROOF
DUSTPROOF
IP67
TECH SPEC
Transducer:
Output power:
Frequency response:
Signal-to-noise ratio:
Battery capacity:
Battery charge time:
Music play time:
Bluetooth® version:
Bluetooth® profile:
Bluetooth® transmitter frequency range:
Bluetooth® transmitter power:
Bluetooth® transmitter modulation:
FM Tuning range:
Dimensions (W x H x D):
Weight:
Maximum operation temperature:
X1
non-slip pads(big)
non-slip pads(small)
2
TUNE DOWN / TUNE UP:
Press 1x to tune down/up by step manually
Press 2x to tune to the previous/next
preset station
AUTO SCAN:
Long Press to Enter/ Exit Auto Scan
Auto Scan will automatically search for all
available stations and save to Presets
WIND3
X1
plastic screw
Settings
Bluetooth
DEVICES
2
JBL Wind 3
Now Discoverable
Insert TF card to play music
Plug in Aux cable to play music
43 mm x 47 mm / 1.5"
5 W RMS
110 Hz - 20 kHz
> 85 dB
1050 mAh
2.5 hours (5 V 1 A)
up to 5 hours (dependent on volume level and audio content)
5.0
A2DP 1.3, AVRCP 1.6, HFP 1.7
2400 MHz - 2483.5 MHz
<5 dBm (EIRP)
GFSK, π/4 QPSK, 8DPSK
87.5 MHz - 108 MHz (varies by countries)
90 mm x 73.2 mm x 35.8 mm
0.230 kg
45 °C
X1
X1
USB cable
Power On / Off
Press ≥1s
Source Switch
Tune Up (FM) /
Next Track
(BT/TF)
Bluetooth
Connected
ON
1
Source Switch to FM
mode
30 mins
1m
X1
QSG
FM
IP67
