Summary of Contents for Quattro FN01040008

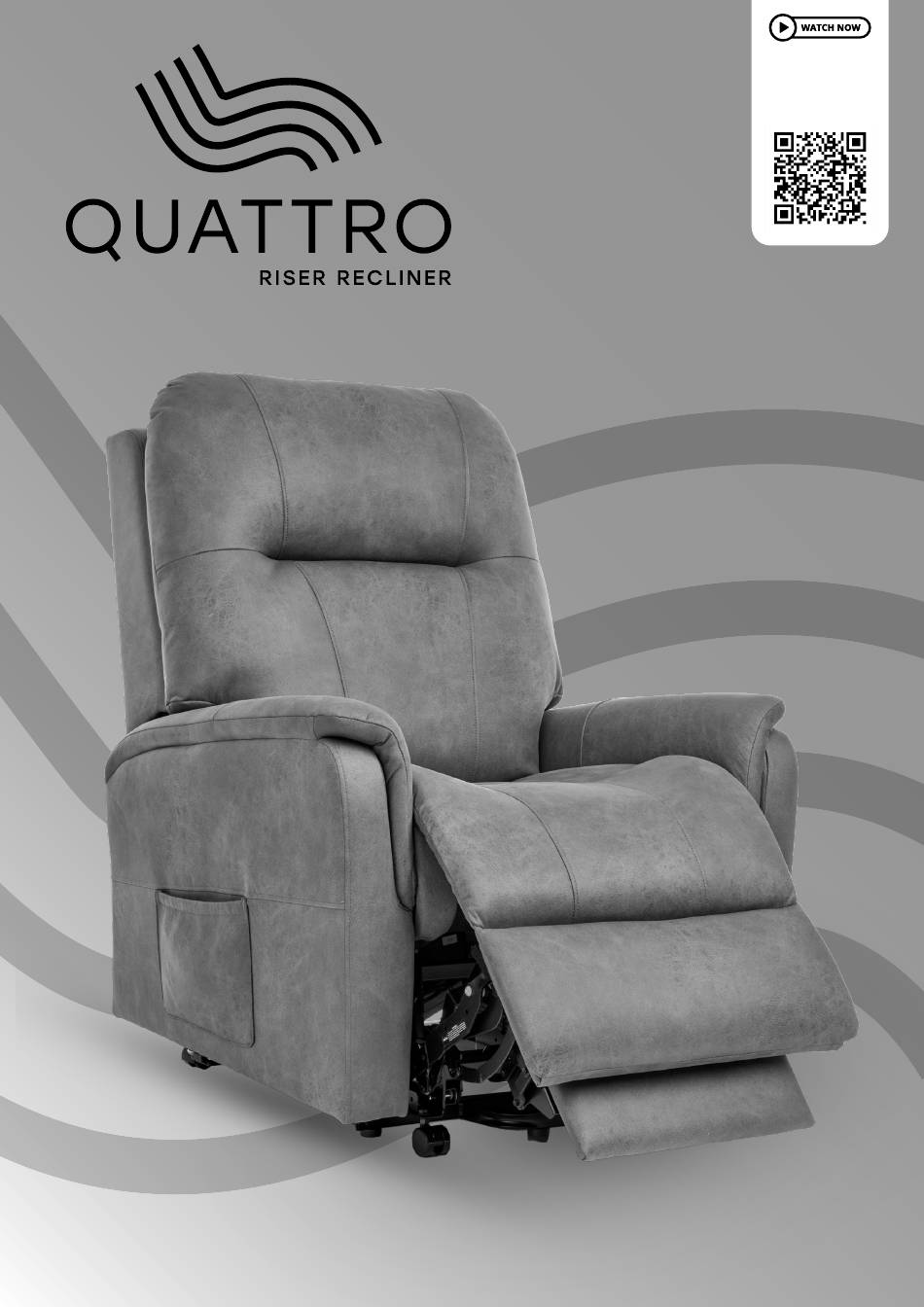

- Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL FN01040008 PRODUCT CODE:...

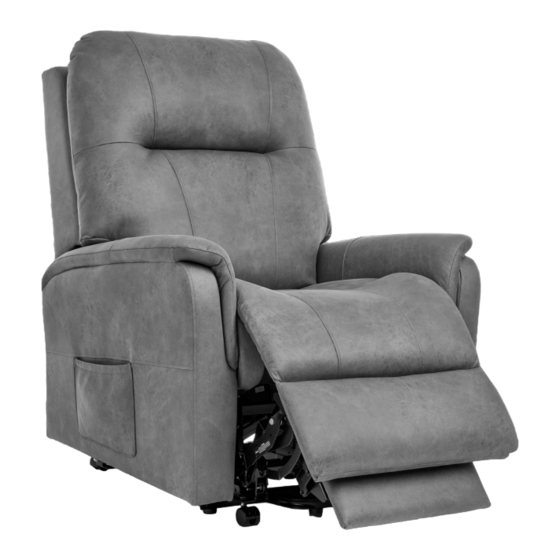

- Page 2 PRODUCT CODE INTRODUCING YOUR QUATTRO DELUXE RISER RECLINER The Quattro Deluxe Riser Recliner has been expertly crafted to provide you with optimum support and customizable positions to suit your individual needs. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice.
- Page 3 This user manual contains all of the necessary information you need to safely operate and care for your Quattro Deluxe Riser Recliner, ensuring you’ll be able to enjoy all of its features for years to come. Before attempting to operate your riser recliner, complete the following: •...
-
Page 4: Table Of Contents
FN01040008 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR QUATTRO DELUXE RISER RECLINER HOW TO USE YOUR RISER RECLINER USER INSTRUCTIONS BODY POSITIONING RISE & RECLINER HANDSET CONTROLS TRANSFORMER INSTALLING THE BACK-UP BATTERY OPTIONAL EXTRAS DISASSEMBLY & TRANSPORTATION... - Page 5 MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED ENVIRONMENT MODIFICATIONS PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...
-
Page 6: Getting Started
FN01040008 PRODUCT CODE GETTING STARTED CARTON CONTENTS Contact CareCo immediately if ITEM NUMBER DESCRIPTION QUANTITY any of the listed contents are Seat base missing. Backrest We strongly recommend that Lhs backrest wing you keep the box and internal Rhs backrest wing... -
Page 7: Setting Up Your Quattro Deluxe Riser Recliner
SETTING UP YOUR QUATTRO DELUXE RISER RECLINER 1. Remove all riser recliner components 2. Tilt the base of the chair forwards, then from the outer packaging and place them insert the locking castors into the rear of onto a level surface. - Page 8 FN01040008 PRODUCT CODE 5. Lower the backrest onto the seat base 6. Insert the backrest wings into the back- prongs, then firmly push downwards. rest’s side fixtures. An audible “click” will confirm the backrest is secure. 7. Lift the backrest flap to reveal the chairs 8.
- Page 9 9. Connect the power cable to the 10. Connect the mains plug to a nearby wall transformer and mains plug. socket and switch [ON]. SUGGESTION Contimue reading this user manual before operating the chair for the first time.
-
Page 10: How To Use Your Riser Recliner
FN01040008 PRODUCT CODE HOW TO USE YOUR RISER RECLINER USER INSTRUCTIONS Position the chair on a level surface with enough space to rise & recline. If required, ask for assistance from an attendant when positioning the chair to avoid personal injury and product... -
Page 11: Body Positioning
BODY POSITIONING SITTING Sit centrally within the chair and maintain a neutral posture. Avoid leaning forwards and sideways. LAYING Lay on your back, centrally within the chair. Do not lay on your side. - Page 12 FN01040008 PRODUCT CODE RISE & RECLINE HANDSET CONTROLS PRESS & HOLD – Initiate action RELEASE – Stop action Tilt Headrest Forwards Tilt Headrest Backwards Raise Lumbar Lower Lumbar Raise Chair Recline Chair Lower Footrest, then Raise Chair Lower Chair, then Raise Footrest...
-
Page 13: Transformer
TRANSFORMER The riser recliner chair transformer is fitted with an LED indicator that indicates when the power is [ON] and when the power is [OFF]. LED Indicator Power Status GREEN NONE INSTALLING THE BACK-UP BATTERY The transformer includes a back-up battery compartment, meaning in the event of a power outage, the recliner is able to lift, enabling the user to leave the chair. -
Page 14: Optional Extras
FN01040008 PRODUCT CODE OPTIONAL EXTRAS ARM & HEADREST COVERS Keep your recliner looking as good as new with the additional arm & headrest covers. CARECO FABRIC CARE KIT Remove stubborn stains and odours with the CareCo Fabric Care Kit. -
Page 15: Disassembly & Transportation
DISASSEMBLY & TRANSPORTATION If for any reason the riser recliner chair needs to be transported via motor vehicle, ensure the disassembled components are properly secured before transport to avoid transit damage. 1. Disconnect the chair from the wall socket, 2. Lift the backrest flap to reveal the chairs then place the transformer and power wiring, then disconnect the power cables. -
Page 16: Looking After Your Riser Recliner
FN01040008 PRODUCT CODE LOOKING AFTER YOUR RISER RECLINER WARNING! Personal injury or fire damage can occur if the chair comes into direct contact with a heat source. (e.g., cigarette, heater) We recommend that the user does not smoke whilst using the riser recliner chair however if the user wishes to do so, please adhere to the following safety guidelines: •... -
Page 17: Scissor Mechanism Care
SUGGESTION Use mild detergent(s) or non-solvent upholstery shampoo(s) when spot cleaning to avoid product damage. Inspect the chair’s upholstery regularly for pulls and tears. SCISSOR MECHANISM CARE Check for dirt and debris build-up regularly following the maintenance schedule found within this user manual. - Page 18 FN01040008 PRODUCT CODE MAINTENANCE Your riser recliner is made up of components which over time will become susceptible to wear and tear. Knowing how to properly care and maintain your product will not only ensure peak performance and safe operation but will also help maintain operation for years to come.
- Page 19 TROUBLESHOOTING The below table is to be used as a guide to make the recliner chair operational again. If after troubleshooting the recliner chair still does not operate, contact CareCo. SYMPTOM POSSIBLE CAUSE POSSIBLE REMEDY Check for any loose connections and THE RISE/RECLINE HANDSET The handset and/or its associated wiring tighten if required.
- Page 20 FN01040008 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL CHAIR LENGTH (SITTING) (MM) OVERALL CHAIR LENGTH (RECLINED) (MM) 1900 OVERALL CHAIR HEIGHT (SITTING) (MM) 1130 OVERALL CHAIR HEIGHT (LIFTED) (MM) 1440 OVERALL CHAIR WIDTH (MM) SEAT WIDTH (MM) SEAT DEPTH (MM)
- Page 21 ELECTROMAGNETIC INTERFERENCE (EMI) Riser Recliner chairs may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the riser recliner to move by itself or cause permanent damage to the riser recliner’s internals.
- Page 22 FN01040008 PRODUCT CODE PRODUCT RE-ISSUING Ensure the product is safe and functions as intended before re-issuing. RECYCLING & DISPOSAL When disposing of the riser recliner and/or its components, users should follow local disposal/ recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal.
- Page 23 PRODUCT IDENTIFICATION The product identification label is located on the scissor mechanism at the rear of the recliner chair. DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation.
- Page 24 FN01040008 PRODUCT CODE GENERAL WARNINGS • Plug the power lead directly into a wall outlet. Avoid using extension leads. • Do not disconnect the plug from the wall outlet by pulling the power cable. • Periodically check the handset and power leads for visible damage.
- Page 25 EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the riser recliner is expected to function according to its intended use. Various items such as weight capacity, user behaviour, and intensity of use can affect the expected lifetime.
- Page 26 FN01040008 PRODUCT CODE WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • 2-YEAR LIMITED WARRANTY Consumables are not covered under normal warranty circumstances unless they have clearly suffered excessive wear or damage as a direct result of a manufacturing defect.
- Page 27 NOTES...
- Page 28 056059 114323 24 06 01...
