We offer 3 models of In-Wall Roller Shade Remotes:
1 Channel
SKU: ML-541RS
These switches are designed to be mounted into the wall via a standard junction box or a
low-voltage cut in ring (recommended). No wiring is needed as it controls the shade(s) via
radio frequency (RF). Requires two AAA batteries.
These remotes are available for online purchase at https://fabtexshop.com/.
All are compatible with these RF-controlled motors:
Battery Motor
(1.5" ID tube)
SKU: ML-280BC-USBC-K
In- Wall Remotes

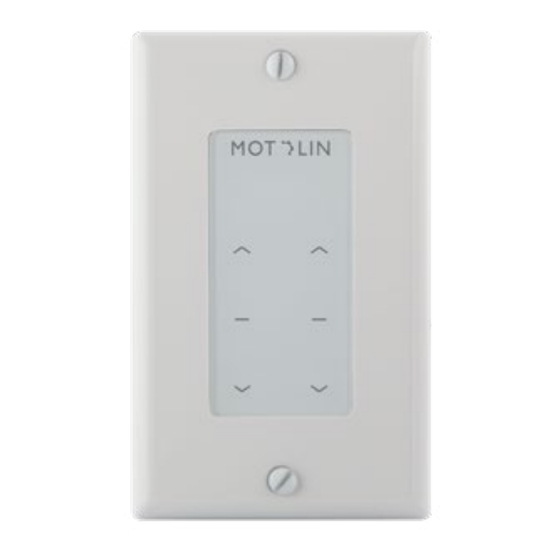

2 Channel
SKU: ML-542RS
External Battery Motor
(1.5" ID tube)
SKU: ML-280SC
15 Channel
SKU: ML-543RS
Battery Motor
(2" ID tube)
SKU: ML-350BC-USBC-K
Fabtex Shop
Hardwire/Plug-in Motor
(2" ID tube)
SKU: ML-350F
1
Advertisement
Summary of Contents for Fabtex ML-541RS
- Page 1 We offer 3 models of In-Wall Roller Shade Remotes: 1 Channel 2 Channel 15 Channel SKU: ML-541RS SKU: ML-542RS SKU: ML-543RS These switches are designed to be mounted into the wall via a standard junction box or a low-voltage cut in ring (recommended). No wiring is needed as it controls the shade(s) via radio frequency (RF).
- Page 2 Parts FRONT FRONT For 1 & 2 Channel Remotes For 15 Channel Remote Screen showing the Indicator active channel’s number & name STOP PROGRAM EDIT To edit the name of DOWN each channel (Maximum of 15 alphanumeric characters). Once on edit mode, click on the UP or DOWN button to CHANNELS...
- Page 3 ROLLER SHADE MOTOR (new) ML Models (legacy) FT models PROGRAM PROGRAM BUTTON BUTTON Definitions Beep : short high-pitched sound emitted by the motor. motor movement where it runs up/down in a single short cycle. Motor : device that converts electric energy into mechanical energy and the driving mechanism of our roller shades.
-
Page 4: Quick Start
Programming Quick Start Step 1: Power Up With the roller shade installed, connect power. The motor will confirm power with a beep and jog. At this point the motor will be in program mode for 10 seconds. Step 2: Pair Motor to Remote 1. - Page 5 Add Additional Remotes 1. Press the PROGRAM button on the already paired REMOTE twice. The motor will jog once each time you press the button. 2. Press the PROGRAM button once on the new REMOTE. The MOTOR will beep 3 times and jog to confirm addition of the remote.
- Page 6 Enter User Mode Motolin motors have an advanced feature that allows dual button presses to work. To prevent accidental programming when users press and hold 2 buttons at once, it is recommended to put the remote into User Mode after programming is complete. Press &...
- Page 7 Alternate Programming If you encounter difficulties with the steps under the Quick Start guide, try these alternate methods: Pair the Motor to the Remote 1. Press the PROGRAM button on the MOTOR for 2 seconds, the motor will beep and jog, entering into pairing mode for 10 seconds.
