Read this manual carefully, it contains important safety information.

Models sold in and used in California:

The removal or modification of evaporative emission-related parts on this

OHRV is illegal. Violators may be subject to civil and/or criminal penalties as

provided under California and federal law.

OW N E R'S

M A N UA L

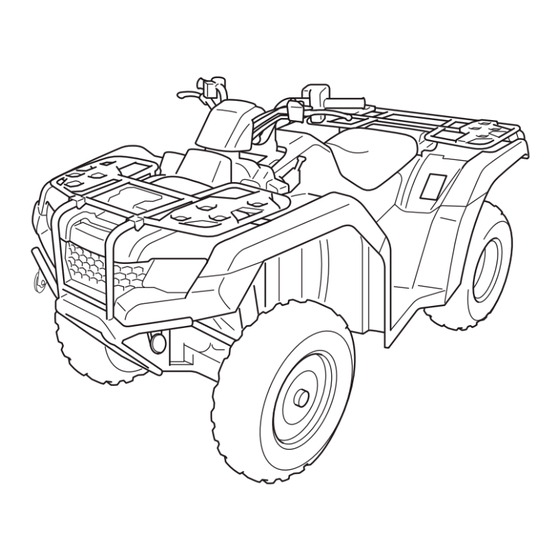

2024 RANCHER

Minimum recommended operator age: 16

Mfg. #

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the RANCHER 2024 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honda RANCHER 2024

Page 1 Read this manual carefully, it contains important safety information. Models sold in and used in California: The removal or modification of evaporative emission-related parts on this OHRV is illegal. Violators may be subject to civil and/or criminal penalties as provided under California and federal law. OW N E R’S M A N UA L 2024 RANCHER...
Page 2 All illustrations are based on the TRX420FM2 model. This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
Page 3 2024 Honda TRX420TM1 FOURTRAX RANCHER TRX420FM1 FOURTRAX RANCHER 4x4 TRX420FM2 FOURTRAX RANCHER 4x4 EPS TRX420TE1 FOURTRAX RANCHER ES TRX420FE1 FOURTRAX RANCHER 4x4 ES TRX420FA2 FOURTRAX RANCHER 4x4 AT EPS OWNER’S MANUAL FOR OFF-ROAD USE ONLY This vehicle is designed and manufactured for off-road use only.
Page 4 Introduction Congratulations on choosing your Honda ATV. Introduction When you own a Honda, you’re part of a worldwide family of satisfied customers — people who appreciate Honda’s reputation for building quality into every product. Your Honda was designed as a recreational ATV for off-road use by one rider only.
Page 5 Please report any change of address or ownership to your dealer so we will be able to contact you concerning important product information. You may also want to visit our website at USA: www.powersports.honda.com. Canada: www.honda.ca. Happy riding! Introduction...
Page 6 A Few Words About Safety Your safety, and the safety of others, is very important. And A Few Words About Safety operating this ATV safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual.
Page 7 A Few Words About Safety These signal words mean: You WILL be KILLED or DANGER SERIOUSLY HURT if you don‘t follow instructions. You CAN be KILLED or SERIOUSLY WARNING HURT if you don’t follow instructions. You CAN be HURT if you don’t CAUTION follow instructions.
Page 8 Contents These pages give an overview of the contents of your owner’s Contents manual. The first page of each section lists the topics covered in that section. ATV Safety ..................1 Important safety information you should know, plus a look at the safety related labels on your ATV.
Page 9: Table Of Contents
What to do if you have a flat tire, your engine won’t start, etc. Technical Information ............257 ID numbers, technical specifications, and other technical facts. Consumer Information ............273 Information on warranties, emission controls, how to get Honda service manuals. Index ..................281 Quick Reference Handy facts about fuel, engine oil, tire sizes, and air pressures.
Page 10: Atv Safety
ATV Safety This section presents some of the most important information and ATV Safety recommendations to help you ride your ATV safely. Please take a few moments to read these pages. This section also includes information about the location of safety labels on your ATV. Important Safety Information............
Page 11 Important Safety Information Your ATV can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet while riding. There is much that you can do to protect yourself when you ride. You’ll find many helpful recommendations throughout this manual.
Page 12 Important Safety Information Ride Off-road Only Your ATV is designed and manufactured for off-road use only. The tires are not made for pavement, and the ATV does not have turn signals and other features required for use on public roads. If you need to cross a paved or public road, get off and walk your ATV across.
Page 13 Don’t drink or use drugs while riding, and don’t let your friends do it either. Keep Your Honda in Safe Condition It’s important to keep your ATV properly maintained and in safe riding condition. Having a breakdown can be difficult, especially if you are stranded off-road far from your base.
Page 14 Safety Labels Your ATV comes with a hang tag and several labels containing important safety information. Anyone who rides the vehicle should read and understand this information before riding. The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your dealer for replacements.
Page 15 Safety Labels WARNING Improper ATV use can result in SEVERE INJURY or DEATH ALWAYS USE NEVER USE NEVER CARRY NEVER USE AN APPROVED ON PUBLIC PASSENGERS WITH DRUGS ROADS OR ALCOHOL HELMET AND PROTECTIVE GEAR NEVER operate: without proper training or instruction at speeds too fast for your skills or the conditions on public roads - a collision can occur with another vehicle...
Page 16 Safety Labels WARNING Overloading this ATV or carrying cargo Improper tire pressure or overloading can improperly can change handling,stability cause loss of control. and braking performance and can lead to an Loss of control can result in severe injury accident. or death.
Page 17 Safety Labels Operating this ATV if you are under (For Canada) the age of 16 increases your chance of severe injury or death. NEVER operate this ATV if you are under age 16. (Except TRX420TE1/TM1) BRAKING INFORMATION With four-wheel drive, operating any brake control causes braking at both the front and rear wheels.
Page 18: Instruments & Controls
Instruments & Controls This section shows the location of all indicators and controls you Instruments & Controls would normally use before or while riding your ATV. The items listed on this page are described in this section. Instructions for other components are presented in other sections of this manual where they will be most useful.
Page 19 Instruments & Controls Controls & Features ..............35 Ignition Switch................. 35 2WD/4WD Select Lever (Except TRX420TE1/TM1) ....36 Start Button................37 Engine Stop Switch..............37 Headlight Switch ..............38 Headlight Dimmer Switch ............38 Recoil Starter (TRX420FM1 with recoil starter only) ....39 Throttle Lever ................
Page 20: Operation Component Locations
Operation Component Locations TRX420TM1/FM1/FM2 rear brake lever/ parking brake lever P/R lever front brake lever headlight switch throttle lever engine stop switch ignition switch start button headlight dimmer switch 2WD/4WD select lever (Except TRX420TM1) Instruments & Controls...
Page 21 Operation Component Locations TRX420TE1/FE1/FA2 rear brake lever/ headlight dimmer switch parking brake lever reverse switch headlight switch parking brake front brake lever lock lever throttle lever drive mode select gearshift start button switch (TRX420FA2 switches only) engine stop switch ignition switch 2WD/4WD select lever (Except TRX420TE1) Instruments &...
Page 22 Operation Component Locations rear cargo rack front cargo rack front utility box recoil starter rear brake pedal (TRX420FM1 with recoil starter only) Instruments & Controls...
Page 23 Operation Component Locations utility pocket (TRX420TE1/TM1) flag pole bracket storage compartment trailer hitch Instruments & Controls...
Page 24: Indicators & Displays
Indicators & Displays The indicators and displays on your ATV keep you informed, alert you to possible problems, and make your riding safer and more enjoyable. Refer to the indicators frequently. Their functions are described on the following pages. (Except TRX420TM1) (TRX420TM1) (6) fuel warning indicator (1) neutral indicator...
Page 25 Indicators & Displays Lamp Check Initial lamp check: The indicators come on for a few seconds and then go off when you turn the ignition switch to ON (q). Except TRX420TM1: The high coolant temperature indicator and PGM-FI indicator will temporarily come back on for a few seconds and then go off after initial lamp check.
Page 26 Indicators & Displays Display Check Except TRX420TM1: When the ignition switch is turned on, the multi-function display (1) will temporarily show all the modes and digital segments and initial message. So you can make sure the liquid crystal display is functioning properly.
Page 27 Indicators & Displays Neutral indicator Lights when the transmission is in neutral. Lamp Check. Reverse indicator Lights when the transmission is in reverse. Lamp Check. PGM-FI indicator Lights when there is any abnormality in the PGM-FI (Programmed Fuel Injection) system. Should also light for a few seconds and then go off when the ignition switch is turned on.
Page 28 Indicators & Displays Multi-function The display includes the following display (Except functions. Display Check. TRX420TM1) 4WD indicator Shows when the 4WD drive mode (Except TRX420TE1) engages (page 24). Gear position Shows the gear position (page 25). indicator Speedometer Shows riding speed. Fuel gauge Shows approximate fuel supply available (page 26).
Page 29 Indicators & Displays Mode button Selects display in the lower parts of (Except multi-function display (page 22). TRX420TM1) This button also used to change the speed and mileage unit (page 24), adjusts the clock (page 28) and resets tripmeter, maintenance tripmeter and maintenance hour meter (page 33).
Page 30: Multi-Function Display (Except Trx420Tm1)
Indicators & Displays Multi-function Display (Except TRX420TM1) The multi-function display (1) includes the following functions: 4WD indicator (Except Digital clock TRX420TE1) Odometer Gear position indicator Tripmeter Maintenance minder Coolant temperature gauge indicator Hour meter Speedometer Maintenance tripmeter Fuel gauge Maintenance hour meter (1) multi-function display (5) maintenance minder (2) 4WD indicator (Except...
Page 31 Indicators & Displays Each time you press the mode button, mode will change as shown in the illustration. Fuel gauge (page 26) Digital clock (page 28) Hour meter (page 32) Odometer (page 29) Maintenance Tripmeter (page 29) tripmeter (page 33) Coolant temperature Maintenance gauge (page 30)
Page 32 Indicators & Displays If there is a fuel warning with your ATV, the display will automatically change to the fuel gauge. If you try to change the display back to ordinary display, it will automatically return to the fuel gauge. If there is a coolant temperature warning with your ATV, the display will automatically change to the coolant temperature gauge.
Page 33: Speed And Mileage Unit Changing (Except Trx420Tm1)
Indicators & Displays Speed and Mileage Unit Changing (Except TRX420TM1) The speedometer, odometer, tripmeter and maintenance tripmeter show in either “MPH” and “MILE” or “KM/H” and “KM”. To change the speed and mileage unit, press and hold the mode button (1) for more than 5 seconds in odometer (page 29) with the ATV stopped.
Page 34: Gear Position Indicator (Except Trx420Tm1)
Indicators & Displays Gear Position Indicator (Except TRX420TM1) The gear position indicator (1) shows the gear position when the ignition switch is in the ON (q) position. TRX420TE1/FE1/FM1/FM2: The indicator displays: N for neutral, R for reverse, and 1 – 5 for the five forward gears.
Page 35: Fuel Gauge (Except Trx420Tm1)
Indicators & Displays If the “–” on the gear position indicator is blinking, see your dealer. (1) gear position indicator Fuel Gauge (Except TRX420TM1) The fuel gauge (1) shows the approximate fuel supply available with fuel mark (2). The fuel tank capacity is: 3.88 US gal (14.7 ℓ) (2) fuel mark (1) fuel gauge...
Page 36 Indicators & Displays Regardless of what mode the display is in, when the fuel level reaches only 1st segment (3), the display will automatically switch to the fuel gauge display. You should refuel as soon as possible. The amount of fuel remaining when there is only 1st segment is approximately: 1.82 US gal (6.9 ℓ) (3) 1st segment When the fuel gauge show E _ _ _ _ _ F (4) and LO FUEL (5) blink 3 times...
Page 37: Digital Clock (Except Trx420Tm1)
Indicators & Displays Digital Clock (Except TRX420TM1) The digital clock (1) displays hours and minutes with the clock mark (2), when the ignition switch is ON (q). To adjust the time, proceed as follows: 1. Turn the ignition switch ON (q) to display the clock (page 22). 2.
Page 38: Odometer (Except Trx420Tm1)
Indicators & Displays Odometer (Except TRX420TM1) The odometer (1) registers total distance traveled in mileage while the ignition is ON (q) with the ODO display (2). The odometer locks at 999999 when the read-out exceeds 999999. (1) odometer (2) ODO display Tripmeter (Except TRX420TM1) The tripmeter (1) shows mileage per trip with the TRIP display (2), while the ignition is ON (q) since you last reset the tripmeter.
Page 39: Coolant Temperature Gauge (Except Trx420Tm1)
Indicators & Displays Coolant Temperature Gauge (Except TRX420TM1) The coolant temperature gauge (1) with the coolant temperature mark (2) shows the coolant temperature. When coolant temperature is low, the coolant temperature gauge will display “Lo”. (1) coolant temperature gauge (3) high coolant temperature indicator (2) coolant temperature mark If all sections of the coolant temperature gauge and high coolant...
Page 40 Indicators & Displays NOTICE Continuing to ride with an overheated engine can cause serious engine damage. Coolant temperature gauge failure: If the coolant temperature system has an error, the coolant temperature gauge (1) will flash and preferentially appear in the display, and/or high coolant temperature indicator (3) will turn on.
Page 41: Hour Meter (Except Trx420Tm1)
Indicators & Displays Hour meter (Except TRX420TM1) The hour meter (1) shows accumulated hours while the ignition switch is ON ( I ) with the hour meter mark (2). The hour meter provides accurate service period information for initial and regular maintenance.
Page 42: Maintenance Tripmeter & Maintenance Hour Meter (Except Trx420Tm1)
Indicators & Displays Maintenance Tripmeter & Maintenance Hour meter (Except TRX420TM1) The maintenance tripmeter (1), the maintenance hour meter (2) and maintenance minder indicator (3) inform you when the mileage or operating hours on your ATV approaches and passes the maintenance interval specified on the maintenance schedule (page 124).
Page 43 Indicators & Displays Reset the meters after each scheduled maintenance. To reset the maintenance tripmeter and the maintenance hour meter, press and hold the mode button and turn the ignition switch to ON ( I ). Continue to hold the mode button, the maintenance minder indicator will light up, and after 2 seconds will flash twice, the maintenance minder indicator is reset.
Page 44: Controls & Features
Controls & Features Ignition Switch The ignition switch (1) is used for starting and stopping the engine (page 78). Insert the key and turn it to the right for the ON (q) position. Except TRX420TM1: The ignition switch is also used to reset the maintenance tripmeter and the maintenance hour meter (page 34).
Page 45: 2Wd/4Wd Select Lever (Except Trx420Te1/Tm1)
Controls & Features 2WD/4WD Select Lever (Except TRX420TE1/TM1) Your ATV is equipped with a 2WD/4WD select lever (1), which permits a choice between the “2WD” and “4WD” drive modes. Select a drive mode that’s suitable for your riding. Keep both hands on the handlebar while machine is in motion and come to a complete stop before using the 2WD/4WD select lever.
Page 46: Start Button
Controls & Features Start Button LEFT HANDLEBAR TRX420TM1/FM1/FM2 TRX420TE1/FE1/FA2 (1) start button o START r OFF (2) engine stop switch e RUN The start button (1) is used for starting the engine. Pushing the button in starts the engine. See Starting Procedure, page 80. When the start button is pushed, the starter motor will crank the engine.
Page 47: Headlight Switch
Controls & Features Headlight Switch LEFT HANDLEBAR TRX420TM1/FM1/FM2 TRX420TE1/FE1/FA2 (1) headlight switch y ON t OFF (2) headlight dimmer switch u HI i LO The headlight switch (1) is used to turn the headlights ON (y) or OFF (t). To operate, turn the switch to ON (y) or OFF (t). Headlight Dimmer Switch The headlight dimmer switch (2) is used to change between the high and low beams of the headlight.
Page 48: Recoil Starter (Trx420Fm1 With Recoil Starter Only)
Controls & Features Recoil Starter (TRX420FM1 with recoil starter only) RIGHT SIDE (1) recoil starter The recoil starter (1) is used to start the engine when the battery is low. See Using the Recoil Starter (TRX420FM1 with recoil starter only), page 84. Instruments &...
Page 49: Throttle Lever
Controls & Features Throttle Lever RIGHT HANDLEBAR (1) throttle lever (A) to open the throttle The throttle controls engine rpm (speed). To increase engine rpm, press the throttle lever (1) with your thumb. To reduce engine rpm, release pressure on the throttle lever. The throttle will automatically return to the closed position (engine idle) when you remove your thumb.
Page 50: Drive Mode Select Switch (Trx420Fa2 Only)
Controls & Features Driv e Mode Select Switch (TRX420FA2 only) The drive mode select switch (1) has two positions, AUTO (automatic shift mode) and ESP (manual shift mode). See Shifting Gears (TRX420FA2), page 90. RIGHT HANDLEBAR (1) drive mode select switch Instruments &...
Page 51: Gearshift Switch (Trx420Te1/Fe1/Fa2)
Controls & Features Gearshift Switch (TRX420TE1/FE1/FA2) TRX420TE1/FE1: These switches are used to select the next higher or lower gear in the transmission. To operate, press the upshift switch (1) to engage the next higher gear or press the downshift switch (2) to engage the next lower gear.
Page 52: Reverse Switch (Trx420Te1/Fe1/Fa2)
Controls & Features See Shifting Gears (TRX420FA2), page 90 and Riding in Reverse (TRX420TE1/FE1/FA2), page 98. LEFT HANDLEBAR (1) upshift switch (2) downshift switch Reverse Switch (TRX420TE1/FE1/FA2) LEFT HANDLEBAR (1) reverse switch The reverse switch (1) is used when shifting the transmission into reverse (R). To shift into reverse (R), see Riding in Reverse (TRX420TE1/FE1/FA2), page 98.
Page 53: Front Brake Lever
Controls & Features Front Brake Lever The front brake lever is used to slow or stop your ATV. To operate, pull the lever. For information on braking techniques, see page 101. Rear Brake Lever/Parking Brake Lever The rear brake lever/parking brake lever is used to slow or stop your ATV.
Page 54: Parking Brake/Reverse Lever (P/R Lever:trx420Tm1/Fm1/Fm2)
Controls & Features Parking Brake/Reverse Lever (P/R Lever:TRX420TM1/FM1/FM2) LEFT HANDLEBAR (1) P/R lever (2) rear brake lever/parking brake lever The P/R lever (1) on the rear brake lever/parking brake lever (2) is used to apply the parking brake or to shift the transmission into reverse. To apply the parking brake: Bring the vehicle to a complete stop, make sure the transmission is in neutral.
Page 55 Controls & Features To release the parking brake: Squeeze the rear brake lever/parking brake lever until the P/R lever is released from the slot on the rear brake lever/parking brake lever bracket. The brake light is activated by applying the brake. When using the parking brake, be sure to turn the ignition switch to OFF (w) to avoid discharging the battery.
Page 56: Parking Brake Lever (Trx420Te1/Fe1/Fa2)
Controls & Features Parking Brake Lever (TRX420TE1/FE1/FA2) LEFT HANDLEBAR (1) parking brake lock lever (2) rear brake lever/parking brake lever The parking brake lock lever (1) on the rear brake lever/parking brake lever (2) is used to apply the parking brake. Instruments &...
Page 57 Controls & Features To apply the parking brake: Bring the vehicle to a complete stop, make sure the transmission is in neutral. Squeeze the rear brake lever/parking brake lever (1), then rotate the parking brake lock lever (2) clockwise until it engages the slot on the rear brake lever/parking brake lever bracket.
Page 58: Flag Pole Bracket
Controls & Features Flag Pole Bracket RIGHT REAR (1) flag pole bracket Flag poles are optional equipment available from your dealer. To mount a pole in the bracket (1), follow the instructions that come with the flag pole kit. Flag poles are required in some riding areas. Check local regulations before riding.
Page 59: Trailer Hitch
Controls & Features Trailer Hitch REAR (1) trailer hitch (2) ball The trailer hitch (1) is located on the rear axle housing. To use the hitch, you’ll need a proper size ball (2) as specified by the trailer manufacturer. To attach the ball and properly hook up a trailer, follow the trailer manufacturer’s instructions.
Page 60: Front Utility Box
Controls & Features Front Utility Box The front utility box (1) is located on the front center cover. You may store small, lightweight items in the box. To open: Pull up the front of the front utility box cover (2). To close: Push down the front of the front utility box cover until it locks in place.
Page 61: Utility Pocket (Trx420Te1/Tm1)
Controls & Features Utility Pocket (TRX420TE1/TM1) The utility pocket (1) is located on the left side cover. You may store small, lightweight items in the pocket. NOTICE Do not store valuable items in the utility pocket. LEFT SIDE COVER (1) utility pocket Instruments &...
Page 62: Storage Compartment
Controls & Features Storage Compartment The storage compartment (1) is located below the rear cargo rack (2). To open the compartment, unhook the rubber strap (3). Be careful not to flood this area when washing your ATV. REAR (1) storage compartment (2) rear cargo rack (3) rubber strap Instruments &...
Page 63: Eps (Electric Power Steering) (Trx420Fm2/Fa2)
Controls & Features EPS (Electric Power Steering) (TRX420FM2/FA2) This ATV is equipped with an electronically controlled, electric power-assisted steering system. While the engine is running, the EPS (Electric Power Steering) system provides power from the electric motor, which helps you to turn the ATV’s handlebar more easily.
Page 64: Before Riding
Before Riding Before each ride, you need to make sure you and your Honda are Before Riding both ready to ride. To help get you prepared, this section discusses how to evaluate your riding readiness, what items you should check on your ATV, and adjustments to make for your comfort, convenience, or safety.
Page 65: Are You Ready To Ride
Are You Ready to Ride? Before you ride your ATV for the first time, we urge you to: • Read this owner’s manual and the labels on your ATV carefully. • Make sure you understand all the safety messages. • Know how to operate all the controls. Before each ride, be sure: •...
Page 66 Are You Ready to Ride? An open-face helmet offers some protection, but a full-face helmet offers more. Regardless of the style, look for a Department of Transportation (DOT) sticker on any helmet you buy (USA only). Always wear a face shield or goggles to protect your eyes and help your vision.
Page 67: Rider Training
Beginning and inexperienced operators should complete the certified training course offered by Honda. They should then regularly practice the skills learned in the course and the operating techniques described in the owner’s manual.
Page 68: Age Recommendation
Are You Ready to Ride? Age Recommendation The minimum recommended age for this ATV model is 16. For safety, never let children under 16 years old operate this vehicle. WARNING WARNING A child using an ATV that is not recommended for their age could lose vehicle control while riding, resulting in severe injury or death.
Page 69: No Alcohol Or Drugs
Are You Ready to Ride? No Alcohol or Drugs Alcohol, drugs and ATVs don’t mix. Even a small amount of alcohol can impair your ability to operate an ATV safely. Likewise, drugs — even if prescribed by a physician — can be dangerous while operating an ATV.
Page 70: Is Your Atv Ready To Ride
Is Your ATV Ready to Ride? Before each ride, it’s important to inspect your ATV and make sure any problem you find is corrected. A pre-ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tire, can be a major inconvenience.
Page 71 Is Your ATV Ready to Ride? Fuel Check the level and add fuel (page 139) if needed. Also make sure the fuel fill cap is securely fastened. Check for leaks. Tires Use a gauge to check the air pressure. Adjust if needed.
Page 72 Is Your ATV Ready to Ride? Cable Check the cable housings for wear. Check the fittings for looseness. Replace or tighten as needed. Lights Make sure the headlight, brake light and taillight are working properly. If you are carrying cargo, also check the following: Loading Limits Make sure you do not exceed the load limits (page 66).
Page 73 Is Your ATV Ready to Ride? Headlight and Check for proper function (page 38). Headlight Dimmer Switch Engine Stop Switch Check for proper function (page 37). Steering Check that the wheels turn properly as you steer the handlebar. Move the handlebar right and left and check that there is no excessive backlash.
Page 74: Load Limits & Guidelines
Load Limits & Guidelines Your Honda was designed as a rider-only ATV. It was not designed to carry a passenger. It can carry cargo on the cargo racks, however, carrying cargo anywhere else or carrying a passenger could interfere with your balance and control of the ATV.
Page 75: Load Limits
Load Limits & Guidelines Load Limits Following are the load limits for your ATV: There are limits to how much weight can be carried on your ATV and be pulled in a trailer. The following load limits apply to standard equipment only. Modifying your ATV, using non-standard equipment, or riding on terrain that is not flat and smooth could further reduce these limits.
Page 76: Loading Guidelines
Load Limits & Guidelines Loading Guidelines Carrying cargo or pulling a trailer will affect how your ATV handles and greatly reduce its ability in accelerating, braking and making turns and other maneuvers. Be sure to observe the weight limits and follow these guidelines: •...
Page 77: Accessories & Modifications
Accessories & Modifications Modifying your ATV or using non-Honda accessories can make your ATV unsafe. Before you consider making any modifications or adding an accessory, be sure to read the following information. WARNING WARNING Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
Page 78: Modifications
Accessories & Modifications Modifications We strongly advise you not to remove any original equipment or modify your ATV in any way that would change its design or operation. Such changes could seriously impair your ATV’s handling, stability, and braking, making it unsafe to ride. We also advise you not to make any modifications or remove any equipment (such as the USDA qualified spark arrester or emission control system components) that would make your ATV illegal in...
Page 79 This page intentionally left blank. Before Riding...
Page 80: Basic Operation & Riding
Basic Operation & Riding This section gives basic riding instructions, including how to start and Basic Operation & Riding stop your engine, and how to use the throttle and brakes. It also provides important information on riding with cargo. To protect your new engine and enjoy optimum performance and service life, refer to Break-in Guidelines (page 266).
Page 81 Basic Operation & Riding Braking..................101 Riding Your ATV............... 103 Making Turns ................ 103 Skidding or Sliding..............105 Riding Up Hills ............... 106 Riding Down Hills ..............110 Crossing or Turning on Hills or Slopes ........111 Riding Over Obstacles ............113 Riding Through Water ............
Page 82: Safe Riding Precautions
Safe Riding Precautions Before riding your ATV for the first time, please review the ATV Safety section beginning on page 1, and the Before Riding section beginning on page 55. Even if you have ridden other ATVs, take time to become familiar with how this ATV works and handles.
Page 83: Keep Hands And Feet On Controls
Safe Riding Precautions You should never ride your ATV on public streets, roads or highways, even if they are not paved. Drivers of street vehicles may have difficulty seeing and avoiding you, which could lead to a collision. In many states it is illegal to operate ATVs on public streets, roads and highways.
Page 84: Control Speed
Safe Riding Precautions (1) footpeg Control Speed Riding at excessive speed increases the chance of a crash. In choosing a proper speed, you need to consider the capability of your vehicle, the terrain, visibility, and other operating conditions, plus your own skills and experience. WARNING WARNING Operating this ATV at excessive speeds...
Page 85: Use Care On Unfamiliar Or Rough Terrain
Safe Riding Precautions Use Care on Unfamiliar or Rough Terrain Before riding in a new area, always check the terrain thoroughly. Don’t ride fast on unfamiliar terrain or when visibility is limited. (It’s sometimes difficult to see obstructions like hidden rocks, bumps, or holes in time to react.) WARNING WARNING...
Page 86: Do Not Perform Stunts
Safe Riding Precautions Never ride past the limit of visibility. Maintain a safe distance between your ATV and other off-road vehicles. Always exercise caution, and use extra care on rough, slippery, and loose terrain. WARNING WARNING Failure to use extra care when operating on excessively rough, slippery or loose terrain could cause loss of traction or vehicle control, which could result in a crash, including an...
Page 87: Starting & Stopping The Engine
Starting & Stopping the Engine Always follow the proper starting procedure described below. For your safety, avoid starting or operating the engine in an enclosed area such as a garage. Your ATV’s exhaust contains poisonous carbon monoxide gas which can collect rapidly in an enclosed area and cause illness or death.
Page 88: Preparation
Starting & Stopping the Engine Preparation TRX420FM1/ TRX420TE1/ TRX420TM1 FE1/FA2 (1) ignition switch (3) engine stop switch (2) neutral indicator 1. Before starting, select a level surface and lock the parking brake (page 45, 47). 2. Turn the ignition switch (1) to ON (q). Basic Operation &...
Page 89: Starting Procedure
Starting & Stopping the Engine Confirm the following: • TRX420TM1: The transmission is in neutral, and the neutral indicator (2) is ON. Except TRX420TM1: The transmission is in neutral, the neutral indicator (2) is ON and the gear position indicator shows “N” •...
Page 90: Flooded Engine
Starting & Stopping the Engine Flooded Engine If the engine fails to start after repeated attempts, it may be flooded with excess fuel. To clear a flooded engine: 1. Leave the engine stop switch set to RUN (e). 2. Open the throttle fully. 3.
Page 91: Stalled Engine
Starting & Stopping the Engine Stalled Engine You can restart the engine while the vehicle is stopped by squeezing the front brake lever and pressing the start button. Do not press the throttle lever while starting in gear. The engine will not start if the throttle is fully open (because the electronic control module cuts off the fuel supply).
Page 92: How To Stop The Engine
Starting & Stopping the Engine How to Stop the Engine Normal Engine Stop To stop the engine, make sure the transmission is in neutral by checking that the neutral indicator light is on, then turn the ignition switch to OFF (w). The engine stop switch should normally remain in the RUN (e) position even when the engine is OFF.
Page 93: Using The Recoil Starter (Trx420Fm1 With Recoil Starter Only)
Starting & Stopping the Engine Using the Recoil Starter (TRX420FM1 with recoil starter only) The recoil starter is used to start the engine when the battery is low. To operate the recoil starter: 1. Turn the ignition switch to ON and engine stop switch to RUN. 2.
Page 94: Shifting Gears
Shifting Gears Shifting Gears (TRX420TM1/FM1/FM2) UPSHIFTING SEQUENCE DOWNSHIFTING SEQUENCE Your ATV has five forward gears: 1, 2, 3, 4, and 5. The shift lever is located near the left footpeg. One full stroke of the shift lever shifts the transmission to the next higher or lower gear in the shifting sequence.
Page 95 Shifting Gears After starting the engine and letting it warm up, follow these procedures: 1. With the transmission in neutral, release the parking brake, but continue squeezing the rear brake lever. 2. With the throttle closed, raise the shift lever one full stroke to shift into 1st (first) gear.
Page 96: Shifting Gears (Trx420Te1/Fe1)
Shifting Gears Shifting Gears (TRX420TE1/FE1) UPSHIFTING SEQUENCE DOWNSHIFTING SEQUENCE (1) upshift switch (A) press (2) downshift switch Your ATV has five forward gears: 1, 2, 3, 4, and 5. Two gearshift switches are located next to the left handlebar grip: upshift ( ) and downshift ( ).
Page 97 Shifting Gears 2. With the throttle closed, press the upshift switch once to shift into 1st (first) gear. 3. Release the rear brake lever and increase engine speed by gradually opening the throttle. 4. When speed increases, release the throttle and shift to 2nd gear by pressing the upshift switch once.
Page 98 Shifting Gears • Downshift to a lower gear before you feel the engine laboring (lugging) at low rpm. • Avoid downshifting to help slow your ATV when engine rpm is high. Downshifting when engine speed is near its allowable maximum may over-rev the engine and possibly cause damage. •...
Page 99: Shifting Gears (Trx420Fa2)
Shifting Gears Shifting Gears (TRX420FA2) Your ATV has two shift modes: AUTO (automatic shift mode) and ESP (manual shift mode). You can select the desired shift mode with the drive mode select switch. AUTO (automatic shift mode): Use this mode for everyday riding. The transmission automatically shifts to keep the engine at the best speed for the riding condition.
Page 100 Shifting Gears Drive mode select (AUTO/ESP) The drive mode select switch (1) is located on the right handlebar. To select the drive mode, release the throttle, then slide the drive mode select switch to the desired position. With the throttle fully closed, the drive mode can be changed while riding.
Page 101 Shifting Gears To select a forward gear (D or 1) from neutral (N), press the upshift switch (2) once. • In AUTO (automatic shift mode) the gear position indicator shows “D”. • In ESP (manual shift mode) the gear position indicator shows “1”. To select reverse (R) from neutral (N), use the reverse switch and press the downshift switch (3) once.
Page 102 Shifting Gears Driving in ESP (manual shift mode): After starting the engine and letting it warm up, follow these procedures: 1. With the transmission in neutral, release the parking brake (page 47), but continue to squeezing the rear brake lever/parking brake lever.
Page 103 Shifting Gears You can temporarily shift up or down in AUTO (automatic shift mode) by using the shift switches. The transmission cannot be upshifted from neutral to 1st gear or D- mode when the engine speed is above 2,200 rpm or the ground speed is above 3 mph (5 km/h).
Page 104 Shifting Gears Learning when to shift gears comes with experience. Keep the following tips in mind: • As a general rule, shift while moving in a straight line. • Close the throttle completely before shifting. Improper shifting may damage the engine, transmission, and drivetrain. •...
Page 105: Riding In Reverse
Riding in Reverse Riding in Reverse (TRX420TM1/FM1/FM2) If you need to ride in reverse, make sure the area behind you is clear and only operate the ATV at low speed. WARNING WARNING Improperly operating in reverse could cause you to hit an obstacle or person behind you, resulting in serious injury.
Page 106 Riding in Reverse NOTICE Your ATV may be equipped with a reverse speed limiter, which helps the vehicle to maintain a safe speed while riding in reverse gear. 5. Make sure the reverse indicator comes on. (TRX420TM1: the reverse indicator is on. TRX420FM1/FM2: the reverse indicator is on and the gear position indicator shows “R”) 6.
Page 107: Riding In Reverse (Trx420Te1/Fe1/Fa2)
Riding in Reverse Riding in Reverse (TRX420TE1/FE1/FA2) If you need to ride in reverse, make sure the area behind you is clear and only operate the ATV at low speed. WARNING WARNING Improperly operating in reverse could cause you to hit an obstacle or person behind you, resulting in serious injury.
Page 108 Riding in Reverse NOTICE Your ATV may be equipped with a reverse speed limiter, which helps the vehicle to maintain a safe speed while riding in reverse gear. 4. Make sure that the reverse indicator comes on and the gear position indicator shows “R”.
Page 109 Riding in Reverse The reverse switch will not operate if you operate continuously with the reverse switch pressed. Release the reverse switch once. (TRX420FA2) The transmission cannot be shifted from neutral back into reverse when the engine speed is above 2,200 rpm or speed of your ATV is above 3 mph (5 km/h).
Page 110: Braking
Braking Your ATV is equipped with disc brakes on both front wheels which are hydraulically activated by operating the right brake lever. A single drum brake on the rear axle housing is mechanically activated by depressing the brake pedal or operating the left brake lever. Except TRX420TE1/TM1: Although the front and rear brakes have separate controls, all four wheels are interconnected when your ATV is in the 4WD mode.
Page 111 Braking Applying the brakes too hard may cause the wheels to lock and slide, reducing control of your ATV. If this happens, release the brake controls, steer straight ahead until you regain control, then reapply the brakes more gently. When possible, reduce your speed or complete braking before entering a turn.
Page 112: Riding Your Atv
Riding Your ATV Making Turns Learn how to turn your ATV properly. Practice the techniques outlined in this section on level ground and at low speeds until you are confident in making turns. WARNING WARNING Turning improperly can make the ATV go out of control, causing a collision or overturn.
Page 113 Riding Your ATV Lean your body to the inside of a turn and forward. To make a turn on level ground: Steer the handlebar and lean your body toward the inside of the turn. Leaning helps balance the vehicle, and it feels more comfortable. Leaning into a turn is an important technique to master in riding an ATV.
Page 114: Skidding Or Sliding
Riding Your ATV Skidding or Sliding The terrain surface can be a major factor affecting turns. Skidding during a turn is more likely to occur on slippery surfaces, such as snow, ice, mud and loose gravel. If you skid on ice, you may lose all directional control.
Page 115: Riding Up Hills
Riding Your ATV Riding Up Hills The ATV’s ability to safely climb hills largely depends on the rider’s skill and judgment. Begin by practicing on smooth, gentle slopes. As you gain experience, you’ll learn the hazards and your own limitations. You may then proceed to ride on more difficult terrain. However, you must be able to decide which hills or hazards might cause the ATV to overturn.
Page 116 Riding Your ATV Shift weight forward when climbing hills. • Always check the terrain carefully before you start up any hill. • Never climb hills with excessively slippery or loose surfaces. • To climb a hill, take a running start in an appropriate gear and speed for the conditions.
Page 117 Riding Your ATV Stalling the ATV and/or Rolling Backwards: If you incorrectly estimate climbing capability or terrain conditions, the ATV may not have enough power or traction to continue uphill. If this happens, the ATV can stall and/or roll backwards. WARNING WARNING Stalling, rolling backwards or improperly...
Page 118 Riding Your ATV What to do after the ATV has stalled or rolled backwards: If the hill is too steep or too slippery, or if you have any doubt whether you can safely walk the ATV back down the hill, leave the vehicle where it is and get help.
Page 119: Riding Down Hills
Riding Your ATV Riding Down Hills It’s usually advisable to descend hills with the ATV pointed straight downhill. Avoid angles that would cause the vehicle to lean sharply to one side. WARNING WARNING Going down a hill improperly could cause loss of control or cause the ATV to overturn.
Page 120: Crossing Or Turning On Hills Or Slopes
Riding Your ATV When you’ve selected a safe downhill path, shift into a lower gear, shift your weight back with your arms extended and braced against the handlebar, then go down slowly with the throttle closed. Use mainly the rear brake to control speed. Avoid using either the front brake or rear brake hard or abruptly when riding down hills.
Page 121 Riding Your ATV Crossing Hills or Slopes • To maintain balance and stability when riding across a slope, you need to shift weight toward the uphill side of the vehicle. To do this, move your body off the center of the seat and lean toward the uphill side.
Page 122: Riding Over Obstacles
Riding Your ATV Riding Over Obstacles Before operating in a new area, check for obstacles. Watch out for bumps, rain ruts, potholes, and other obstacles in the terrain. When you approach any obstacle, reduce your speed and be prepared to stop.
Page 123: Riding Through Water
Riding Your ATV Riding Through Water Your ATV is designed to travel through water up to approximately 10 inches (254 mm) deep. Before crossing a stream, make sure the water is not too deep or flowing too fast. WARNING WARNING The ATV tires have some ability to float.
Page 124 Riding Your ATV 5. After leaving the water, always test both the front and rear brakes. • Riding through water can make the brakes less effective than normal, and may reduce stopping ability. • If necessary, apply the brakes repeatedly until they dry out and operate normally.
Page 125: Parking
Parking 1. Look for level parking area. Make sure the ground surface is firm. 2. After bringing your ATV to a stop, hold the brakes while you shift into neutral. 3. Set the parking brake. 4. Turn the ignition switch to OFF (w). If it is necessary to start the engine when your ATV in gear and is stopped on a grade, rock the vehicle back and forth to allow shifting the transmission into neutral.
Page 126: Servicing Your Honda
You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good. For information about replacing fuses, see page 247. For information about the exhaust emission and noise requirements of the U.S.
Page 127 Servicing Your Honda Service Procedures Fluids & Filters Fuel ..................138 Engine Oil & Filter ..............141 Rear Final Gear Oil ..............155 Front Final Gear Oil (Except TRX420TE1/TM1) ......158 Coolant ..................160 Air Cleaner ................167 Engine Throttle ..................173 Clutch System (Except TRX420FA2) ..........
Page 128: The Importance Of Maintenance
Before You Service Your Honda The Importance of Maintenance A well-maintained ATV is essential for safe, economical, and trouble-free riding. It will also help reduce air pollution. Careful pre- ride inspections and good maintenance are especially important because your ATV is designed to be ridden over rough off-road terrain.
Page 129: Maintenance Safety
Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.
Page 130: Important Safety Precautions
Keep cigarettes, sparks, and flames away from all fuel-related parts. Remember that your Honda dealer knows your ATV best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement.
Page 131: Maintenance Schedule
Procedures for such items in this schedule are provided in an official Honda Service Manual available for purchase (page 274). If you do not feel capable of performing a given task or need assistance, remember that your Honda dealer knows your ATV best and is fully equipped to maintain and repair it.
Page 132 Should be serviced by your dealer, unless the owner has proper tools and service data and is mechanically qualified. Refer to the official Honda Service Manual (page 274). ** In the interest of safety, we recommend these items be serviced only by your dealer.
Page 133 RADIATOR COOLANT (NOTE 3) COOLING SYSTEM (NOTE 2) — * Should be serviced by your dealer, unless the owner has proper tools and service data and is mechanically qualified. Refer to the official Honda Service Manual (page 274). Servicing Your Honda...
Page 134 * Should be serviced by your dealer, unless the owner has proper tools and service data and is mechanically qualified. Refer to the official Honda Service Manual (page 274). ** In the interest of safety, we recommend these items be serviced only by your dealer.
Page 135: Maintenance Record
12 or 200 1,800 (3,000) or 18 or 300 2,400 (4,000) or 24 or 400 3,000 (5,000) or 30 or 500 3,600 (6,000) or 36 or 600 4,200 (7,000) or 42 or 700 4,800 (8,000) or 48 or 800 Servicing Your Honda...
Page 136: Maintenance Component Locations
Maintenance Component Service Preparations Locations TRX420TM1/FM1/FM2 front brake fluid reservoir P/R lever front brake lever reverse assist lever rear brake lever/ fuel fill cap throttle lever parking brake lever Servicing Your Honda...
Page 137 Maintenance Component Locations TRX420TE1/FE1/FA2 front brake fluid reservoir parking brake lock lever front brake lever rear brake lever/ fuel fill cap throttle lever parking brake lever Servicing Your Honda...
Page 138 (TRX420FA2) rear brake light engine oil filter front brake switch caliper rear brake pedal front final gear oil fill cap (Except TRX420TE1/TM1) front final gear oil drain bolt (Except TRX420TE1/TM1) Servicing Your Honda...
Page 139 (Except TRX420F engine oil fill cap/ dipstick rear brake spark plug (Except panel TRX420FA2) engine oil drain bolt spark arrester rear suspension spring pre-load adjuster rear final gear oil fill cap rear final gear oil drain bolt Servicing Your Honda...
Page 140: Tool Kit
(3) to fasten the tool kit and the gear change tool securely. An optional, larger tool kit may be available. Check with your dealer’s parts department. UNDER REAR FENDER COVER TRX420TM1/FM1/FM2 TRX420TE1/FE1 TRX420FA2 (1) tool kit (2) gear change tool (3) rubber band Servicing Your Honda...
Page 141: Owner's Manual Storage
To remove the rear fender cover, see page 136. Be careful not to flood this area when washing your ATV. REAR FENDER COVER UNDERSIDE (1) owner’s manual (4) fuse puller (2) rear fender cover (5) plastic document bag (3) air pressure gauge (6) rubber band Servicing Your Honda...
Page 142: Seat Removal
2. Slide the seat (2) back and lift it. Installation 1. Insert the front prongs (3) into the hooks (4) on the frame and press the studs (5) into the grommets (6). 2. Press down on the seat until locks. Servicing Your Honda...
Page 143: Tank Cover Assembly Removal
(3) tank cover assembly Removal 1. Remove the seat (page 133). 2. Remove the prongs (1) from the grommets (2). 3. Remove the tank cover assembly (3) by releasing the tabs A (4) and tabs B (5). Servicing Your Honda...
Page 144 LEFT SIDE (1) prongs (4) tabs A (2) grommets (5) tabs B (3) tank cover assembly Installation Install the parts in the reverse order of removal. Make sure that all prongs and tabs are installed securely in position. Servicing Your Honda...
Page 145: Rear Fender Cover Removal
3. Firmly pull the prongs (2) from their grommets (3). 4. Slide the rear fender cover (4) forward to disengage the tabs (5). 5. Remove the rear fender cover. Installation Install the parts in the reverse order of removal. Servicing Your Honda...
Page 146: Clip Removal
1. Pull up the center pin to release the lock. 2. Pull out the clip of the hole. Installation 1. Insert the clip into the hole. 2. Press down the center pin securely to lock the clip. Servicing Your Honda...
Page 147: Fuel
86 (or higher) Use only unleaded fuel in your Honda. If you ride your Honda in a country where leaded fuel might be available, take precautions to use only unleaded fuel. Your engine is designed to use any unleaded gasoline that has a pump octane number of 86 or higher.
Page 148 TRX420TM1: The tank should be refilled as soon as possible when the fuel warning indicator comes on. Refueling Procedure Refer to Safety Precautions on page 121. (1) fuel fill cap (2) bottom of the filler neck Servicing Your Honda...
Page 149 After refueling, turn the fuel fill cap clockwise securely. (California type) After refueling, turn the fuel fill cap clockwise until it clicks. If you replace the fuel fill cap, use a Honda Genuine replacement part or equivalent. NOTICE Do not allow spilled gasoline to pool on camouflage colored bodywork.
Page 150: Engine Oil & Filter
Change the engine oil as specified in the maintenance schedule on page 124. When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule. Servicing Your Honda...
Page 151 SAE 10W-30 JASO T 903 standard suggested oil Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil, or an equivalent motorcycle oil. Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving or resource conserving on the circular API service label.
Page 152 The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. (1) oil code (2) oil classification Servicing Your Honda...
Page 153 If the air temperature is below 10°C (50°F), let the engine idle for an additional 5 minutes (a total of 10 minutes). 3. Stop the engine and wait 2 – 3 minutes. 4. Remove the oil check lid (1). LEFT SIDE (1) oil check lid Servicing Your Honda...
Page 154 8. Reinstall the oil fill cap/dipstick. 9. Install the oil check lid. NOTICE Running the engine with an improper oil level can cause serious engine damage. LEFT SIDE (2) oil fill cap/dipstick (3) upper level mark (4) lower level mark Servicing Your Honda...
Page 155 The oil level should be between the upper level mark (3) and the lower level mark (4) on the dipstick. LEFT SIDE LEFT SIDE (2) dipstick (3) upper level mark (1) oil check lid (4) lower level mark Servicing Your Honda...
Page 156 8. Reinstall the oil fill cap and dipstick. 9. Install the tank cover assembly. 10. Install the seat. 11. Install the oil check lid. NOTICE Running the engine with an improper oil level can cause serious engine damage. RIGHT SIDE (5) oil fill cap Servicing Your Honda...
Page 157 Changing Engine Oil & Filter (TRX420TM1/FM1/FM2/TE1/FE1) Refer to Safety Precautions on page 121. Your ATV’s oil filter has very specific performance requirements. Use a new Honda Genuine oil filter specified for your model or a filter of equal quality. NOTICE Using the wrong oil filter may result in leaks or engine damage.
Page 158 (1) engine oil drain bolt Install a New Engine Oil Filter: Place shop towels under the oil filter cover because oil will flow out. 1. Remove the seat (page 133). 2. Remove the tank cover assembly (page 134). (cont’d) Servicing Your Honda...
Page 159 Then install a new oil filter. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter or a non- Honda filter which is not of equivalent quality may cause engine damage.
Page 160 6. Check that there are no oil leaks. 7. Install the tank cover assembly. 8. Install the seat. 9. Install the oil check lid. If a torque wrench is not used for installation, see your dealer as soon as possible to verify proper assembly. Servicing Your Honda...
Page 161 Changing Engine Oil & Filter (TRX420FA2) Refer to Safety Precautions on page 121. Your ATV’s oil filter has very specific performance requirements. Use a new Honda Genuine oil filter specified for your model or a filter of equal quality. NOTICE Using the wrong oil filter may result in leaks or engine damage.
Page 162 (page 226). 2. Apply engine oil to a new O-ring and install it to the oil filter cover. Then install a new oil filter. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model.
Page 163 6. Check that there are no oil leaks. 7. Install the tank cover assembly (page 134). 8. Install the seat. If a torque wrench is not used for installation, see your dealer as soon as possible to verify proper assembly. Servicing Your Honda...
Page 164: Rear Final Gear Oil
(weight) SAE 80W-90 suggested oil Honda shaft drive oil or equivalent Changing Oil Refer to Safety Precautions on page 121. Change the oil with the rear final gear at normal operating temperature to assure complete and rapid draining.
Page 165 4. After the oil has completely drained, reinstall the drain bolt with a new sealing washer and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m) 5. Remove the oil level check bolt (3) and sealing washer. Servicing Your Honda...
Page 166 9. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 226). NOTICE Improper disposal of drained fluids is harmful to the environment. REAR (3) oil level check bolt (4) oil level check hole Servicing Your Honda...
Page 167: Front Final Gear Oil (Except Trx420Te1/Tm1)
(weight) SAE 80W-90 suggested oil Honda shaft drive oil or equivalent Changing Oil Refer to Safety Precautions on page 121. Change the oil with the front final gear at normal operating temperature to assure complete and rapid draining.
Page 168 7. Coat a new O-ring with grease and install it into the fill cap groove and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m) FRONT (1) oil drain bolt (3) oil fill inspection hole (2) oil fill cap Servicing Your Honda...
Page 169: Coolant
Maintaining the coolant will allow the cooling system to work properly and prevent freezing, overheating, and corrosion. Coolant Recommendation Use Pro Honda HP Coolant or an equivalent high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines. Check the antifreeze container label.
Page 170 (1). It should be between the UPPER (2) and LOWER (3) level marks. If the reserve tank is empty, or if coolant loss is excessive, check for leaks and see your dealer for repair. (cont’d) Servicing Your Honda...
Page 171 4. Add coolant to the reserve tank as required to bring the coolant level to the UPPER level mark. FRONT (4) radiator cap lid (5) reserve tank cap 5. After adding coolant, install the parts in the reverse order of removal. Servicing Your Honda...
Page 172 Refer to Safety Precautions on page 121. Coolant should be replaced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 274). WARNING WARNING Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Page 173 4. Unhook the tab A (7) and tab B (8) on both of the left and right side. 5. Unhook the left side of the center radiator grill cover hook (9) and slide the left radiator grill cover. Servicing Your Honda...
Page 174 The pressured water can damage the radiator core. LEFT FRONT (1) reserve tank tube (6) clips (2) reserve tank (7) tab A (8) tab B (3) left radiator grill cover (9) center radiator grill cover (4) bolt hook (5) clip (cont’d) Servicing Your Honda...
Page 175 8. Wash the radiator core (12) and center radiator grill cover. LEFT FRONT (10) (11) (12) (10) center radiator (11) center radiator grill cover hook grill cover (12) radiator core 9. Install the removed parts in reverse order of removal. Servicing Your Honda...
Page 176: Air Cleaner
Your dealer can help you determine the correct service interval for your riding conditions. Your ATV’s air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. NOTICE Using the wrong air cleaner may result in premature engine wear.
Page 177 Air Cleaner Cleaning 1. Remove the seat (page 133). UNDER SEAT (1) retainer clips (2) air cleaner housing cover 2. Unlatch the retainer clips (1). 3. Remove the air cleaner housing cover (2). Servicing Your Honda...
Page 178 9. Allow the air cleaner to dry thoroughly before applying oil. A wet air cleaner will not fully absorb the oil. 10. Pour clean Pro Honda Foam Filter Oil or an equivalent (Canada: Honda Foam Filter Oil or an equivalent) over the entire surface of the air cleaner.
Page 179 15. Fasten the screw. 16. Reassemble by reversing the disassembly sequence. • Install the air cleaner housing cover and fit the cut out of the tab (8) at the end of the air cleaner. UNDER SEAT (8) tab Servicing Your Honda...
Page 180 Air Cleaner Dust Cover UNDER SEAT (1) dust cover (2) breather joint Do not push the dust cover (1) too far into the breather joint (2). If the dust cover is dirty, clean it. Servicing Your Honda...
Page 181 (3) air cleaner housing (2) clip 1. Remove the drain tube (1) by removing the clip (2) under the air cleaner housing (3). 2. Drain the deposits. 3. Reinstall the drain tube, securing it with the clip. Servicing Your Honda...
Page 182: Throttle
3. Turn the adjuster to obtain the correct freeplay. 4. Tighten the lock nut and reinstall the sleeve. 5. After adjustment, check for smooth operation of the throttle lever from fully closed to fully open in all steering positions. Servicing Your Honda...
Page 183 If the cable is kinked or chafed, have it replaced. 4. Check the throttle cable for tension or stress in all steering positions. 5. Lubricate the throttle cable with a commercially available cable lubricant to prevent premature wear and corrosion. Servicing Your Honda...
Page 184: Clutch System (Except Trx420Fa2)
8. Install the removed parts in reverse order of removal. If you cannot get proper adjustment, or the clutch does not work properly, the clutch friction discs may be worn. See your dealer or refer to official Honda Service Manual (page 274). Servicing Your Honda...
Page 185: Reverse Inhibitor System (Trx420Tm1/Fm1/Fm2)
After adjustment, tighten the lock nut securely. 4. Return the dust cover and rubber sleeve. Other Checks Check the reverse assist lever and cable for loose connections or other damage. If the cable is worn or kinked, have it replaced by your dealer. Servicing Your Honda...
Page 186: Spark Plug
If the electrodes and insulator tip appear unusually fouled or burned, we suggest that you contact your dealer. 6. Discard the spark plug if there is apparent wear or if the insulator is cracked or chipped. (cont’d) Servicing Your Honda...
Page 187 • If installing a new plug, tighten it twice to prevent loosening: a) First, tighten the plug: NGK: 3/4 turn after it seats. DENSO: 1/2 turn after it seats. b) Then loosen the plug. c) Next, tighten the plug again: 1/8 turn after it seats. Servicing Your Honda...
Page 188 If a plug is too tight, the threads may be damaged. 10. Connect the spark plug cap. Take care to avoid pinching any cables or wires. 11. Install the remaining parts in the reverse order of removal. Servicing Your Honda...
Page 189: Valves
For those who are mechanically proficient and have the proper tools, instructions on adjusting valve clearances are given in the official Honda Service Manual. Otherwise, the valves should be adjusted by your dealer. Servicing Your Honda...
Page 190: Spark Arrester
3. Start the engine and rev it up approximately twenty times while momentarily creating exhaust system back pressure by blocking the end of the muffler with a shop towel. 4. Stop the engine and allow the exhaust pipe to cool. 5. Reinstall the bolt securely. Servicing Your Honda...
Page 191: Suspension
Do not attempt to disassemble, service, or dispose of the damper; see your dealer. The instructions found in this owner’s manual are limited to adjustments of the shock assembly only. Servicing Your Honda...
Page 192 1 2 3 4 5 (1) spring pre-load adjuster (2) pin spanner The spring pre-load adjuster (1) has 5 positions for different load or riding conditions. Use a pin spanner (2) to adjust the shock spring pre-load. Servicing Your Honda...
Page 193 Make sure that both front shock absorbers are adjusted to the same position. Always adjust the shock absorber position in sequence (1-2-3-4-5 or 5-4-3-2-1). Attempting to adjust directly from 1 to 5 or 5 to 1 may damage the shock absorber. Servicing Your Honda...
Page 194: Brakes
Honda DOT 4 Brake Fluid The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid of equal quality and performance. Use fresh brake fluid from a sealed container. Be sure to read the label before opening the sealed container.
Page 195 If it comes in contact with your eyes, wash them out with clean water and immediately call a doctor. If it comes in contact with your skin, wash with clean water and, if necessary, call a doctor. RIGHT HANDLEBAR (1) LOWER level mark Servicing Your Honda...
Page 196 Other Inspections • Make sure there are no fluid leaks. • Check for deterioration or cracks in the hoses and fittings. If the hoses are worn or cracked, have them replaced by your dealer. Servicing Your Honda...
Page 197 Check the wear indicator (1). If the wear indicator aligns with the edge of the reference mark (2), both pads must be replaced, see your dealer for this replacement. Always inspect both pads in both the right and left front brake calipers. Servicing Your Honda...
Page 198 Measure the distance the rear brake pedal (1) moves before the brake starts to take hold. Freeplay, measurement at the tip of the end of the pedal, should be: 9/16 – 13/16 in (15 – 20 mm) If necessary, adjust to the specified range. Servicing Your Honda...
Page 199 (3). 2. Adjust the freeplay of the rear brake pedal. Push the brake arm (4), then check the clearance between the brake arm and the brake arm pin. (4) brake arm Servicing Your Honda...
Page 200 Freeplay (measurement at the tip of the end of the brake lever) should be: 9/16 – 13/16 in (15 – 20 mm) If necessary, adjust to the specified range. Servicing Your Honda...
Page 201 (3). 2. Adjust the freeplay of the rear brake lever/parking brake lever. Push the brake arm (4) then check the clearance between the brake arm and the brake arm pin. (4) brake arm Servicing Your Honda...
Page 202 • Check that the rear brake lever and brake pedal assemblies are positioned properly and the securing bolts are tight. • Make sure that the brake cables, brake arm, spring, parking brake lock lever, and fasteners are in good condition. Servicing Your Honda...
Page 203 (1) on the brake arm (2). 2. Replace the brake shoe if the arrow aligns with the reference mark (3) on the brake panel upon full application of the brake. If replacement is necessary, see your dealer. Servicing Your Honda...
Page 204 (2). Turn the nut in direction (A) if the switch operates too late and in direction (B) if the switch operates too soon. RIGHT REAR (1) rear brake light switch (2) adjusting nut Servicing Your Honda...
Page 205 If any water drains, the brake seals must be replaced by your dealer as soon as possible. 3. Install the rear brake drain bolt with a new sealing washer and tighten it to the specified torque: 9 lbf·ft (12 N·m, 1.2 kgf·m) Servicing Your Honda...
Page 206: Tires
Always select your riding area with care. The following pages give detailed information on how and when to check your air pressure, how to inspect your tires for wear and damage, and our recommendations for tire repair and replacement. Servicing Your Honda...
Page 207 Overinflated tires make your ATV ride harshly, are more prone to damage from surface hazards, and wear unevenly. Make sure the air valve caps are secure. If necessary, install new caps. Servicing Your Honda...
Page 208 Be sure to check tire pressure at the riding site, since changes in altitude can affect air pressure. The recommended “cold” tire pressures are: FRONT REAR RECOMMENDED 4.4 psi (30 kPa) 4.4 psi (30 kPa) PRESSURE Servicing Your Honda...
Page 209 • Cuts, slits, or cracks in the tires. Replace the tire if you can see fabric or cord. • Nails or other foreign objects embedded in the side of the tire or tread. • Excessive tread wear. Servicing Your Honda...
Page 210 (2). For best performance, you should replace a tire before the tread depth at the center reaches the following limits: front 3/16 in (4 mm) rear 3/16 in (4 mm) Servicing Your Honda...
Page 211 If you choose to have a tire repaired, be sure the repair work is performed by a professional. If you have a tire professionally repaired at a non-Honda facility, we recommend that you have the work checked by your dealer.
Page 212 When you replace a tire, remember: Have the tire replaced by your dealer if possible. If you have a tire professionally replaced at a non-Honda facility, we recommended that you have the work checked by your dealer. Servicing Your Honda...
Page 213: Guards
Maintenance Schedule. Have the engine guard and skid plate replaced if they are cracked or damaged. If the guard and plate bolts are loose, tighten them securely. Servicing Your Honda...
Page 214 (2) front driveshaft guards (1) front boot guards Check the front boot guards (1) and front driveshaft guards (2) for cracks, damage, or looseness. Tighten any loose fasteners. Replace the front boot guards and front driveshaft guards as required. Servicing Your Honda...
Page 215: Drivetrain Boots
Refer to Safety Precautions on page 121. (1) propeller shaft boots (Except TRX420TE1/TM1) (2) yoke joint boot Check the propeller shaft boots (1) and yoke joint boot (2) for damage or leaking grease. If necessary, have your dealer replace them. Servicing Your Honda...
Page 216 Drivetrain Boots Front Driveshaft Boots (Except TRX420TE1/TM1) Refer to Safety Precautions on page 121. FRONT (1) driveshaft boots Check the driveshaft boots (1) for cuts, damage, or leaking grease. If necessary, have your dealer replace them. Servicing Your Honda...
Page 217: Battery
If you plan to store your ATV, see Battery Storage, page 209. If your battery seems weak and/or is leaking electrolyte (causing slow starting or other electrical problems), see your dealer. WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling. Servicing Your Honda...
Page 218 A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance. Servicing Your Honda...
Page 219 3. Remove the rear fender cover (page 136). 4. Release the rings and remove the rubber band (1). 5. Disconnect the negative (–) terminal lead (2) from the battery (3) first, then disconnect the positive (+) terminal lead (4). Servicing Your Honda...
Page 220 Be sure to connect the positive (+) terminal first, then the negative (–) terminal. 4. Make sure all bolts and other fasteners are secure. 5. Install the removed parts in reverse order of removal. (5) battery rubber Servicing Your Honda...
Page 221 We recommend using a charger (1) designed specifically for your Honda, which can be purchased from your dealer. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s...
Page 222: Appearance Care
Appearance Care Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning also identifies you as an owner who values their ATV. A clean ATV is also easier to inspect and service. General Recommendations Refer to Safety Precautions on page 121.
Page 223 Any condensation inside the headlight should dissipate after a few minutes of running the engine with the headlight(s) on. However, if you see a large amount of water or ice accumulated inside the lens(es), have your vehicle inspected by your dealer. Servicing Your Honda...
Page 224 If necessary, rub with a sponge. Rinse and dry. Apply a spray cleaner/polish and wipe with a non-abrasive cloth. Dull, corroded chrome Apply a high quality chrome/ or aluminum. aluminum polish and wipe with a non-abrasive cloth. Servicing Your Honda...
Page 225 Dry with chamois or a soft towel. If necessary, remove heat stains by using a commercially available fine texture compound. Then, rinse by the same manner as removing mud or dust. Servicing Your Honda...
Page 226: Tips
Tips Here’s helpful advice on how to prepare for an off-road adventure, Tips how to transport and store your Honda, and how to be an environmentally responsible ATV owner. Preparing for a Ride ..............218 What to Take to the Riding Area..........218 What to Take on the Trail ............
Page 227: Preparing For A Ride
Preparing for a Ride A safe and enjoyable ride begins with good planning and preparation. Always ride with at least one other person in case you have trouble, and let someone know where you’re going and when you expect to return. Before riding in an unfamiliar area, find out in advance if you need special permits, get maps so you can study the terrain, and talk to other riders who know the area.
Page 228: What To Take On The Trail
Preparing for a Ride What to Take on the Trail What you take with you during a ride depends on the kind of terrain, how long you expect to ride, how far you might go from your base camp or help, and how experienced you or your companions are in making repairs.
Page 229: Transporting Your Honda
Transporting Your Honda Do not tow your ATV behind a car or other vehicle. When you transport your ATV, we recommend that you carry the vehicle in its normal operating position (on all four wheels). Do not incline the vehicle upright on its rear end. This can damage the vehicle, and leaking gasoline could be a hazard.
Page 230 Transporting Your Honda 2. Secure the vehicle with tie-down straps in the areas shown. • Suitable tie-down straps are available from your dealer. • Ordinary rope is not recommended because it can stretch under load. • Using tie-down straps in any other areas can damage your ATV.
Page 231: Storing Your Honda
That way, needed repairs won’t be forgotten and it will be easier to get your ATV running again. For more information about storage, refer to the Honda Winter Storage Guide, available from your dealer (USA only). We suggest you perform the following procedures to keep your ATV in top condition.
Page 232: Preparation For Storage
Storing Your Honda Preparation for Storage Refer to Safety Precautions on page 121. 1. Change the engine oil and filter (page 148, 152). 2. Make sure the cooling system is filled with a 50/50% antifreeze solution (page 160). 3. Fill the fuel tank. Make sure the fuel fill cap is properly installed.
Page 233 Storing Your Honda 5. Remove the battery and charge it fully. Store it in an area protected from freezing temperatures and direct sunlight. Slow charge the battery (page 212) once a month. WARNING WARNING The battery gives off explosive hydrogen gas during normal operation.
Page 234: Removal From Storage
Storing Your Honda Removal from Storage Refer to Safety Precautions on page 121. 1. Uncover and clean your ATV. 2. If your ATV has been stored for more than four months — change the engine oil (page 148, 152). 3. If your ATV has been stored for more than two months — ask your dealer to drain and replace the fuel.
Page 235: You & The Environment
You & the Environment Owning and riding an ATV can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve the sport of off-road riding. Following are tips on how you can be an environmentally responsible ATV owner.
Page 236: Taking Care Of The Unexpected
Taking Care of the Unexpected With all the challenges you can encounter off-road, there’s a chance Taking Care of the Unexpected that sometime something may go wrong. This section gives practical advice to help you deal with a wide range of problems. Take time to read this section before you ride.
Page 237: General Guidelines
Taking Care of the Unexpected General Guidelines Keeping your ATV well-maintained is the best way to reduce the possibility of having a problem while riding. However, problems can arise even with well-maintained machines. Remember to take along your owner’s manual, the tool kit that came with your ATV, and any other items (such as tire repair supplies and additional tools) that might help you solve a problem on your own.
Page 238 Taking Care of the Unexpected Should you ever have a problem while riding, please follow these guidelines: • Always put personal safety first. • Take time to assess the situation and your options before deciding what to do. • If the problem is relatively minor and you have the tools, supplies, and skills to make a temporary repair, be sure to have permanent repairs made as soon as possible.
Page 239: If Your Engine Quits Or Won't Start
If Your Engine Quits or Won’t Start Proper operation and maintenance can prevent starting and engine performance problems. In many cases, the cause of the problem may be a simple operational oversight. If you have a problem starting the engine — or experience poor engine performance —...
Page 240 If Your Engine Quits or Won’t Start SYMPTOM: Starter motor doesn’t operate. POSSIBLE CAUSE WHAT TO DO ignition switch OFF Turn the ignition switch ON. engine stop switch OFF Slide the engine stop switch to RUN. transmission not in Shift into neutral. (Except neutral TRX420FA2) Shift into neutral or squeeze...
Page 241 If Your Engine Quits or Won’t Start SYMPTOM: Engine starts, but runs poorly. POSSIBLE CAUSE WHAT TO DO high coolant Check the coolant temperature temperature gauge (Except TRX420TM1) and high coolant temperature indicator. Refer If the High Coolant Temperature Indicator Lights page 245.
Page 242: If The Shift Switches Do Not Function (Trx420Te1/Fe1)
If the Shift Switches Do Not Function (TRX420TE1/FE1) If one or both shift switches do not function, see the following instructions. If proper function cannot be restored, see your dealer. When the engine is running: 1. Stop the ATV. 2. Turn the ignition switch to the “OFF” (w) position. 3.
Page 243: If The Transmission Is Not Functioning Properly (Trx420Fa2)
If the Transmission Is Not Functioning Properly (TRX420FA2) When the transmission is not shifting properly, the gear position indicator will show “–” and blink. See your dealer to check and restore the transmission. If the gear position indicator shows “–” and blink or, one or both shift switches do not function while riding, perform the following: 1.
Page 244 If the Transmission Is Not Functioning Properly (TRX420FA2) If the ATV does not move, even though “–” is not blinking in the gear position indicator: It is possible the transmission is locked. Use the following procedure to unlock the transmission. 1.
Page 245 If the Transmission Is Not Functioning Properly (TRX420FA2) 6. Turn the emergency valve (4) by the screwdriver using the inside of the front fender hole (5) all the way in. With the engine running, your ATV will move forward slowly at idle. 7.
Page 246: Emergency Gear Selection & Operation (Trx420Te1/Fe1)
Emergency Gear Selection & Operation (TRX420TE1/FE1) If the shift switches do not operate, use the following procedure to manually select a gear so you may drive the vehicle to a location where it can be loaded and transported to your dealer. 1.
Page 247 Emergency Gear Selection & Operation (TRX420TE1/FE1) How to Shift Gears Manually: (1) gear change tool (A) downshift (counterclockwise) (B) upshift (clockwise) • With the ATV unoccupied, align the hexagonal hole of the gear change tool (1) with the hexagonal end of the secondary spindle which is located on the front crankcase.
Page 248: Emergency Gear Selection & Operation (Trx420Fa2)
Emergency Gear Selection & Operation (TRX420FA2) If the shift switches do not operate, use the following procedure to manually select a gear so you may drive the vehicle to a location where it can be loaded and transported to your dealer. 1.
Page 249 Emergency Gear Selection & Operation (TRX420FA2) How to Shift Gears Manually: (1) gear change tool (A) downshift (counterclockwise) (B) upshift (clockwise) • With the ATV unoccupied, align the hexagonal hole of the gear change tool (1) with the hexagonal end of the secondary spindle which is located on the front crankcase.
Page 250: If You Have A Flat Tire
If You Have a Flat Tire How you handle a flat tire on the trail depends on how serious the tire damage is, and what tools and supplies you have with you. If you have a slow leak or a minor puncture, use the plug method to make a temporary repair.
Page 251 If You Have a Flat Tire If you are unable to repair a flat tire on the trail, you will need to send for help. We strongly recommend that you do not try to ride with a flat tire. The ATV will be hard to handle, and if the tire comes off the rim, it may lock up the wheel and cause you to crash.
Page 252 If You Have a Flat Tire Emergency Wheel Removal/Installation Refer to Safety Precautions on page 121. (1) wheel nuts (2) wheel rim Removal 1. Park your ATV on a firm, level surface. 2. Loosen — but do not remove — the wheel nuts (1). 3.
Page 253 If You Have a Flat Tire Installation 1. Position the wheel. 2. Position the wheel nuts so that the tapered sides face the wheel rim (2). 3. Hand-tighten the wheel nuts on the wheel, then lower the ATV to the ground before tightening the nuts in a crisscross (rather than circular) pattern to the specified torque: 47 lbf·ft (64 N·m, 6.5 kgf·m) If a torque wrench was not used for installation, see your dealer as...
Page 254: If The High Coolant Temperature Indicator Lights
If the High Coolant Temperature Indicator Lights Normally, the high coolant temperature indicator will only light momentarily when you turn the ignition to ON (q). High coolant temperature may be caused by restriction of air flow to the radiator (such as mud caked on the radiator), extended idling, an oil leak, a coolant leak, a low oil level, a low coolant level, or extended operation under adverse conditions.
Page 255 If the High Coolant Temperature Indicator Lights • If the reserve tank is low or empty, don’t ride without adding coolant (page 161). After adding coolant, turn the engine on and check the coolant temperature gauge (Except TRX420TM1) and high coolant temperature indicator. If the indicator doesn’t turn off, do not ride.
Page 256: If A Fuse Blows
If a Fuse Blows All of the electrical circuits on your ATV have fuses to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your ATV stops working, the first thing you should check for is a blown fuse (1).
Page 257 If a Fuse Blows Main and Shift Motor Fuses (TRX420TE1/FE1/FA2) Access 1. To prevent an accidental short circuit, turn the ignition switch to OFF (w) before checking or replacing the fuses. 2. Remove the seat (page 133). 3. Remove the rear fender cover (page 136). 4.
Page 258 If a Fuse Blows Circuit Fuses Access TRX420TM1/FM1/FM2 TRX420TE1/FE1/FA2 (7) circuit fuses (8) spare fuses 6. To check or replace a circuit fuse (7), pull the old fuse out of its retaining clips with the fuse puller on the underside of the rear fender cover (page 132).
Page 259 If a Fuse Blows EPS (Electric Power Steering) Fuse Access (TRX420FM2/FA2) 1. Turn the ignition switch to OFF (w) before checking the fuse. 2. Remove the seat (page 133). 3. Remove the rear fender cover (page 136). 4. To access the EPS fuse (1), remove the EPS fuse box cover (2). If the EPS fuse is blown, see your dealer for this service.
Page 260 If a Fuse Blows If you do not have a spare fuse and you cannot ride the ATV without fixing the problem, take a fuse of the same rating or a lower rating from one of the other circuits that you can do without temporarily. If you replace a blown fuse with a spare fuse that has a lower rating, replace the fuse with the correct rating as soon as you can.
Page 261: If You Crash
If You Crash Personal safety is your first priority after a crash. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. If you cannot ride safely, send someone for help.
Page 262: If You Lose Your Key
If you lose your key and aren’t carrying a duplicate, either get your spare or have one made. If you don’t know your key number, call the dealer where you purchased your Honda ATV. They may have it listed in their records. If they don’t, transport your ATV to them or the nearest dealer.
Page 263: If The Battery Is Low (Or Dead)
If the Battery Is Low (or Dead) Jump starting is not recommended, especially if you use an automobile battery. The greater amperage of an automobile battery when the car engine is running can damage your ATV’s electrical system. Bump starting is also not recommended. If you can’t charge the battery or it appears unable to hold a charge, contact your dealer.
Page 264: If A Component Fails
If a Component Fails The brake levers or pedal, control cables, and other components can be damaged as you ride in dense brush or over rocky terrain. Making a trailside repair depends on how serious the damage is and what tools and supplies you have with you.
Page 265 This page intentionally left blank. Taking Care of the Unexpected...
Page 266: Technical Information
Technical Information This section contains dimensions, capacities, and other technical Technical Information data, plus information on government requirements and how to break-in your ATV. Vehicle Identification ..............258 Specifications ................260 Break-in Guidelines..............266 Emission Control Systems ............267 Oxygenated Fuels ..............271 Technical Information...
Page 267: Vehicle Identification
Vehicle Identification Serial Numbers The VIN and engine serial number may be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual. The VIN (1) is stamped on the front of the frame. FRONT (1) VIN The engine number (2) is stamped on the upper side of the rear...
Page 268 Vehicle Identification Color Label & Code The color label (1) is attached on the left side of the frame. The color code is helpful when ordering replacement parts. You may record the color code in the Quick Reference section at the rear of this manual.
Page 269: Specifications
API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil, or an equivalent motorcycle oil Technical Information...
Page 270 Specifications Fuel & Lubricants (cont’d) cooling system Pro Honda HP Coolant or an recommendation equivalent high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines cooling system 1.7 US qt (1.6 ℓ) capacity Capacities...
Page 271 Specifications Power Transmission (TRX420TE1/TM1/FE1/FM1/FM2) primary reduction 2.103 secondary reduction 1.818 final reduction front (Except TRX420TE1/ 3.231 TM1) rear 3.154 transmission ratio 3.857 2.235 1.571 1.178 0.848 reverse 4.831 final drive shaft Power Transmission (TRX420FA2) primary reduction 2.680 secondary reduction 1.480 final reduction front 3.231...
Page 272 Specifications Electrical battery YTX14-BS (Except TRX420FM1 with recoil starter/TRX420FA2) 12 V-12 Ah (10HR) GYZ16H (TRX420FM1 with recoil starter/TRX420FA2) 12 V-16 Ah (10HR) generator TRX420TE1/TM1/FE1/FM1/FM2 0.416 kW/5,000 rpm TRX420FA2 0.45 kW/5,000 rpm Lights headlight 12 V 35/35 W × 2 brake/tail light neutral indicator 12 V 1.7 W ......TRX420TM1 LED .....Except TRX420TM1...
Page 273 Specifications Fuses main 1 30 A main 2 10 A shift motor 30 A (TRX420TE1/FE1/ FA2) other TRX420TM1/FM1/FM2 20 A × 3, 10 A TRX420TE1/FE1/FA2 20 A × 2, 10 A EPS (Electric 40 A Power Steering) fuse (TRX420FM2/ FA2) Technical Information...
Page 274 Specifications Torque Specification engine oil drain 18 lbf·ft (25 N·m, 2.5 kgf·m) bolt engine oil filter TRX420TE1/TM1/FE1/FM1/FM2 cover bolts 7 lbf·ft (10 N·m, 1.0 kgf·m) TRX420FA2 9 lbf·ft (12 N·m, 1.2 kgf·m) rear final gear oil 9 lbf·ft (12 N·m, 1.2 kgf·m) drain bolt rear final gear oil 9 lbf·ft (12 N·m, 1.2 kgf·m)
Page 275: Break-In Guidelines
Break-in Guidelines Help assure your ATV’s future reliability and performance by paying extra attention to how you ride during the first operating day or 15 miles (25 km). During this period, avoid full-throttle starts, rapid acceleration, and constant rpm operation. Technical Information...
Page 276: Emission Control Systems
Emission Control Systems Exhaust Emission Requirements The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment Climate Change Canada (ECCC) require that your ATV comply with applicable exhaust emissions standards during its useful life, when operated and maintained according to the instructions provided.
Page 277 Carbon monoxide does not react in the same way, but it is toxic. Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons. Exhaust Emission Control System The exhaust emission control system includes a PGM-FI system and oxygen sensor.
Page 278 If you modify your engine for use in sanctioned competition events, you must deface or destroy the emission control information label. If you loan, sell, or give your competition modified Honda ATV to someone else, according to applicable law, you must inform the new owner/operator in writing that the vehicle is to be used for competition only.
Page 279 Emission Control Systems Noise Emission Control System TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED: State laws prohibit, or Canadian provincial laws may prohibit, the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in...
Page 280: Oxygenated Fuels
Oxygenated Fuels Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.
Page 281 Oxygenated Fuels Do not use gasoline containing METHANOL (methyl alcohol). If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline. Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates mentioned above are not covered under warranty.
Page 282: Consumer Information
Consumer Information This section contains information on your warranty and how to get Consumer Information an official Honda service manual. Authorized Manuals ..............274 Warranty Coverage ..............275 Warranty Service ..............276 Contacting Honda ..............277 Your Honda Dealer ..............279 Reporting Safety Defects (Canada only) ........
Page 283: Authorized Manuals
Authorized Manuals The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order authorized manuals.) Also available but not necessary to service your model is the Honda...
Page 284: Warranty Coverage
There are responsibilities, restrictions, and exclusions which apply to these warranties. Please read the Warranties Booklet given to you by your Honda dealer at the time of purchase. Be sure to keep your Honda owner’s card with your Warranties Booklet.
Page 285: Warranty Service
Warranty Service Please remember that recommended maintenance interval servicing is not included in your warranty coverage. Additionally, your warranty does not apply to the normal wear of items (such as brakes, tires, etc.). If you believe you have a problem with your ATV, call the service department of your dealer.
Page 286: Contacting Honda
Contacting Honda Your owner’s manual was written to cover most of the questions you might ask about your Honda. Any questions not answered in the owner’s manual can be answered by your dealer. If your dealer doesn’t have the answer right away, they will get it for you.
Page 287 Contacting Honda Canada: Honda Canada Inc., Customer Relations Dept, 180 Honda Boulevard, Markham, Ontario L6C 0H9, telephone: (888) 946-6329, facsimile: (877) 939-0909, E-mail: honda_cr@ch.honda.com. Please include the following information in your letter: • name, address, and telephone number • product model, year, and VIN •...
Page 288: Your Honda Dealer
Your Honda Dealer Once you purchase your new Honda, get familiar with the organization of your Honda dealer so you can utilize the full range of services available. The service department is there to perform regular maintenance and unexpected repairs. It has the latest available service information from Honda.
Page 289: Reporting Safety Defects (Canada Only)
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform Honda Canada Inc. and you may also inform Transport Canada. If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may lead to a recall and remedy campaign.
Page 290: Index
................171 filter ..................167 housing drain tube ..............172 air pressure, gauge ..................132 tire ..................198 American Honda, contacting ............277 apparel, protective ..............56 appearance care ...............213 authorized manuals ..............274 bank angle sensor ignition cut-off system ........81 battery ..................208 brake light switch adjustment ...........195 brakes, cables ..................193...
Page 291 Index button, mode ................15, 20 capacity, fuel ................139 care, appearance ..............213 cargo, loading and operational guidelines ..........67 weight limit ................66 cleaning, appearance care ............213 climbing hills ................106 clip ...................137 clutch system ................175 color label ................259 compartment, owner’s manual ..............132 storage ..................53 tool kit ..................131 component fails ................255 consumer information ..............273...
Page 292 Index drivetrain boots ................206 emission control systems ............267 engine, flooded ...................81 guards ...................204 number .................258 oil ..................141 pinging ..................138 starting ..................78 stop switch ................37 stopping ..................83 won’t start ................230 environment ................226 EPS (Electric Power Steering) ............54 exhaust system, cleaning ..................62 purging .................181 final gear oil, front ..................158...
Page 293 .................38 high coolant temperature indicator .......15, 18, 245 hills, crossing or turning on slopes ..........111 riding down hills ..............110 riding up hills .................106 stopping on hills ..............108 Honda service manual ..............274 Honda, contacting ................277 dealer ..................279 hour meter .................32 Index...
Page 294 Index identification, vehicle ..............258 ignition switch ................35 indicators, 4WD indicator .............15, 19, 24 fuel warning indicator ............15, 18 gear position indicator .............25 high coolant temperature indicator ......15, 18, 245 maintenance minder indicator ..........33 neutral indicator ..............15, 18 PGM-FI indicator ..............18 PS (Electric Power Steering) indicator ........18 reverse indicator ..............18 inspection, pre-ride ..............61...
Page 295 Index lubrication, engine oil ................141 front final gear oil ..............158 rear final gear oil ..............155 maintenance, component locations .............127 hour meter ................33 importance ................119 minder indicator ..............33 precautions ................121 record ...................126 safety ..................120 schedule ................122 tripmeter .................33 manual, service .................274 maximum weight limit ..............66 mode button ................15, 20 modifications ................69...
Page 296 Index oil, engine ...................141 front final gear ..............158 rear final gear ................155 operation component locations ..........11 owner’s manual storage ............132 oxygenated fuels ..............271 parking ..................116 parking brake lever ..............47 passengers, no carrying ..............59 pavement, no riding on ..............73 pinging, engine ................138 plug, spark ................177 pre-ride inspection ..............61 problems, unexpected ..............228...
Page 297 Index reverse, assist cable ................176 assist lever ................176 gear, shifting into ..............96, 98 indicator ................15, 18 riding in ................96, 98 switch ..................43 rider training ................58 riding, basic operation ................71 clothing ...................56 over obstacles ................113 precautions ................73 preparing for .................218 safety ..................2 safety precautions ..............73 through water ...............114 safety,...
Page 298 Index skid plate ..................204 skidding or sliding ..............105 spark arrester ................181 spark knock ................138 spark plug ................177 specifications ................260 speedometer ................19 stalled engine ................82 stalling on a hill ................108 start button ................37 starting, engine ..................78 troubleshooting ..............230 stop switch, engine ..............37 stopping engine .................83 storage, ATV ..................222...
Page 299 Index throttle, cable ................173, 174 lever ................40, 173, 174 tires, air pressure ................198 flat ..................241 repairing ................202 replacing ................203 tread conditions ............200, 201 tool kit ..................131 trailer hitch .................50 trailer towing, operational guidelines .............67 weight limits ................66 training, rider ................58 transporting your ATV ..............220 tripmeter ..................29 trouble, unexpected ..............227...
Page 300 Index warning labels ................5 warranty, coverage ................275 extended ................276 service ...................276 washing your ATV ..............214 water, draining from brakes .............196 riding through ...............114 weight limit ................66 wheel removal ................243 Index...
Page 301: Quick Reference
Quick Reference The following is a brief, but important collection of information you Quick Reference need to know about your Honda. You’ll also find space to record important notes. How To Avoid Costly Repairs The engine of your Honda can be the most expensive component to repair.
Page 302 Quick Reference Engine No. Color Label Owner’s Name Address City/State Phone Dealer’s Name Address City/State Phone Service Mgr. Quick Reference...
Page 303 API Service Classification SJ or higher Capacity except oils labeled as energy conserving or resource conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil or equivalent TRX420TE1/TM1/FE1/FM1/FM2: after draining: 2.7 US qt (2.6 ℓ) after draining &...
Page 304 Spark Plugs standard: BKR5E-11 (NGK) or K16PR-U11 (DENSO) Coolant ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50 solution with Pro Honda HP Coolant or an equivalent distilled water Fuses main 1: 30 A main 2: 10 A shift motor...
Page 305 Quick Reference These symbols are used in Controls & Features section: SYMBOL COMPONENT SEE PAGE ON — ignition switch OFF — ignition switch 2WD/4WD select lever START button RUN — engine stop switch OFF — engine stop switch ON — headlight switch OFF —...
Page 306 California Proposition 65 Warning WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 307 - pavement may seriously affect handling and control LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS. 31HR3700 © 2023 Honda Motor Co., Ltd. 00X31-HR3-7000 Printed in the U.S.A. All Rights Reserved...
